Вертикальный токарный станок с ЧПУ
- Категория: Токарный станок с ЧПУ >>>
- Поставщик: Shanghai,Huantu,Technical,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.65 $* | 0.6 $* |
| Aug-17-2025 | 0.46 $* | 0.72 $* |
| Jul-17-2025 | 0.3 $* | 0.42 $* |
| Jun-17-2025 | 0.45 $* | 0.30 $* |
| May-17-2025 | 0.83 $* | 0.70 $* |
| Apr-17-2025 | 0.83 $* | 0.51 $* |
| Mar-17-2025 | 0.29 $* | 0.16 $* |
| Feb-17-2025 | 0.53 $* | 0.51 $* |
| Jan-17-2025 | 0.88 $* | 0.93 $* |
Характеристики
main parameter

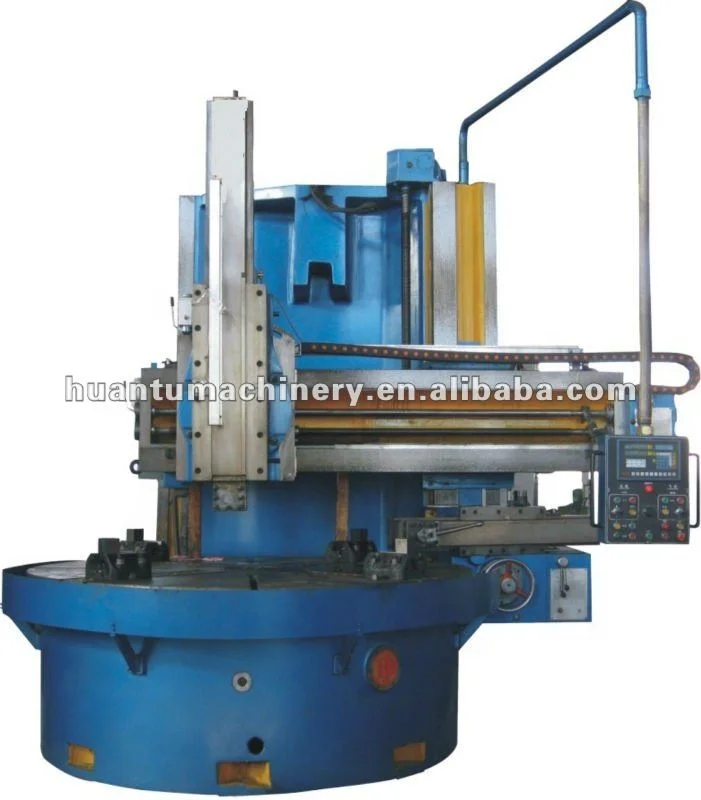

C5116 conventional vertical lathe C5116 conventional vertical lathe conventional vertical lathe
| Parameter | Unit | C5116 | C5131 |
| Max. turning diameter of vertical tool post | mm | 1600 | 3150 |
| Working table diameter | mm | 1400 | 2500 |
| Max. height of work-piece | mm | 1000 | 1400 |
| Max. weight of work-piece | t | 5 | 25 |
| Working table range of rotation speed | r/min | 5-160 | 2-62 |
| Working table step of rotation speed | step | 16 | 16 |
| Horizontal travel of vertical tool post | mm | 915 | 1610 |
| Crossbeam travel | mm | 850 | 1350 |
| Power of main motor | kw | 30 | 45 |
| Weight of machine(approx.) | t | 12.1 | 30 |
Descriptions

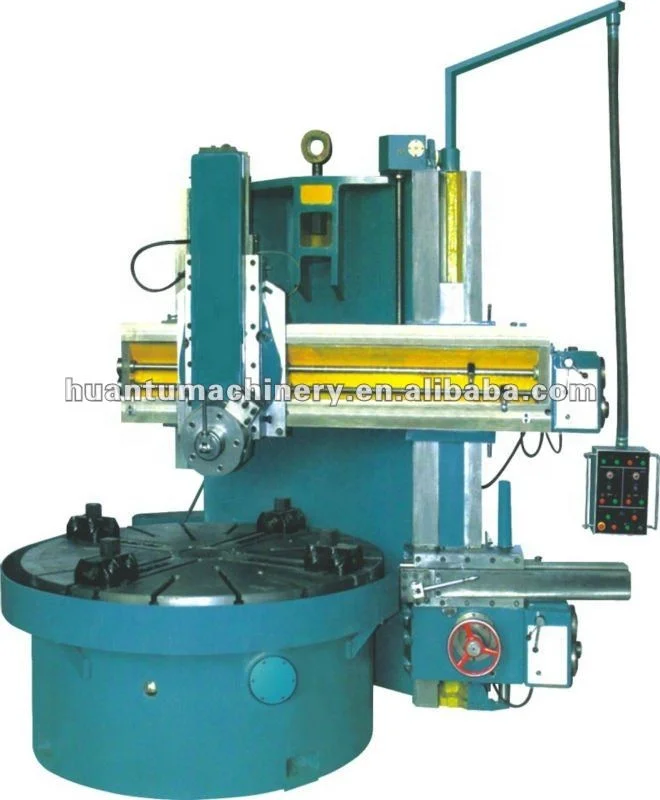

C5116 conventional vertical lathe C5116 conventional vertical lathe conventional vertical lathe
| listing Description |
| vertical lathe machine has CE & ISO9001 |
| hardness reaches HRC45 |
| hydrostatic guideway |
| centralized lubrication |
| heat treatment |
usage range
C5116 conventional vertical lathe C5116 conventional vertical lathe conventional vertical lathe
a. Turning the internal and external cylindrical surface and plane
b. Turning internal and external conical surface
c. Grooving
d. Head face
e. Severance
Advantages
a Working table adopts hydrostatic guide way.
b.The spindle is to use model NN30(Grade D)bearing and able to turn precisely.
c.Gear case is to use 40Cr gear wheel of gear grinding,which has high precision
C5116 conventional vertical lathe conventional vertical lathe conventional vertical lathe
and little noise
d.Plastic coated guide ways are wearable
e.Centralized lubricating oil supplying is convenient
f. Castings of lathe are to use lost foam foundry(short for LFF)technique.Castings
are wearable with good quality and dealt by aging
Product certificate
C5116 conventional vertical lathe conventional vertical lathe conventional vertical lathe a.European CE certificate
b. ISO9001:2008
