CG220201 панель управления кондиционированием воздуха для строительных автомобилей и
- Категория: >>>
- Поставщик: Zhengzhou,Newbase,Auto,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.79 $* | 0.94 $* |
| Aug-15-2025 | 0.81 $* | 0.59 $* |
| Jul-15-2025 | 0.4 $* | 0.3 $* |
| Jun-15-2025 | 0.97 $* | 0.24 $* |
| May-15-2025 | 0.60 $* | 0.74 $* |
| Apr-15-2025 | 0.94 $* | 0.73 $* |
| Mar-15-2025 | 0.82 $* | 0.33 $* |
| Feb-15-2025 | 0.18 $* | 0.62 $* |
| Jan-15-2025 | 0.37 $* | 0.73 $* |
Характеристики

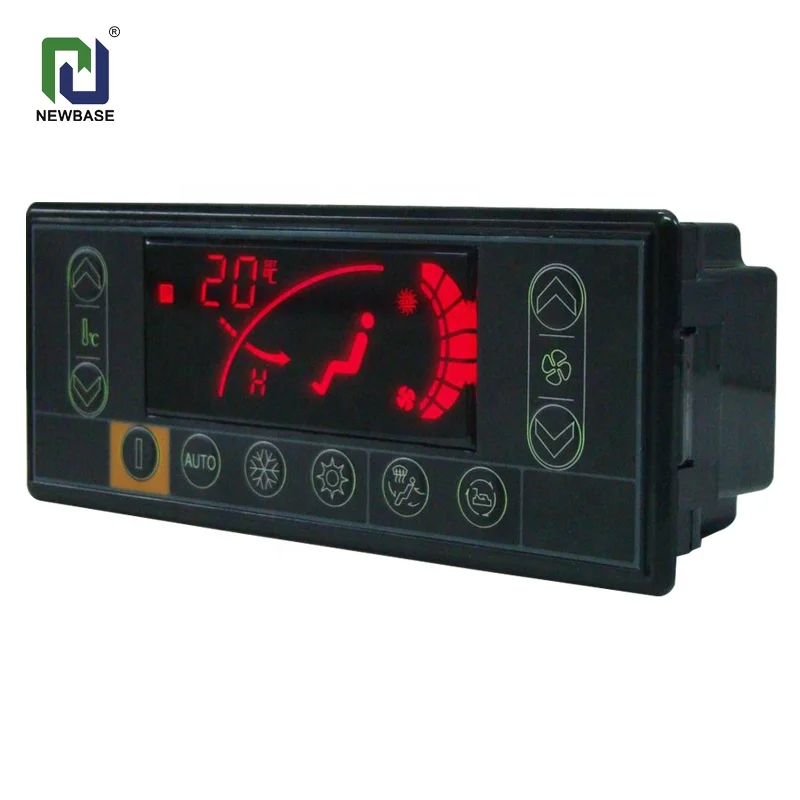

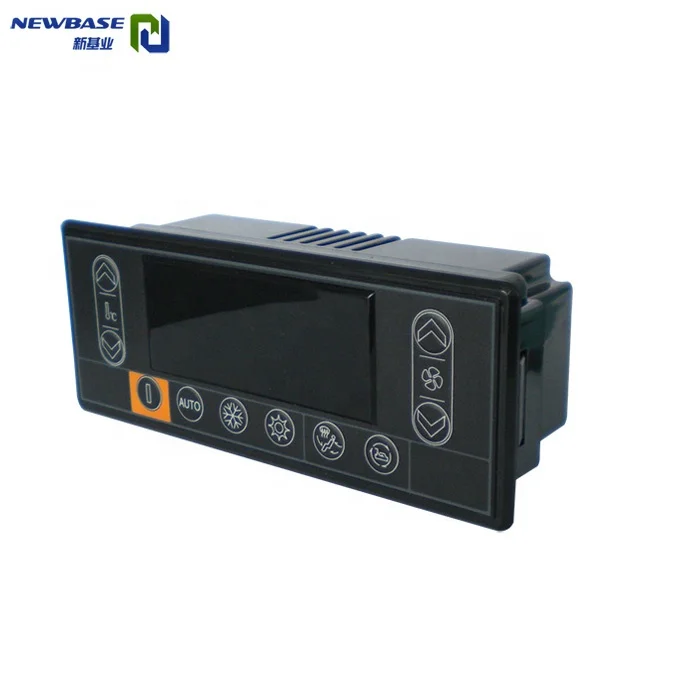

CG220201 construction vehicle & truck air conditioner control panel (LED)
CG220201 fully-automatic controller applies to internal climate control for construction vehicle.
Main functions: fully-automatic control, cool, heating, ventilation, fresh air, air-flow direction, memory, error alarm, voltage auto-protection, demisting, evaporator fan PWM 7-grade adjustment, LCD display ,attractive appearance.
The shift function
1) Running time check
2) Defrost temp. display (press fresh air button for no less than 3S)
3) Hold cooling (press cooling button for no less than 3S)
Application
YUXIN Automotive Air Conditioner, LIUGONG Machinery, XGM
Machinery, JINGONG Machinery, KOBELCO
Technical date
Power supply | 24V(DC20V-DC32V) |
Power consumption | 3W |
Current | Max.200mA |
Dimensions | 168X66X54mm |
Input | 1) Interior temp. sensor (25°C,Rb=5K,B=3274) 2)Defrost sensor(25°C,Rb=5K,B=3274) 3) Exterior temp. sensor (25°C,Rb=5K,B=3274) 4) Pressure sensor 5) A/C power(generator) 6) ACC(battery) 7) Backlight power |
Output | 1)Evaporator fan output(PWM control, max. 25A) 2) Heating output (max. 0.3A) 3) Rear fan output (max. 0.3A) 4) Rear lower fan output (max. 0.3A) 5) Front fan output (max. 0.3A) 6) Fresh air output (max. 0.3A) 7) Heating output (max. 0.3A) 8) Cooling output (max. 0.3A) |
Display | LCD (mono-color/color) |
Ambient temperature | -30°C—80°C 5%-95%RH Non-condensing |
Storage temperature | -10°C—70°C 5%-95%RH Non-condensing |
Display precision | Set temp for dual digit display, accuracy 1°C; Interior temp dual digit display, accuracy 1°C |
Humidity test standard | Temp. control based on the temp. of return air inlet. |
Connector | Plug DJ7171-3-21 |
Faceplate level | IP43 |
EMC level | EN50081&EN50082-2 |
Security level | Applied to EN61010-II, Pollution degree: II |
Weight | 238g |
