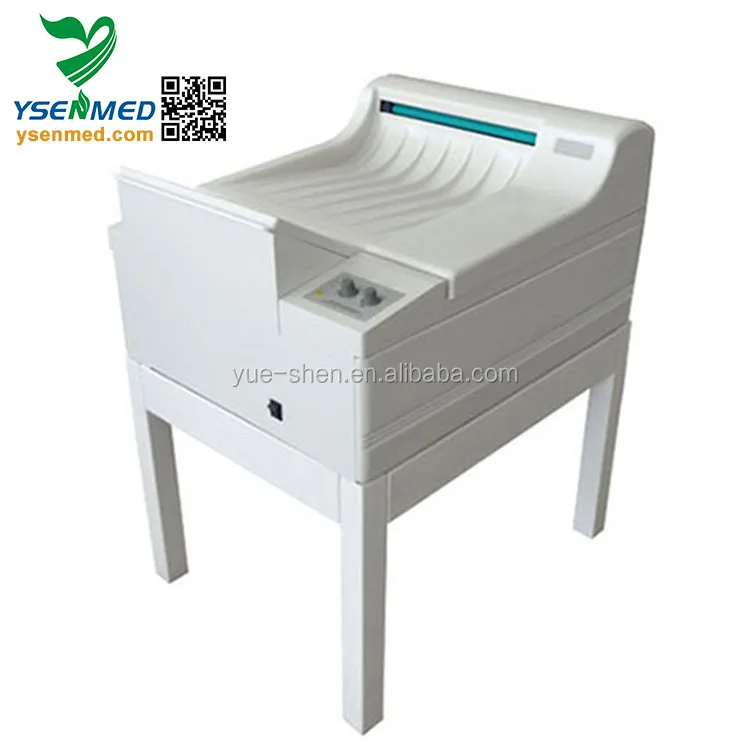

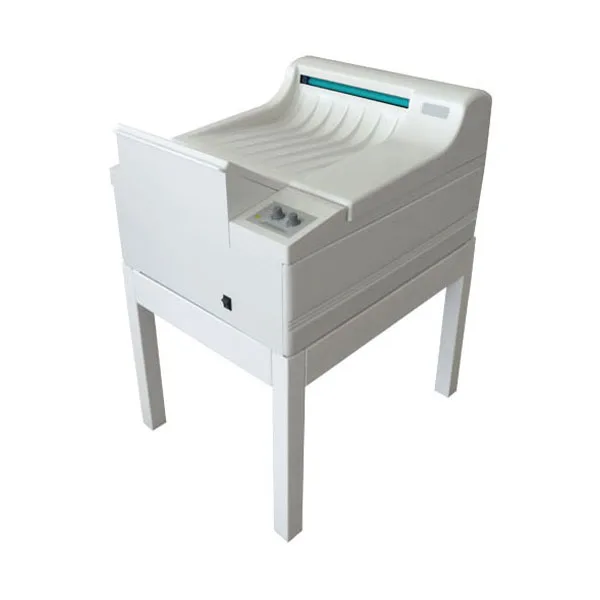

Medical Automatic X-ray Film Processor YSX1501
Features:
Applicability: Suitable for handling the various models of the X-ray specifications, CT, MRT, and other film
Microcomputer: The most convenient way of regulating the various washing-parameter
Anti-oxidation: Effective prevents drugs are oxidized to produce high-definition Image
High Standards : Precise temperature and speed control, sinnificantiy, fixing set temperature and the actural temperature
differenceis not more than 0.3°C
High economic : Standby function which lowered the water and electricity consumption at anytime be able to satisfy the requirements to washing film
Technology parameters
Model of processor | YSX1501 |
Operation conditions | |
Voltage: | 220V±10%,50/60Hz, 8.8A single-phase |
Dryer temp | 5~25°C |
Ambient humidity | less than 60% |
Power of the whole machine: | less than 2kw |
Technical specifications | |
Type desktop | Console model |
Rinse width | 3"×6"~14"×17" |
Process time | 105/135/165s |
Develop time: | 25/35/45s |
Film feed mode | U-slot |
Film sensing mode | micro switch |
Develop temperature | adjustable 28 -37°C(plus or minus 0.3 ) |
Developing Capacity | 80p/h (14"*17"); 145p/h(10"*12") |
Dryer temperature | 40~65°C |
Channel volume | Develop\\Fixer\\Water\\each 5.2L |
Washing Control | Water 2~8L/ minute when rinse |
Water developing control mode | solenoid valve control |
Anti-oxidation function | 60mins interval |
Anti-crystallization function | 30mins interval |
Replenishment | Auto. /manual 20~200ml/for 0.5s. Q. M |
the details of the packing | wooden case |
the packing out-size(L*W*H/mm) | 1130*775*750 |
the gross weight of the wooden case | 100KG |
Models of Medical Film Processor:
| Model No. | YSX1501 | YSX1502 | YSX1503 | YSX1505 | YSX1504 |
| Rinse width | 3"*6"-14"*17" | 3"*6"-14"*17" | 3"*6"-14"*17" | 3"*6"-14"*17" | 3"*6"-14"*17" |
| Process time | 105/135/165s | 105/135/165s | 95-250s | 95-250s | 90-300s |
| Develop time | 25/35/45s | 25/35/45s | 20-60s | 20-60s | 25-70s |
Develop temperature | adjustable 28 -37°C (plus or minus 0.3) | adjustable 28 -37°C (plus or minus 0.3) | adjustable 28 -37°C (plus or minus 0.3) | adjustable 28 -37°C (plus or minus 0.3) | adjustable 20 -40°C (plus or minus 0.3) |
Dry temperature | 40°C-65°C(adjust) | 40°C-65°C(adjust) | 40°C-65°C(adjust) | 40°C-65°C(adjust) | 20°C-70°C(adjust) |
Developing Capacity | 80p/h (14"*17"), 145p/h(10"*12") | 90p/h (14"*17"); 145p/h(10"*12") | 105p/h (14"*17"); 165p/h(10"*12") | 115p/h (14"*17"); 165p/h(10"*12") | 200p/h (14"*17"); 280p/h(10"*12") |
Channel volume | Develop\\Fixer\\ Water\\each 5.2L | Develop\\Fixer\\ Water\\each 8.2L | Develop\\Fixer\\ Water\\each 5.2L | Develop\\Fixer\\ Water\\each 8.2L | Develop\\Fixer\\ Water\\each 12.5L |
| Replenishment | 20-200ml/0.5sq.m. each time | 20-200ml/0.5sq.m. each time | 20-200ml/0.5sq.m. each time | 20-200ml/0.5sq.m. each time | 50-500ml/sq.m. each time |
| Display | -- | -- | Digital Display | Digital Display | Digital Display |
