Характеристики

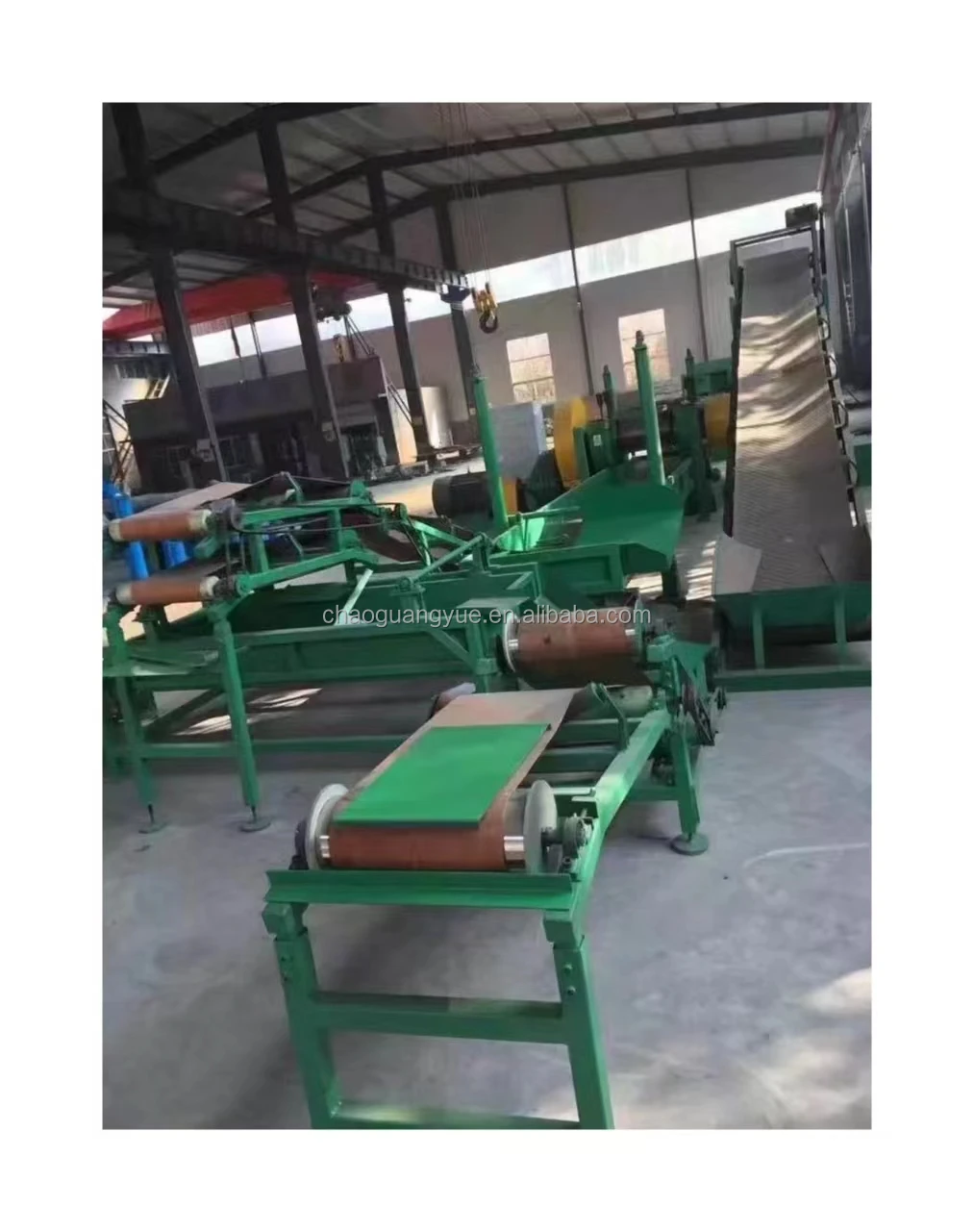

automatic tyre recycling machine
1. General:
This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber.
2.Process flow:
Waste tire - Tire wire drawing machine - Whole tire cutting - Tire shredding - Tire crushing - Magnetic separator - Fiber separator - Rubber powder
the whole line has the following features:
1), iron/steel removing ratio>99.5%, fiber removing ratio>98%
2),compact structure ensure running safety, easy maintenance;
3),low energy consumption;
4),adopt automatic control system for whole line, reduce labor cost;
5),no sewage and waste gas discharge, environment protection.
6), available capacity range of our tire recycling lines at present: 400~3000kg/h
7), available finial rubber powder size: 30~120mesh.
8), adopts SIEMENS and Chinese famous brand electrical elements.
3.Processing method:
Physic mechanical crushing method at normal temperature of waste tyre:nochemical raw material is required,no waste gas,washte water and soot are discharged, and the cooling water of the equipment is reused,no emission,equipment noise is within the range specified by the country(GB20055-2006),fineness of rubber powder produced by it is adjustable(10 meshes to 30 meshes),take waste tyre as example,the process is as follows:breaking down,crushing,filtering,magnetic separating,grin-ding,then the finished products are produced.
4.Main Parameters

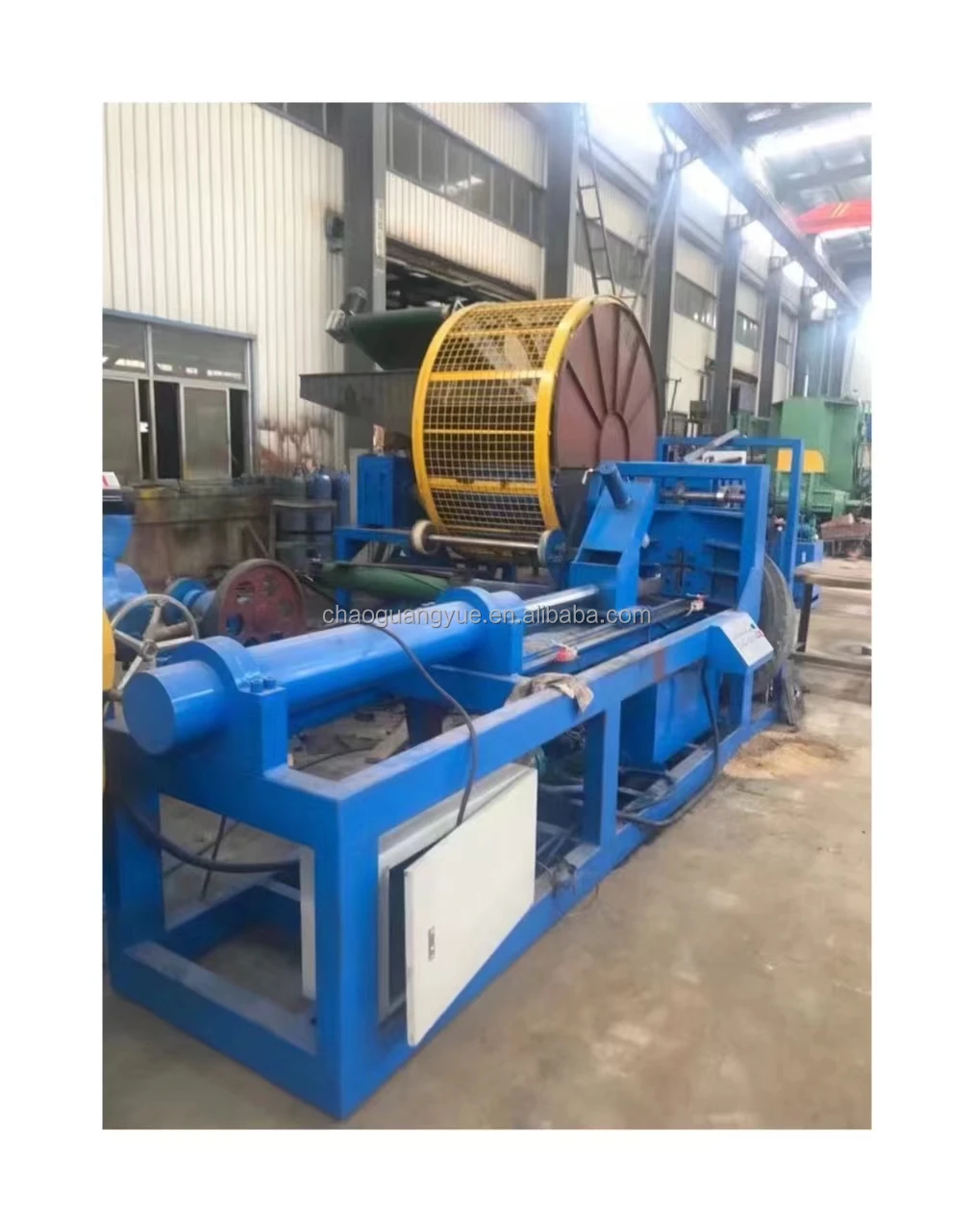

Tire wire drawing machine(To draw out the rim steel from tire bead)

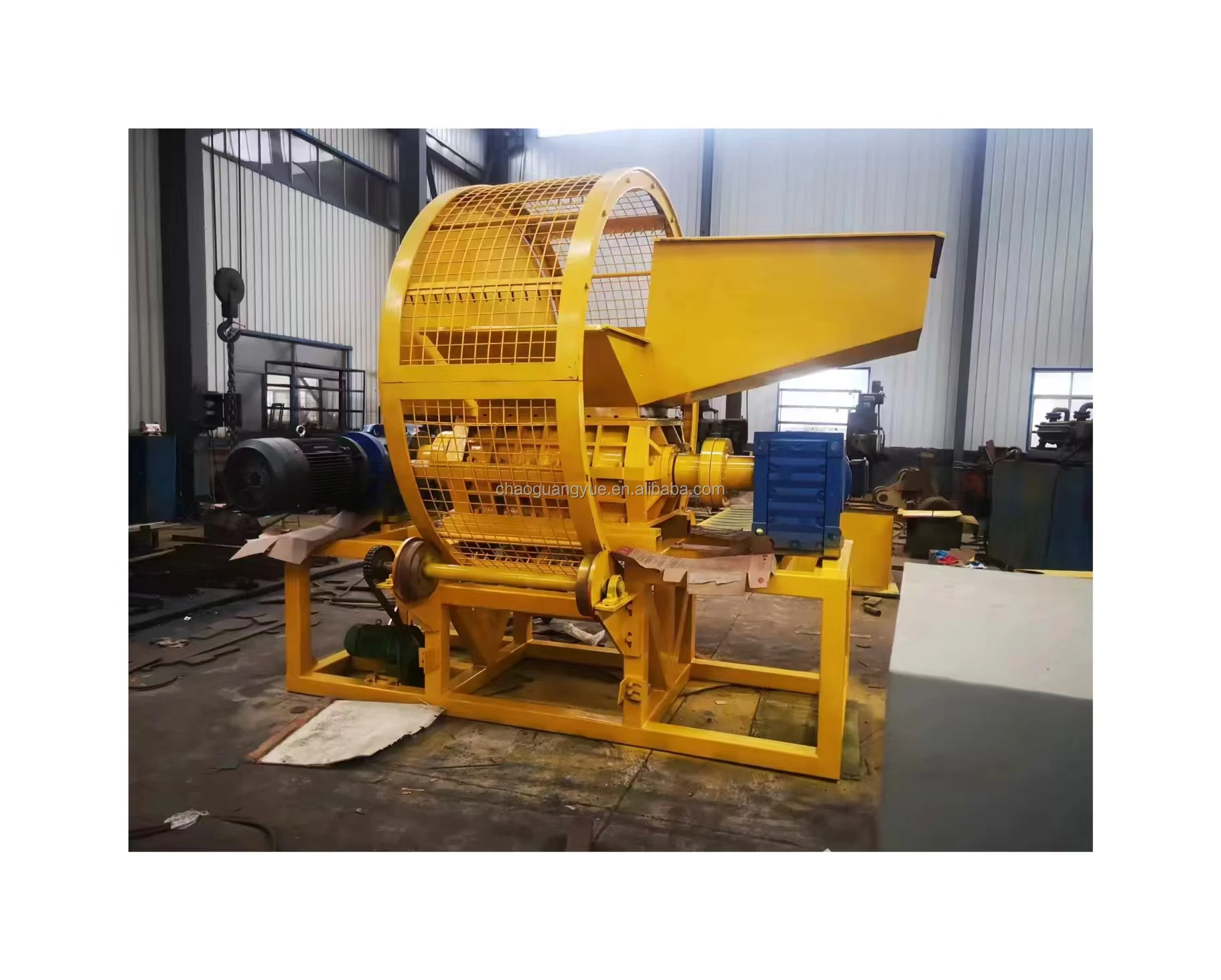

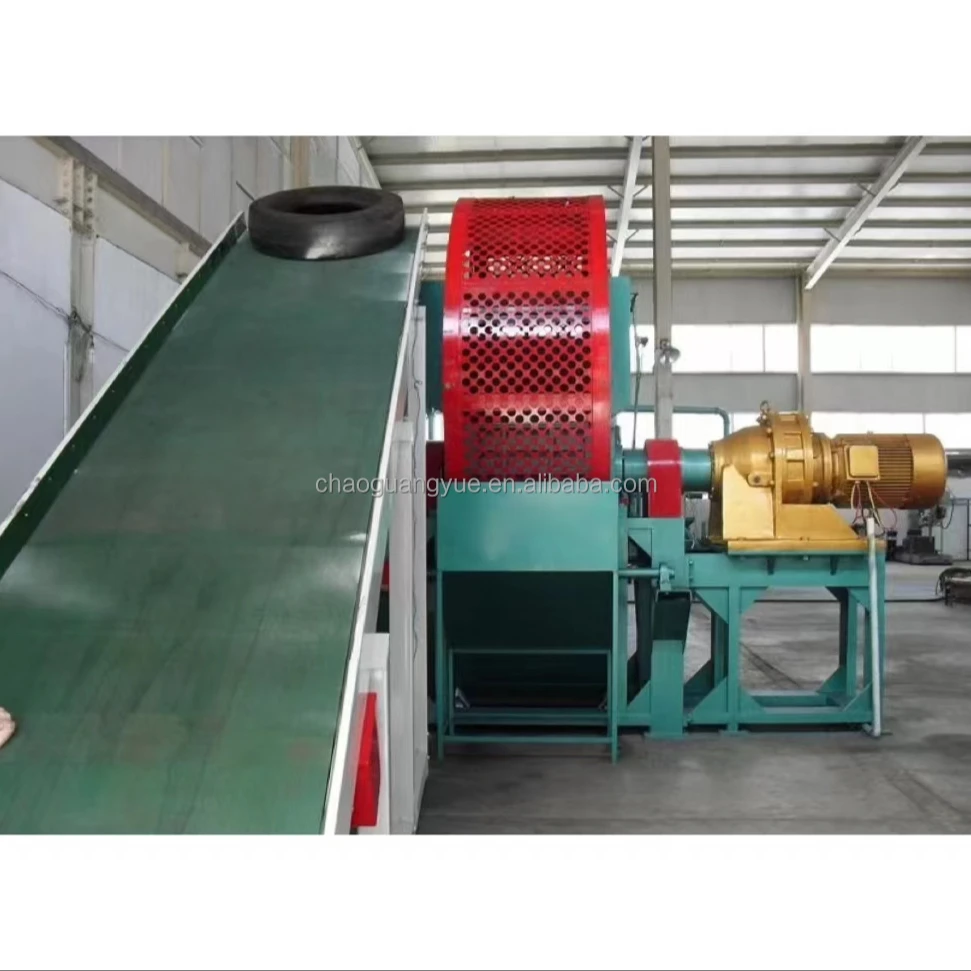

Whole tire shredding machine ZPS- 800,1200
Use:This machine can directly crush tires smaller than 1200mm tires. At the general temperature, can be put directly crushed into 50 * 50 mm block, so the next rotating can grind into 10-30 meshes or wire and fiber separation equipment.
Photo of ZPS-900
Photo of ZPS-1200
Photo of knife
Tire Cutter QDJ-1200
Application:
Cut whole tire which more than 1200mm into 3-4 pieces.
Highlights
1.big knife with well cutting performance, fast speed
2. low energy consumption
3.small in size
4. hydraulic system to ensure the safety and easy operation
Main parameters
Double Rolls Rubber Crusher XKP-400/450/560/610
Use:Mainly used for crack large rubber blocks into 2-26 mesh small rubber granules.![1]()
Exibition&Customers
Exibition & Customers
Company Information
Qingdao Chaoguangyue Industry Co.,Ltd is one of the important backbone enterprises in rubber machinery and textile machinery industry in China and is one member of Shandong machinery union company.The company owns powerful technical strength,advanced technic,the best design and strict quality guarantee system,which owns a high reputation in China rubber machinery industry.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 30 countries and areas,such as America,Japan,Korea,India,England,Germany,Russia,Pakistan etc.
The main products are vulcanizing tank,plate vulcanizing press,open mixing mill,rubber kneader,rubber extruder,used tire recycling machine,used tire retreading machine,rubber machinery and textile machinery.All of the products are designed visually by three-dimension CAD design,quickly built module,limited element analysis,analogue action and interfering inspection.The combination of three dimension CAD system and internet guarantees the synchronization with international advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time,the company keeps good contact with several universities and researh institutes.
Certifications
All the product are CE,ISO,SGS Approved.
Packaging & Shipping
Packaging Details: Wood Pallet & Film Wrap
Delivery Detail: 60 Working Days Since Down Payment
Our Services
1.pre-sale services
Act as a good adviser and assistant of client enable them to get rich and generous returns on their investments.
1)select equipment model
2)design and manufacture products according to clients' special request
3)train technical personnel for clents.
2.services during the sale
1)Recheck and accept products ahead of delivery
2)Help clients to draft solving plans
3.after-sale services
1)provide considerate services to minimize client's worries.
2)Help client to solve the assembly question
3)take responsibility if any technical problem
FAQ
Q:Are you factory or trading company?
A:We are a manufacturer with over than 15years of experience in Rubber Machine.
which include: plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber machinery, textile machinery,shot blast cleaning machine, foundry machinery, woodworking machinery, wheel barrow and tire etc
Factory Add: Huang Shan Economic Zone, Jiaonan, Qingdao, Shandong, China (Mainland)
Welcome your visiting and we can arrange our driver to pick up you.
Q:What advantages do you have?
We have15 years trust of our customers. Guarantee Quality and timely Delivery !
Skilled QC staff and do the best quality control,Fast shipment as per customers requirement.
Q: What are your delivery times?
The delivery time is 20-45 days after order be confirmed. For the exact date,please check with our sales team.
Q:What kind of surface treatment do you provide for your goods?
Galvanized ,chrome coating or powder coating are available. We can also make it according to our customer’s requirement.
Q:I’m not sure about your product, can you send me sample for reference?
Our standard product samples are free of charge except for the freight fee.
For customized products, sample fee as well as the freight fee are charged.
