1575 МГц автомобильная магнитная основа 28dBi клейкая Монтажная GPS
- Категория: Navigation & GPS >>>
- Поставщик: Shenzhen,Hurryup,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1.71 $* | 1.86 $* |
| Jul-20-2025 | 1.75 $* | 1.10 $* |
| Jun-20-2025 | 1.42 $* | 1.55 $* |
| May-20-2025 | 1.38 $* | 1.19 $* |
| Apr-20-2025 | 1.35 $* | 1.67 $* |
| Mar-20-2025 | 1.49 $* | 1.32 $* |
| Feb-20-2025 | 1.42 $* | 1.43 $* |
| Jan-20-2025 | 1.42 $* | 1.82 $* |
Характеристики
Description

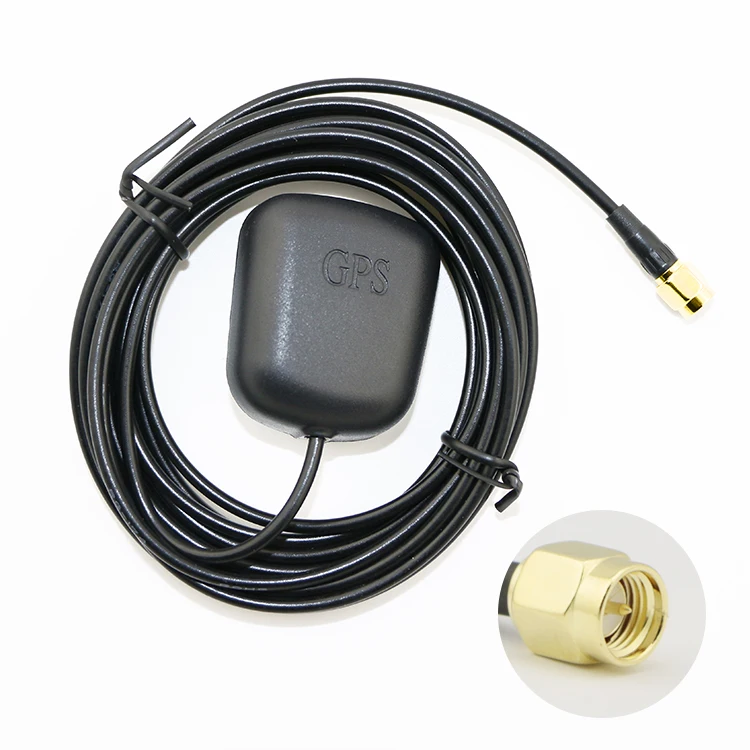

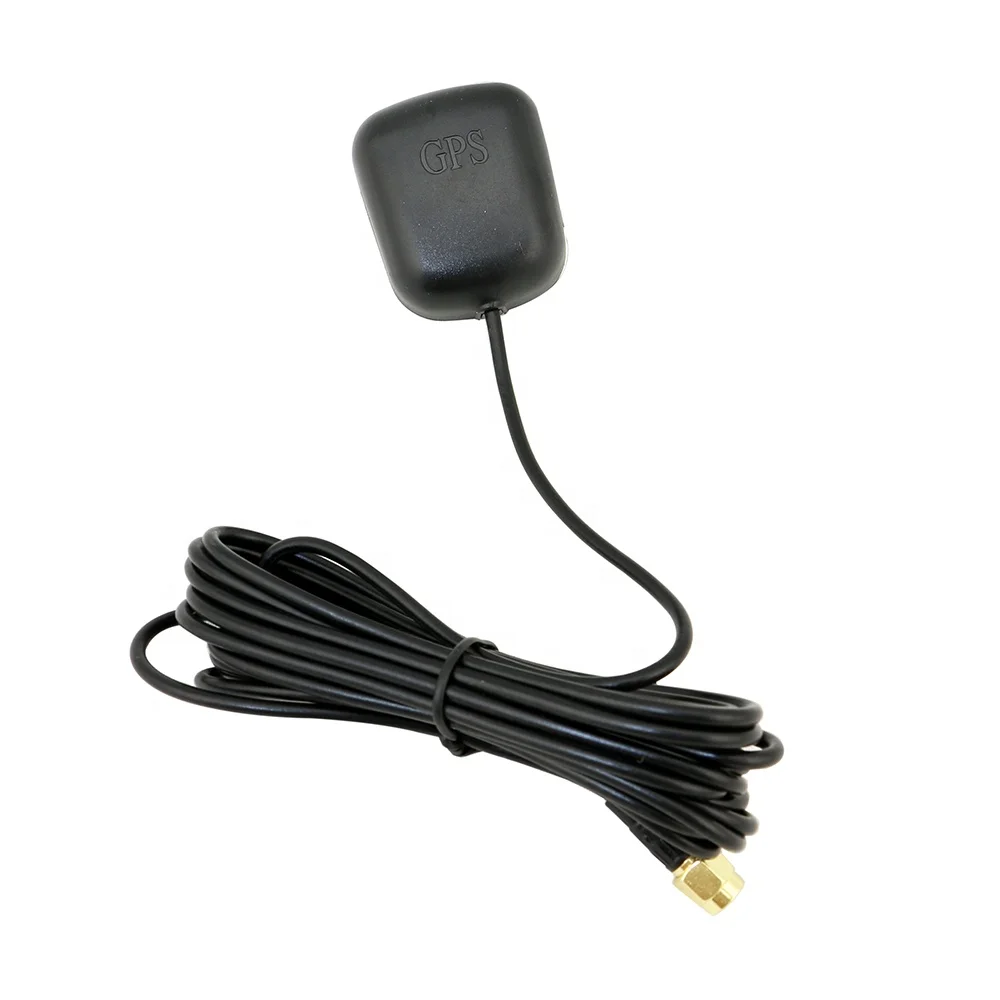

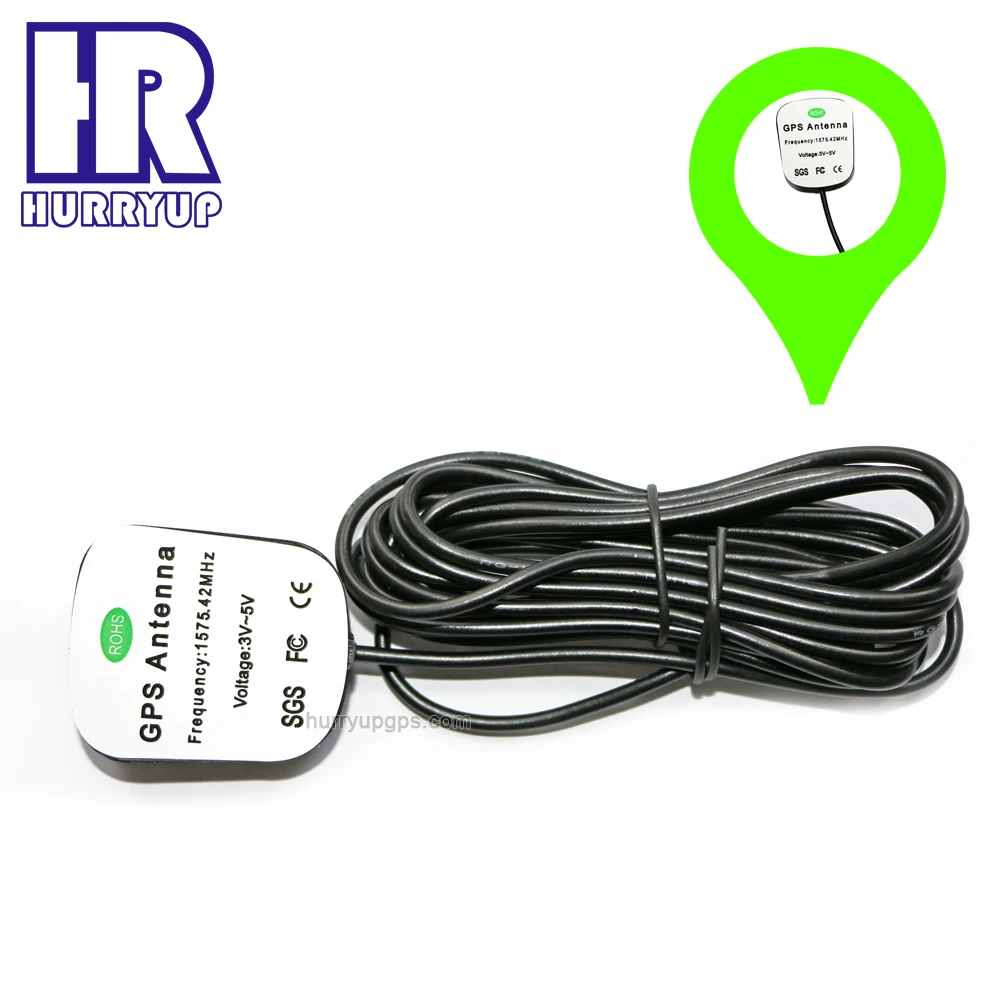

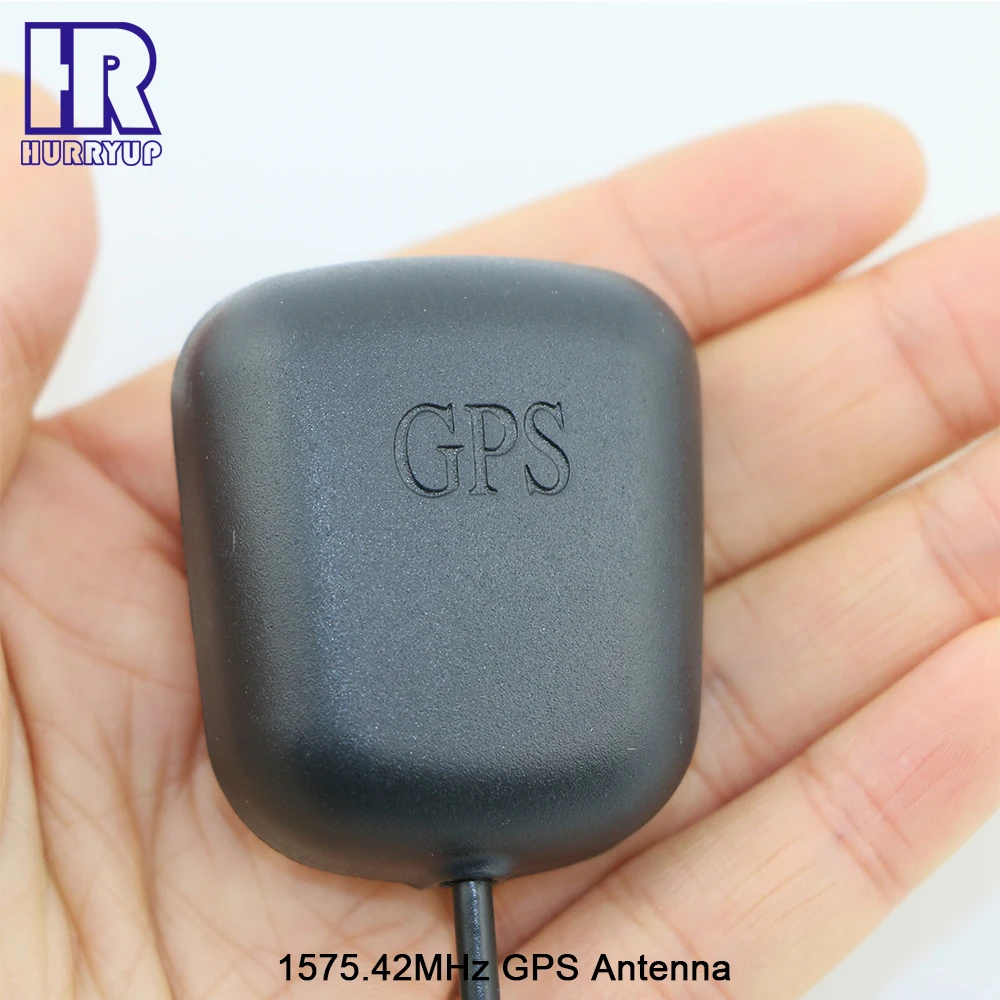

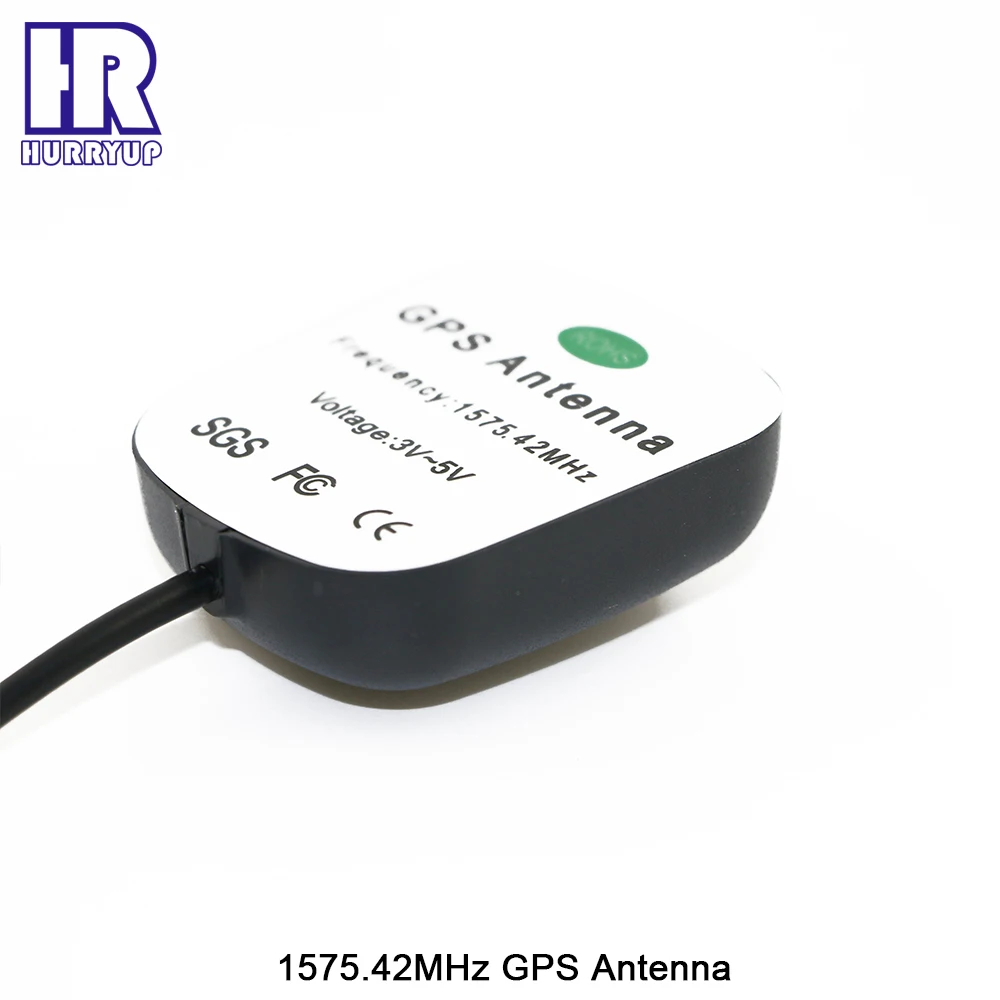

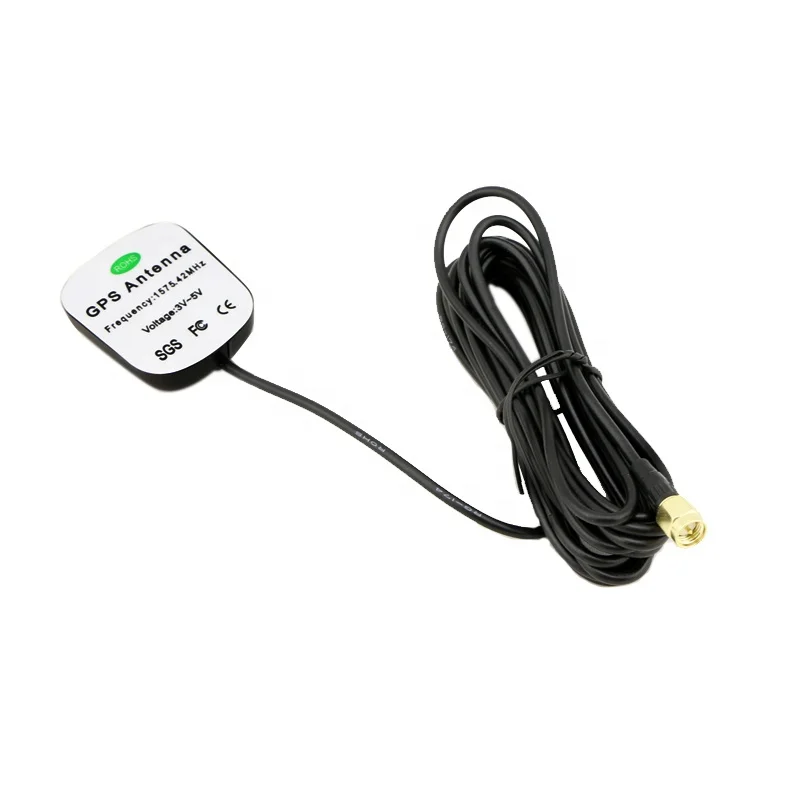

1575.42MHz GPS Antenna 28dBi with Magnetic or Adhesive Mounting and 3 Meters RG174 Cable
Supported Connectors: SMA, SMB, BNC, TNC, MCX, MMCX,N-Type,ect
Adhesive Mounting
Model No. | GPS-A | |
Cable | RG174, Length=3M or customized | |
Cable Gain | ±2dBi | |
Dielectric | ||
Center Frequency | 1575.42±3 MHz | |
V.S.W.R | 2:1 | |
Band Width | ±5 MHz | |
Impendence | 50Ω | |
Peak Gain | >3dBic Based on 7×7cm ground plane | |
Gain Coverage | >-4dBic at -90°<0<+90°(over 75% Volume) | |
Polarization | RHCP | |
LNA/Filter | ||
LNA Gain Without Cable | 28dB Typical | |
Noise Figure | 2.0dB | |
Filter Out Band Attenuation | (f0=1575.42MHz) | |
7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz | ||
V.S.W.R | <2.0 | |
DC Voltage | 3V to 5V | |
DC current | 7-10MA | |
Mechanical | ||
Weight | 60 gram | |
Size | 45X38X15mm | |
Cable Type | RG174 Cable, 3 Meters (customized) | |
Connector | SMA Male Connector (SMB, MCX, MMCX, ect customized) | |
Mounting | Magnetic Mounting (Adhesive Mouting customized) | |
Housing | Black | |
Environmental | ||
Working Temp | -40℃~+105℃ | |
Vibration | Sine sweep 1g(0-p)10~50~10Hz each axis | |
Humidity | 95%~100% | |
Test Data and Graph
1. GPS Antenna
13Apr200209:45:461:-21.775dB
1:28.970Db 1575.000 000 MHz
HEM LOG 5 Db/REF-15Db
13Apr200209:45:461:-21.775dB
1:28.970Db 1575.000 000 MHz
HEM LOG 5 Db/REF-15Db
2. Directional Test Chart (DAE1575R2540A)
Axial Ratio:
3. LNA Test Curve
4. Noise Figure Test Plans
