Rooftop

Air Handling Unit







1.Side Sliding Filter with Tracks

2.Air-tightness GB/T14294-93Standard


3.Filter,Coils, Heat wheel,Fan section







AHU Features:



1.Cold Bridge Free Design .



2.G3 primary filter,F7 medium fitler, Bag Filter, HP Filter are available.





3.Chilled water Coil, Hot Water Coil, DX Coil, Staem Coil, Electric Heating, Humidifier, Heat wheet Revovery, Fan Sections are feasible.





4.Air Handling Unit configuration, include 4 series of products, the vertical series, horizontal series, slim ceiling mounted, and heat pump package series.





5.High strength alloyed Aluminum framework consruction with standard 25mm and 50mm double skin panel of PU foam insulation.







Discriptions:



1.Filter sections of Aluminum prefilter filter, medium filter, bag type filter HC filter are avialble upon application requirement.



2.High efficiency Aluminum fin copper chilled, Direct Expansion Coil, with drain pan, Hot water and electric step heating; Steam and Electrode type Humidifier are vaiable.



3.Energy saving Heat Wheel Recovery section are avialble.



4.Forward, Backward inclined and Aero Foil Fans are aviable for specific fan appication; Fan assembly framework with adjustable motor base for proper fan belt tension adjustment; Spring isolator for Fan Assembly Frame is special non defective type for protection of vigorous transportation.



5.Low leakage air dampers for fresh air, return air and exhaust air adjustment.

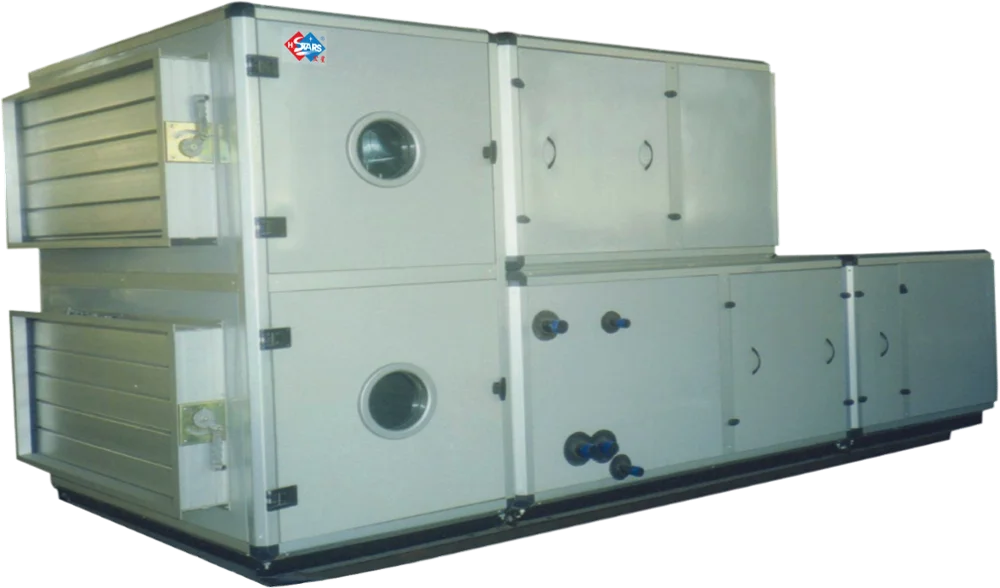

 Outside Vertical Air Handling Unit:





Outside Horizontal Air Handling Unit:















If you are interested in our products please do not hesitage to contact me. Your customized are warmly welcome.
