ATM банковского автомата (HJL-840 ) депозита

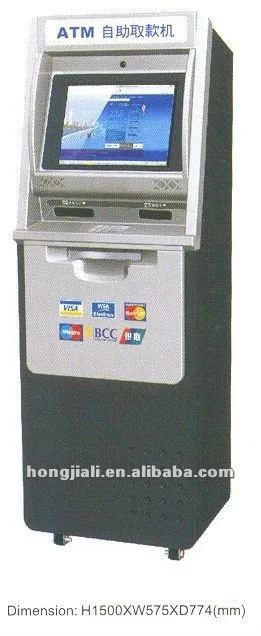

                 ATM Automatic Teller Machine (HJL-840)

Basic Functions

Withdrawal, inquiry, password reset, transfer and voice prompt.

Optional Functions

Multimedia ads, fee paying (barcode/bill scan), and IC card.

Display

17 LCD Color Display (17 touch screen, confidential data protective screen and anti-glare screen are optional)

Back End Maintenance

System test, daily maintenance, privilege maintenance and error codes look-up, etc.

Hardware

P4 3.0 Ghz CPU, 160G Harddisk, 1GB RAM (Upgradable), 256M Independent graphic card, supporting most High Definition Tech.

Operating System

Windows XP

Printer

Receipt printer: Thermal printer; Paper width: 79.5mm; Max paper roll diameter:240mm
                            Dot matrix printer (optional): Paper width: 76mm; Max paper roll diameter:140mm
                            Journal printer: Dot matrix Chinese printer; Paper width: 76mm; Max paper roll diameter 85mm

Input Device

One 4x4 numeric metal encryption keypad, compliant with VISA/PCI EPP Standard

Card Reader

Suck-in motorized card reader, magcard(Tr 1/2/3) compliant with ISO and compatibility standard and IC card reading and writing; Compliant with EMV standard; Suck back the card left by user; Eject the card when power-failure is optional.

Cash Dispenser Module

Small amount of banknotes dispensing, designed for retails/cinemas/petro stations; Continuously dispensing technology for single note; Dispensing speed: more than 10 banknotes per minute.

Card Dispenser Module

Telephone card/VIP card pre-made automatically dispensing, for all standard size prefab card(including magcard, IC card, RFID card, etc). Capacity: 100~1,000 pcs optional.

Fingerprint Identification Tech

Fingerprint Identification is a safety control device to control terminal on/off and access system switch, etc.

Cash Acceptance and Fee Paying

Identify the popular currency in most of the countries and regions. Highly validating ability, double-face/four-sides identifying, high identifying speed, automatically tidying up; Front maintenance/back maintenance/standing/ horizontal mode optional. Storage capacity: 300~1000 notes optional.

Backup Power Supply

Provide backup power supply in case of sudden power failure when the terminal is in process of transaction. Serial port communication is optional.

Safety

Anti-vandal safety: Compliant with UL291 standard
Data safety: EPP is compliant with VISA Security Standard; Card reader is compliant with EMV Level1 Standard; IC Card Control is compliant with EMV 4.0 Level2 Standard.
Electric safety: Compliant with GB4943 Standard
EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard
Monitoring system: Digital video security monitoring system (optional)

Physical Features

Volume: Height: 1645mm; Width: 560mm;
Depth: 780mm; Weight: 430Kg

Operating environment

Temperature: 040;
Relative Humidity: 2095%

Electric features: Power: Standby status 180W, transaction status 350W
                                  Power supply: Single-phase AC220V+15% 50Hz, AC110V+15% 60Hz
