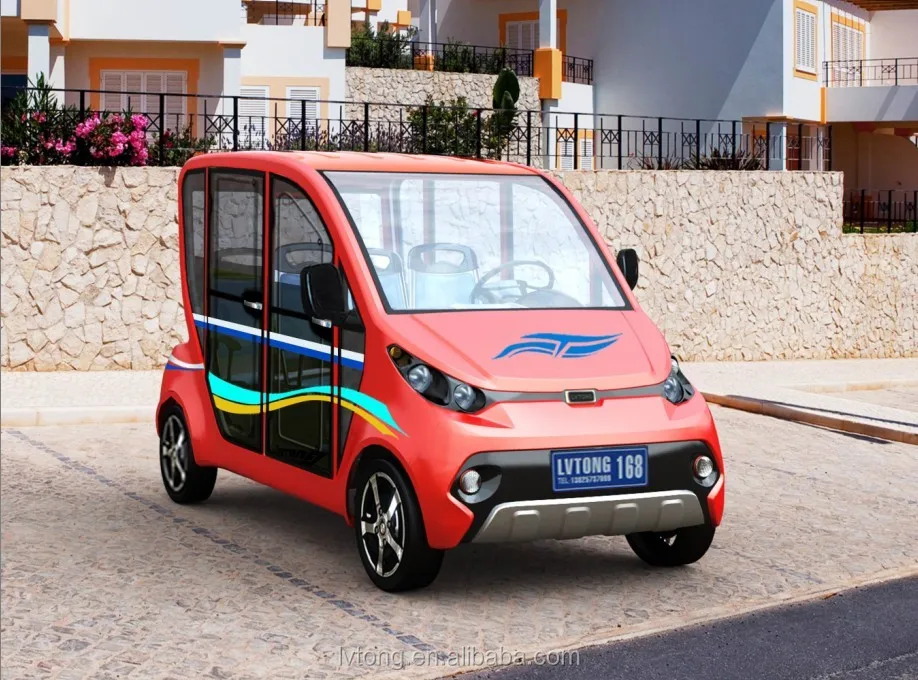

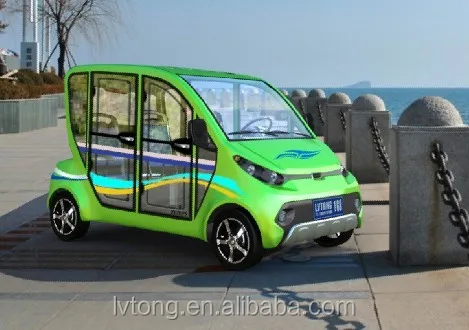

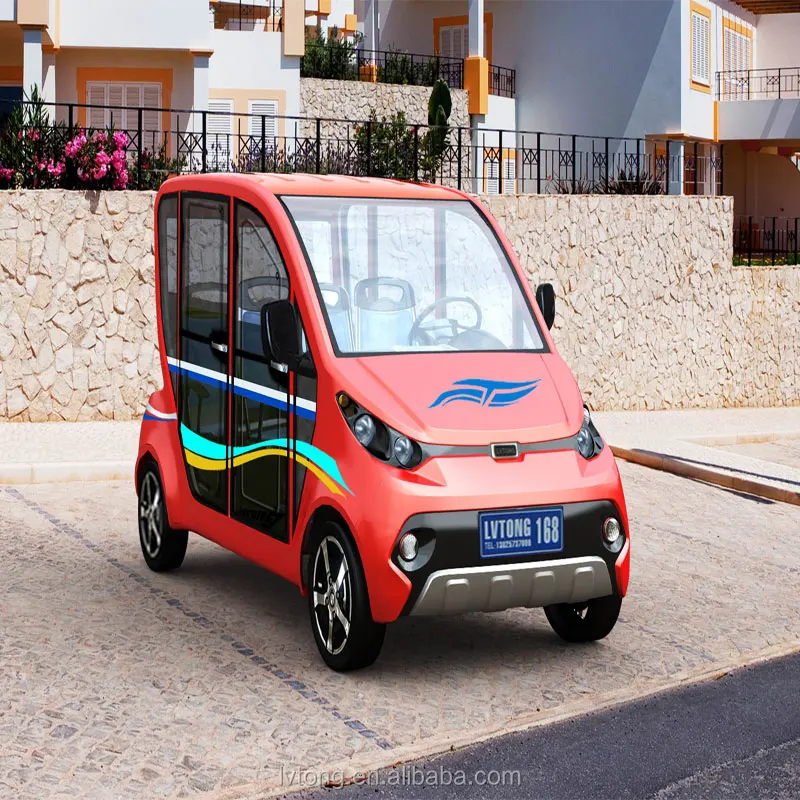

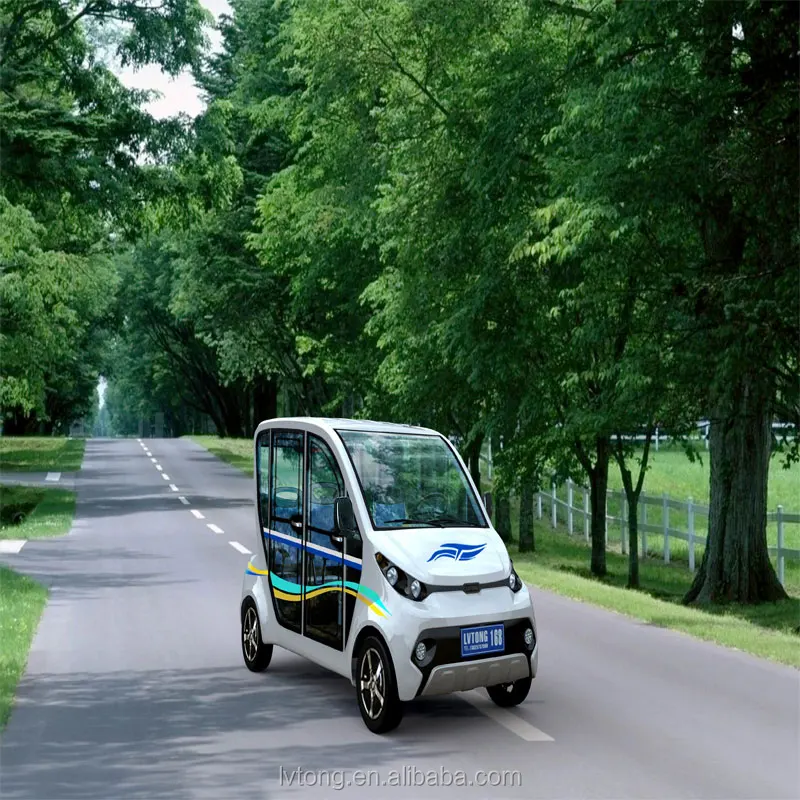

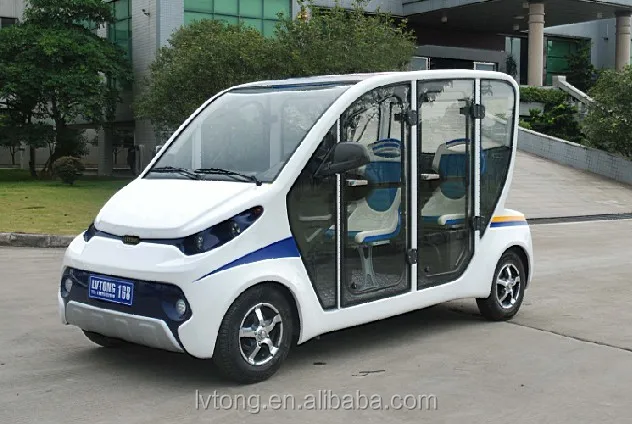

Low-Speed Domestic Electric SightSeeing Golf Car (LT-S4.HAF)

Electric vehicle product description

1. Motor: US ADC brand

2.Controller: US CurTis1266

3. Battery: Trojan

4.Stable quality, little noise, anti-fatigue and long durability;

5.There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage.

Electric system	controller		1266/275A
	battery		6V,8units
	motor		KDS48V/3.7KW motor
	charger		Computer Intelligent,input 220V/110V,ourput 48V,20A
Charging time			Less than 12 hours(discharging rate 80%)
Body configuration		Glass	Sandwich glass	Sun Roof	Fiber glass
		seat	leather	Floor	Autiskid rubber floor
		Rear mirror	Handoperated,both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
		DC/Light/Signal	48V/12V-300W Front light,turning light,fog light, rear light,horn,Buzzer
		Body	Fiber glass
		Dash Board	Fiberglass dash board,Voltage Indicator 48V,Switch Head Lights,Switch - Indicators Right/Left,key switch,Switch - Forward/Reverse.
		Braking system	Front disc and rear dram,four-wheel hydraulic brake+hand brake
		Front axle and suspension	Independent suspension,helical spring +cylinder hydraulic shock absorption
		Rear axle and suspension	Integral type transaxle,gear ratio 12.31:1,semi-independent transaxle,spring,cylinder hydraulic shock absorption
