A-25 RONGPENG сверхмощный удобный мембранный насос с воздушным


Поделиться:


Цена:150,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 179.96 $* 188.97 $*
Aug-15-2025 177.72 $* 186.28 $*
Jul-15-2025 149.33 $* 156.41 $*
Jun-15-2025 174.73 $* 183.91 $*
May-15-2025 152.64 $* 160.2 $*
Apr-15-2025 171.81 $* 180.0 $*
Mar-15-2025 170.43 $* 179.77 $*
Feb-15-2025 168.39 $* 176.45 $*
Jan-15-2025 167.15 $* 175.10 $*

Характеристики

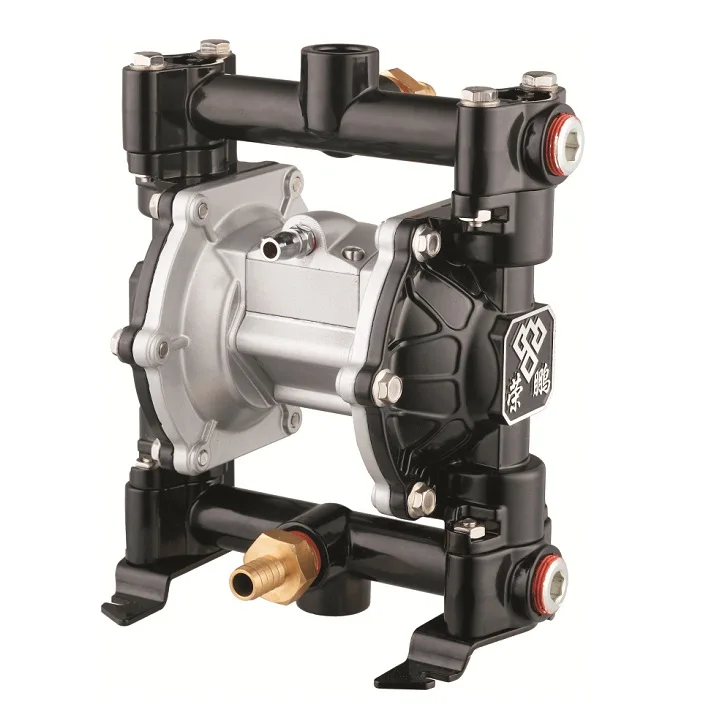

RongPeng Professional diaphragm pump   A-25:














































Model                                    A-25
Max working pressure7bar
Air consumption 40m³/h
Operating pressure  2-7bar
Max flow rate60L/min
Max suck height 4.5m
Inlet size3/4"
Max solid Dia  2.5mm




Description :





1.Diaphragm life up to 18million times


2.Patened commutator consuction,long time


3.100%Transmission effciency


4.Available for 4-6spray guns simultaneously


5.Especially suitable for conveyance fluid,paint spraying





A-25A-25








Air Nailer Trouble Shooting:
















































Symptom     Problem              Solutions
Air nailer's leak near top of tool or in trigger area

1.O-ring in trigger valve are damage


2. Air nailer's trigger valve head are damage


3.Air nailer's trigger valve stem, seal or O-ring are damaged



1.Check and replace O-ring


2.Check and replace


3.Check and replace trigger valve stem, seal or O-ring


Air Nailer's leak near bottom of tool

1.Loose screws


2.Worn or damaged O-ring or bumper



1.Tighten screws


2.Check and replace O-ring bumper


Air leak between body and cylinder cap

1.Loose screws


2.Worn or damaged O-ring or bumper



1.Replace bumper


2.Adjust the air pressure


Blade driving fastener too deep

1.Worn bumper


2.Air nailer pressure is too high



1.Verify adequate air supply


2.Place 2 or 6 drops of oil into inlet


3.Check and replace O-ring or seal


4.Replace damaged air nailer internl parts


Air nailer does not operate well: can not drive fastener or operate slugishly

1.Inadequate air supply


2.Inadequate lubrication


3.Worn or damaged air nailer's O-ring or seals


4.Exhaust port in cylinder head is blocked



1.Verify adequate air supply


2.Place 2 or 6 drops of oil into air nailer's inlet


3.Check and replace O-ring or seal


4.Replace damaged internl parts


Tool skips fasteners

1.Worn bumper or damaged spring


2.Dirt in front plate of the air nailer


3.Dirt or damage prevent fasteners from moveing freely in  spray gun's magazine


4.Worn or dry air nailer's O-ring on piston or lack of lubrication


5.Cylinder cover air nailer's seal leaking






1.Repalce bumper or pusher spring


2.Clean drive channel on front plate


3.Air nailer's magazine needs to be cleaned


4.O-ring need to be replaced and lubricate


5.Replace sealing washer


Tool jams

1.Incorrect or damaged fasteners


2.Damaged or worm driver guide


3.Air nailer's magazine or nose screw loose


4.Air nailer's magazine is dirty



1.Change and use correct fastener


2.Check and replace the driver


3.Tighten the magazine


4.Clean the magazine
