Silicon Rubber Keypad automatic multi-functional roll to screen printer
Silicon Rubber Keypad automatic multi-functional roll to screen printer
Silicon Rubber Keypad automatic multi-functional roll to screen printer
Silicon Rubber Keypad automatic multi-functional roll to screen printer
Silicon Rubber Keypad automatic multi-functional roll to screen printer
Silicon Rubber Keypad automatic multi-functional roll to screen printer
Silicon Rubber Keypad automatic multi-functional roll to screen printer

Silicon Rubber Keypad automatic multi-functional roll to screen printer


Поделиться:


Цена:50 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 59500.41 $* 62475.26 $*
Aug-18-2025 59000.30 $* 61950.80 $*
Jul-18-2025 49500.51 $* 51975.97 $*
Jun-18-2025 58000.4 $* 60900.85 $*
May-18-2025 50500.24 $* 53025.5 $*
Apr-18-2025 57000.86 $* 59850.78 $*
Mar-18-2025 56500.38 $* 59325.56 $*
Feb-18-2025 56000.51 $* 58800.59 $*
Jan-18-2025 55500.90 $* 58275.55 $*

Характеристики



Product Description


Model
LTA-50120
Print Area
530*1250mm
Print Speed
0-2500t/h
Screen Frame Area
800*1600mm
Max. Paper Width
520mm
Inspection Table Max. Size
950*600mm
Air Source
0.4-0.6mpa
Power
1P 220V 3KW/3P 380V 3KW(Customizable)
Printing Material Thickness
0.05-0.5mm
Weight
2300kg
Machine Size
L3960*W1160*H1865mm
Main Features








Components

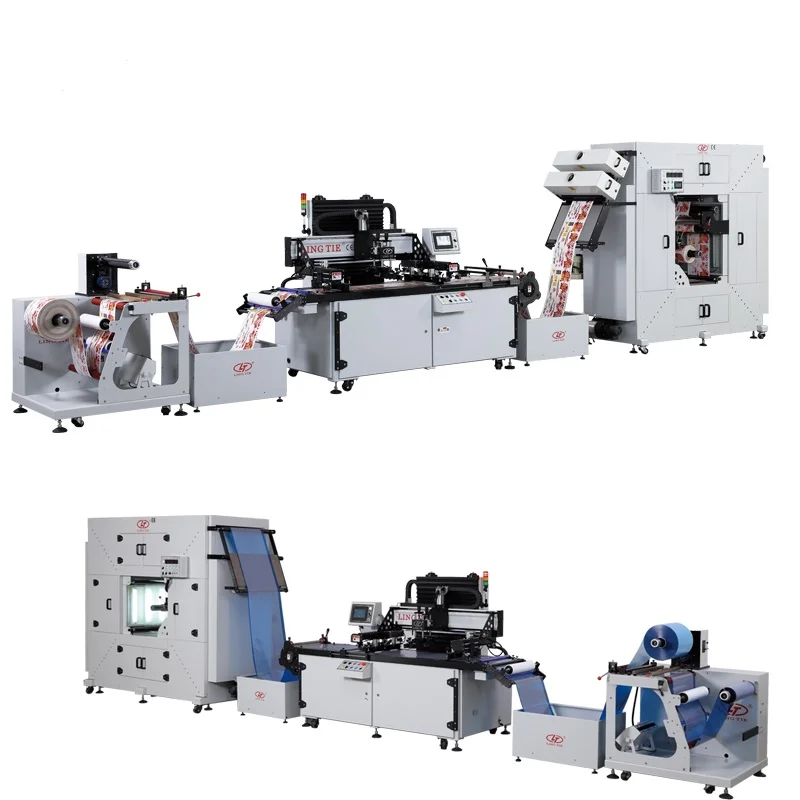

This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.


Application:
This machine can be used to print large areas of material.
RFID, heat transfer label, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.


Introduction of the Three Components

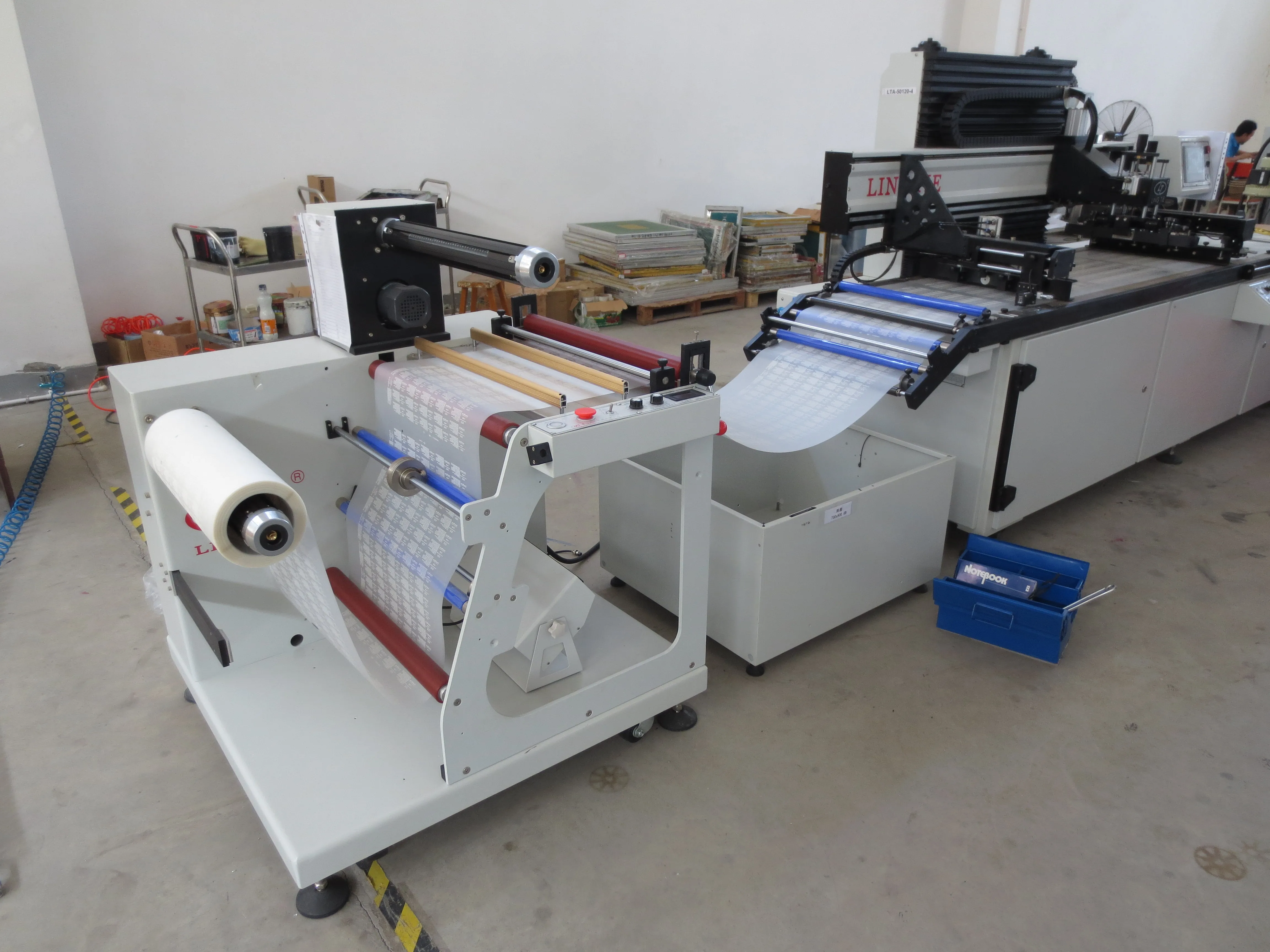

Automatic Feeder
1. Equipped with photoelectric sensor, the sensitivity of induction is high, can sense any material, automatic control of feeding.
2. Equipped with no material sensor, the machine will automatically stop when there is no material.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device

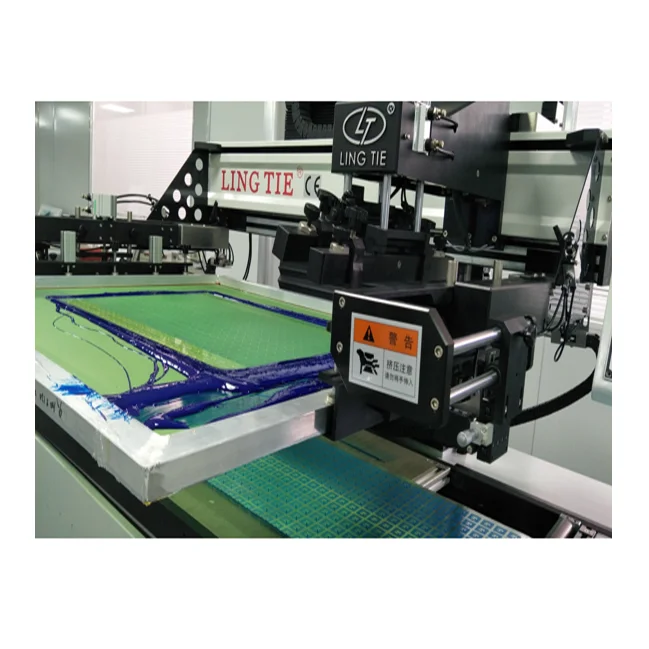

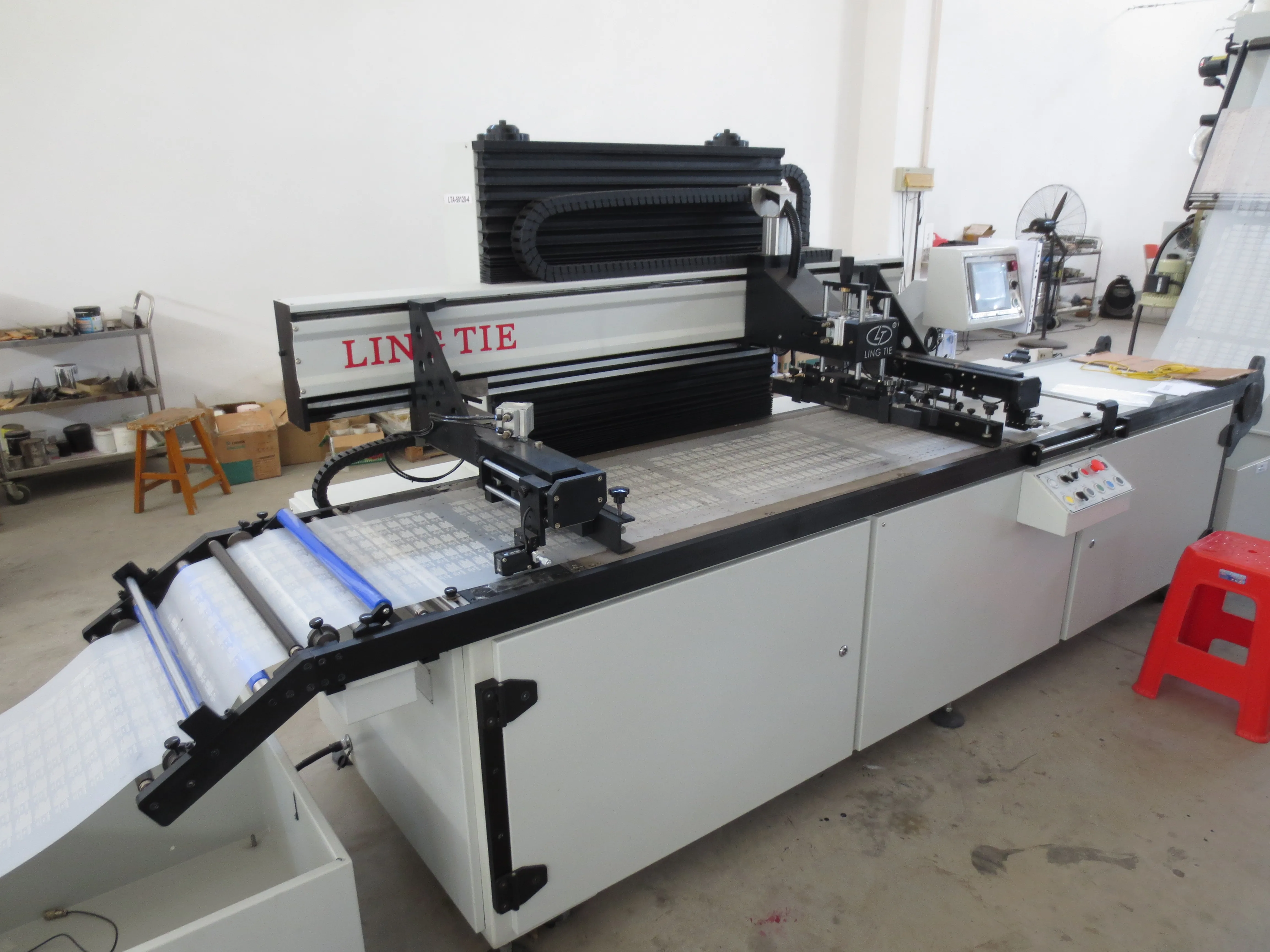

Automatic Printer
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. With anti-drip ink function, prevent color difference between ink with ink, to achieve high quality printing.
4. Equiped with a man-machine system.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device




Technical Parameters




Name
Automatic Roll to Roll Screen Printing Machine



Model
LTA-3040
LTA-4050
LTA-5070
LTA-6080
Print Area
330*450mm
430*550mm
530*750mm
630*850mm
Print Speed
0-6000t/h
0-6000t/h
0-2500t/h
0-2500t/h
Screen Frame Area
600*800mm
700*900mm
800*1100mm
900*1200mm
Max. Paper Width
320mm
420mm
520mm
620mm
Inspection Table Max. Size
400*400mm
500*500mm
600*600mm
700*800mm
Air Source
0.4-0.6mpa
Power
1P 220V 3KW/3P 380V 3KW(Customizable)
Printing Material Thickness
0.02-0.5mm
Weight
1200kg
1500kg
1700kg
2000kg
Machine Size
L2560*W980*H1865mm
L2620*W1100*H1865mm
L2950*W1160*H1865mm
L3150*W1260*H1865mm


Tunnel Oven
1. Oven with 4 sides, 4 sides heating, air circulation more smooth.
2. 4 independent digital display temperature controllers respectively control the temperature, temperature control is more convenient, more accurate.
3. Imported photoelectric switch, can sense any printing material, and can automatically track the speed of the printing machine.
4. The uniform speed function ensures that the material stays in the oven for any position and the winding speed is consistent.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device




Humanization Design














Best Selling




Our Services & Strength


1. Annual warranty, lifetime maintenance!
Engineers from time to time personally visit the enterprise, understand the use of the situation, and provide technical support and upgrade services.
2. At a high level of automation, only one person can operate the whole printing line.


3. Our company has been operating for more than 10 years and has a good reputation in the industry. Our company has strong strength, various specifications of dozens of stocks, and has a professional technology, business, and after-sales team.
4. We not only have a large standard assembly workshop, but also a machine processing workshop, a number of CNC machining centers
and other processing equipment, so that the equipment of the machine is optimized, higher precision, faster delivery.


5) High productivity, production capacity equal to six sets of semi-automatic screen printing machine.
6) High printing accuracy, multi color overprint can be done on the machine.


7) Our company's equipment is independent research and development design, self-produced and self-sold, the technology is fully mastered in our own hands, each machine parts are 3D drawn by engineers to simulate no problem and then put into production.
Our Details Compared to Theirs
8) Every part of our machine, including the screw hole, is a one-time molding, very few manual changes, reflecting our professionalism, attentiveness, detail and humanization.
