GH-6030AE медицины/Флаконы Для лекарственных средств укладчик ленты промышленности машина для упаковки в термоусадочную

Описание и отзывы

Трекер стоимости

Характеристики

Model	GH-6030A	SF-6040E
Power	1.5kw	22kw
Power Supply	AC380/220V 3PH 50/60Hz	AC380/220V 3PH 50/60Hz
Max Packing Size L×W×H	300×500×300mm	1500×500×300mm
Tunnel Size L×W×H	/	1800×600×400mm
Blade Length	670mm	/
Air Temperature	0-300℃	0-300℃
Table Height	825±25mm	825±25mm
Packing Speed	0-15m/min.	0-20m/min.
External Air Source	6-8kg/cm2	/
Shrink Film	PE	PE
Machine Size L×W×H	1852×1378×1813mm	2800×950×1750mm
Packaging Size L×W×H	1428×900×1963mm 1850×350×450mm	2850×1000×1900mm
G./N. Weight	480/410kgs	625/565kgs

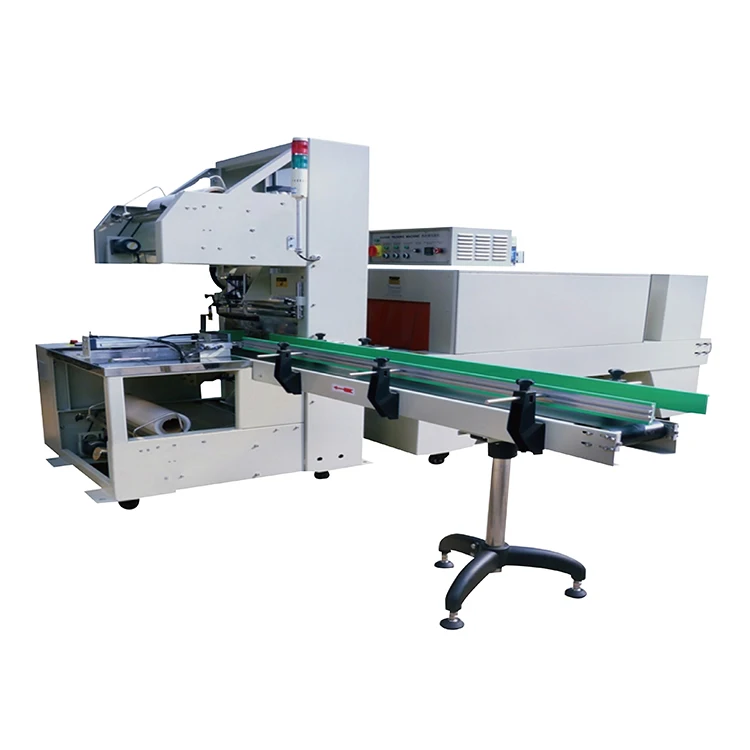

l  GH-6030A + SF-6040E Fully-auto Sleeve Sealer & Shrink Tunnel is designed for a single object or objects with paper tray. This machine can be connected with other production machines with the function of automatically feeding, wrapping, sealing, shrinking and cooling to realize unmanned operation;

l  GH-6030A introduces internationally advanced technology and production process which can automatically calculate the daily output; The performance is reliable;

l  Inductive film-feeding greatly reduces film waste;

l  Imported Autonics digital temperature controller shows precise temperature shows directly when it is sealing;

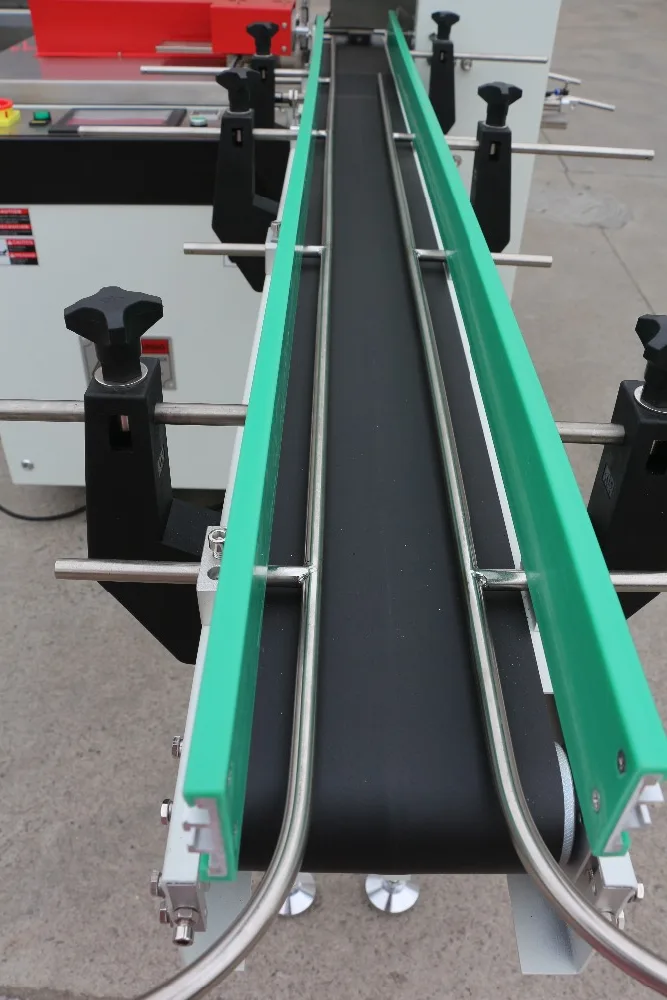

l  Step less mechanical speed adjustment device regulates the speed of the feeding conveyor;

l  The usage of Siemens PLC and touch screen achieves the integrations of mechanism, electricity and pneumatic;

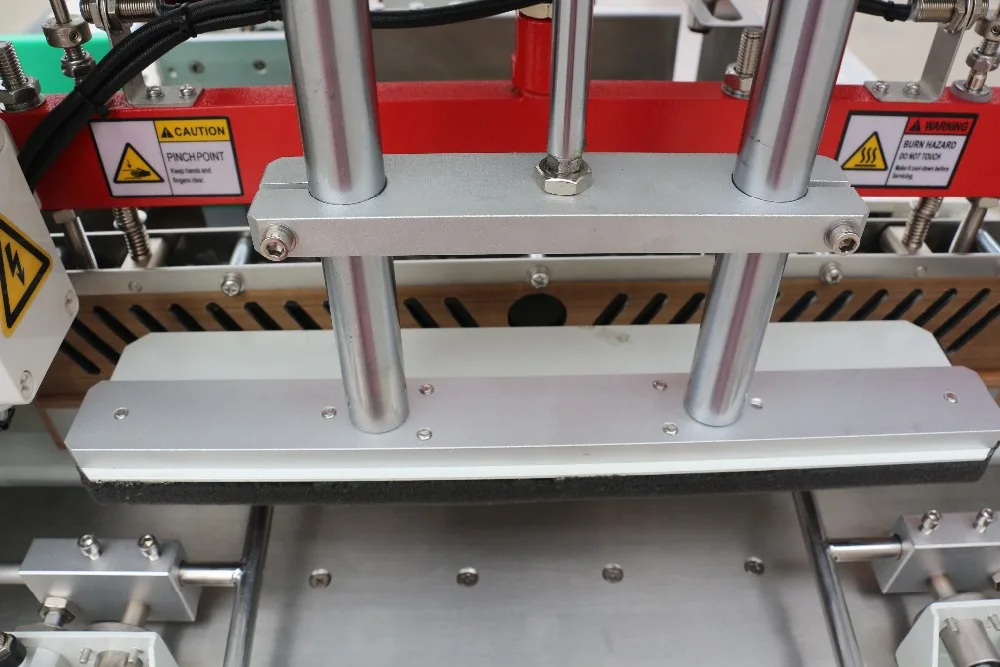

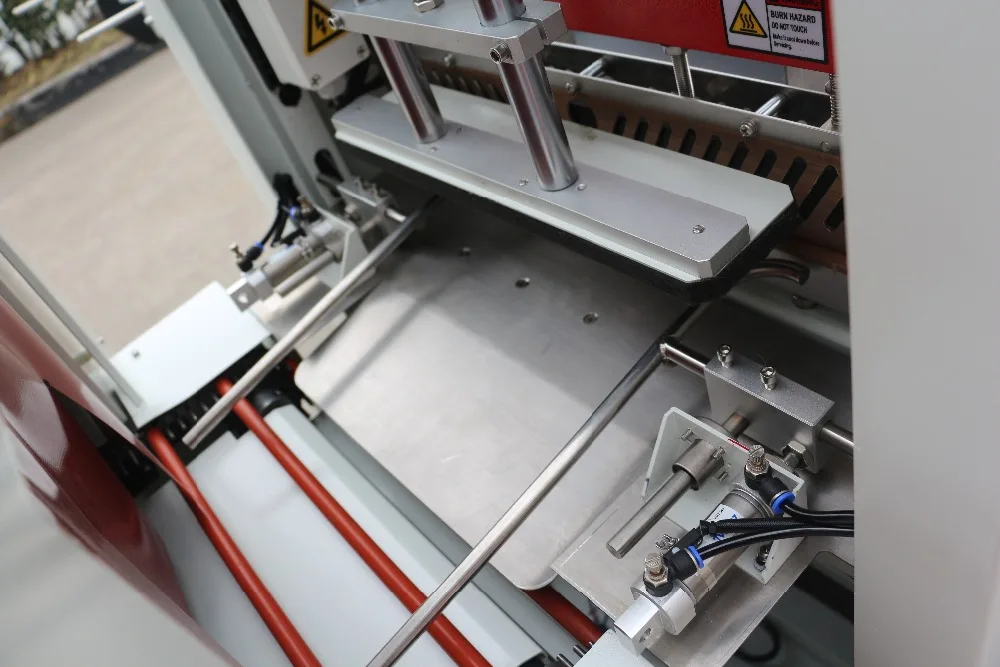

l  A specially designed three-piece sealing knife makes sure solid sealing line, no cracking and anti-stick;

l  Feeding conveyor can be designed in the left side or right side as per your need;

l  SF-6040E using imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;

l  Large amount of cooling air flow, rapidly cooling the product after heat shrinking;

l  The use of French Schneider frequency inverter controls transmission speed which has the function of infinitive speed;

l  For drinks, beer, mineral water, cans, glass bottles with paper- tray and cardboard boxes integrated or single product’s shrink-wrapping;



Sealer parts	Brand	Country
Sensor	Autonics	Korea
Cylinder	Airtac	Taiwan
Solenoid Valve	Airtac	Taiwan
Gear Motor	GPG	Taiwan
PLC	Siemens	Germany
Touch Screen	Siemens	Germany
Film Motor	Haitec	Italy
Intermediate Relay	Siemens	Germany
Temperature Controller	Autonics	Korea
DC Power Supply	Schneider	France
Solid State Relay	Yangming	Taiwan
AC Contactor	Schneider	France



Tunnel Parts	Brand	Country
Gear Motor	GPG	Taiwan
Circulation Motor	SURFON	Taiwan
Intermediate Relay	Siemens	Germany
Temperature Controller	Autonics	Korea
Solid State Relay	Yangming	Taiwan
Thermal Overload Relay	Schneider	France
AC Contactor	Schneider	France
Frequency Inverter	Schneider	France
