PKM 300 мм ползунок серии резистивные смещения измерения для пластиковых литьевых
- Категория: Potentiometers >>>
- Поставщик: Shenzhen,Minor,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.88 $* | 0.18 $* |
| Aug-20-2025 | 0.99 $* | 0.14 $* |
| Jul-20-2025 | 0.14 $* | 0.81 $* |
| Jun-20-2025 | 0.51 $* | 0.0 $* |
| May-20-2025 | 0.27 $* | 0.84 $* |
| Apr-20-2025 | 0.80 $* | 0.66 $* |
| Mar-20-2025 | 0.48 $* | 0.36 $* |
| Feb-20-2025 | 0.83 $* | 0.20 $* |
| Jan-20-2025 | 0.62 $* | 0.86 $* |
Характеристики
PKM Position Sensor
Standard Dimensions:

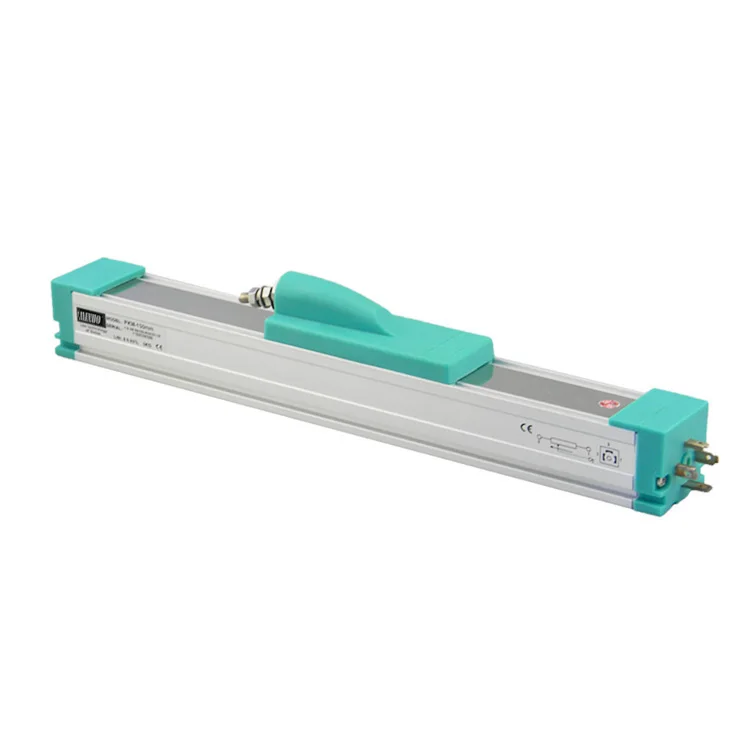

PKM slide block series linear position sensors are designed for precise measurement of displacement and length . The Measuring range of PKM is up to 4500mm with repeatability of ±0.01mm and linearity of 0.05% (model size>350mm).The structure of side slide drive is delicately designed to make a compact size. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside, the product could run smoothly and have low-noise output singals.
Output signal mode
| Output signal mode |
| A.Resistance: 1K,2K, 5K,10K,20K Ω |
| B.Current: 4-20mA |
| C.Power: 5V,10V,12V,24V |
| D.Related digital indicator: up-limit and bottom-limit setting function |
| (relay output, analogue, RS232/485 interface) |
Product Characterist
1.Simple structure, small size, light weight, affordable, but with stable and high
precision quality.
2.Less impact generated by the environment (Such as temperature, humidity,
magnetic interfere etc).
3.Any function of input and output can be implemented.
4.Strong output signal, normally no need to additional amplifier.
5.Suitable for the condition which any optical rule or rotary encode can not be used.
6.Easily installing and maintaining.
7.Save mechanical costs about 30%
Application Range
Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting
molding machine), glass machine, printing machine, medical machine, wood and coal
mine machine and so on.
MINUO products can be used with PLC industrial control systems, servo, frequency
converter, singlechip microcomputer, supporting the use of achieve frequency control,
the precise position detection and control signal feedback ect.
Product Description
 |  |  |

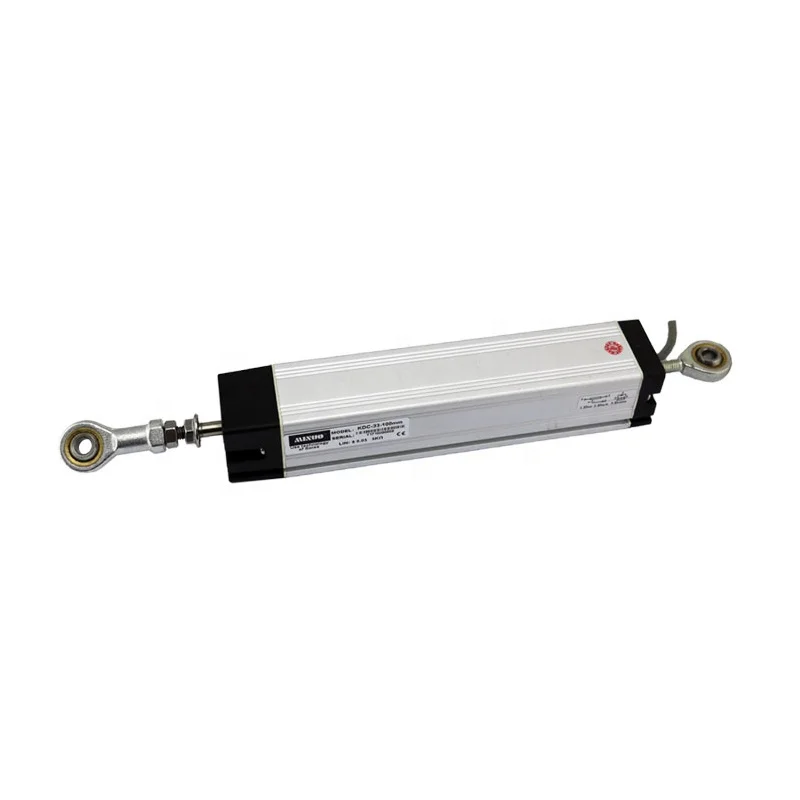

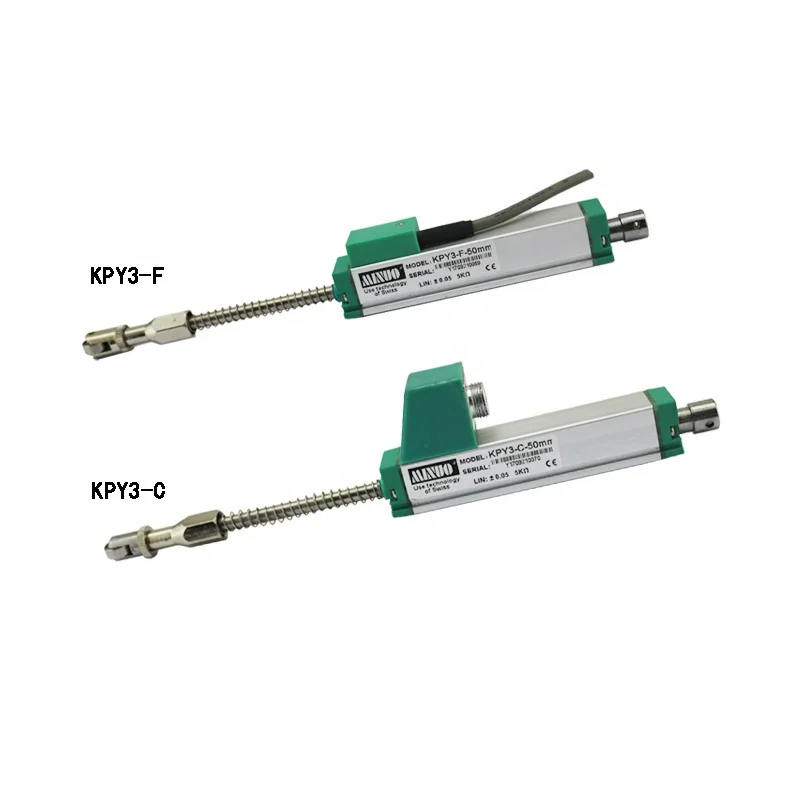

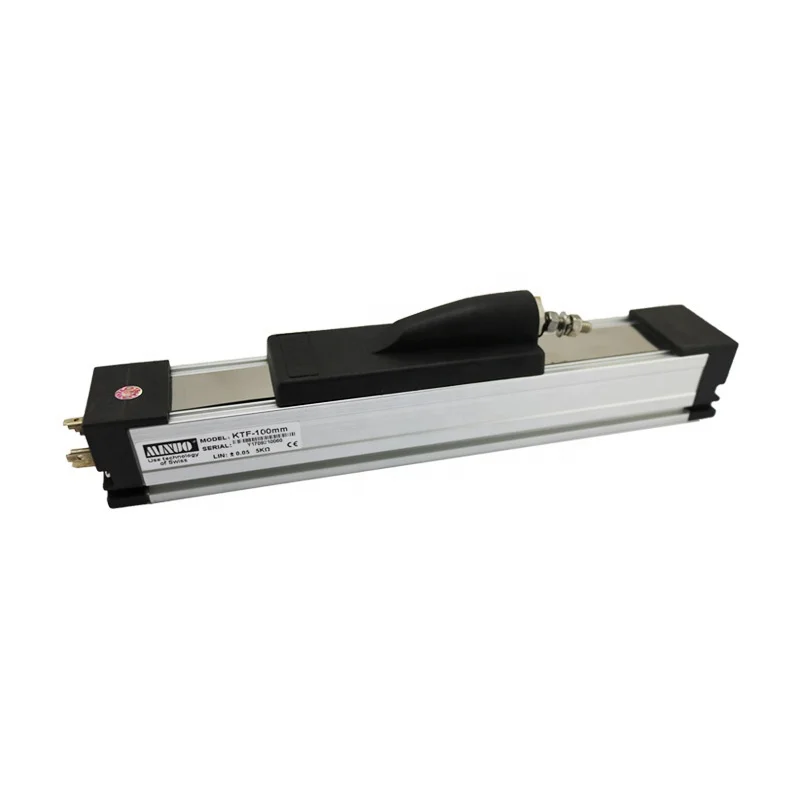

| KDC | KTR-C | KPY3 |
 |  |  |

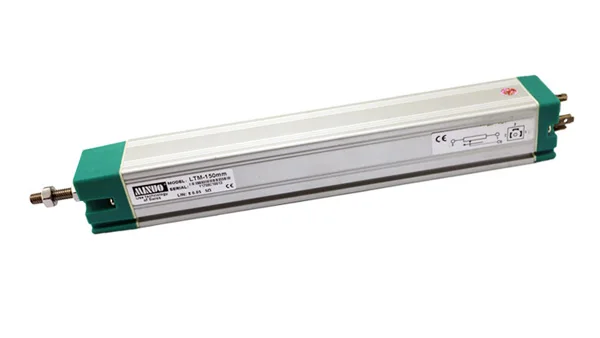

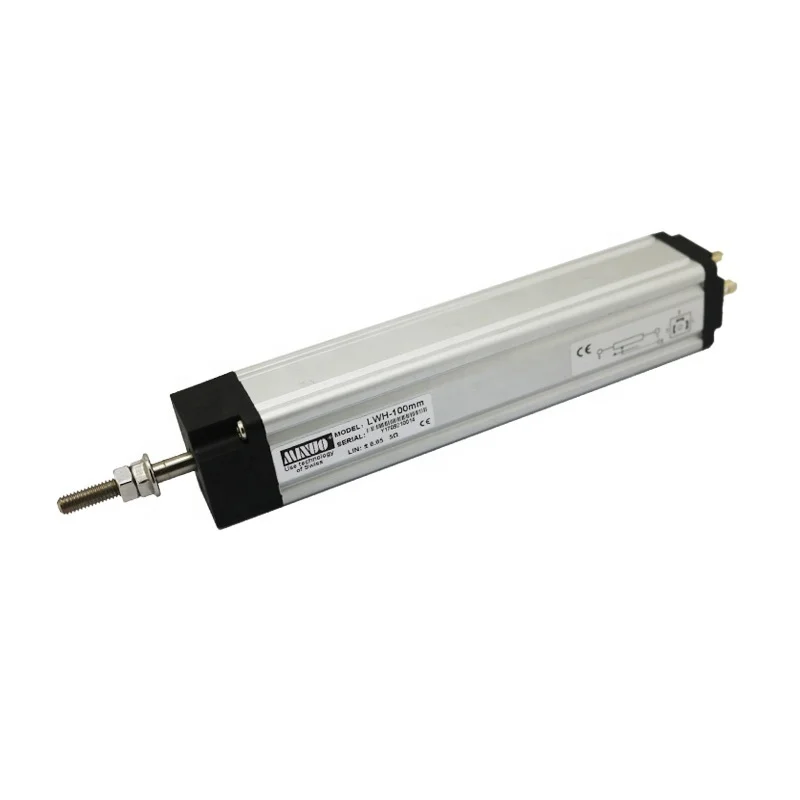

| LWH | LTM | KTW-A |
 |  |  |
| KPZ34 | PKM | KTR-M |
