MD-5008 GROUND SEARCHING METAL DETECTOR

Function:
MD-5008 metal detectors, 3-3.5m depth of detection, adopt advanced technique and attach high quality components which have features of ground balance, good discrimination ability, wide detection range, accurate orientation, strong resolution and easy operation

Application:
The metal detectors are mainly used to detect and identify underground metals. Besides military using, they are widely used in:
(1) Security inspection, public security organs’ ransack:
(2) Scan metal foreign matter in raw, fuel and foods;
(3) Scan metal articles in mail or luggage;
(4) Detect underground pipelines, cables;
(5) Archeology, mineral exploration, find underground metal articles.

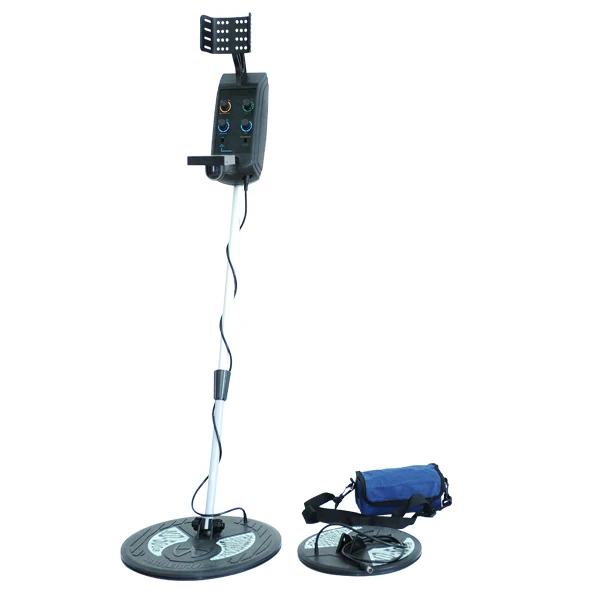

Component:

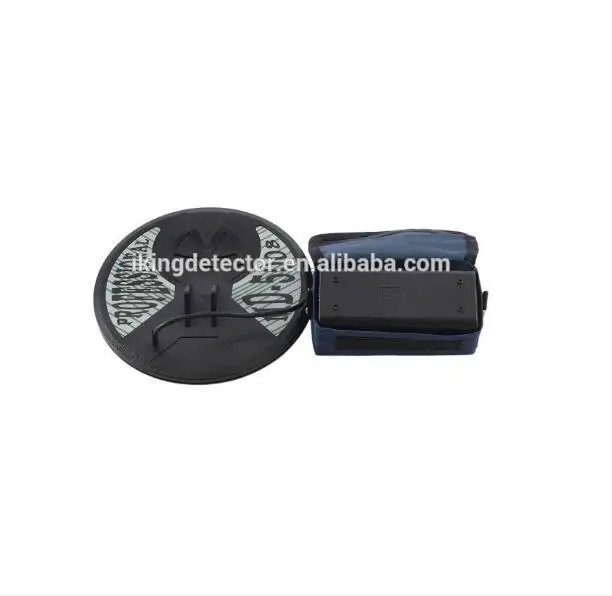

(1) Attach external battery box and bag

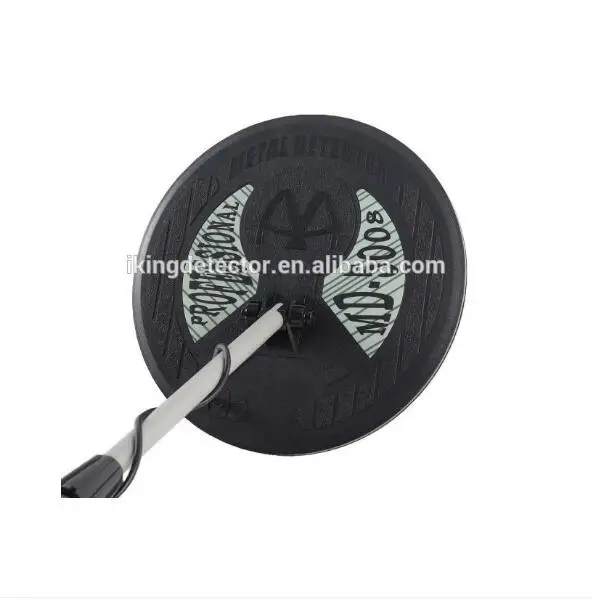

(2) Attach big and small search coils
Specification:
(1) Emission Frequency: 6.99KHz
(2) Signal Frequency: 437Hz
(3) Weight: 2.87KG
(4) Sensitivity: Small coil: 25~30cm (test 25US cent)
                 Big coil: 35~40cm (test 25US cent)
(5) Max Detection: Small coil: 1.5 meters
                   Big coil: 3.0~3.5 meters
This conclusion is elicited by testing a aluminium sheet (60cm*60cm*1cm) buried in dry soil.
(6) Power Supply: 8pcs 1.5V Batteries
(7) Operation Mode: Ground balance mode;Discrimination mode.
(8) Packing: 4pcs/ctn





Package:
(1) G.W./Unit: 5.3kg
(2) Size/Unit: 83*33*17cm
(3) Qty./CNT: 4pcs
(4) G.W./CNT: 21.2kg
(5) Size/CNT: 68*34*84.5cm
