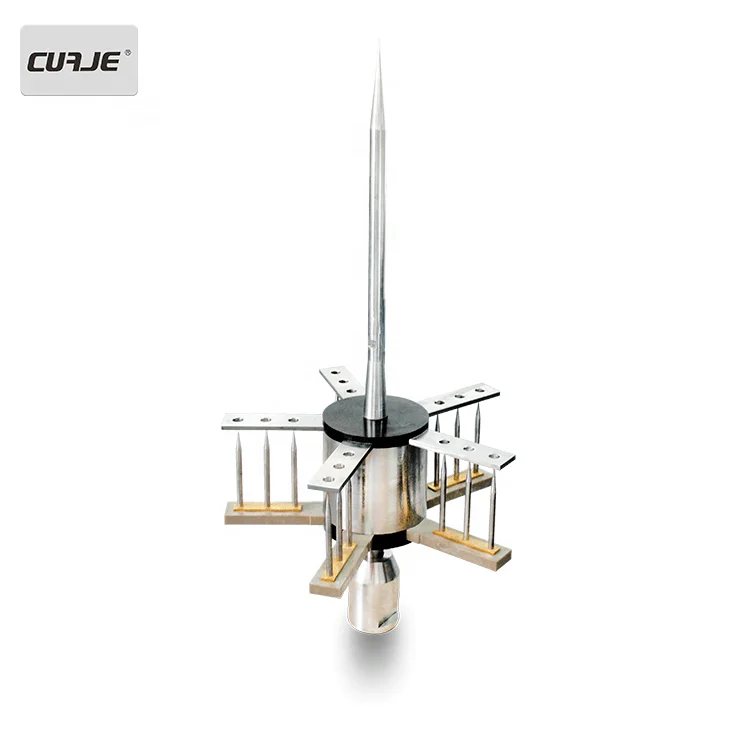

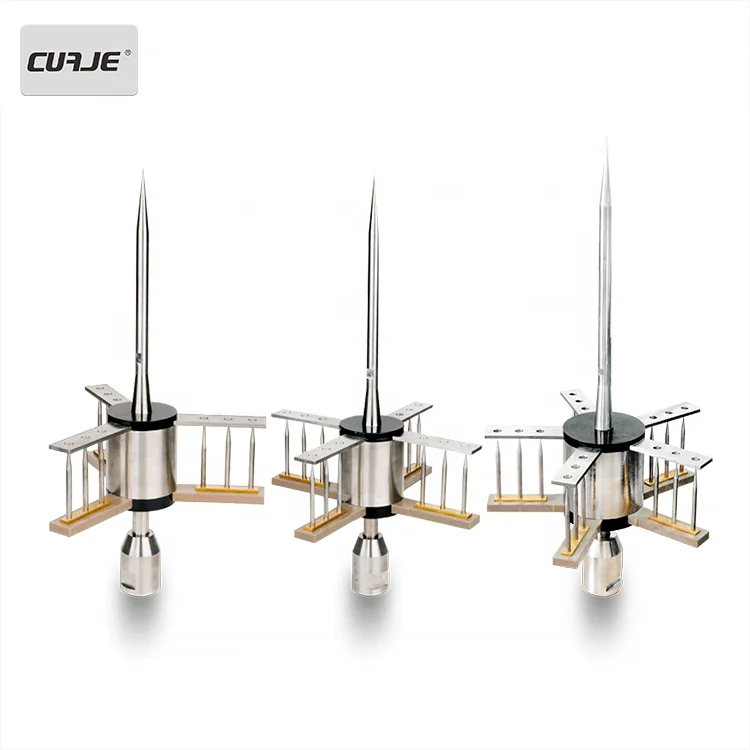

OBVB-5.3 lightning rod are made from stainless-steel material, it has different protection area and various features.
CHARACTERISTICS & BENEFITS
-100% of efficacy in discharge capture.
-High level of protection.
-Electric continulty guaranteed. The device doesn’t offer any resistance to discharge conduction.
-Lightning rod without electrical components. Maxim durability guaranteed.
-CUAJE® OBVB lightning rod preserves its initial properites after each discharge.
-Because it contains no electronic elements, there are no replaceable parts.
-It doesn’t need external power supply.
-Operation guaranteed in any atmospheric condition.
TECHNICAL SPECIFICATIONS
The capture terminal of CUAJE® OBVB lightning rod fits the following technical specifications:
-It has a double ESE (Early Streamer Emission) system:
-A early streamer devcie that produces the upward emission.
-An electro atmospheric condenser.
-An atmospheric accelerator.
-An insulation system
-An external structure made from stainless steel.
-Early Streamer Emission system made from stainless stell and Epoxy resin.
Its effective operaton in any atmospheric condition and environment.
INSTALLATION
The capture terminal of CUAJE ® OBVB lightning rod should take into account the following:
-The point of the lightning rod should be situated, at lest two meters above the hightest building to be protected.
-For its installation on a mast, the corresponding head-mast adapter is needed for the lightning rod.
-The cabling of the covers should be protected against surges and connect to ground the metallic structures present within the safety zone.
-The lightning rod should be connected to a grounding point by way of one of various conducting cables which will go down, whenever possible, the exterior of the construction with the shortest and straight possible trajectory.
-The earth termination systems, whose resistance are not to surpass 10 ohms, should guarantee the most rapid possible dispersion of the lightning current dishcarge.
Product Structure:
Technical Parameters: (OBVB I Type Protection Height=20m)
