Toshiba холодильник запчасти BI-METAL размораживания Термостат с предохранителем для нагревателя
- Категория: Запчасти для холодильника >>>
- Поставщик: Ningbo,Lingtong,Electric,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.33 $* | 0.74 $* |
| Aug-17-2025 | 0.10 $* | 0.35 $* |
| Jul-17-2025 | 0.65 $* | 0.35 $* |
| Jun-17-2025 | 0.50 $* | 0.47 $* |
| May-17-2025 | 0.75 $* | 0.29 $* |
| Apr-17-2025 | 0.87 $* | 0.47 $* |
| Mar-17-2025 | 0.94 $* | 0.81 $* |
| Feb-17-2025 | 0.10 $* | 0.99 $* |
| Jan-17-2025 | 0.71 $* | 0.90 $* |
Характеристики

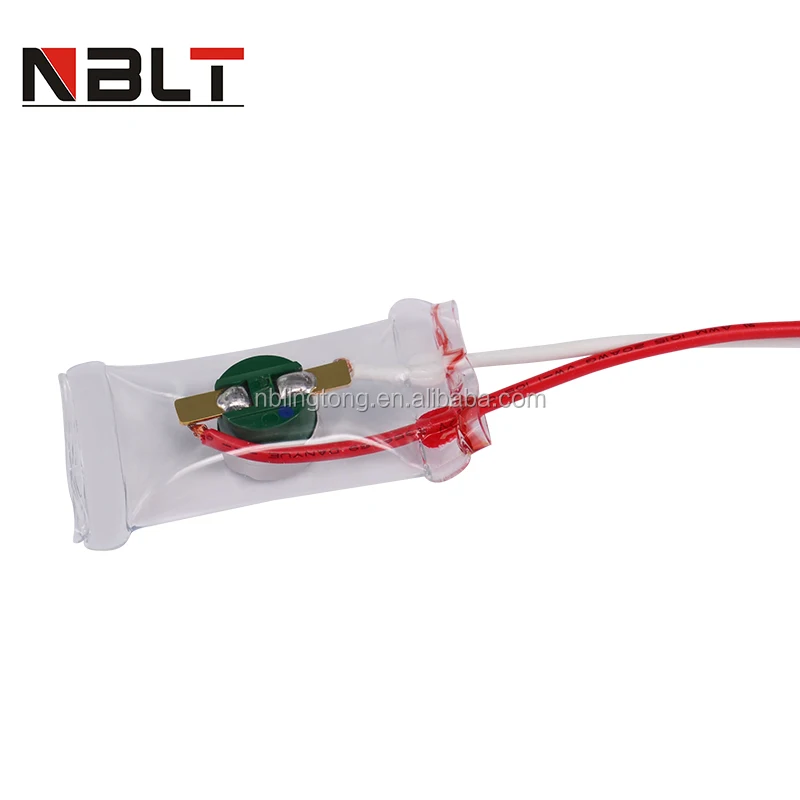

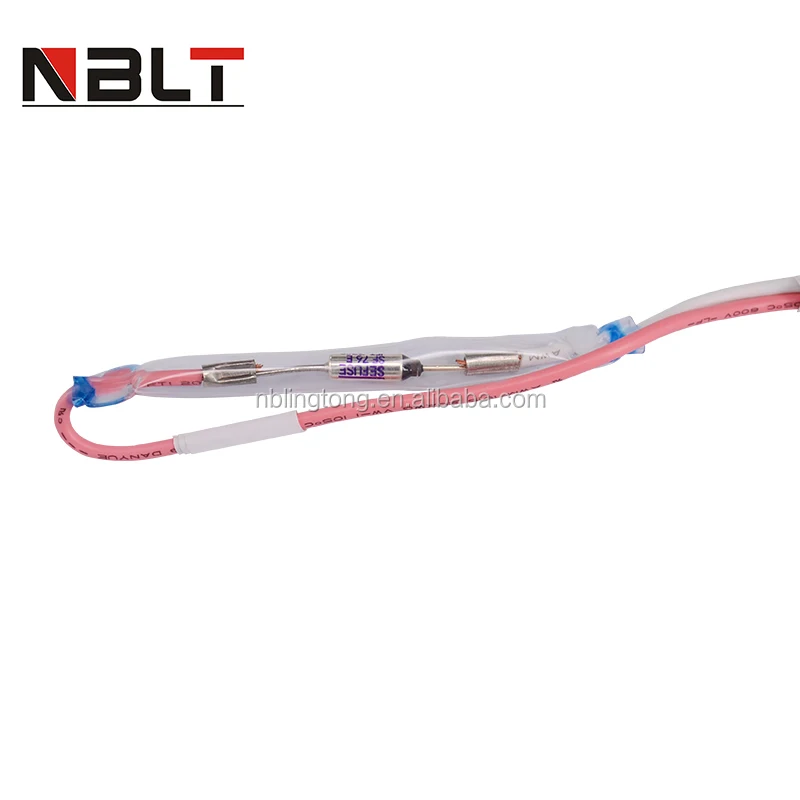

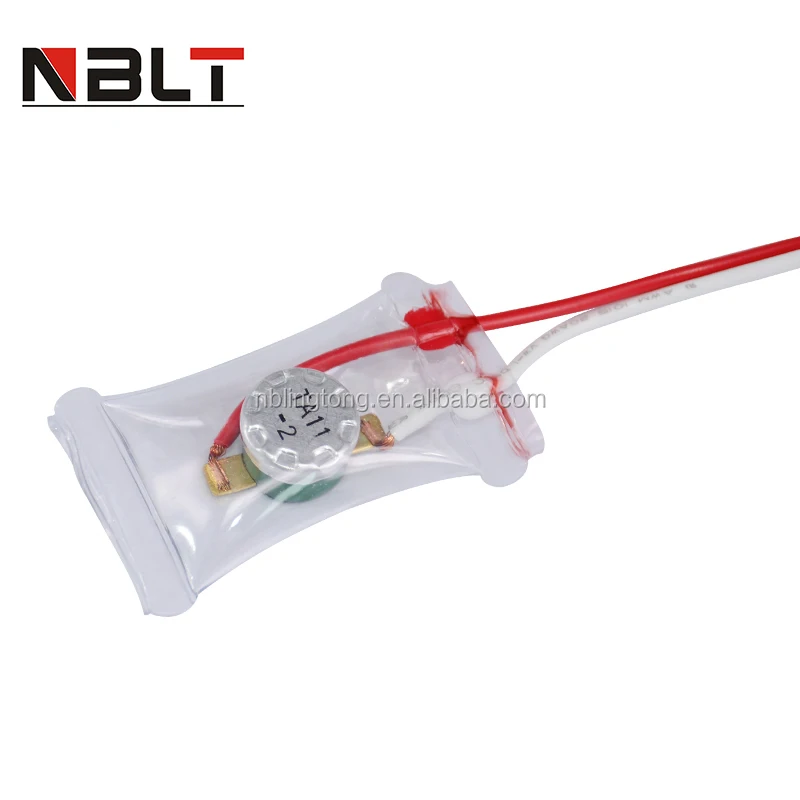

Toshiba REFRIGERATOR Spare Parts BI-METAL DEFROST THERMOSTAT WITH FUSE FOR HEATER PW-010
Specification
ltem NO | PW-010 |
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators, freezer |
Reset type | Automatic |
Base material | bakelite |
Amperage | 5A/10A |
Max. Operating Temperature | 90°C |
Differential | According to the requirement |
Min. Diff | 8°C |
Tolerance | Refer to the regulation |
Cold-resistant Temperature | -30°C |
Limit of the tolerance(OFF) | ±3°C |
Limit of the tolerance(ON) | ±3°C |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum ambient temperature | 90°C |
Diameter of bimetal disc | F12.7mm(1/2″) |
Line | Color: Customized Length: Customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
