Дисперсионная резиновая машина/внутренний

Категория: Оборудование для обработки резины >>>
Поставщик: Qingdao,Eenor,Science&Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.31 $*	0.94 $*
Aug-19-2025	0.7 $*	0.12 $*
Jul-19-2025	0.28 $*	0.39 $*
Jun-19-2025	0.10 $*	0.0 $*
May-19-2025	0.92 $*	0.36 $*
Apr-19-2025	0.64 $*	0.72 $*
Mar-19-2025	0.55 $*	0.13 $*
Feb-19-2025	0.13 $*	0.51 $*
Jan-19-2025	0.29 $*	0.13 $*

Характеристики

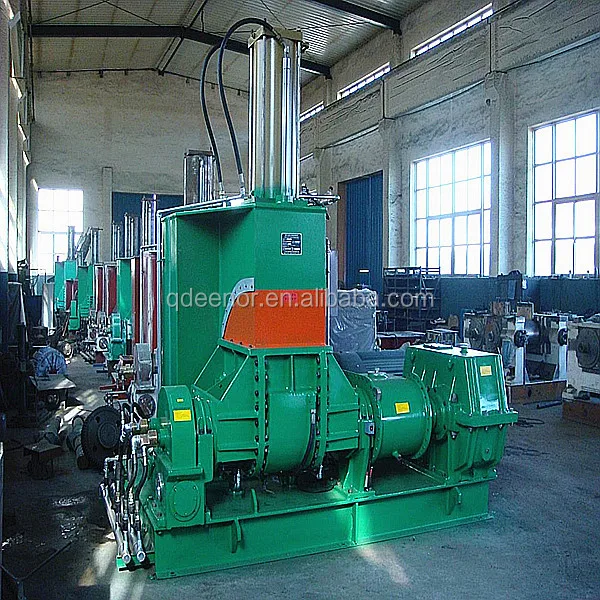

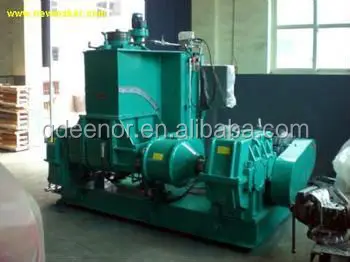

Rubber banbury Kneader Machine / Internal Mixer

Feature for Dispersion rubber Kneader:

1.With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.

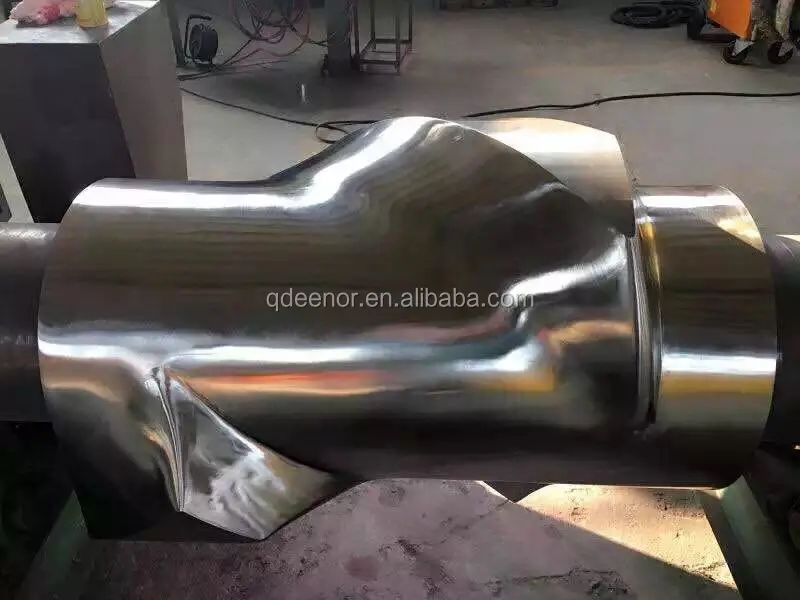

2.Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.

3.Surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.

4.Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber processing technology.

5.Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in a production line. The mixing chamber is able to turn forward by 140 around the front rotors to discharge and is easy for changing pigments and cleaning the chamber.

6.Programmable logic controller(PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.

technical parameter

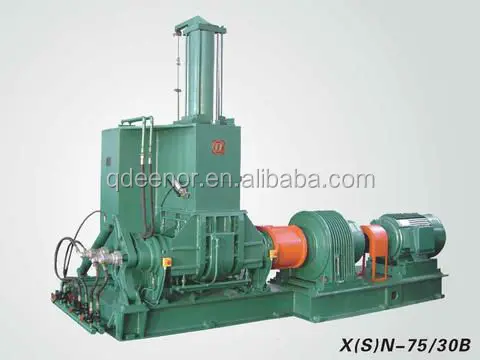

Type		X(S)N-35×30	X(S)N-55×30	X(S)N-75×30
Total volume of mixing chamber	L	75	125	175
Working volume of mixing chamber	L	35	55	75
Driving motor power	KW	55	75	110
Tilting motor power	KW	2.2	2.2	2.2
Tilting angle		140°	140°	140°
Rotor speed(front/back)	r/min	30/24.5	30/24.5	30/24.5
Pressure of compressed air	Mpa	0.60.8	0.60.8	0.60.8
Pressure of cooling water	Mpa	0.20.4	0.20.4	0.20.4
Pressure of heating Steam	Mpa	0.50.8	0.50.8	0.50.8
