Стендовой газовый котел CE водонагреватель Лидер продаж в

Цена:24 246,49 ₽ - 44 084,52 ₽*

Количество:

Gas Boiler Frequency converstion Series Feature:

1. Aesthetics design , energy saving, high efficiency, enviroment-friendly .

Adopted with European technology , high quality components with CE certificates,high efficiency combustion

2. Supply both heating and sanitary hot water

3. Easy operation , digital LED screens of European style ,

4. Malfunction display code

5. Various capacity available :

Input capacity : 18KW/ 20KW / 24 KW/ 28KW

6. Can be connected with room thermostat or remote controller which provides more funtion options .

Technical Data:

		Unit	L1P16/18/20-B(H)	L1P24/24-B(H)	L1P35/40-B(H)
Rated Thermal Load		KW	16/18/20	24/28	35/40
Rated output power		KW	14.4/16.5/18	20.7/25.5	31.5/36
Efficiency at rated thermal load		%	>90
Rated input electric power		W	110		140
Power supply		/	a.c220/50Hz
Noise under normal working conditions		dB	<42
Boiler Net weight		kg	32/33	34/35	39/40
Boiler size(HWTH)		mm	700400305	700400305	752462322
Gas Type & Rated Pressure	(Y)LPG	Pa	2800
	(T) NG	Pa	2000
	(R) Town Gas	Pa	1000
Heating System	Range of heating out put power	KW	4.3-14.4/4.9-16.2/5.4~18	6.2-20.7/7.6-25.2	9.5-31.5/12-36
	Range of water temperature	℃	30~80
	Heating area	Sq.m	80/100/120	140/180	300/350
	Range of water pressure	bar	0.8~3
	Release pressure of safety valve	bar	3
	Lift of pump	m	5		6
	Expansion vessel capacity	L	6		10
Hot water system	Range of output power	KW	4.3-14.4/4.9-16.2/5.4~18	6.2-20.7/7.6-25.2	9.5-31.5/12-36
	Range of water temperature	℃	30~60
	Rated capacity of hot water (Δt=30K)	L/min	6.5/7.5/8.2	10/11.5	14.5/16.5
	Range of water pressure	bar	0.3~8

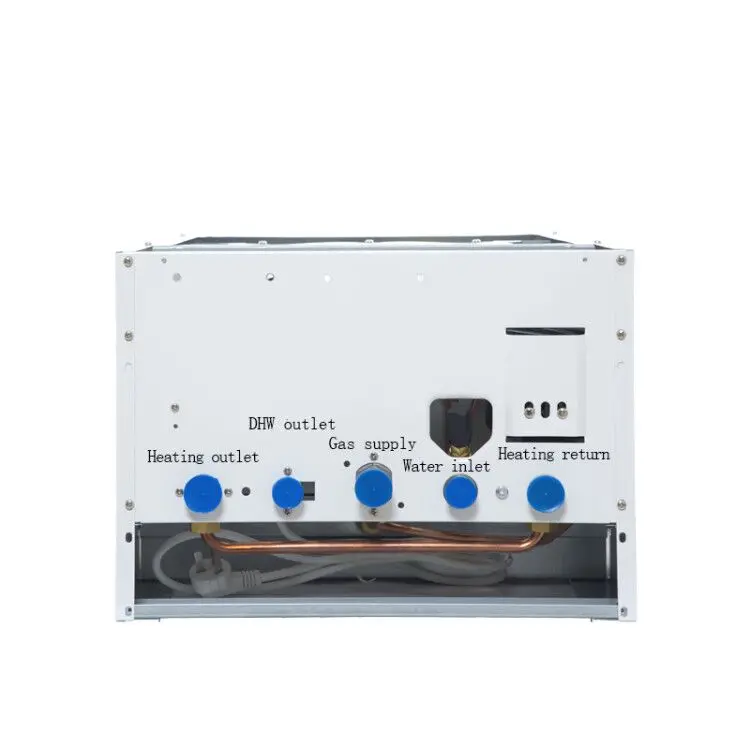

Fitting Dimension	Inlet/outlet pipe diameter of heating	Inch	G3/4
	Inlet/outlet pipe diameter of hot water	Inch	G1/2
	Input diameter of g	Inch	G3/4
Smoke vent Dimension	Coaxial pipe	mm	ø60-ø90	ø60-ø100	ø60-ø110
