Нагнетатель CN55 с пневматической катушкой максимальный дизайн украшение пистолета для ногтей воздушный
- Категория: Пневматические гвоздезабивные пистолеты >>>
- Поставщик: Zhejiang,Dongya,Facility,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 8967.35 $* | 9146.8 $* |
| Jul-19-2025 | 7273.36 $* | 7418.50 $* |
| Jun-19-2025 | 8826.82 $* | 9003.8 $* |
| May-19-2025 | 8756.97 $* | 8931.84 $* |
| Apr-19-2025 | 6990.83 $* | 7130.98 $* |
| Mar-19-2025 | 8614.59 $* | 8786.83 $* |
| Feb-19-2025 | 8544.64 $* | 8715.40 $* |
| Jan-19-2025 | 8473.97 $* | 8642.9 $* |
Характеристики
Max Design Pneumatic Coil Nail Gun Decorative Air Pallet Coil Nailer
MAX COIL NAILER
37 Year Production Experience
Industry's Leading Factory
Taiwan Engineer With 30 Years Experiences In Nail Gun Industry
Taiwan Spare Parts
MAX COIL NAILER SPECIFICATION
|
FEATURE • 360° exhaust direction • "Contact mode" safety system • "Sequential mode" can be available by changing trigger • Light die cast body of Aluminum alloy • Use 15°wire collated coil nails • Side loading system • Easy length adjust design |
|
MAX COIL NAILER PARAMETERS
| Tool Diamensions: | 306x128x354mm (12.05x5.04x13.94 in.) |
| Net Tool Weight: | 3.95kgs (8.69 lbs) |
| Operate Pressure: | 5~7.5Kg/cm (75~110Psi) |
| Load Capacity: | 300 Nails |
| Coil Nail Angle: | 15 Degree Wire Collated Coil Nails |
| Coil Nail Diamensions: | 2.5-3.3mm(0.099-0.130") |
| Coil Nail Cap Diamensions: | 6.0-7.5 mm(0.226-0.295 ") |
| Coil Nail Spacing: | 7.8-8.5 mm (0.307-0.335”) |
MAX COIL NAILER ADVANTAGE
1. 500000 working times
2. All spare parts are changeable with MAX
3. Easily broken parts are imported from Taiwan
4. 100% Spare parts can be supplied to you.
5. Very powerful for hard wood
MAIN APPLICATION FOR MAX COIL NAILER
Packaging & Shipping
CN80 MAX COIL NAILER PACKAGE DETAILS
Service and Repars
SERVICE AND REPAIRS
| No. | Symptom | Problems | Solutions | |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | |||
| 1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring | |||
| 3.Dirt in the trigger valve | Check and clean the trigger valve | |||
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | |
| 2.Damaged seal under cylinder cap | Check and replace seal | |||
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | |||
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | |||
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | |
| 2.Worn or damaged nozzle | Check and replace nozzle | |||
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | |||
| 3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring | |
| 2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings | |||
| 3.Dirt in the nozzle | Check and clean the nozzle | |||
| 4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) | |
| 2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) | |||
| 3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover | |||
| 5 | Nail can not be shot | 1. Driver (piston unit) can't return to the correct position. | Refer to no. 1 Symptom | |
| 2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine | |||
| 3.Worn or damaged nail pusher compression spring | Check and replace nail pusher compression spring | |||
Company Information
![-1.jpg]()
![CE.jpg]()
![.jpg]()
WHY CHOOSE US?
![9.jpg]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1) 30 Years Production Experience
2) 19 Years Alibaba Gold supplier with High Reputation
3) Alibaba Trade Assurance USD30,000
4) 100% QC Inspection before Shipment
5) Engineer Team from Taiwan
6) Competitive Price
7) Lifelong After-Sale Service
8) Advanced Machines
9) CE Certificate and ISO 9001:2015
10) OEM Available
11) Sample Available
Hot Sale
|
|
|
|
|
|
|
|
Features and Application:
1)360 degree exhaust direction
2)"Partial sequential mode" safety system
3)Light die cast body of aluminum alloy
4)Bottom loading system
5)Easy taken-off lower magazine
6)Extremely easy jam clearing design

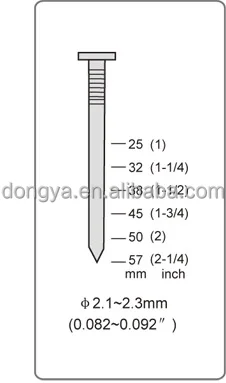

7)Magazine Load Capacity: 300 staples , nail diameter: 2.1-2.3mm(0.082-0.092"), length: 25-57mm(1~2.25'')
8)N.W.: 2.5kgs(5.50lbs)
9)Tool dimensions: 315×112×282mm(12.40×4.41×11.10 in.)
10)Packaging: 3 pcs / carton
11)Spare parts: oil, allen wrenches, operating manual, goggle glass and most spare parts are compatible with MAX spare parts.
Max Design Pneumatic Coil Nail Gun Decorative Air Pallet Coil Nailer
