Громоотвод
Ранняя разрядка lightning стержень/молниеотвод ВЮВ

Ранняя разрядка lightning стержень/молниеотвод ВЮВ

Категория: Громоотвод >>>
Поставщик: Wenzhou,Chuangjie,Lightning,Protection,Electrical,Co.,Ltd.

Цена:195,00 $ - 210,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	248.99 $*	253.30 $*
Jul-19-2025	201.79 $*	205.97 $*
Jun-19-2025	244.95 $*	249.12 $*
May-19-2025	242.28 $*	247.85 $*
Apr-19-2025	193.40 $*	197.7 $*
Mar-19-2025	238.47 $*	243.42 $*
Feb-19-2025	236.58 $*	241.38 $*
Jan-19-2025	234.91 $*	239.26 $*

Характеристики

Product Description

early discharging lightning rod

OBVB-3.1 lightning rod are made from stainless-steel material, it has different protection area and various features.

INSTALLATION

The capture terminal of CUAJE^® OBVB lightning rod should take into account the following:

-The point of the lightning rod should be situated, at lest two meters above the hightest building to be protected.

-For its installation on a mast, the corresponding head-mast adapter is needed for the lightning rod.

-The cabling of the covers should be protected against surges and connect to ground the metallic structures present within the safety zone.

-The lightning rod should be connected to a grounding point by way of one of various conducting cables which will go down, whenever possible, the exterior of the construction with the shortest and straight possible trajectory.

-The earth termination systems, whose resistance are not to surpass 10 ohms, should guarantee the most rapid possible dispersion of the lightning current dishcarge.

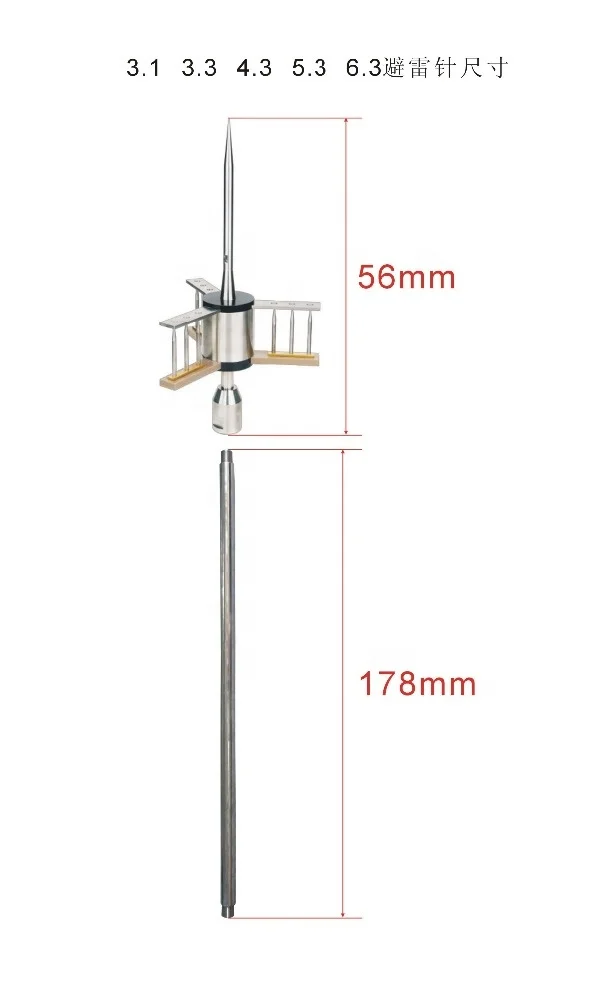

Product Structure:

Technical Parameters: (OBVB I Type Protection Height=20m)

Installation of high (m)
Protection radius (m)

Installation of high (m) Protection radius (m) Model	5	6	7	8	10	15	20
OBVB 3.1	22	22	23	23	25	25	25
OBVB 3.3	42	42	43	43	43	44	45
OBVB 4.3	51	51	52	52	53	53	54
OBVB 5.3	61	61	61	61	62	62	63
OBVB 6.3	70	70	70	70	71	71	72
