Инвертор солнечной энергии с немодулированным синусоидальным сигналом 800 Вт кВт 12 В
- Категория: Power Supplies >>>
- Поставщик: MPPSOLAR,INC.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.30 $* | 0.31 $* |
| Aug-18-2025 | 0.54 $* | 0.93 $* |
| Jul-18-2025 | 0.84 $* | 0.43 $* |
| Jun-18-2025 | 0.12 $* | 0.56 $* |
| May-18-2025 | 0.59 $* | 0.74 $* |
| Apr-18-2025 | 0.89 $* | 0.76 $* |
| Mar-18-2025 | 0.79 $* | 0.7 $* |
| Feb-18-2025 | 0.28 $* | 0.1 $* |
| Jan-18-2025 | 0.9 $* | 0.22 $* |
Характеристики

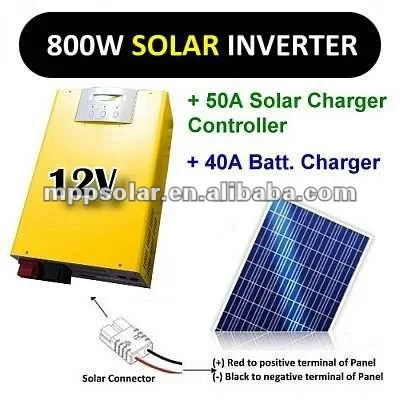

PIP-812LC is a 800w surge 1.6kw 12v 40A Pure Sine Wave solar power inverter UPS off grid inverter featuring:
- 800W Pure sine wave inverter/ up to 2X surge support
- Built-in 40A AC high efficiency battery charger
- Built-in 50A solar charge controller
- Multiple microprocessor design base
- Works with 12V battery system only
- Low Frequency design to support wider range of high energy loads
- DC start and automatic self-diagnostic sequence
- <3% total harmonic distortion (THD)
- Transfer time <8ms
- Programmable parameters
- 24 hour operation
- System designed to operate under harsh environment
- LCD module on front may be detached to support remote viewing
- Inherent full-feature safety protection
- Wall-mounting
- 100% MADE IN TAIWAN with all reliable quality component
- CE, EMC certified, Green product ( ROHS)
**Note: Standard stocks are 220~240V, 110V input/output may be customized upon request.

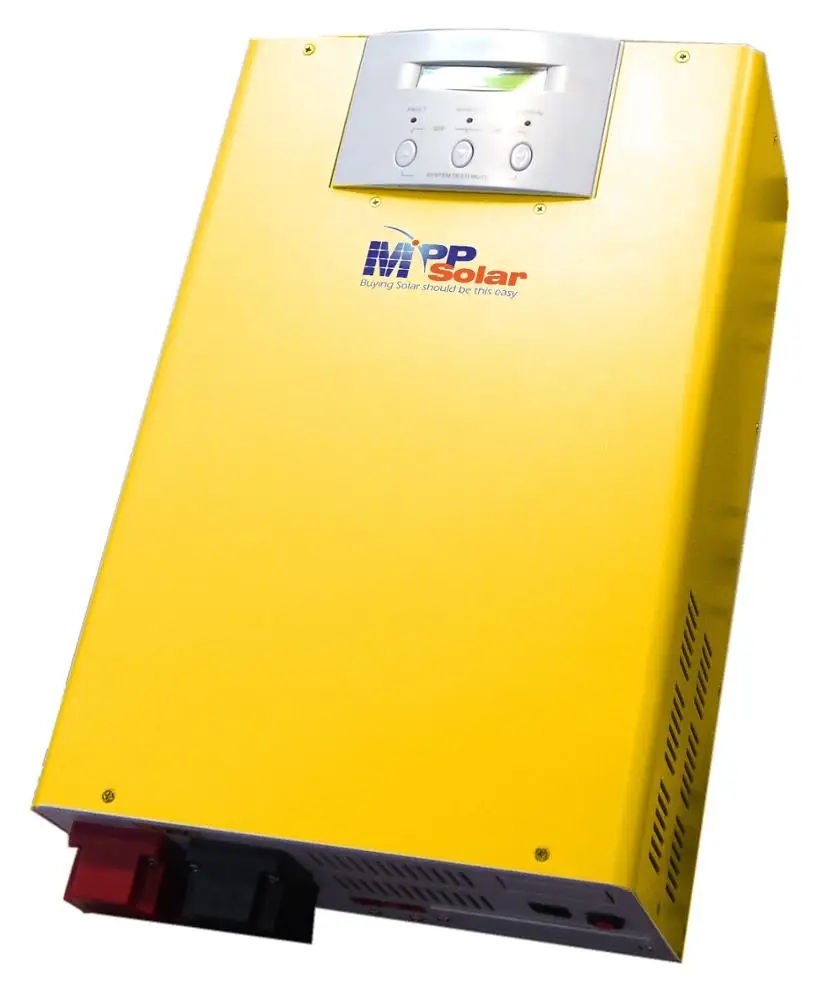

(*Product photos shown below are the 1.6kw/2.4kw 24V models for illustrative purpose only; actual item is slightly smaller but has same design & color.)
| PIP-LC SERIES | 812 / 824 |
| ELECTRICAL SPECIFICATIONS | |
| Continuous/Surge Output | 800/1600W |
| Input Voltage Range | 60~135V or 120~270VAC (120 or 230V) |
| Output Voltage | 110/115/120Vac or 220/230/240VAC (programmable) |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 50Hz or 60Hz (auto sensing 45Hz~70Hz) |
| Output Regulation | < 3% RMS for battery voltage range |
| Peak Efficiency | 85% |
| Input VDC / Range | 12V: 10.5~14.5V |
| Transfer Time | < 8ms |
| Recharging Current | >40A |
| 50A SOLAR CHARGER (OPTIONAL) | |
| Charging Voltage | 13.8V |
| Max PV Input Voltage | 22V |
| PROTECTIONS | |
| Batt. Reverse Polarity | By Fuse |
| Overload (UPS/Batt. Mode) | > 110%: Pre-Alarm, Amber LED Blinking / >110~150% for 30 sec, > 150% for 200ms Shutdown |
| Over Temperature | > 60°C Pre-Alarm |
| Low Batt (Alarm/Shutdown) | <10.8V / <10.3V |
| Short Circuit | Circuit (UPS Mode) / Electronic Circuit (Battery Mode) |
| LED Indicator | Green: Power, Amber: Warning, Red: Fault |

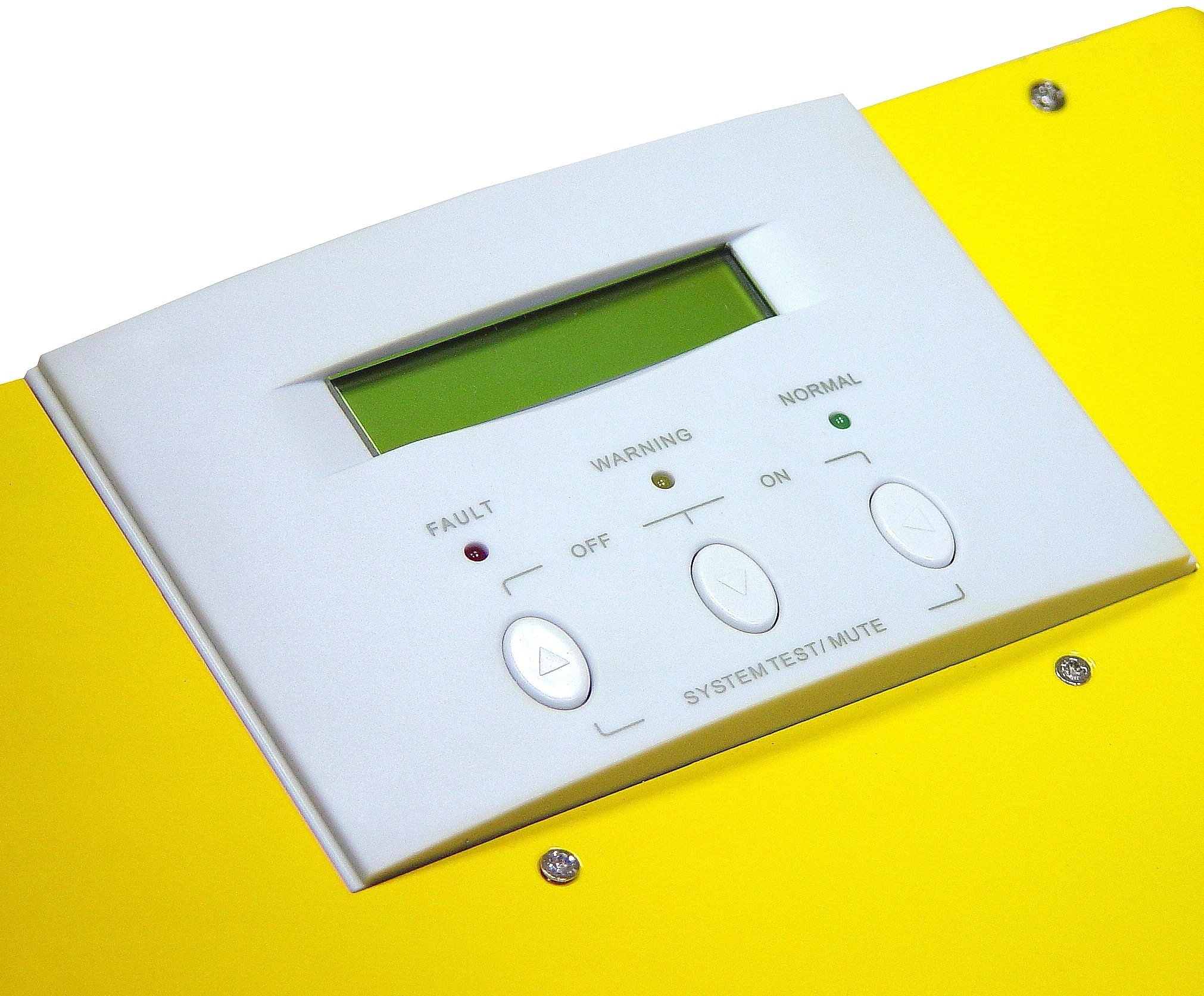

| LCD Display | UPS Status, Input / Output Voltage Frequency, Load, Battery Voltage, Battery Capacity, Temperature |
| ENVIRONMENTAL / MECHANICAL SPECIFICATIONS | |
| Certification / EMC | CE / EN62040-1-1, EN62040-2 |
| Operating/Storage Temp. | 0°C ~ +40°C / -20°C~ +70°C |
| Operating Humidity | 20~90%RH Non-Condensing |
| Dimension | 298*400*150mm |
| Weight/Packing | 15Kg |
Built-in PWM 50A solar controller
| BATTERY VOLTAGE | 12V | 24V | 48V |
| CHARGING VOLTAGE | 13.8V | 27.7V | 55.2V |
| MAX. INPUT VOLTAGE | 22.0V | 45.0V | 100V |
| MAX. INPUT CURRENT | 50A | 50A | 50A |
| MAX. CHARGING CURRENT | 50A | 50A | 50A |
| POLARITY PROTECT | YES | YES | YES |
| BACKFLOW PROTECT | YES | YES | YES |
| W*D*H | 112mm * 80mm * 50mm | ||
