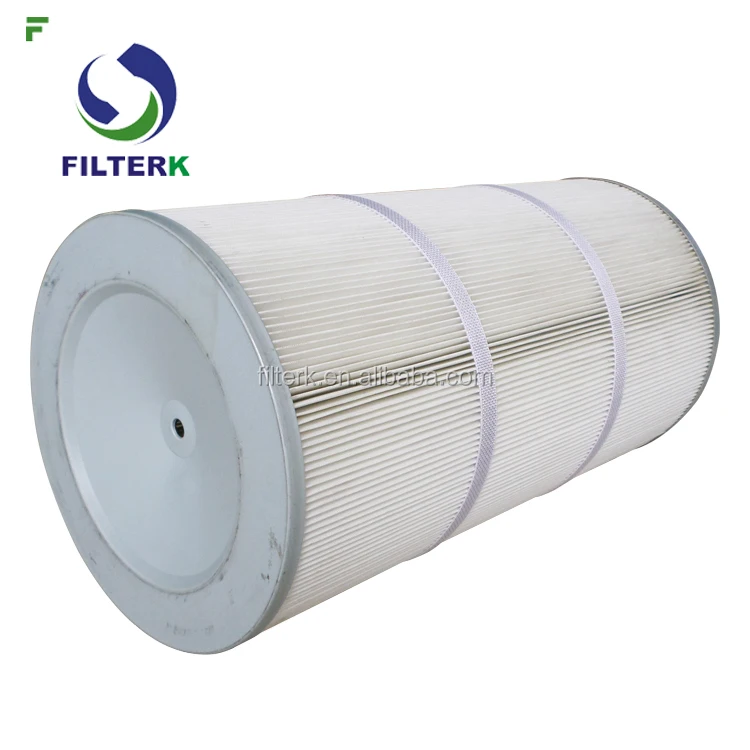

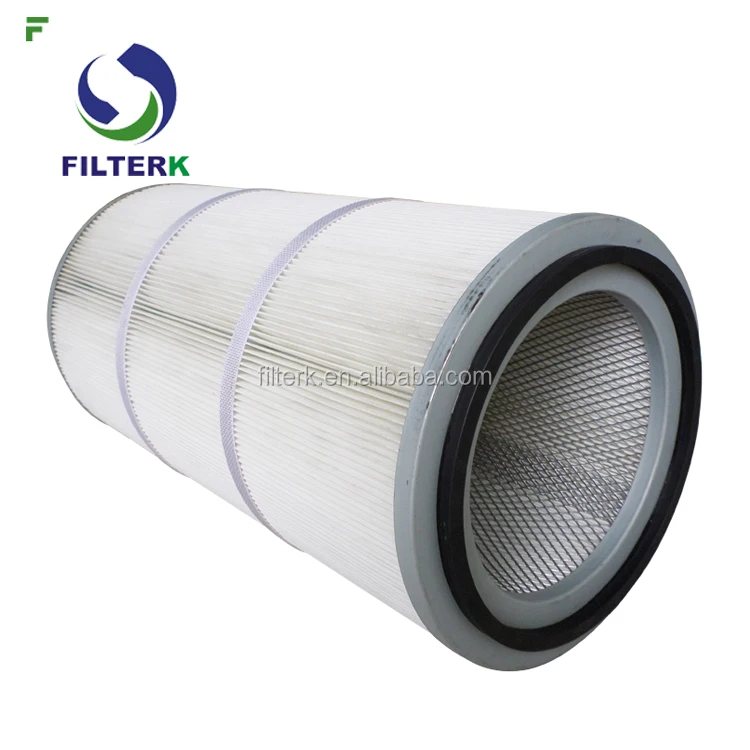

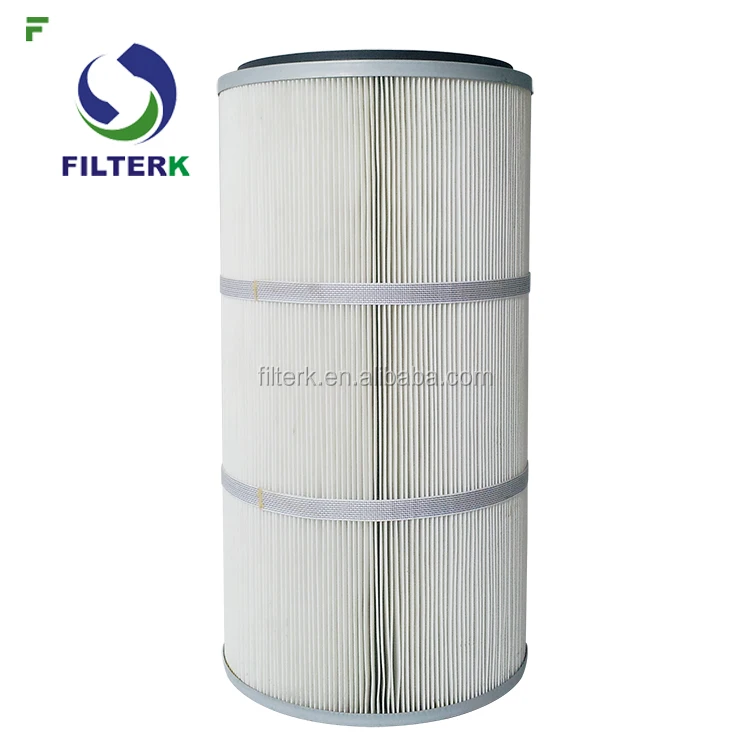

FILTERK Pleated Cartridge Filter Dust Collector

Material of filter dust collector:

Filter Media:

1)  Imported long fiber polyester filter media,fiber interwoven,evenly distributed.

2)  Filter material surface do waterproof and oil processing.

3)  Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.

4)  Smooth filter media surface,not sticky.

5)  Excellent chemical resistance.

6)  Good filter material stiffness,can be repeated washed.



Optional Filter Media:

1) Spunbonded polyester

2) Polyester +  Oil and water repellent

3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)

4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )

5) Polyester + Flame retardant

6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)

We will choose the most suitable filter media according to customers' requirement.



End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.



Gasket: Professional sealing obturator elastic neoprene.



Features of filter dust collector:

1)  Operating temperature ≤ 135 ° C.

2) Greatly increase the effective filtration area.

3) Ensure a low steady differential pressure, improve the circulation of air flow.

4) Small filter cartridge element, easy to install.

5) Especially suitable for large dust concentration industry.



Part #	G3266
Structure	Cylindrical Filter Element
Dimension	(OD)324*(ID)213*(H)660 mm
Filter Material	Polyester
Efficiency	100% (Particles ≥5μm)
End Caps	Galvanized sheet
Inner Mesh	Galvanized diamond mesh
Gasket	Foam Rubber
Construction	Open/Closed with bolt hole
MOQ	NO MOQ . But advice full container to save cost. 20GP FCL: 306 sets 40GP FCL: 612 sets 40HQ FCL: 714 sets
Loading Port	Shanghai
Lead Time	Around 7 days for 20GP container
Payment	T/T ; West Union ; Paypal
Shipment	By sea to your nearest port By air to your nearest airport By express (DHL,UPS,FEDEX,TNT,EMS) to your door
Package	Carton
Max Capacity	Around 1000 pcs per week
