1000 МГц 2 способ ТВ

Категория: Другие радио и ТВ аксессуары >>>
Поставщик: Hangzhou,Xinbiao,Electric,Appliance,Factory

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.18 $*	0.45 $*
Aug-19-2025	0.96 $*	0.54 $*
Jul-19-2025	0.33 $*	0.34 $*
Jun-19-2025	0.73 $*	0.28 $*
May-19-2025	0.75 $*	0.73 $*
Apr-19-2025	0.83 $*	0.31 $*
Mar-19-2025	0.29 $*	0.15 $*
Feb-19-2025	0.5 $*	0.80 $*
Jan-19-2025	0.16 $*	0.67 $*

Характеристики

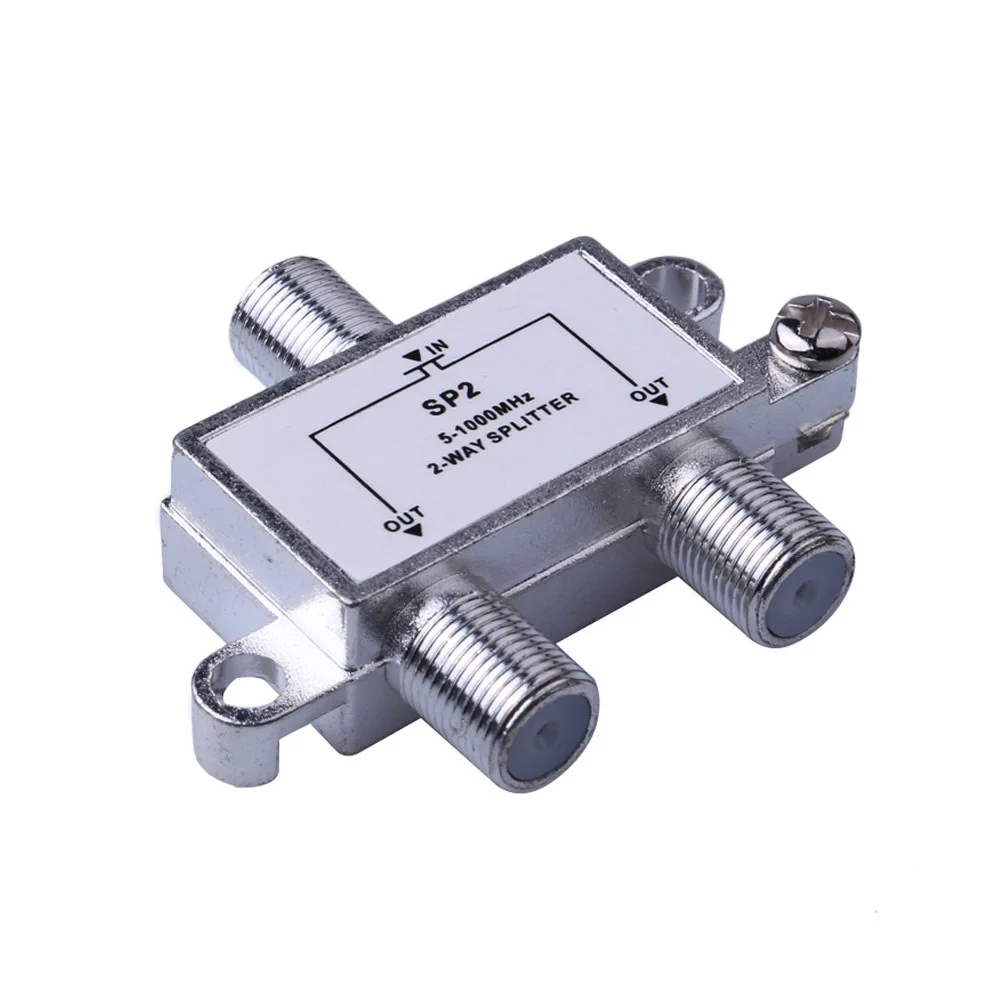

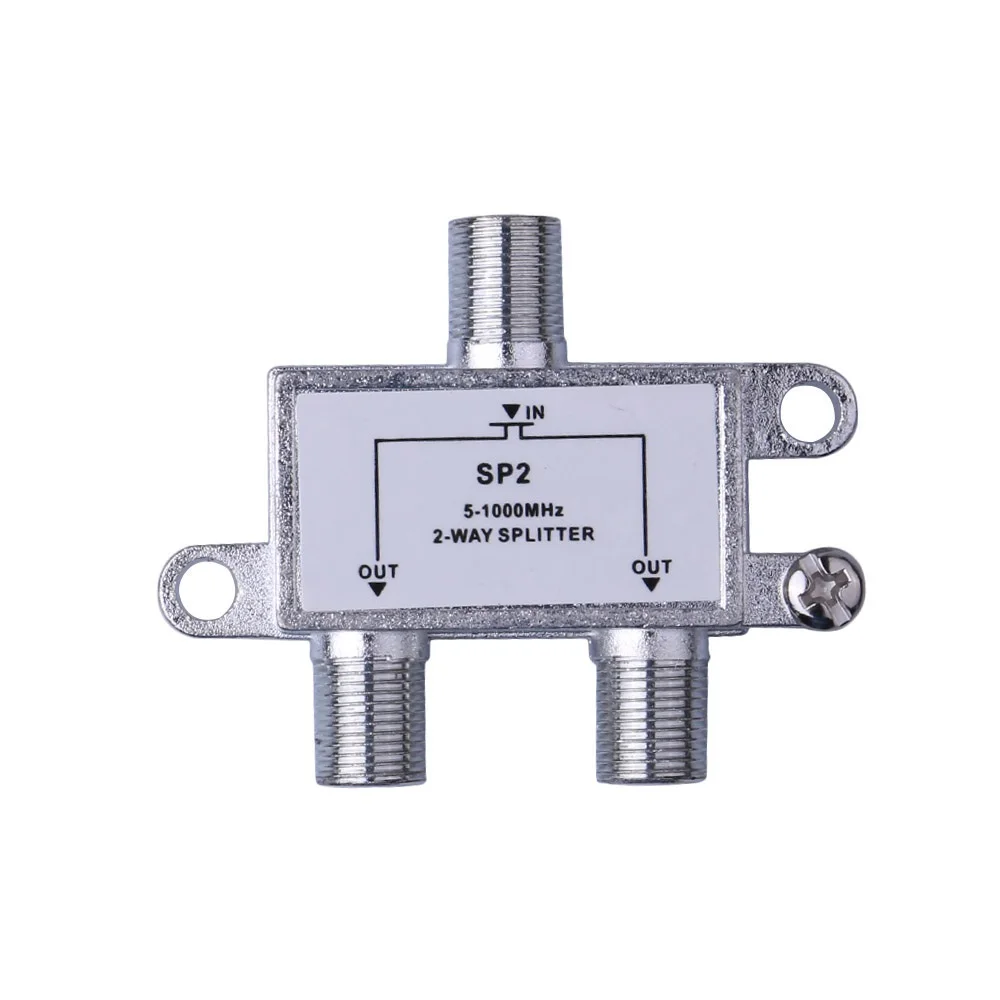

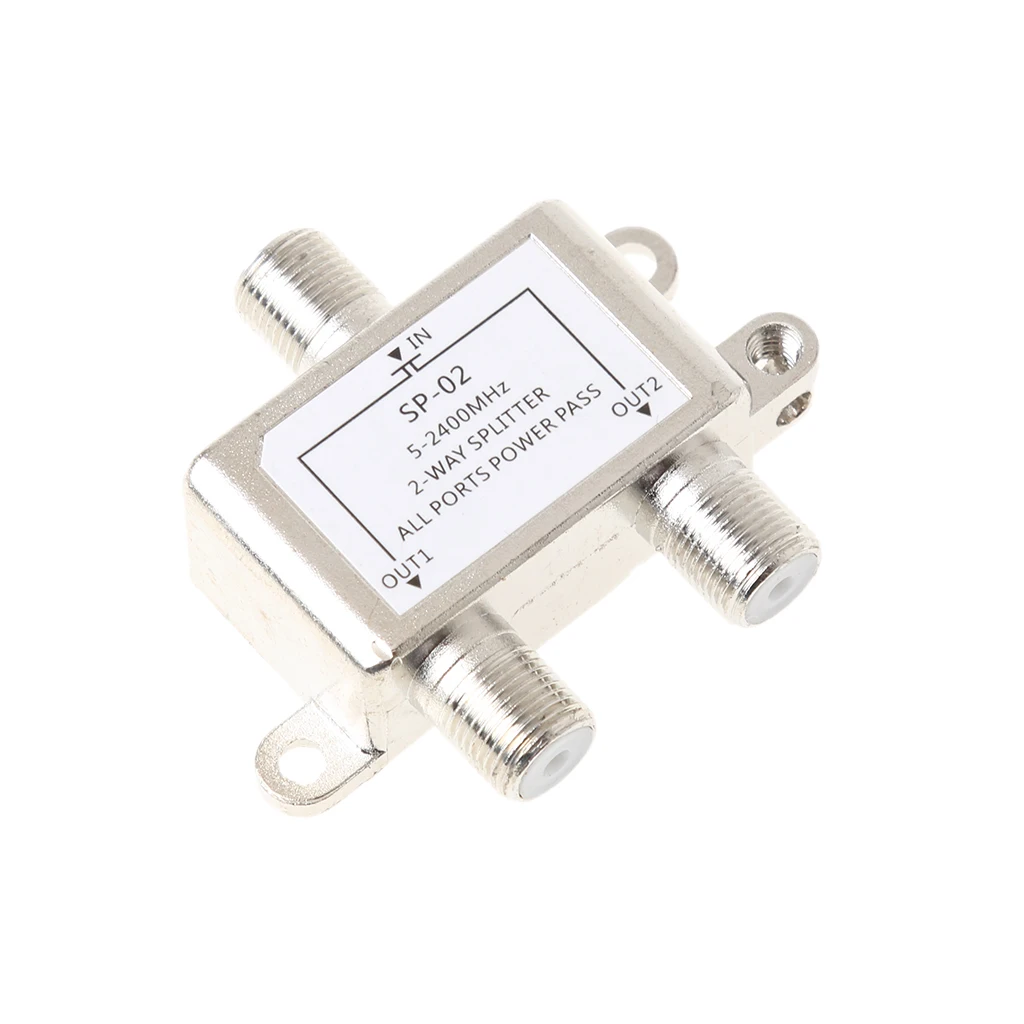

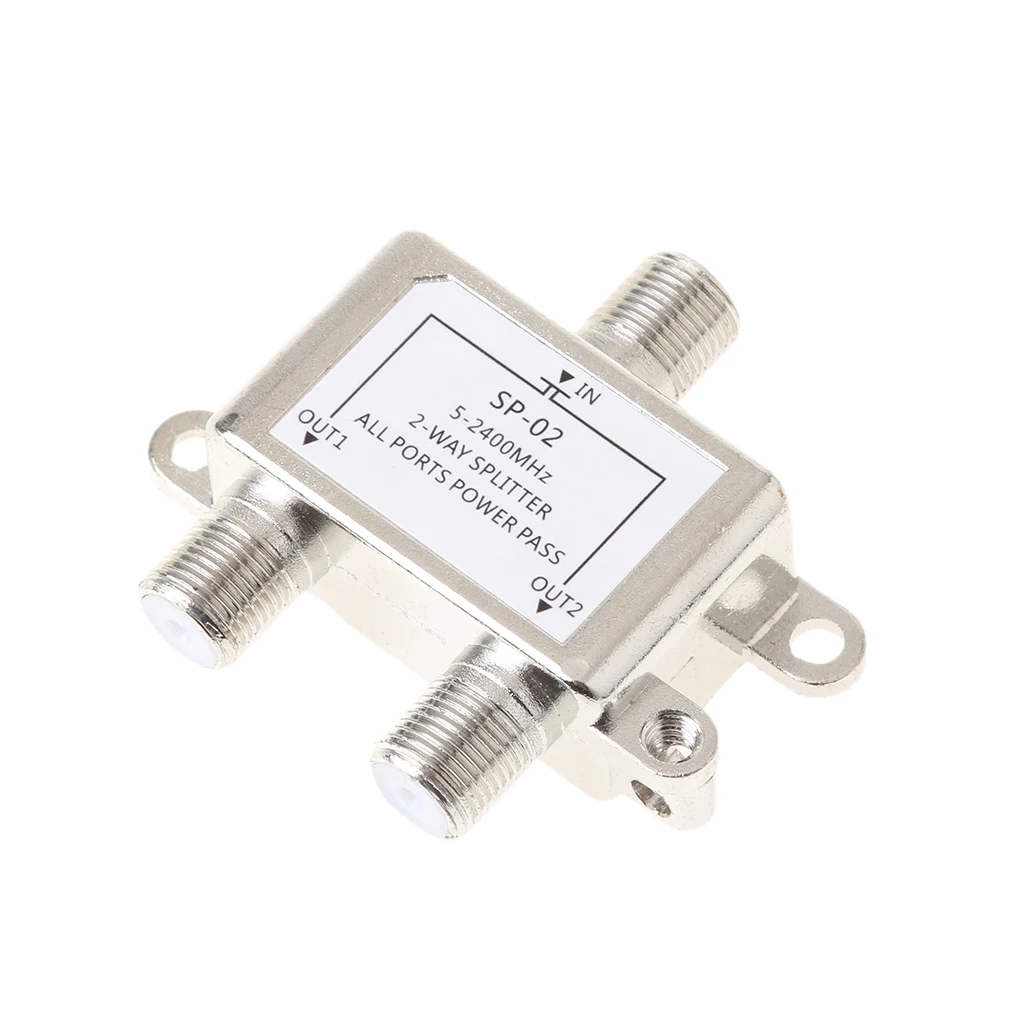

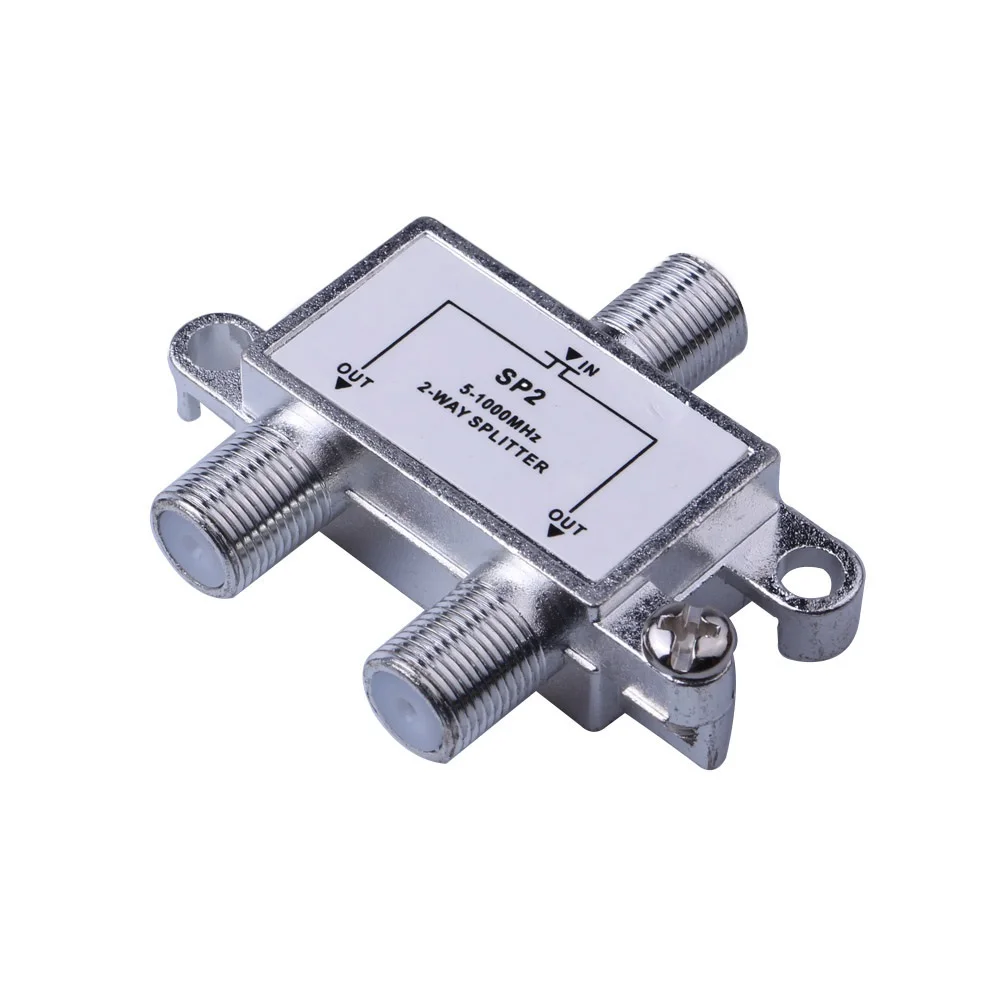

2 way tv splitter / catv splitter / satellite tv splitter 5~2400mhz

Zinc die-cast housing, nickel-plated
Screening factor: 5-1000MHz≥100dB
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm
Arched housing design, can pass the cable through housing

Parameter description:

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤4.0	≥20	≥10
40-1000	≤4.5	≥20	≥12
1000-1750	≤5.0	≥20	≥12
1750-2400	≤5.5	≥20	≥10

Welcome to XinBiao Electric

( Lead Industrial Co., Ltd )

We were established in 1994 , backed by a knowledgeable technical department, we successfully help customers to solve various kinds of troublesome challenge with low cost. We are not only selling products, but also provide whole set of services.

Any inquiry will be reply in 24h

sample can be offered

Customization is Acceptable
