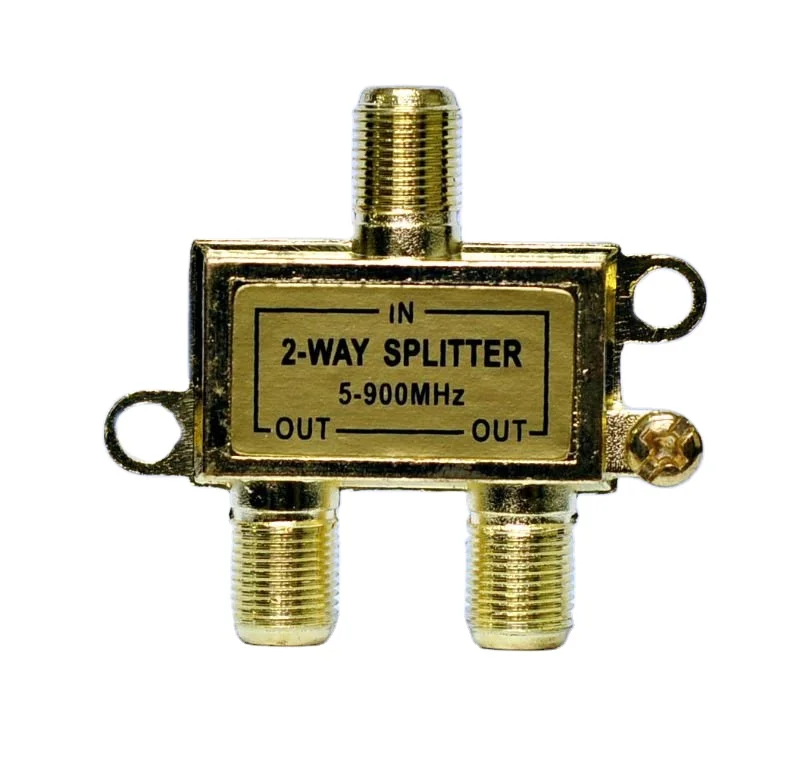

2 way gold CATV SPLITTER/tv splitter
Features:
1) TV Splitter and boosters in 2-way,3way
2) With or Without Signal amlifier

2 way catv splitter

Features:
1) TV Splitter and boosters in 2-way,3way
2) With or Without Signal amlifier

Details:
1) Zinc Die-casting Housing, Nickel-plated.
2) All ports female connector,
3) Power passing 24VDC 0.5A MAX
4) Built-in two grounding block
5) Two pieces of screws attached
6) Particularly Designed for easy and convenient installation

Zinc die-cast housing, gold-plated
Screening factor: 5-1000MHz≥100dB
Low insertion loss,high return loss and isolation
Micro-strip circuit design and perfect performance index
All ports F-(f)connector,75 Ohm
Arched housing design, can pass the cable through housing

Parameter description:

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤5.5	≥30	≥20
40-470	≤5.5	≥25	≥20
470-860	≤6.0	≥25	≥18
860-1000	≤6.5	≥22	≥17
