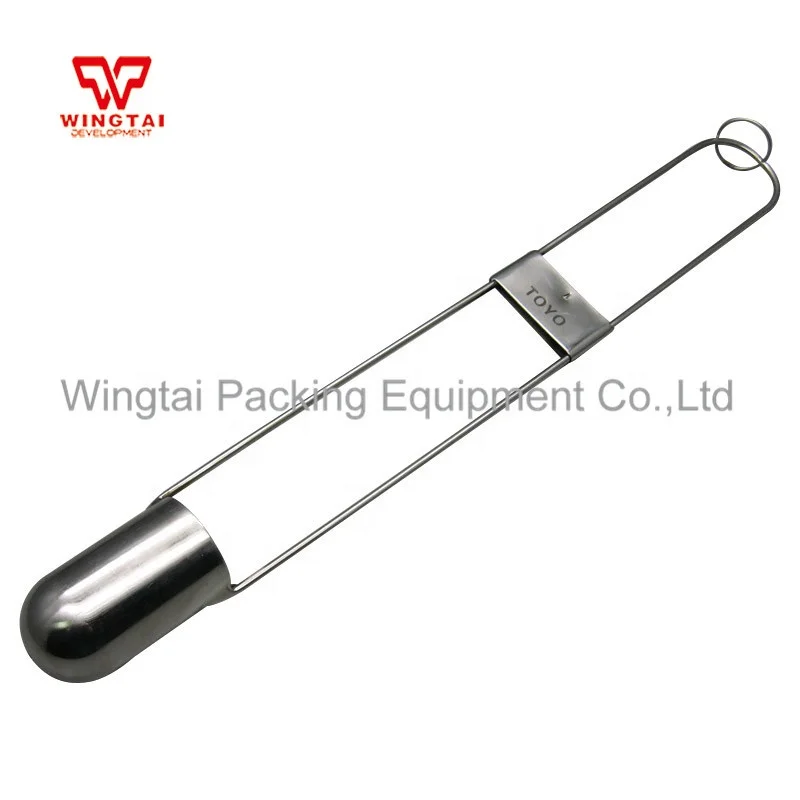

Stainless Steel Viscosity Zahn Cup





Technique Parameters:
Cup volume: 44ml
Cup Material: Stainless steel
Net Weight: 0.2kg (0.4 pounds)
Size: 390 * 48 * 37mm



Model: Zahn 2 #, 3 #, 4 #
Origin: Japan

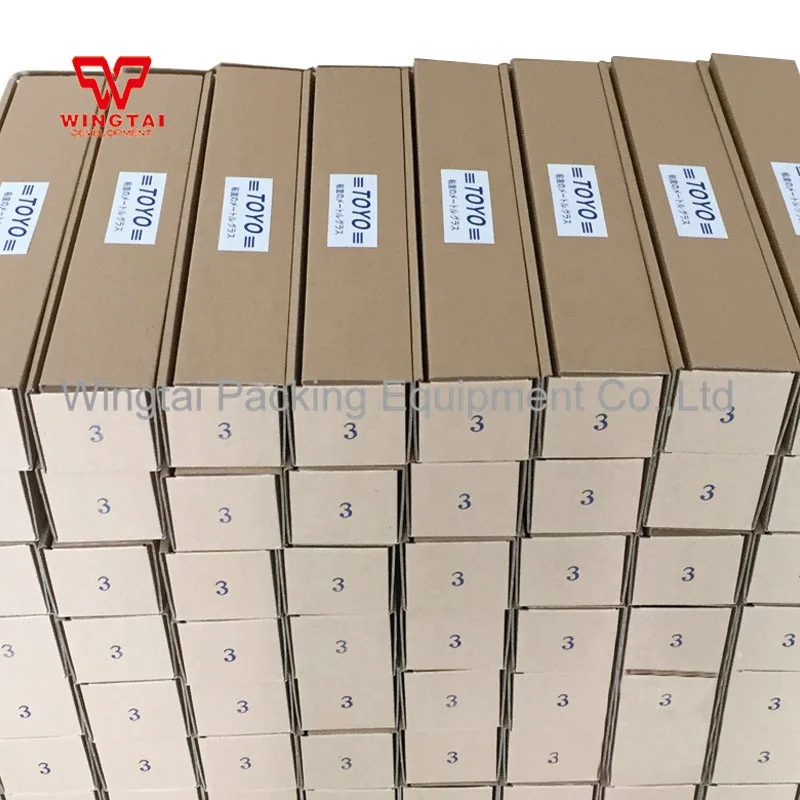

Packaging: environentally friendly paper packaging



Mainly used for accurate measurement of ink viscosity, accurate color. Japanese technology seiko production, apply to the workshop, the factory or laboratory, for a quick check and adjust a variety of different viscosity of the fluid.

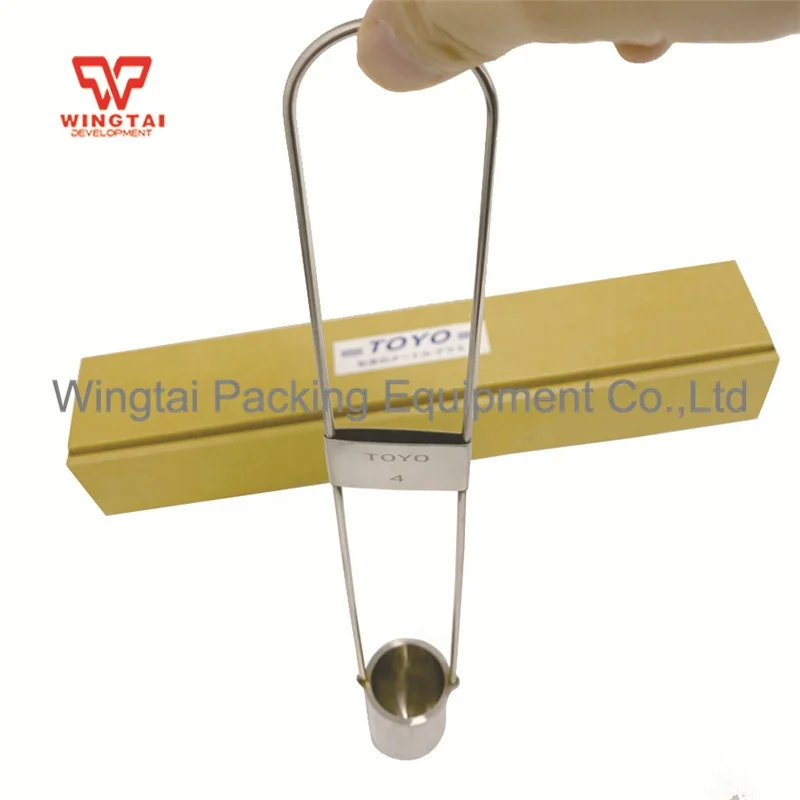

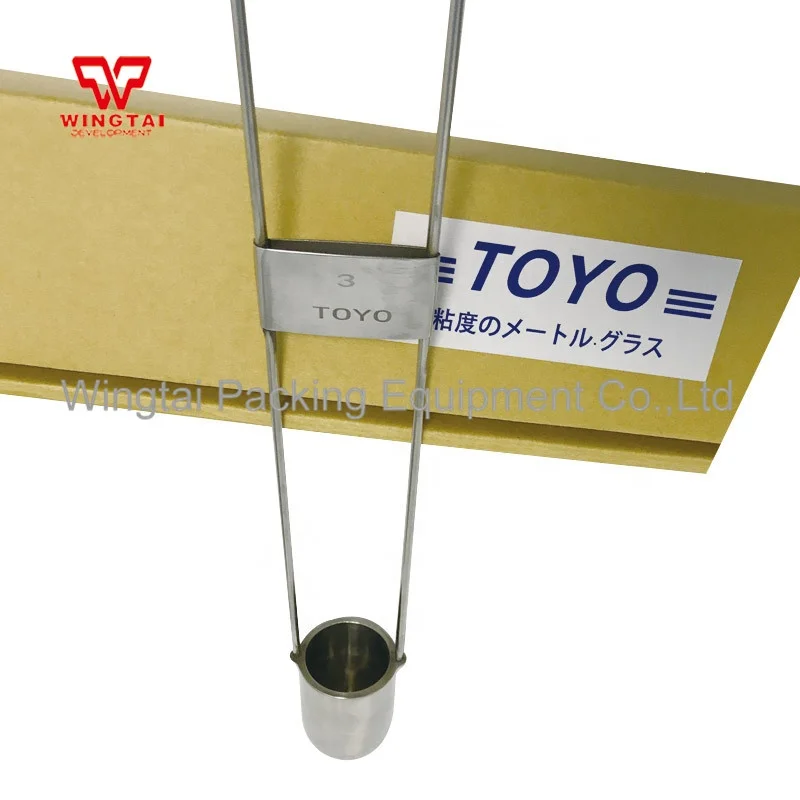

Each dip cup has a ring of 12 inches long handle, with the hand held the handle can be soaking cup into the container.

In the center of the handle has a ring shape circle, facilitate cup stays in the process of using vertical position.

For a specific cup leaching results at a specified temperature for "Zahn Cup".



Effect : Accurate measurement of ink viscosity, precise color matching.



Feature : Stainless steel cup, precision drilling flow mouth, exquisite workmanship, measurement precision, durable (With a stopwatch to use)





Japanese cup aperture parameters :

Before using it you should choose a suitable cup, let the flowing speed at 10~90 seconds and also need a stopwatch with relatively high precision.





Model	Aperture	Measurement range  (Centistokes)	Measuring  Temperature	Application
No 1	1mm	~20	Indoor  Temperature	For very dilute liquid
No 2	2mm	~70		For very dilute liquid
No 3	3mm	20~250		Suitable for: thin oil, mixed paint, varnish
No 4	4mm	80~700		It is suitable for medium viscosity ,  thick fluid and mixture
No 5	5mm	200~1000		Suitable for thick fluid and the mixture
No 6	6mm	400~2000		For special viscous fluid and mixture.
No 7	7mm	900~3000		For special viscous fluid and mixture.





Note:  A precision stopwatch is needed when testing.





British Zahn cups of technical parameters :

Model	Aperture (mm)	Measurement range (cSt)	Application	k	c
1	2 (0.08in)	Maximum 60	For very dilute liquid	1.1	29
2	2.74 (0.11in)	20~250	Thin oil, mixed paint, varnish	3.5	14
3	3.76 (0.15in)	100~800	Medium viscosity , thick fluid and mixture	11.7	7.5
4	4.26 (0.17in)	200~1200	Thick fluid and the mixture	14.8	5
5	5.28 (0.21in)	400~1800	For special viscous fluid and mixture.	23	0





Application:

It is used at any place like workshop, factory or laboratory, rapidly test and    adjust the viscosity of different fluid.This viscosity cup is to test the viscosity of Newtonian or similar Newtonian  fluid.





Note:

1.Before using it you should choose a suitable cup, let the flowing speed at 10~90 seconds and also need a stopwatch with relatively high precision.

 2.See reference aperture parameters table order customer orders.
