HVS-1000B цифровой дисплей Микротвердости

Категория: Hardness Testers >>>
Поставщик: Laizhou,Weiyi,Experimental,Machinery,Manufacture,Co.,Ltd.

Цена:888,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	1057.38 $*	1110.39 $*
Aug-15-2025	1048.13 $*	1100.53 $*
Jul-15-2025	879.9 $*	923.44 $*
Jun-15-2025	1030.16 $*	1082.69 $*
May-15-2025	897.78 $*	942.90 $*
Apr-15-2025	1012.86 $*	1063.43 $*
Mar-15-2025	1003.38 $*	1053.9 $*
Feb-15-2025	995.96 $*	1045.13 $*
Jan-15-2025	986.37 $*	1035.68 $*

Характеристики

Product Description

.jpg

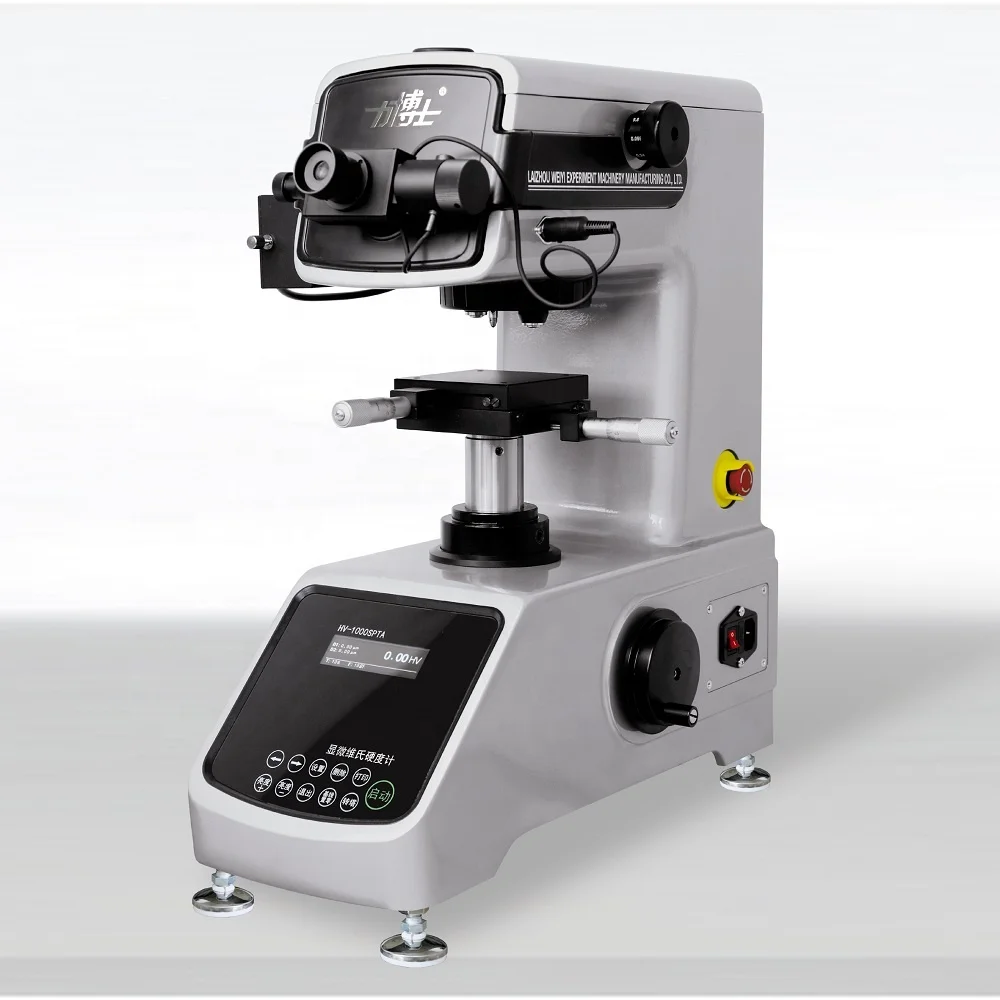

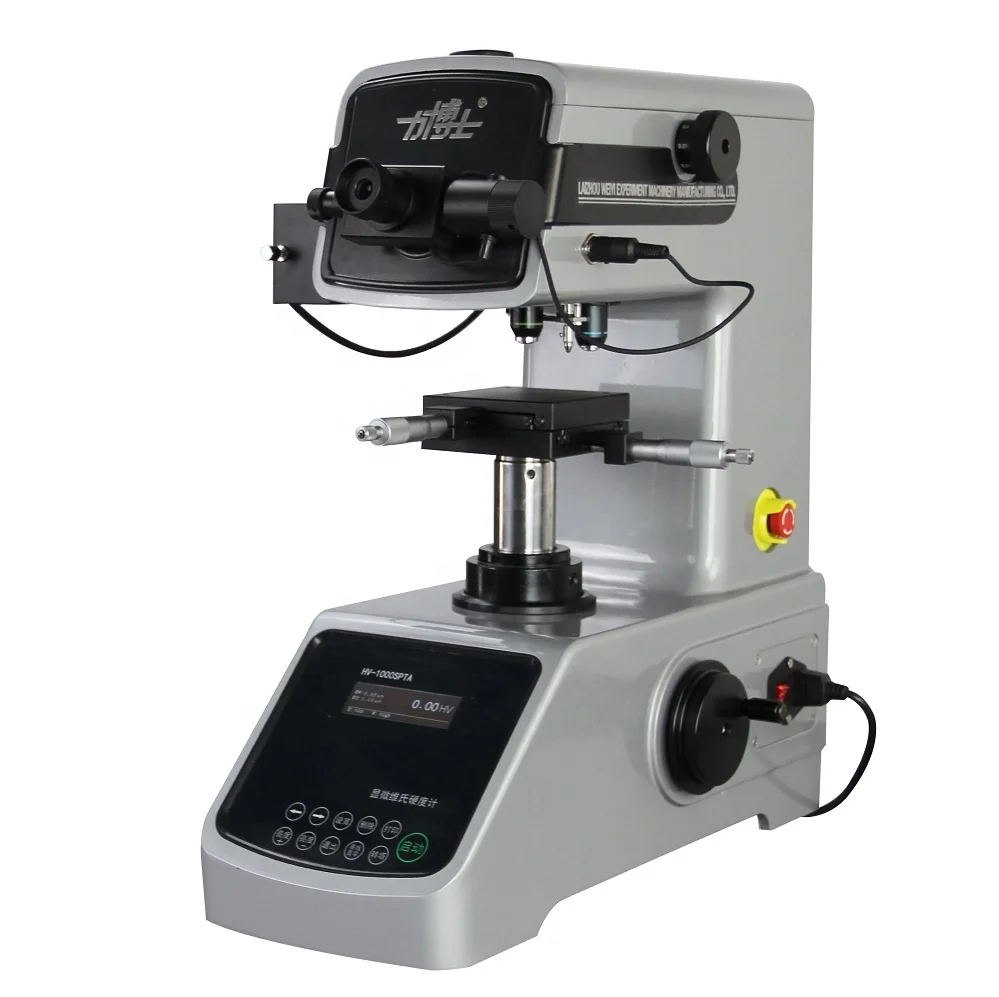

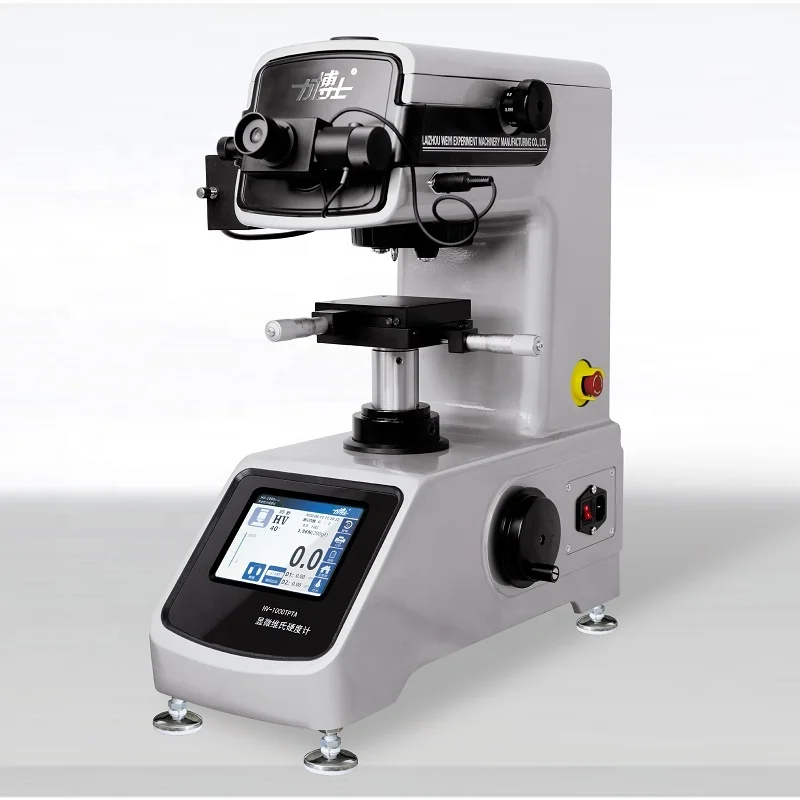

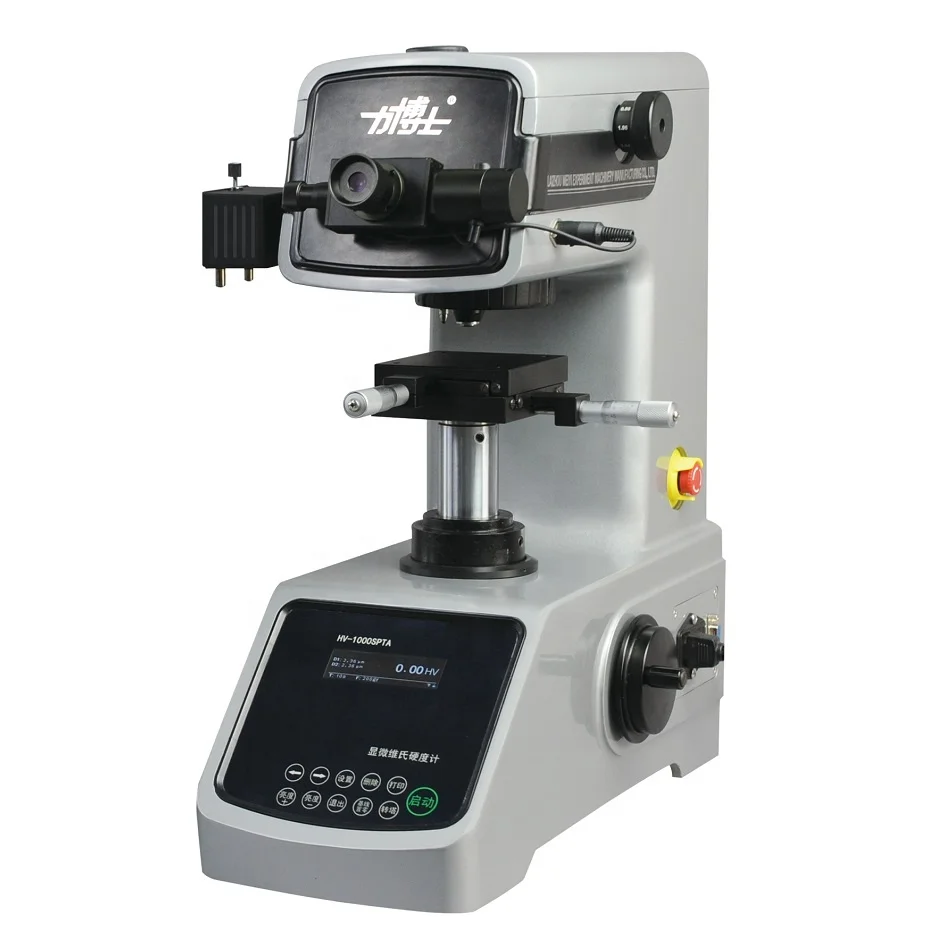

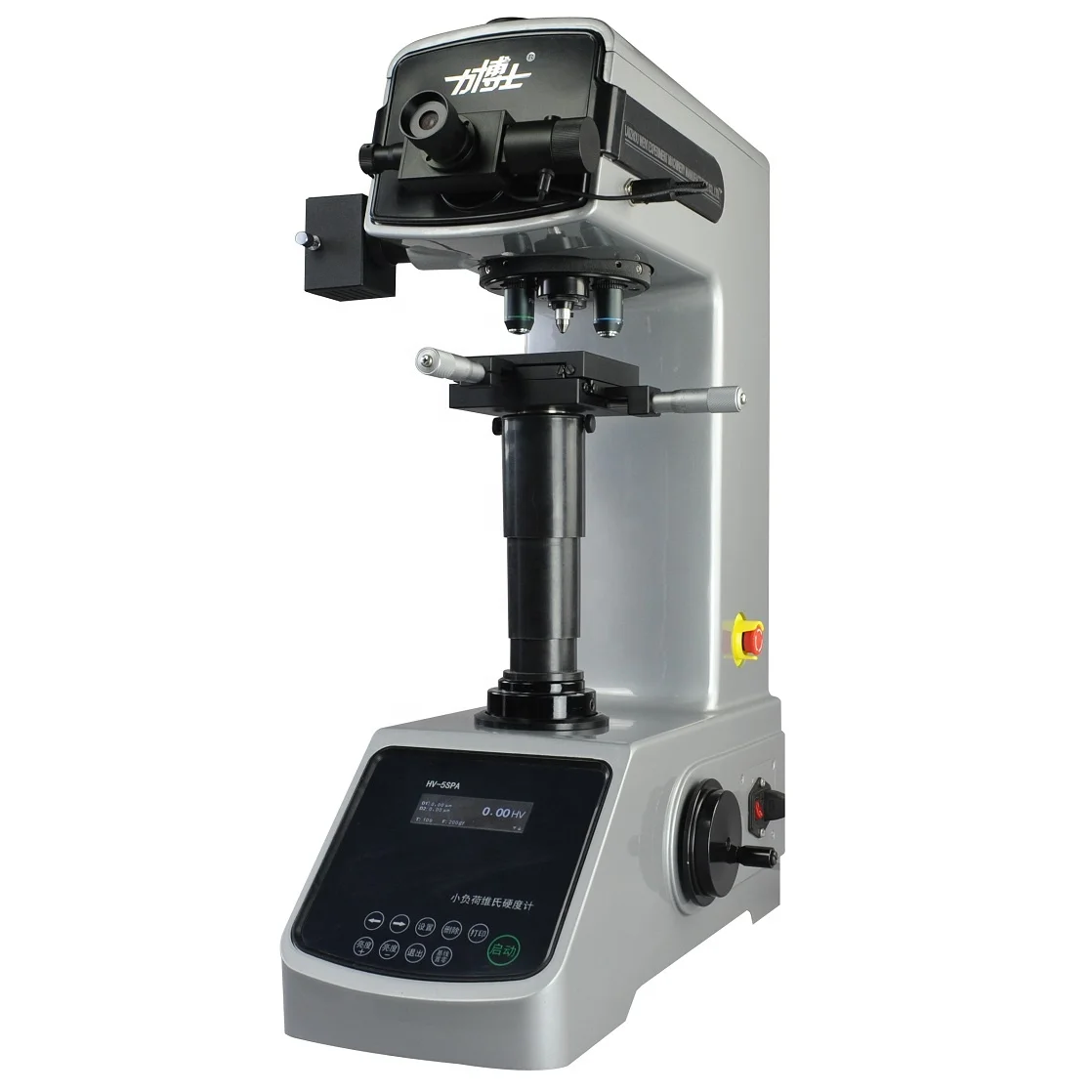

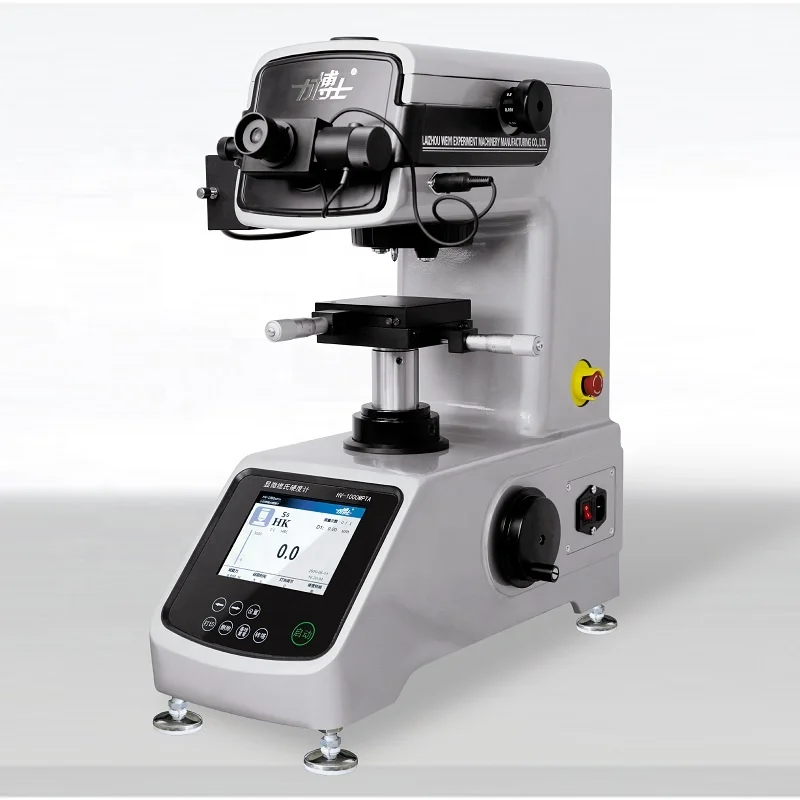

MODEL HVS-1000B DIGITAL DISPLAY MICROHARDNESS TESTER

Feature & Use:

1.RS232 data interface, built-in printer
2. Hardness conversion between different hardness scales
3. Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384

It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Specifications:

   Measuring range: 5-3000HV
   Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904,9.807N
                   (10, 25, 50, 100, 200, 300, 500, 1000gf)
   Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3,HV0.5, HV1
   Magnifications of the measuring system: 400X (measuring),
                                                               100X (observing)
   Min. scale value of the optical micrometer: 0.01μm
   Measuring range: 200μm
   Max. height of test piece: 75mm
   Depth of throat: 110mm
   Power supply: 220V AC or 110V AC, 50 or 60Hz
   Dimensions: 470 x 320 x 500mm
   Weight: approx. 40kg
