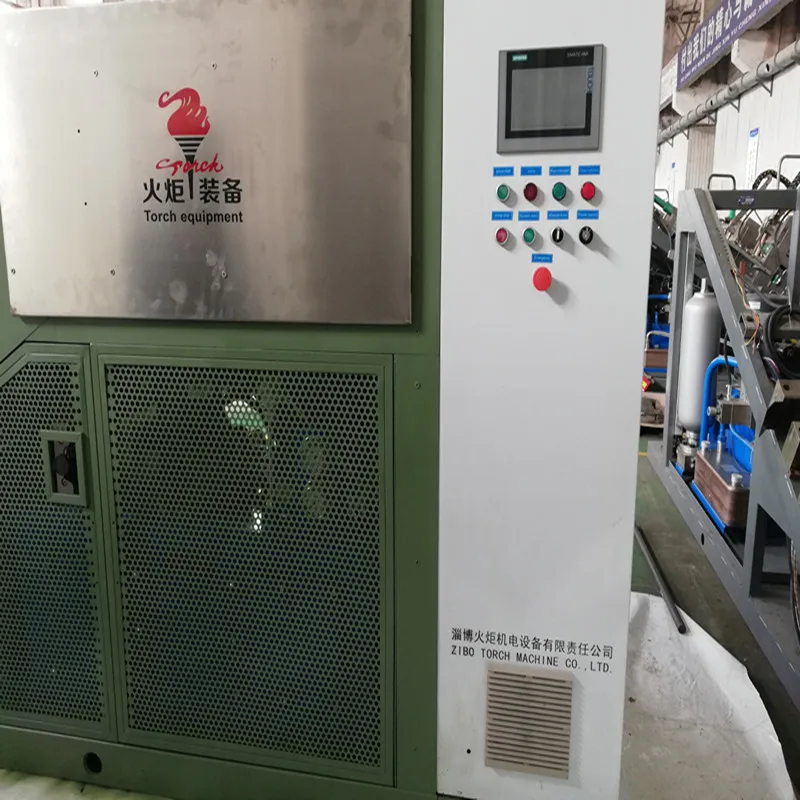

Машина для литья под давлением трубчатой

Категория: Станок для литья под давлением >>>
Поставщик: Zibo,Torch,Machine,Co.,Ltd.

Цена:70 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	83300.72 $*	87465.78 $*
Aug-20-2025	82600.23 $*	86730.10 $*
Jul-20-2025	69300.54 $*	72765.70 $*
Jun-20-2025	81200.37 $*	85260.15 $*
May-20-2025	70700.95 $*	74235.2 $*
Apr-20-2025	79800.5 $*	83790.32 $*
Mar-20-2025	79100.71 $*	83055.28 $*
Feb-20-2025	78400.38 $*	82320.28 $*
Jan-20-2025	77700.26 $*	81585.28 $*

Характеристики

Product Description

pressure DIE CASTING MACHINE

Die-casted spines have more advantages than casted spines at the strength and crystal density. The die casting machine has been spread in foreign countries.

All kinds of die casting machine made by our company are stable and easy to maintain, which have got National invention patent.
The company sticks to upgrade the products. The new product which can make two pieces of plates at one time and the hydraulic die casting machine won wide praise from the customer once put into market.

Performance & Features

It mainly uses hydraulic controlled die casting system with step less regulator.

The lead melting pot, nozzle and mould are heated by electricity, and their temperature are digitally displayed. It will alarm
if the temperature gets too high.

Circulating cooling water flows through the cooling system of the mould. The temperature of the mould is auto-controlled and adjustable.

The mould is made of alloy with high strength and hardness. The working cycle of mould closing, pressing, opening and ejecting is completed automatically.

The imported touch screen and PLC are used in programmable control for the machine.

The actual processing data are displayed on the monitor. It has manual, semi-automatic, fully automatic control functions, and features dynamic demonstration and digital setting for the process parameters. It is convenient for the operators to understand the operation process clearly.

Specification

item	value
Machine Type	Hot Chamber Die Casting Machine
	250kN
	100kN
	200mm
	1000mm
	200mm
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	PLC
Max.Thickness of Die Block (mm)	42mm
Min.Thickness of Die Block (mm)	35mm
Ejection Force(kN)	100kN
Ejection Stroke(mm)	15mm
Place of Origin	China
	Shandong
Brand Name	Torch
Condition	New
Voltage	415
Dimension(LWH)	4.512m
Certification	iso9001
Year	latest
Weight (KG)	5000
Power (kW)	52
Warranty	1year
Key Selling Points	High Productivity
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries	Manufacturing Plant
Local Service Location	India
Showroom Location	None
After-sales Service Provided	Engineers available to service machinery overseas
Weight	5tons
Spine length	≤620mm
Production	2-3pcs/min
Total power	52KW
Spine Diameter	≥3.2mm
Power(W)	52

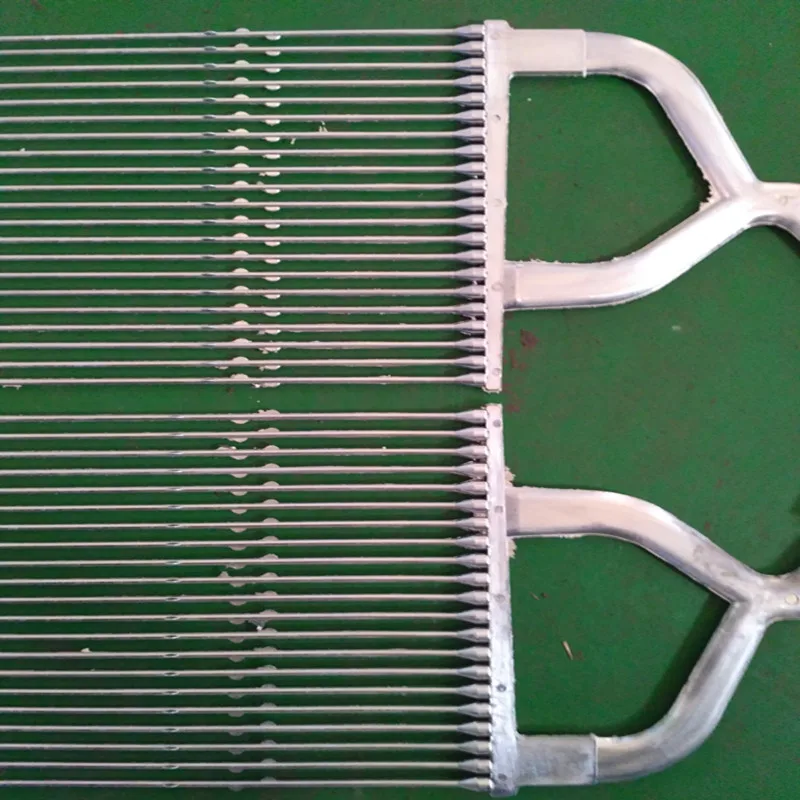

Final products	tubular positive grid
Applicable metal	lead
Control system	Siemens PLC+HMI

Packing & Delivery

Standard seaway package or as your requirement.

Company Profile

Zibo Torch Machine Co., Ltd. is a modern and comprehensive company for equipment, molding tools, and charging and discharging equipment special for battery making, laser marking ,cutting machine etc. Our company management is practical; and our equipment and scientific research and manufacturing ability are all in advanced level. Our quality system was certified to conform to the Military Quality System in 1991. We acquired ISO9001 Quality System Certificate in 1997. We have also passed Environmental Management System Certification and Occupational Health and Safety Assessment Series.

There are more than 160 employees in our company, and among them there are 6 senior engineers, 16 engineers, 3 chief technical engineers, 10 senior technical experts and 20 technical experts. A team of high quality employees powerfully guarantees our company to stand at the leading position in the battery equipment making fields.

Our company has been dedicated for decades to the development of special equipment for battery making. Our researchers modified, created and developed various equipments for the battery making combined with our successful battery production processes and absorbed the technology from the imported equipments. Especially, we have remarkable predominance in manufacturing of spine die-casting machines for tubular positive plates. Our new products and techniques not only fill fresh energy into domestic market, but also fill some market blank for the battery equipment. Large demands stimulate the distribution of our company. Our products have been sold to more than twenty provinces and municipalities and are exported to Japan and some Southeast and South Asian countries.

Now our company is growing to a modern enterprise for battery equipment research, development, manufacturing, and distributing and service. We stand at the leading position of the battery equipment fields based on our powerful strength.

All of our staff will uphold the principle of "Service is based on faithfulness and quality lasts into eternity" to anticipate cooperation with you.

FAQ

1. who are we?
We are based in Shandong, China, start from 2007,sell to South Asia(30.00%),Eastern Asia(30.00%),Southeast Asia(30.00%),Mid East(5.00%),Africa(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Grid Die Casting Machine,battery charger,laser marking machine,lithium battery,lead acid battery

4. why should you buy from us not from other suppliers?
75 years' Military Industrial Production Experience and Quality Control, belongs to group company with rich products varieties

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
