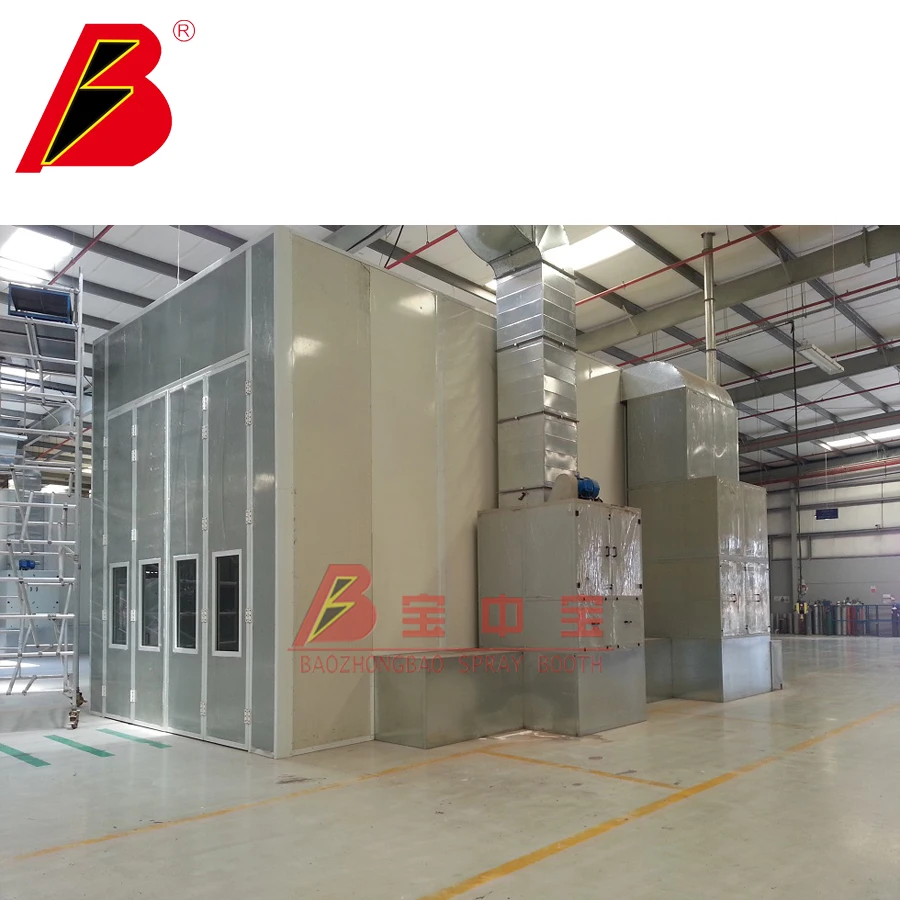

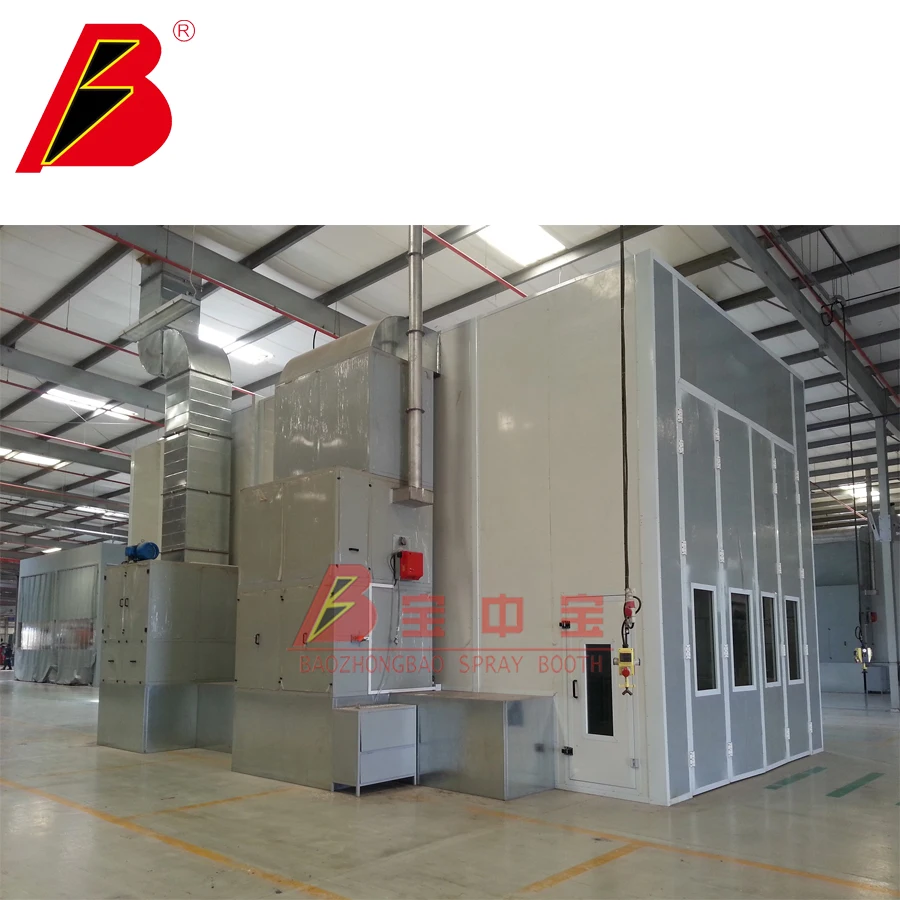

Промышленная окрасочная камера BZB для автобусов и грузовиков профессиональный китайский поставщик окрасочных
- Категория: Spray Booths >>>
- Поставщик: Guangdong,Jingzhongjing,Industrial,Painting,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.37 $* | 0.42 $* |
| Aug-20-2025 | 0.23 $* | 0.48 $* |
| Jul-20-2025 | 0.91 $* | 0.95 $* |
| Jun-20-2025 | 0.35 $* | 0.53 $* |
| May-20-2025 | 0.89 $* | 0.27 $* |
| Apr-20-2025 | 0.29 $* | 0.15 $* |
| Mar-20-2025 | 0.6 $* | 0.60 $* |
| Feb-20-2025 | 0.36 $* | 0.28 $* |
| Jan-20-2025 | 0.36 $* | 0.78 $* |
Характеристики
BZB-FB(20*5*5)
Outside dimension:20156*6906*5800mm(L*W*H);
Inside dimension: 20000*5000*5000mm(L*W*H);
Front door dimension: 4000*4500mm(W*H);
Working door dimension: 650*1800mm(W*H);
Total Power : 85KW

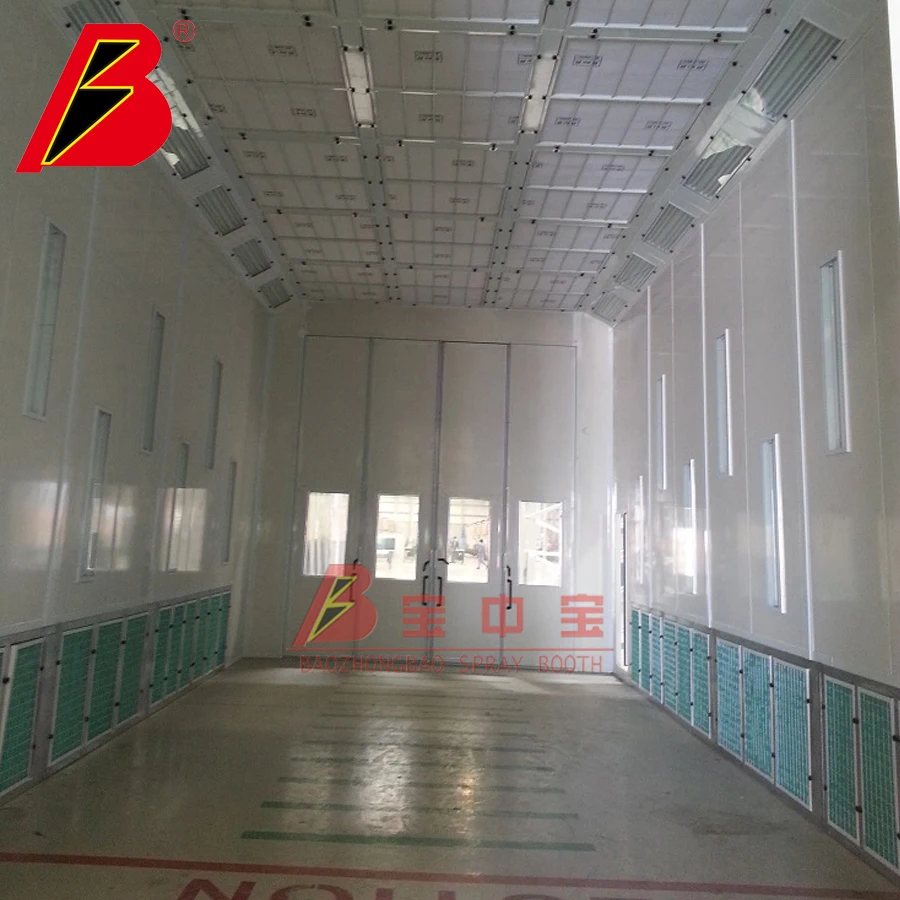

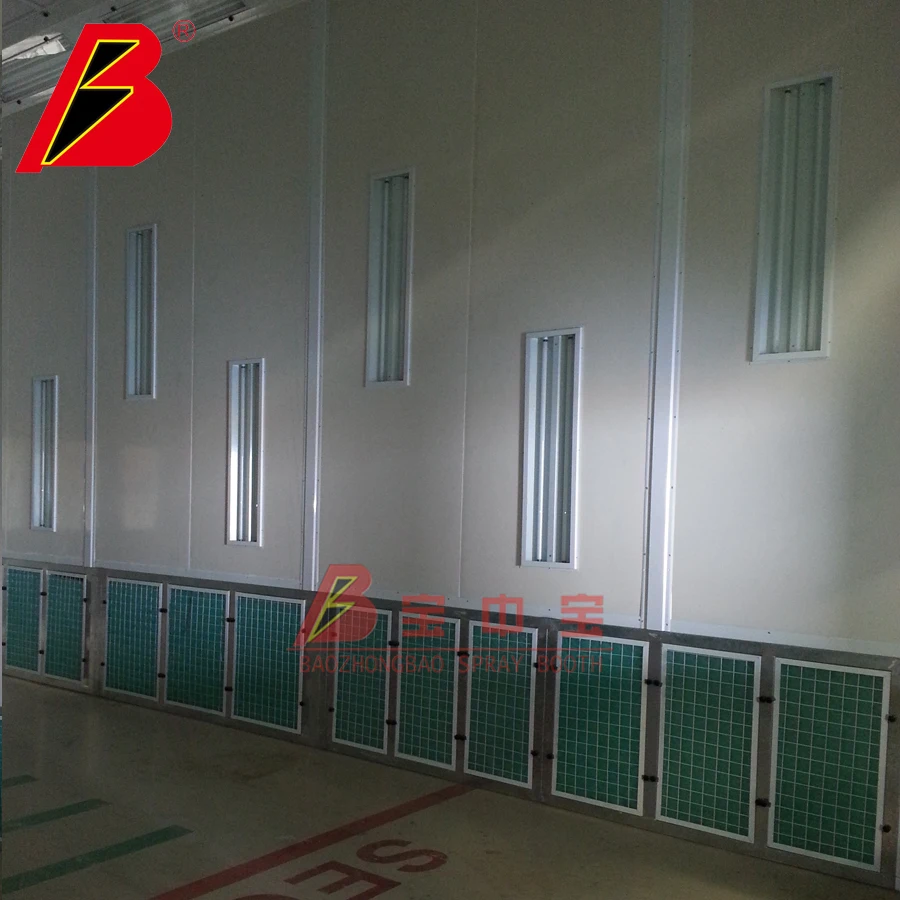

Cabin System:
1) Wall Board: EPS (epispastics polystyrene)Colorful Steel Skin Boards,75mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation with the strong support of powder coated pillars
2) Basement: Two rows of pits with galvanized duty-bearing grids for air sucking
Air Intake and Exhaust System | Inlet Fan | capacity: 21000m3/h | Exhaust Ventilator | capacity: 36000m3/h |
Power:7.5kw | Power:15kw | |||
Quantity: 6sets | Quantity: 3sets |
Air Purification System
Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air pressure balance gauge, TSP ≤ 1.2mg/m3
Heating System
Burner:Three sets Italy Riello RG5S diesel burner, 260000Kcal/h/burner, 20N damper motorSUS304 stainless steel heating exchanger, argon arc weldingMax Temp:80.C, Heating Time:15-20min(20-60C), Fuel Consumption: 4-5kg/vehicle.
Light System
Ceiling Light: 112 pcs 36w Philips Lamp; Side Light : 60 pcs 36w Philips Lamp, 900 Lux
Controlling System
Micro Computer Programmed Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, failure alarm, timer
Environmental System
Multi-layers fiberglass filter, active carbon
