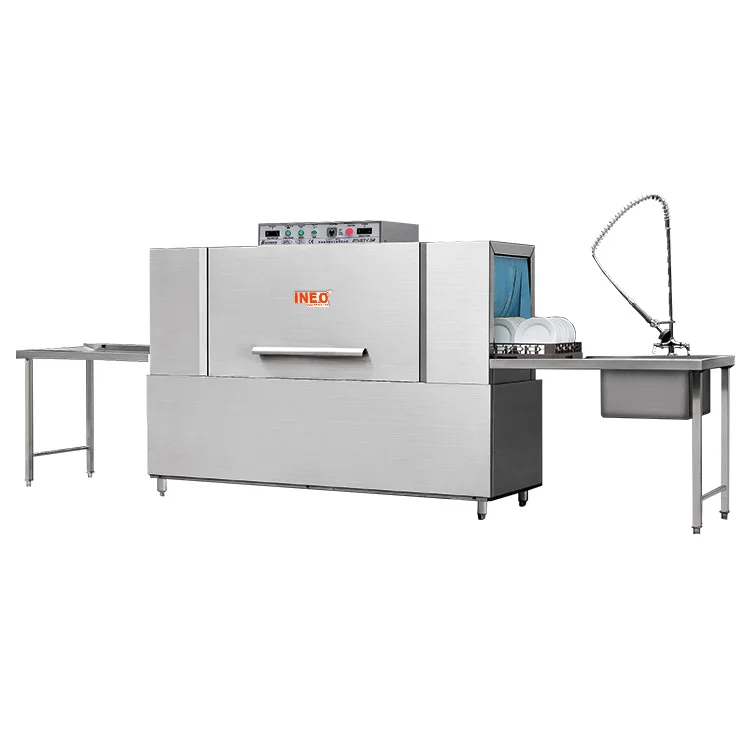

Hotel Restaurant Hospital Canteen Commercial Kitchen Equipment Electric Conveyor Dishwasher

1)Main applications:

Allkinds of restaurant chain, starred hotel, dinner room of enterprise and factory etc.

2)Convenient and practical:

2.1) Tunnel type/basket transter type design. It adopts the washing method which is "Two enters, one exits", in order to guarantee all-dimensional spray.

2.2) Optical ways of heating, for instance, electric heating. It can also be transformed into other ways of heating, such as steam, natural gas, liquefied petroleum gas and so on, which is more considerate and convenient.

3)Safe and reliable:

3.1) When the dishwasher is under operation, the pump and the driving motor willautomatically close once the detecting gate opens by accident, to prevent hot water from spilling. It's safe and comfortable.
3.2) High quality temperature control function, guarantee the rinse water temperature is above 86 degrees, achieve the best effect of disinfection,
3.3) The end of the optional exit working desk has a automatic turning-off protective device, to prevent tablewares from damaging due to not timely uninstall. It's time saving and cozy.

4)Efficient and energy saving:

4.1)  Adopt recycling water to finish the first cleaning step, save washing water volume, environmental-protection and energy saving.
4.2) When tablewares enter the high temperature spraying area, the spraying system will open automatically, achieving the effect of energy saving.
4.3) Washing arm has a design of concave nozzie to prevent blocking. With a fan type water spray form of 60 degrees, it perfectly expands the spray scale. Super cleaning ability ensures you a perfect washing effect.



Optional accessories:

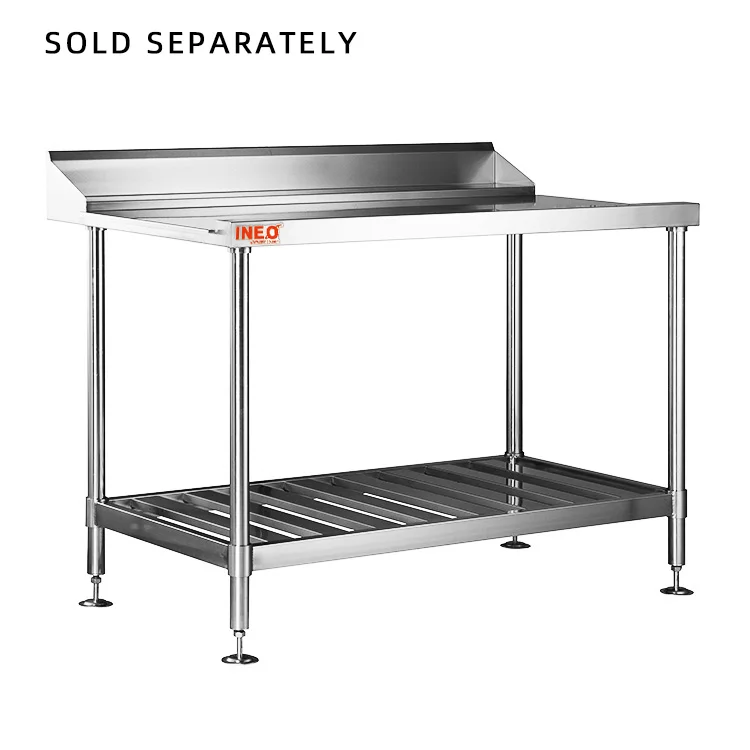

1.Dirty dish desk(entrance working desk of dishwasher),

2.Clean dish desk(exit working desk of dishwasher),

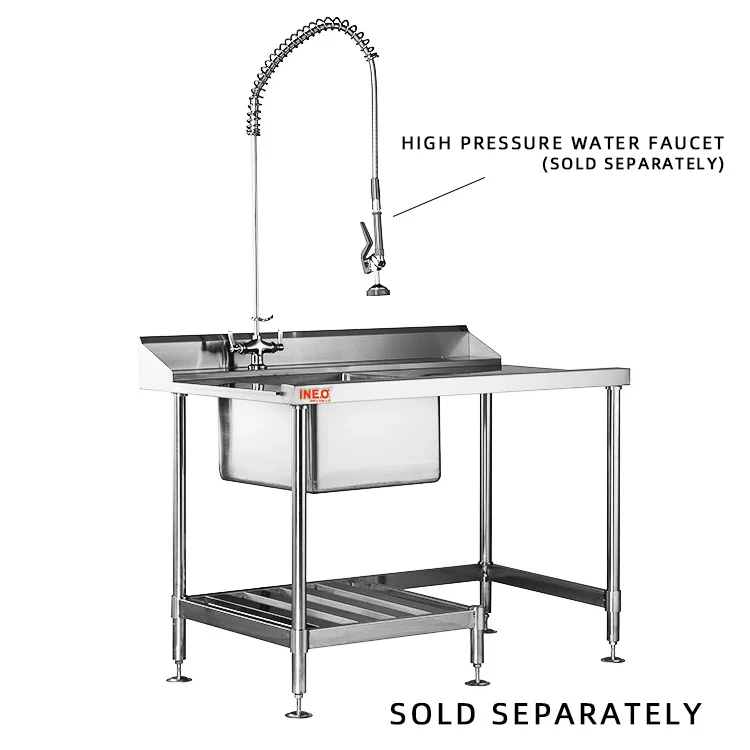

3.High pressure water faucet,

4.Double pump dispenser

5. Dish-washing basket

6.Specifled detergpent for dishwasher,specified drier for distwasher

Item No.	Product Name	Specification
YDW-YT005	Conveyor Type Dishwasher	Specification:1100*780*1600 Basket/h: 130 baskets/h Piece/h: 2600 plates/h Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Heater tank: 100 W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Motor conveyor: 750W. Motor pump : 1.5KW Total electrical power: 37KW Voltage:380V/50HZ Height when open machine: 2100MM Door entry height : 400MM Weight: 230Kg Equiped with 3 pieces dish baskets: 500*500*100
YDW-YT006	Double Cylinder &Double Spray Tunnel Type Dishwasher	Specification:1500*780*1600 Basket/h: 153 baskets/h Piece/h: 3700 plates/h Voltage:380V/50HZ Power:38kw/h Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Rinse consumption: 17L Heater tank: 200W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Motor conveyor: 750W. Motor pump : 1.5KW Height when open machine: 2100MM Door entry height : 400MM Weight: 290Kg Equiped with 3 pieces dish baskets: 500*500*100
YDW-YT007	Pass Through Dishwasher	Specification:2200*780*1630 Basket/h: 185 baskets/h Piece/h: 5000 plates/h Voltage:380V/50HZ Power:42kw/h Pre wash tank capacity :85L Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Rinse consumption: 17L Heater tank: 200W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Motor conveyor: 750W. Motor pump : 3KW Height when open machine: 2100MM Door entry height : 400MM Weight: 360Kg Equiped with 3 pieces dish baskets: 500*500*100
YDW-YT008	Single Cylinder&Double Spray Tunnel Type Dishwasher, Equipped With Single Dryer	The larget washing capacity:186Pc/H Washing Height:400MM The largest water consumption:360 L/H Cleaning cy1inder capacity:98L High temperature cylinder capacity:30L Cteaning cylinder power:9KW High temperature cylinder power:27KW Dryer Power:10KW Total power:48.5KW Power requirements;380V/AC/50HZ/5N Input Water pressure:0.15-0.3MPA Dimensions:2500*780*1630MM Equiped with 3 pieces dish baskets: 500*500*100
YDW-YT009	Conveyor Dishwasher with Dryer	Specification:3200*780*1630 Drying machinery:1000*780*1700H Basket/h: 185 baskets/h Piece/h: 6000 plates/h Voltage:380V/50HZ Power:54kw/h Pre wash tank capacity :85L Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Rinse consumption: 17L Heater tank: 200W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Heater air dry : 9KW Motor fan dry: 1.1KW Motor conveyor: 750W. Motor pump : 3KW Height when open machine: 2100MM Door entry height : 400MM Weight: 425Kg Equiped with 3 pieces dish baskets: 500*500*100
YDW-YT010	Conveyor Type Dishwasher with Dryer	Specification:4000*780*1920 Drying machinery:1800*780*1630 Basket/h: 250 baskets/h Piece/h: 8000 plates/h Voltage:380V/50HZ Power:60kw/h Pre wash tank capacity :85L Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Rinse consumption: 17L Heater tank: 200W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Heater air dry : 9KW.X2 Motor fan dry: 2.2KW.X2 Motor conveyor: 750W. Motor pump : 3KW Height when open machine: 2100MM Door entry height : 400MM Weight:360Kg Equiped with 3 pieces dish baskets: 500*500*100
