ETL сертификат настенный домашний мгновенный Электрический водонагреватель для душа электрический ванной
- Категория: Водонагреватели >>>
- Поставщик: Foshan,Shunde,Jnod,Electrical,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 164.23 $* | 172.43 $* |
| Aug-15-2025 | 163.82 $* | 171.90 $* |
| Jul-15-2025 | 137.41 $* | 144.66 $* |
| Jun-15-2025 | 160.15 $* | 168.72 $* |
| May-15-2025 | 139.28 $* | 146.36 $* |
| Apr-15-2025 | 157.90 $* | 165.69 $* |
| Mar-15-2025 | 156.47 $* | 164.32 $* |
| Feb-15-2025 | 155.50 $* | 163.51 $* |
| Jan-15-2025 | 153.51 $* | 161.21 $* |
Характеристики
Product Description
Main Features
1) ETL approved, NSF standard.
2) LED digital temperature display, toch screen for operation
3) Temperature display convert between Degree oF and Degree oC
4) High gloass transparent ABS with IMD technology
5) Patent heating technology, much longer service
Technology Data | |||||||||||
Model No. | XFJ150H | XFJ180H | XFJ210H | XFJ240H | XFJ270H | ||||||
Phase | 1 | 1 | 1 | 1 | 1 | ||||||
Voltage | 240V | 240V | 240V | 240V | 240V | ||||||
Power | 15kW | 18kW | 21kW | 24kW | 27kW | ||||||
Max. Amp. Load | 63A | 75A | 88A | 100A | 113A | ||||||
Min. Required Circuit Breaker | 2*40A | 2*50A | 3*40A | 3*50A | 3*50A | ||||||
Temp. Setting Range | 86-127F | 86-127F | 86-127F | 86-127F | 86-127F | ||||||
Min. Wire Size(AWG) | 2*8# | 2*8# | 3*8# | 3*8# | 3*8# | ||||||
Active Flow Rate | 0.53GPM | 0.53GPM | 0.53GPM | 0.53GPM | 0.53GPM | ||||||
Water Connectors | NPT3/4 | NPT3/4 | NPT3/4 | NPT3/4 | NPT3/4 | ||||||
Product Size | 385*260*93mm | ||||||||||
Product Specification
* Stainless steel out case, water splashing proof, corrosion resisting, ageing resisting
* Adopts patent heating technology- enclosed loop heating system, instant for hot water with less heating loss, noao insulation material which totally separates water from electricity
* Multi-layer structure heating chamber form a long circulating water channel, no limescale, long lifespan.
* Electricity leakage protection, anti-scalding protection, over-pressure and over temperature protection. Water and electricity isolation protection
* Direct temperature setting, automatically thermostat, the hot water temperature will be constant. Automatic memory function avoid repeated operation.
* LED display screen to show the working condition、 outlet temperature. touch screen for operation
* Temperature conversion mode, the temp. display can be convert between Celsius degree and Fahrenheit degree.
* Fault auto-detection technique, the cause will be displayed automatically while failure
Detailed Images

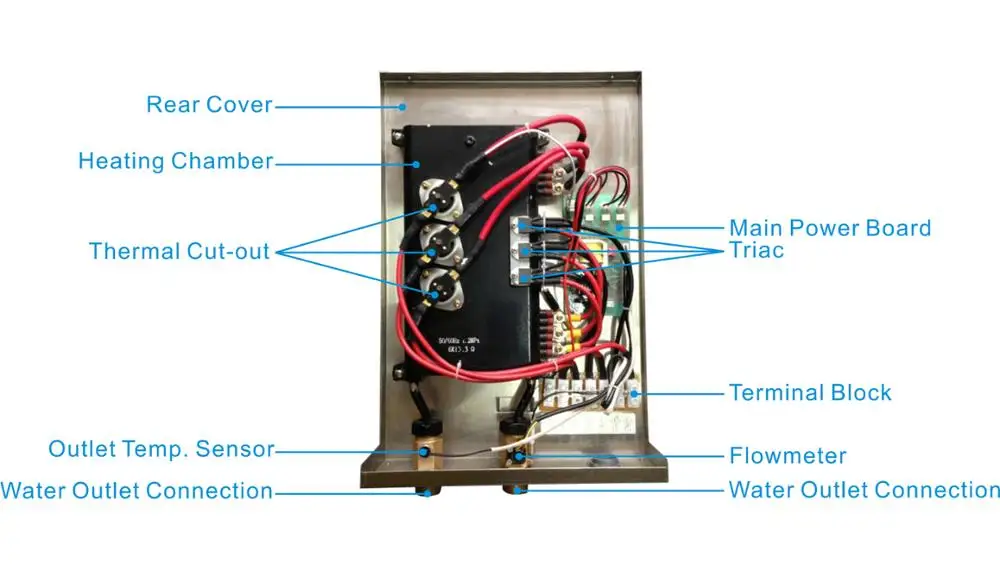

Patent Heating Technology
Heating Material: nickel-chromium
Material of Heating Tube: SS316L
Material of Water flow channel: SS304
Length of Water flow channel: 5.5m
Surface Thermal Load: 13.5w/cm2
Material of Out Case: Die-cast Alumium
_____________________________________________________
Control System
Control Mode: Electronic Control
Working Mode: Automatic Thermostat
Power Supply Mode: Transformer
_____________________________________________________
Out Case & Display
Out Case: Stainless steel with wiredrawing
Operation Model: Touch Screen
Display Screen: LED digital display
Temp. Display: degree C and degree F
Color for LED: BLUE
_____________________________________________________
Water Connectors
Material of Connector: Leed free cooper
Size of Connector: NPT 1/2"
_____________________________________________________
Certifications
Our Company
Hot Sale Product
Packing & Delivery
Inner Packaging | ||
Product Size | 385 (L) * 260 (W) * 93 (D)mm | |
Inner Box Size | 475 (L) * 367(W) * 135 (D)mm | |
N. W. | 7.4kgs (15kW, 18kW) 8kgs (21kW, 24kW, 27kW) | |
Product Portect Packing | Air Bag | |
Gift Box Material | 3 layer corrugated paper | |
Remark | Color Packing will be free of charge base on 500pcs for each series. | |
Out Carton | ||
Carton Size | 570(L) * 490 (W) * 385 (D)mm | |
Units in CTN | 4 units/CTN | |
G. W. | 33.5kgs (15kW, 18kW) 35kgs (21kW, 24kW, 27kW) | |
Package Material | 3 layer corrugated carton | |
Loading Quantity | 20 'GP: 1000pcs 40 'GP: 2000pcs 40' HQ: 2120pcs | |
Payment Term | Annual production capacity | Production line | CTN Size | pcs/CTN |
T/T、 L/C | 250000 | 4 | 570*490*385mm | 4 |
Q1: Are you a manufacturer or trading company?
A: We are professional manufacturer of electric water heater,electric
heating faucet and electric boiler with over 10 years experience.
Q2: What is your sample policy?
A: Our sample fee is refundable,the sample cost can be returned to you
with your bulk order.
Q3: What is the production lead time?
A: For inventory model,the delivery day will be 7-15 days after payment.
For custom model,the delivery time will be according to the purchase
quantity.25-35 working days.
Q4: Will you provide technical promotion support?
A: Of course,we can provide corresponding pictures and videos to you
