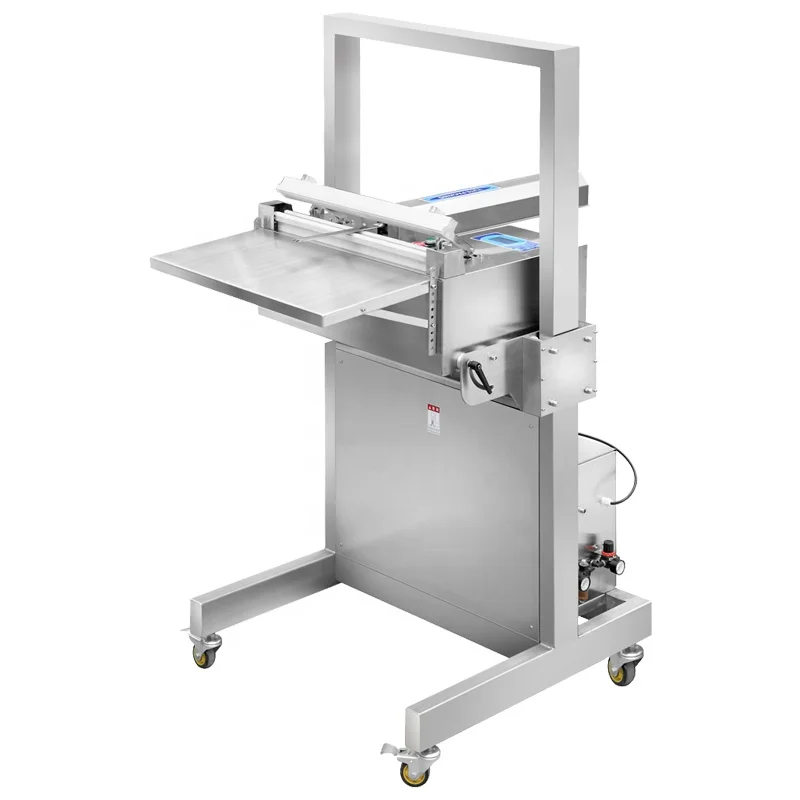

DZQ-600LO пищевая промышленная вакуумная упаковочная машина вертикальный вакуумный упаковщик
- Категория: Вакуумные упаковочные машины >>>
- Поставщик: Zhejiang,Ruibao,Packaging,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.45 $* | 0.93 $* |
| Aug-17-2025 | 0.4 $* | 0.18 $* |
| Jul-17-2025 | 0.9 $* | 0.70 $* |
| Jun-17-2025 | 0.95 $* | 0.65 $* |
| May-17-2025 | 0.34 $* | 0.68 $* |
| Apr-17-2025 | 0.93 $* | 0.92 $* |
| Mar-17-2025 | 0.0 $* | 0.94 $* |
| Feb-17-2025 | 0.52 $* | 0.33 $* |
| Jan-17-2025 | 0.98 $* | 0.85 $* |
Характеристики
Multi functions
Function 2. Vacuum-seal
Function 3. Gas fill-seal
Function 4. Vacuum-gas fill-seal
Function 5. Gas fill-vacuum-seal
Function 6. Vacuum-gas fill-vacuum-seal
Function 7. Gas fill-vacuum-gas fill-seal
Function 8. Vacuum-gas fill-vacuum-gas fill-seal
Function 1. Sealing only
Function 2. Vacuum-seal
Function 3. Gas fill-seal
Function 4. Vacuum-gas fill-seal
Function 5. Gas fill-vacuum-seal
Function 6. Vacuum-gas fill-vacuum-seal
Function 7. Gas fill-vacuum-gas fill-seal
Function 8. Vacuum-gas fill-vacuum-gas fill-seal
Advantage
--- Supply 8 functions.
--- Support big bag and wide range of bags material also thickness.
--- Only cost 15s-20s per cycle.
--- Low gas consumption, and it can fill sufficient gas into bag.
--- Memorize 10 packing process.
--- Easy to operate and maintain.
--- Equipped with oil/water seperator and dust filter.
--- Height/angle of machine head is adjustable.
--- Length of nozzle is adjustable.
--- Special button to clean inside hose automatically.
--- Easy to lift/drop machine head by press up/down button.
--- Flow of gas flush can be adjusted.
--- Low noise.
Parameter
1. Price
* DZQ - 600LO, 600mm seal, unit price 2515USD
* DZQ - 700LO, 700mm seal, unit price 25USD
* DZQ - 800LO, 800mm seal, unit price 2785USD
* DZQ - 900LO, 900mm seal, unit price 2935USD
* DZQ - 1000LO, 1000mm seal, unit price 2999USD
* DZQ - 1200LO, 1200mm seal, unit price 3232USD
If client order more than 5pcs, there is discount.
2. Following will cost additional, maybe you will need it
* Double heat system for thick bag, 100USD
* Air compressor, 260USD

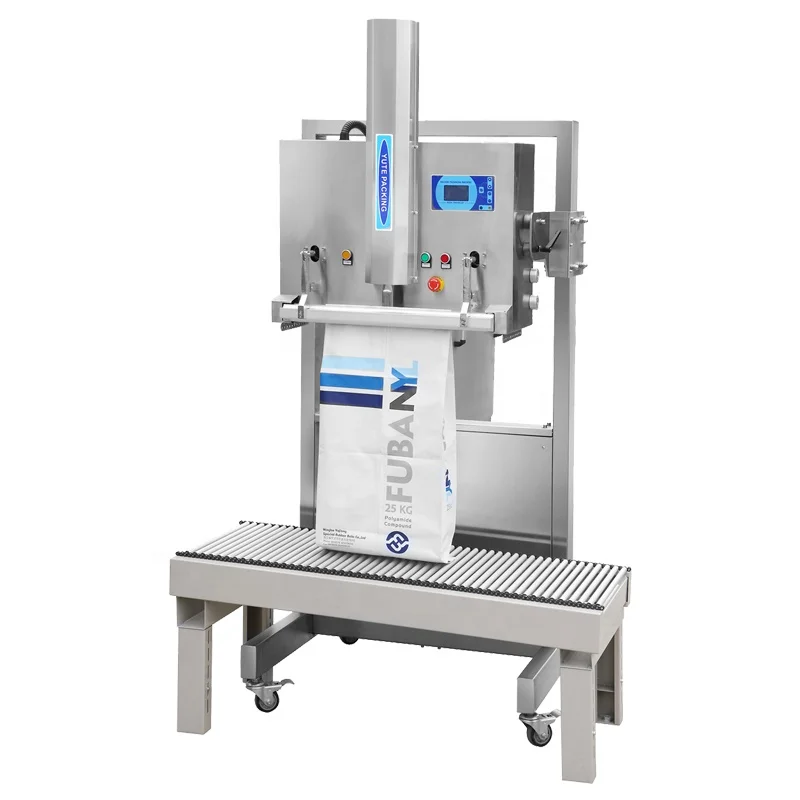

* 304SS rolling conveyor, you can put heavy pack on it, and pull it by hand to move bag, with 2.5m length, +400USD
* For bag wider than 900mm, we suggest automatic bag puller, which cost extra 260USD
3. Online video in Youtube
Operation video: https://youtu.be/th7z-K0w_Bo
Online broadcast of machine details: https://youtu.be/EfofD3AxiZ4
Nozzle change: https://youtu.be/ZAywpeG9rq4
Heat element change: https://youtu.be/8KY8L1aXTVs

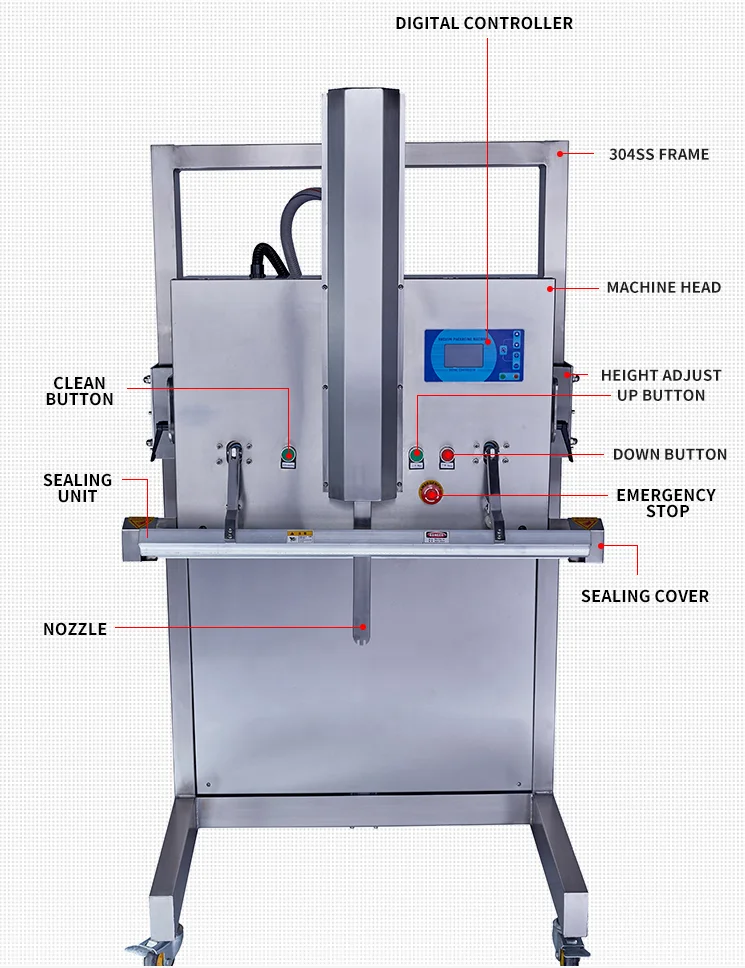

Machine details and more device
Waterproof controller
1. Memory. Client can store 9 sets in the controller.
2. Work mode. Client can choose different function here.3. Client can set time for vacuum / gas fill / seal / cool this page.
------------------------------------------
How to adjust gas fill
1. We leave a hole here for gas fill, just connect it with gas bottle directly.
2. Turn this cap, you can adjust gas input flow. It shall be lower than 0.2Mpa.3. On control panel, you can adjust time for gas fill.
-------------------------------------
Adjustable machine head
1. Adjust it for different angle of machine head.
2. Press Up/Down button, the machine head will move up/down automatically.
---------------------------------------
More device you may like
They are with extra cost. Please specify it you need.
a. Double heat system for thick bags.
b. Air compressor.
c. 304SS conveyor
d. Hand press protect.
e. Anti-explosion function.

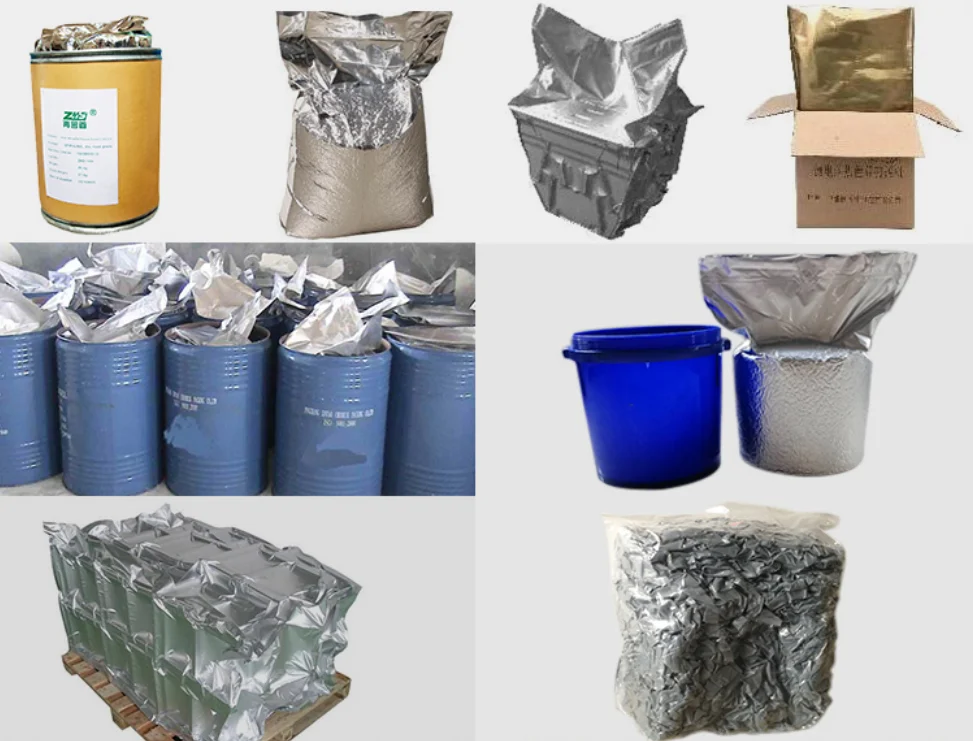

Application
1. Suitable item. Solid item like beans, meat, fish, sausage, cheese, fruit, vegetables, hardware etc.
2. Not suitable for powder/liquid, or product which sensitive with pressure.
3. Package weight shall be less than 100Kg.
4. Bag size shall be bigger than 20*30cm.
5. Bag type. Bag with zipper, folder, or 3-seal side.
5. Bag type. Bag with zipper, folder, or 3-seal side.
6. Bag material. Paper, plastic, aluminium. Thick and big bag is acceptable.
About our factory
Since our founding in year 1985, we focus on wide ranges of vacuum packing machines.
If you have any question to discuss! Please contact us.
Export manager: Emma Xu
Wechat/whatsapp: 008615057546776
Email: emma.vac(at)cnruibao.cn
How to get quotation and process order
What information from client is neccesory for correct quotation?
1. What is your product?
2. The width and length of your bag?
How to connect with gas source?
Buyer prepare gas bottle, then connect our machine directly with hose. We leave a hole on the machine for gas connect. Input gas flow can be adjusted.
What kind of air compressor shall we use?
Small air compressor with 30L gas tank, and supply 0.6-0.8Mpa air pressure will be ok.
Shipment term?
1. We ship under FOB or CFR by sea usually.
2. The height of machine is about 1.9m, it can not shipped by express/air.
Payment?
40% prepayment before production, balance before shipment.
Lead time?
7-15days after prepayment.
Do you test machine before shipment?
We will test and send video for confirmation before shipment.
