Высокоскоростная машина инжекционного
- Категория: Injection Molding Machines >>>
- Поставщик: Ningbo,Mingguang,Weiye,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 35700.83 $* | 37485.25 $* |
| Aug-20-2025 | 35400.51 $* | 37170.36 $* |
| Jul-20-2025 | 29700.55 $* | 31185.20 $* |
| Jun-20-2025 | 34800.91 $* | 36540.14 $* |
| May-20-2025 | 30300.24 $* | 31815.64 $* |
| Apr-20-2025 | 34200.33 $* | 35910.70 $* |
| Mar-20-2025 | 33900.9 $* | 35595.45 $* |
| Feb-20-2025 | 33600.29 $* | 35280.18 $* |
| Jan-20-2025 | 33300.22 $* | 34965.63 $* |
Характеристики
Product details:
Injection molding machine - high speed injection molding machine
for thin walll plastic product

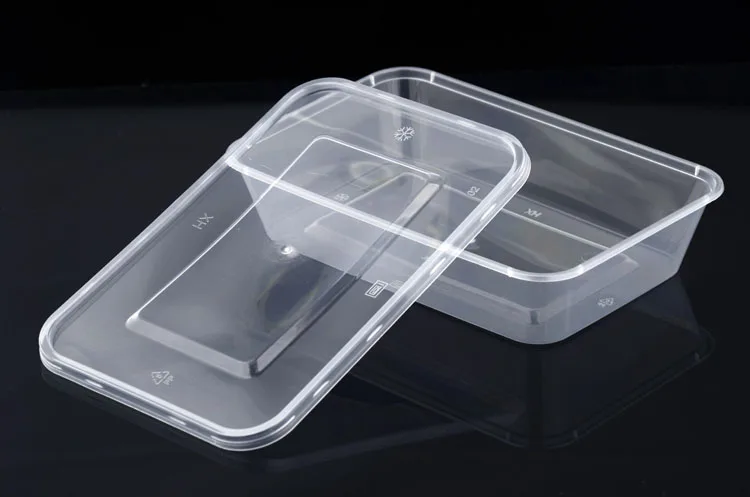

such as food container. milk tea bottles, juice bottles. cotton bottle,cable ties....
Machine parameter:
SPECIFICATION | XY230-S | |
INJECTION UNIT |
| |
SCREW DIAMETER | mm | 50 |
SCREW L/D RATIO | L/D |
22 |
SHOT VOLUME(THEORETICAL) | cm3 |
420 |
INJECTION WEIGHT(PS) | g |
383 |
INJECTION RATE | g/s |
154 |
INJECTION PRESSURE | MPa |
168 |
SCREW SPEED | rpm | 190 |
CLAMPING UNIT |
| |
CLAMP FORCE | KN | 2300 |
OPEN STROKE | mm | 495 |
SPACE BETWEEN TIE BARS(W*H) | mm | 520*520 |
MAX.MOULD HEIGHT | mm | 530 |
MIN.MOULD HEIGHT | mm | 200 |
EJECTOR STROKE | mm | 140 |
EJECTOR FORCE | KN | 70 |
OTHER |
| |
MAX.PUMP PRESSURE | MPa | 16 |
PUMP MOTOR POWER | kW | 41 |
HEATING POWER | kW | 13.6 |
MACHINE DIMENSION(L*W*H) | m | 5.2*1.6*2.2 |
MACHINE WEIGHT | t | 7.5 |

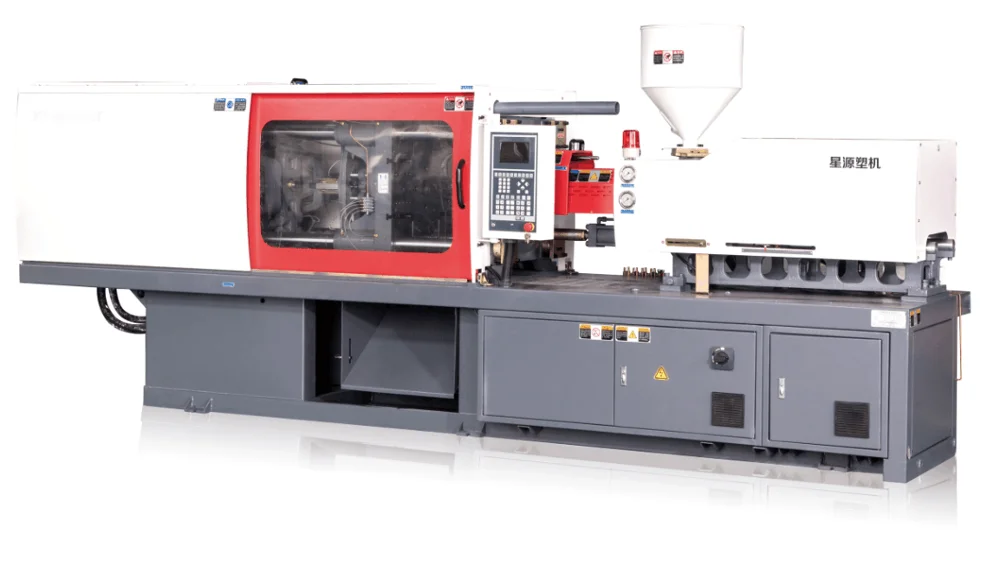

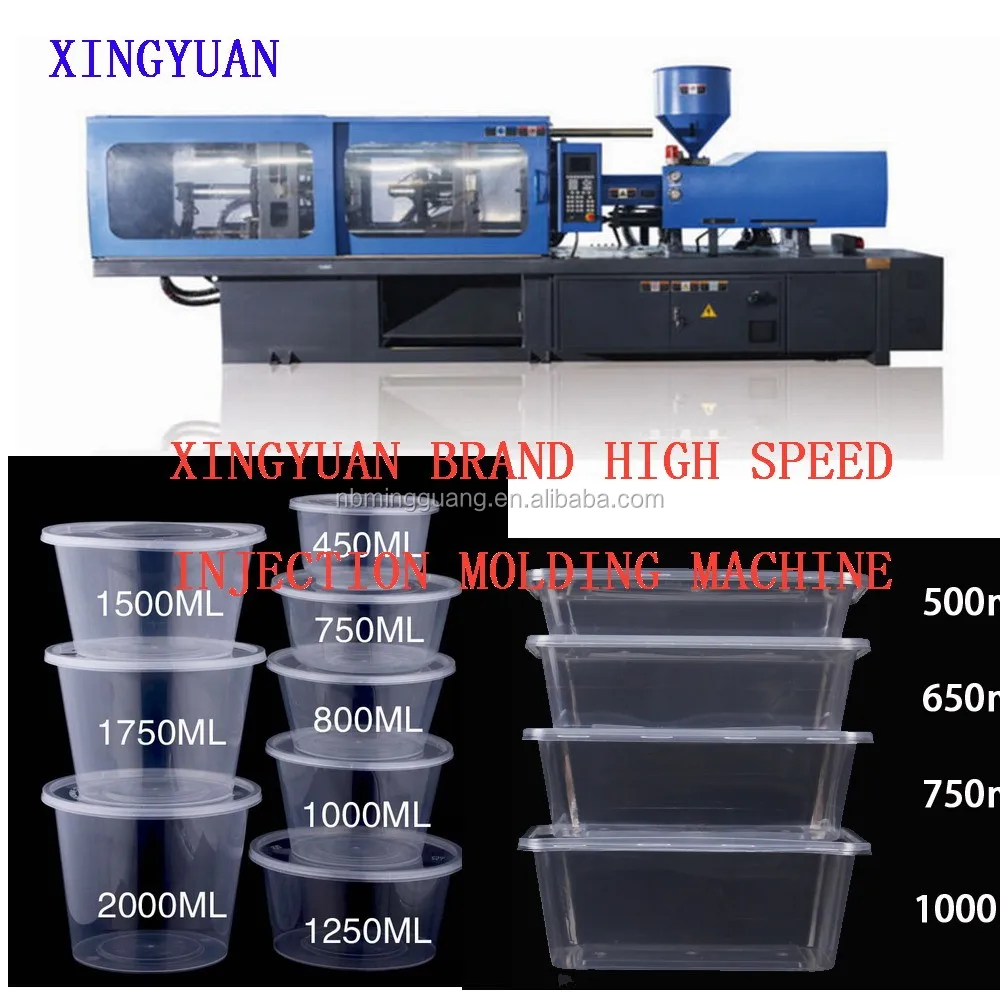

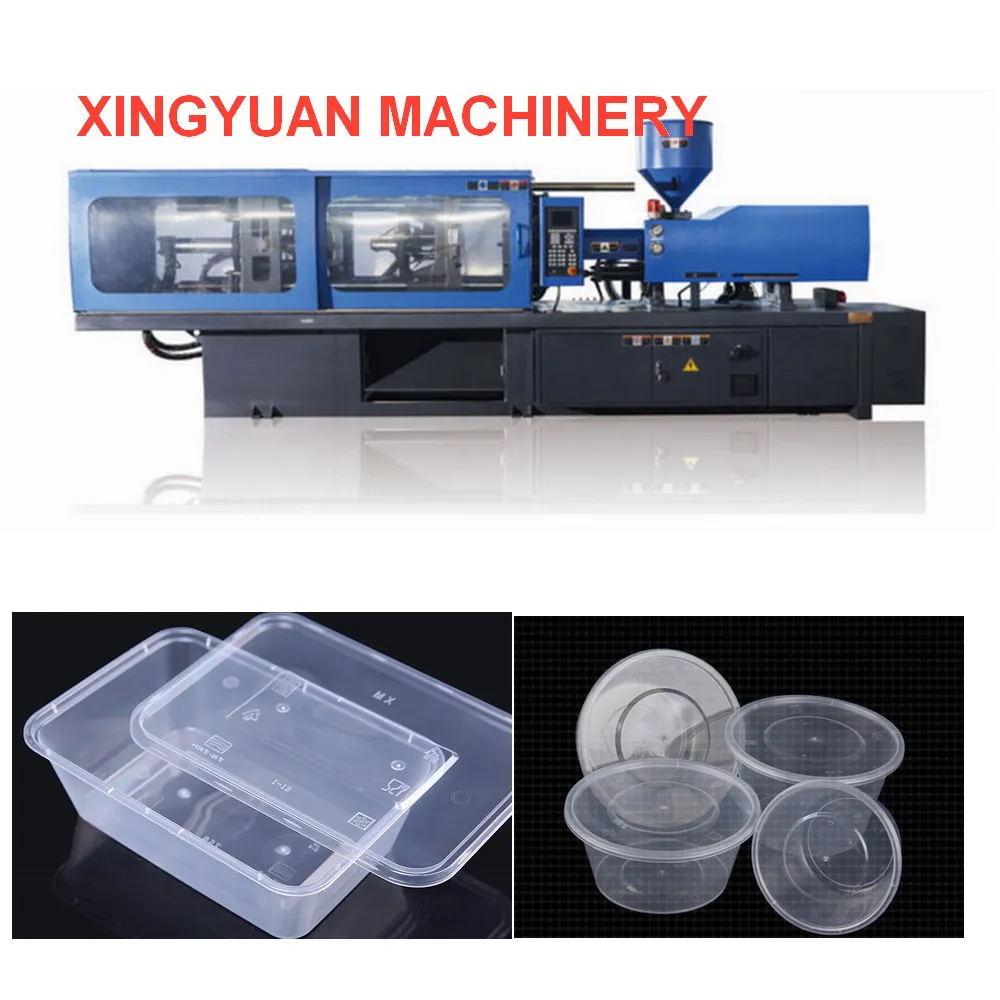

product pictures:
