Супергетеродинный модуль беспроводного приемника RXC6 433 МГц PT2262 с фиксированным
- Категория: Other Electronic Components old >>>
- Поставщик: Shenzhen,ZKP,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.96 $* | 0.17 $* |
| Aug-18-2025 | 0.38 $* | 0.65 $* |
| Jul-18-2025 | 0.82 $* | 0.57 $* |
| Jun-18-2025 | 0.82 $* | 0.62 $* |
| May-18-2025 | 0.11 $* | 0.38 $* |
| Apr-18-2025 | 0.96 $* | 0.3 $* |
| Mar-18-2025 | 0.9 $* | 0.30 $* |
| Feb-18-2025 | 0.0 $* | 0.65 $* |
| Jan-18-2025 | 0.99 $* | 0.30 $* |
Характеристики
Product Description
product description:

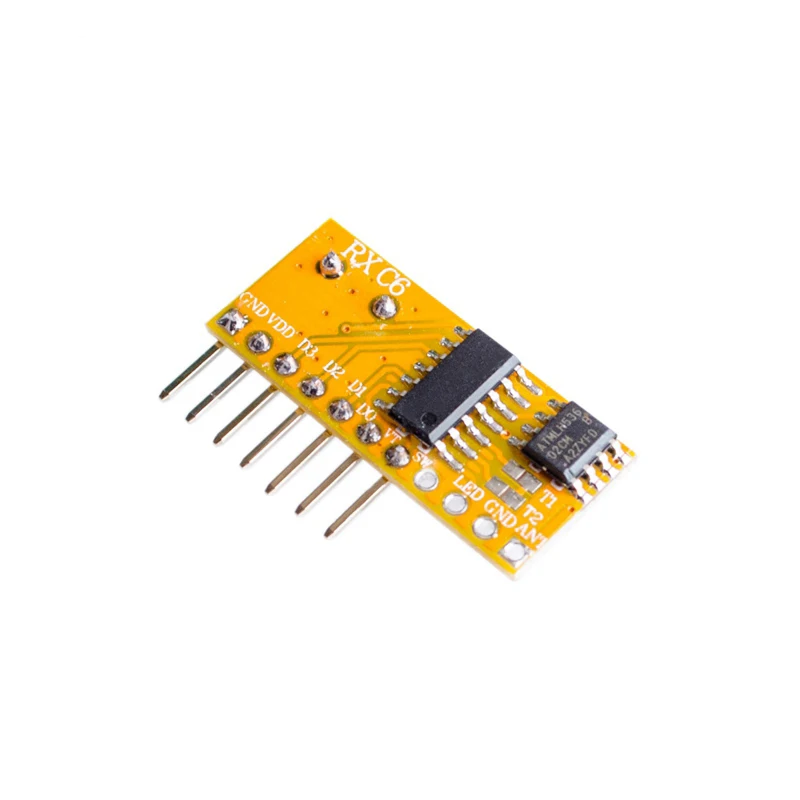

RX-C 6 superheterodyne band decoding learning code wireless receiving module is a receiving module with high cost performance ISM band. With high receiving sensitivity and low price, some low-end products can be rid of the limitation of price. Because of the limitation of super-regeneration module, the stability and reliability of low-end wireless products are improved, and the quality of products is improved. The image strengthens the competitiveness of the product. The wireless signal input to the data signal output can be performed without any external circuit. With its own data decoding circuit, it is easy to develop wireless products. The output mode is jog, self-locking and interlocking, which is suitable for different users. The code matching method is matched with the remote controller, and the multi-chip remote controllers such as 2260, 2262, 2240, and 1527 can be recorded , and the matching is convenient.
Product Features:
(1) Receive sensitivity reaches -1 10 dBm; (2) Operating frequency: 315MHz; 433.92MHz; 330MHz; 390MHz; 418MHz (special frequency can be customized according to customer requirements)
(3) Power supply voltage input range: 3.3V-5.5V;
(4) Low power consumption, 5.0V @ 433.92MHz, 3.8-4.1mA; 5.0V @315MHz,
2.5-2.8mA; continuous data transfer rate to 2.4K (Manchester code)
(5) Good selectivity and stray radiation suppression ability, easy to pass CE/Fcc international certification;
(6) Good local oscillator radiation suppression capability, which can work together with multiple receiving modules (ie, single transmission and multiple reception) and does not interfere with each other. The use together does not affect the receiving distance.
(7) Temperature range: -30-85 ° C, even in harsh ambient temperatures can work properly;
(8) 28 × 12.5 × 5.00 (mm).
Foot description:
From left to right ANT , GND , LED , SW , VT ( may not ) , D0 , D1 , D2 , D3 , VDD , GND
ANT: Antenna
GND: power ground
LED: external indicator light
SW: external learning button
VT: remote control signal indication, data common
D0-D3 : data foot
VDD: positive power supply
GND : power ground
(10) Output mode: split point, self-locking, interlocking optional ;
1. The default ( T2, T1 is left floating) is the jog mode , there is a valid signal input, the corresponding output signal has an output, and the effective signal does not automatically stop output after it.
2. The back of the board (T2 ground, T1 floating) is a self-locking mode with an effective signal input. The corresponding output signal state is reversed. Before the output is high, it becomes low, and vice versa.
3. The back panel (T2 floating, grounding Tl) is interlocked mode , a valid signal is input, the corresponding output signal of the output, the other closed. Signal indication; when there is a valid signal input, VT outputs a high level, and after the valid signal disappears, VT is an output low level.
Code method:
Press live learning button for 2 seconds, the learning indicator light about this time that has entered the learning state; release learning key, the remote control any - a key indicator flashes 4 times indicates success in learning , and exit the learning mode.
Clearing method:
Press and hold the learning button , the indicator will be on constantly . Press and hold for about 8 seconds, the indicator will go out, indicating that the code has been cleared successfully .
Application range:
(1) Car remote control door switch (RKE); (2) remote control door opener; (3) wireless security alarm; (4) remote control curtain machine; (5) wireless industrial controller; (6) wireless data transmission.
Remarks:
If the distance of the pro is far away, it is better to connect the 1/4 wavelength antenna, generally adopt 50 ohm single-core wire, the length of the antenna is about 23cm for 315M , and about 17cm for 433M ;
Effect of the position of the antenna also reception module, when installed, the antenna stretched as far as possible away from the screen cover themselves, high pressure, and local interference source
When used, the receiving frequency and decoding mode should match the transmission.
RX-C 6 superheterodyne band decoding learning code wireless receiving module is a receiving module with high cost performance ISM band. With high receiving sensitivity and low price, some low-end products can be rid of the limitation of price. Because of the limitation of super-regeneration module, the stability and reliability of low-end wireless products are improved, and the quality of products is improved. The image strengthens the competitiveness of the product. The wireless signal input to the data signal output can be performed without any external circuit. With its own data decoding circuit, it is easy to develop wireless products. The output mode is jog, self-locking and interlocking, which is suitable for different users. The code matching method is matched with the remote controller, and the multi-chip remote controllers such as 2260, 2262, 2240, and 1527 can be recorded , and the matching is convenient.
Product Features:
(1) Receive sensitivity reaches -1 10 dBm; (2) Operating frequency: 315MHz; 433.92MHz; 330MHz; 390MHz; 418MHz (special frequency can be customized according to customer requirements)
(3) Power supply voltage input range: 3.3V-5.5V;
(4) Low power consumption, 5.0V @ 433.92MHz, 3.8-4.1mA; 5.0V @315MHz,
2.5-2.8mA; continuous data transfer rate to 2.4K (Manchester code)
(5) Good selectivity and stray radiation suppression ability, easy to pass CE/Fcc international certification;
(6) Good local oscillator radiation suppression capability, which can work together with multiple receiving modules (ie, single transmission and multiple reception) and does not interfere with each other. The use together does not affect the receiving distance.
(7) Temperature range: -30-85 ° C, even in harsh ambient temperatures can work properly;
(8) 28 × 12.5 × 5.00 (mm).
Foot description:
From left to right ANT , GND , LED , SW , VT ( may not ) , D0 , D1 , D2 , D3 , VDD , GND
ANT: Antenna
GND: power ground
LED: external indicator light
SW: external learning button
VT: remote control signal indication, data common
D0-D3 : data foot
VDD: positive power supply
GND : power ground
(10) Output mode: split point, self-locking, interlocking optional ;
1. The default ( T2, T1 is left floating) is the jog mode , there is a valid signal input, the corresponding output signal has an output, and the effective signal does not automatically stop output after it.
2. The back of the board (T2 ground, T1 floating) is a self-locking mode with an effective signal input. The corresponding output signal state is reversed. Before the output is high, it becomes low, and vice versa.
3. The back panel (T2 floating, grounding Tl) is interlocked mode , a valid signal is input, the corresponding output signal of the output, the other closed. Signal indication; when there is a valid signal input, VT outputs a high level, and after the valid signal disappears, VT is an output low level.
Code method:
Press live learning button for 2 seconds, the learning indicator light about this time that has entered the learning state; release learning key, the remote control any - a key indicator flashes 4 times indicates success in learning , and exit the learning mode.
Clearing method:
Press and hold the learning button , the indicator will be on constantly . Press and hold for about 8 seconds, the indicator will go out, indicating that the code has been cleared successfully .
Application range:
(1) Car remote control door switch (RKE); (2) remote control door opener; (3) wireless security alarm; (4) remote control curtain machine; (5) wireless industrial controller; (6) wireless data transmission.
Remarks:
If the distance of the pro is far away, it is better to connect the 1/4 wavelength antenna, generally adopt 50 ohm single-core wire, the length of the antenna is about 23cm for 315M , and about 17cm for 433M ;
Effect of the position of the antenna also reception module, when installed, the antenna stretched as far as possible away from the screen cover themselves, high pressure, and local interference source
When used, the receiving frequency and decoding mode should match the transmission.
