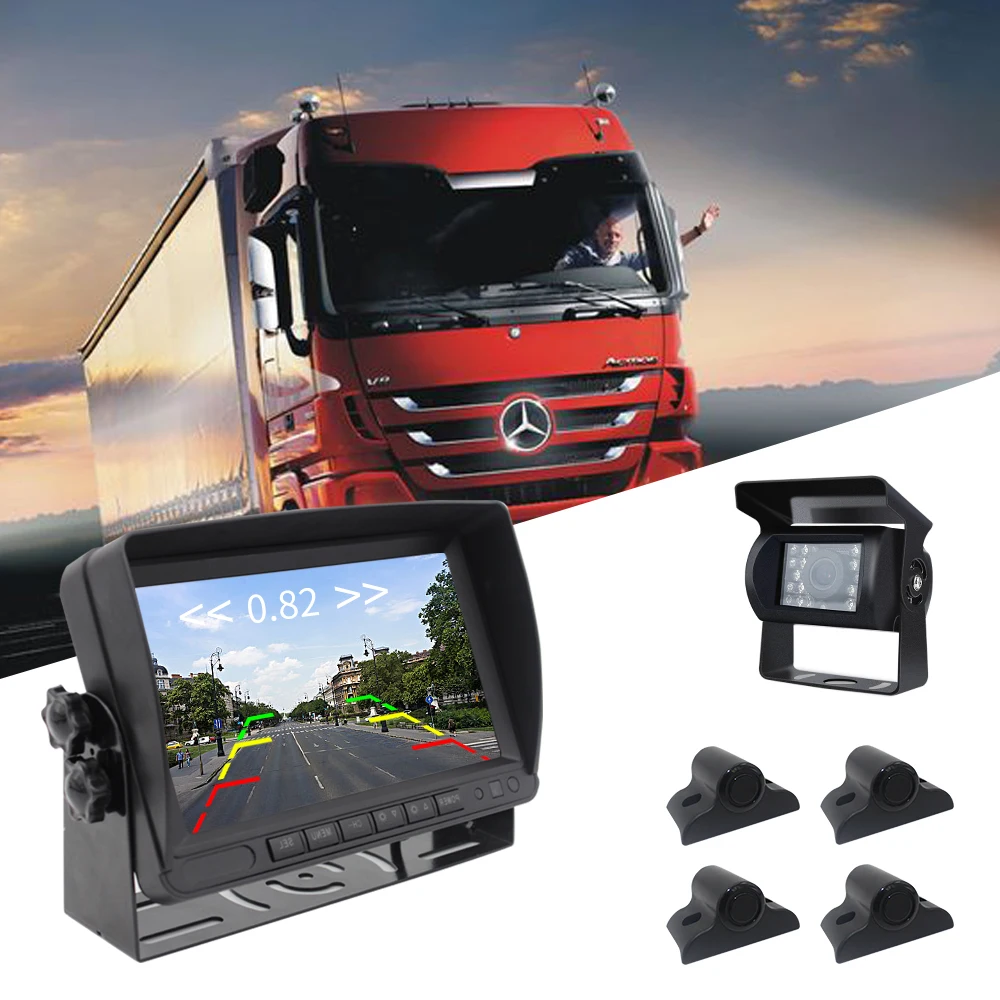

24V камера заднего вида 7-дюймовый монитор 4 датчики система элементов радарного

7 inch LCD Monitor :

-Screen size: 7inch high brightness new analog/digital panel (16:9) and (4:3)
-Resolution:   800xRGBx480 Pixel
-OSD MENU Function: Reversing image delay time 0~15s, Mirror/Normal image, Multi-language, With guide lines
-System:PAL/NTSC auto
-Contrast:400:1
-Brightness:400cd/m2
-Power supply:DC12V~36V
-Power:About 5W
-Opeartion temperature:-20~70°C
-Storage temperature:-30~80°C
-Video: Two way video inputs,

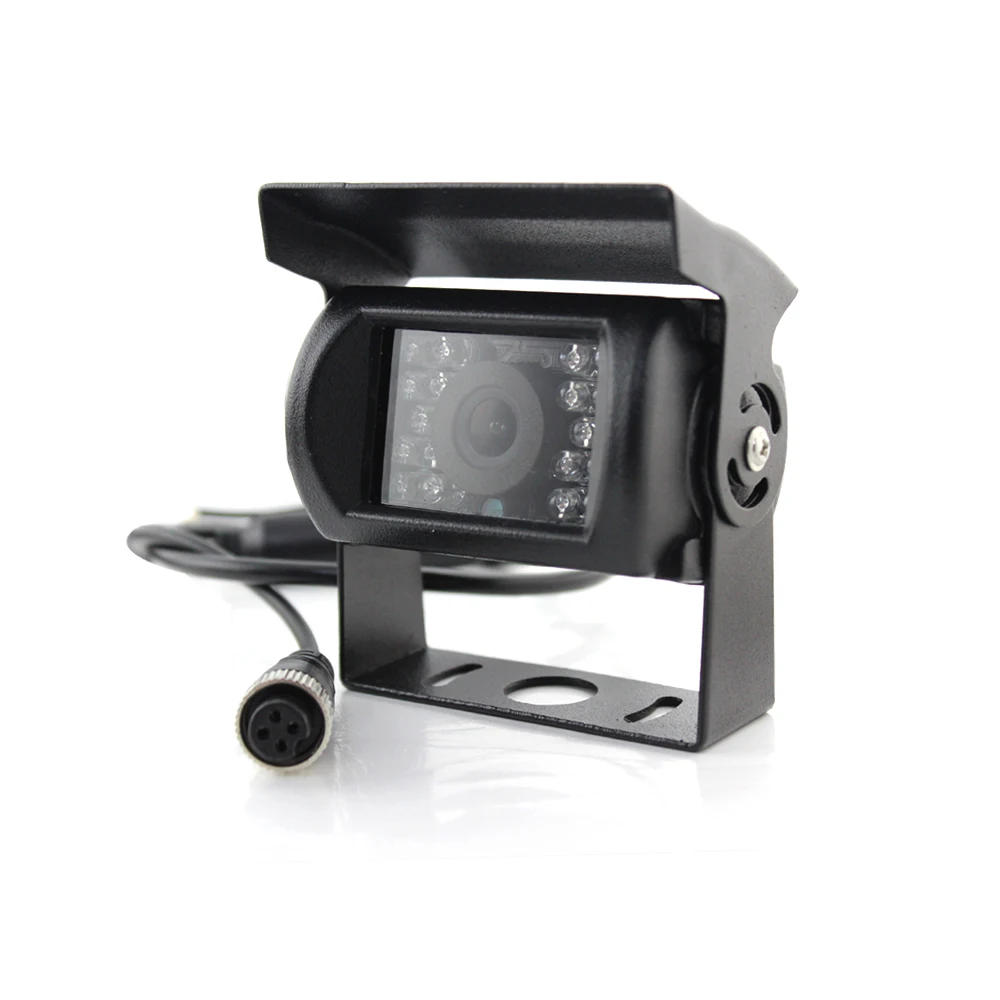

Backup Reversing Camer PZ500:

–4Pin DIN waterproof screw on connector
–Standard rear view camera
–The automatic day/night sensor and infrared LEDs to provide clear image in dull condition
(1) Color CMOS sensor
(2)TV system : PAL/NTSC
(3)Resolution: 600 TV lines
(4)With 18 IR  light ,night vision distance up to 10-15 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 12V~24VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature:  -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable
(11)IP Rating: IP68

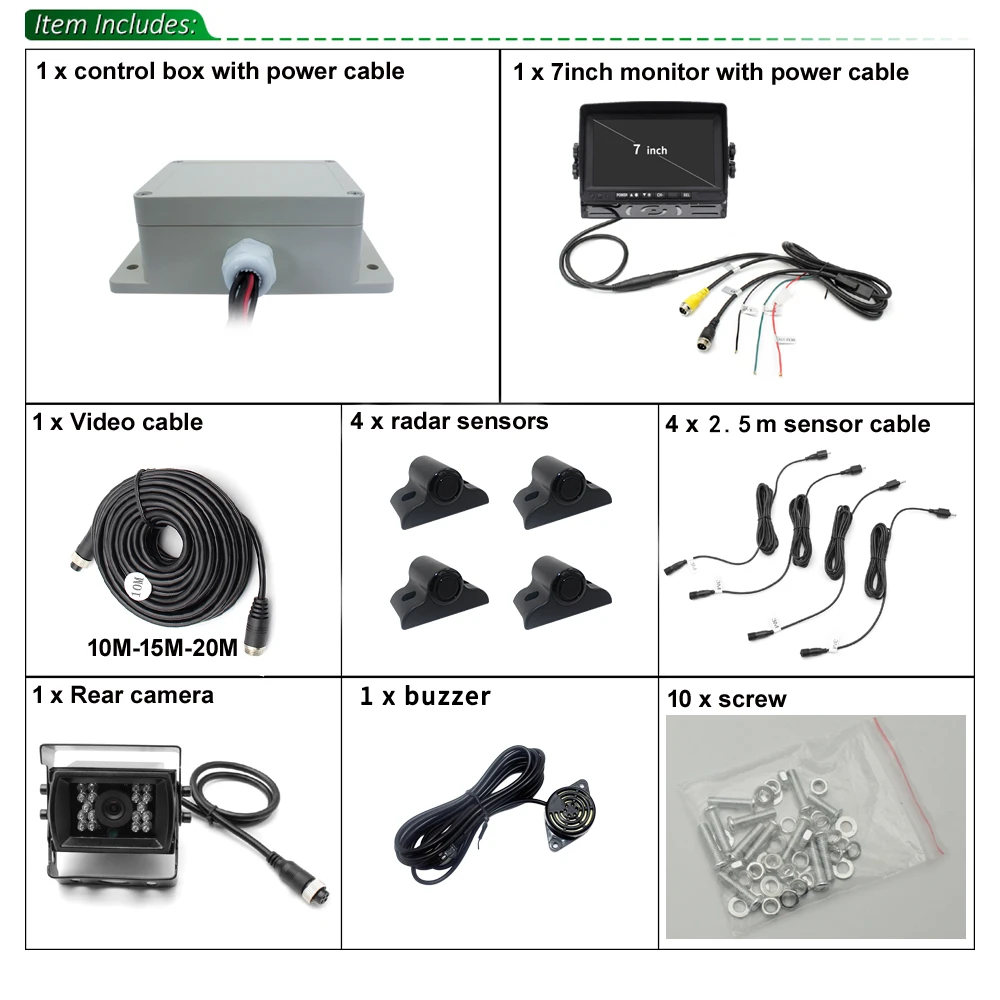

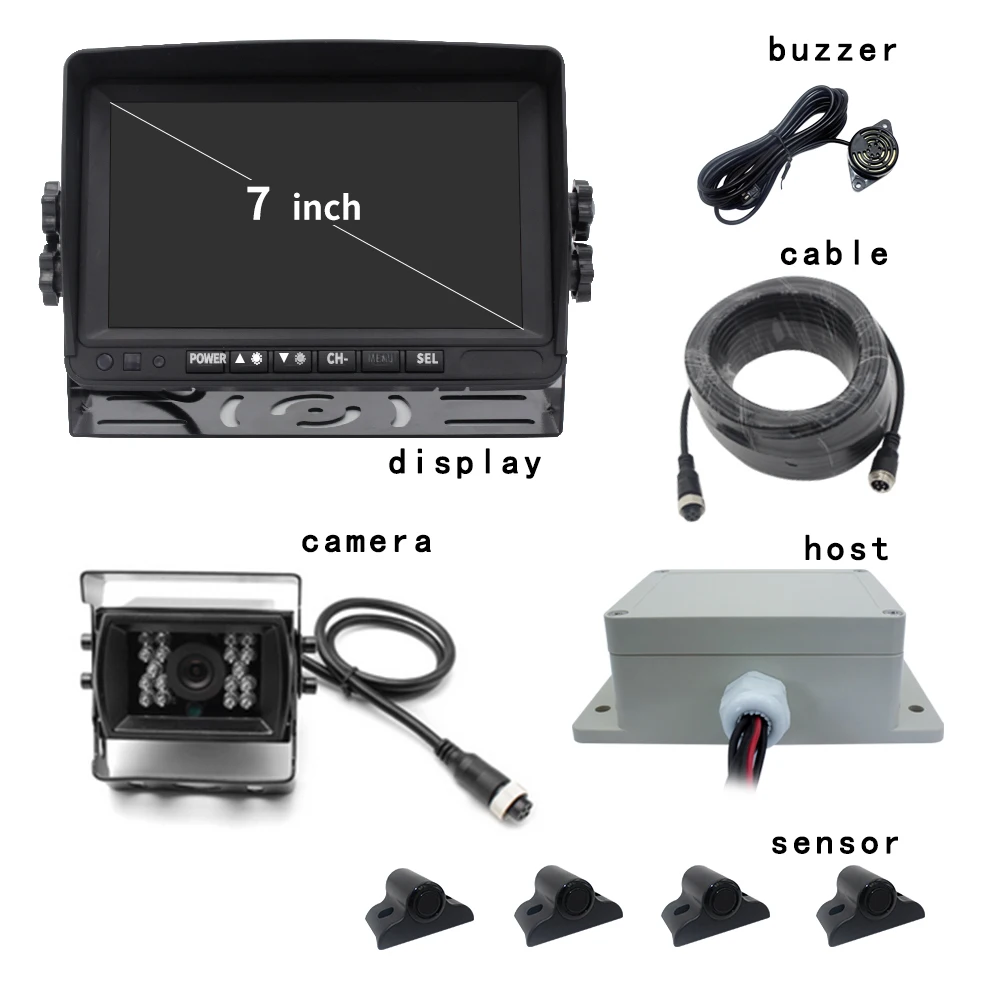

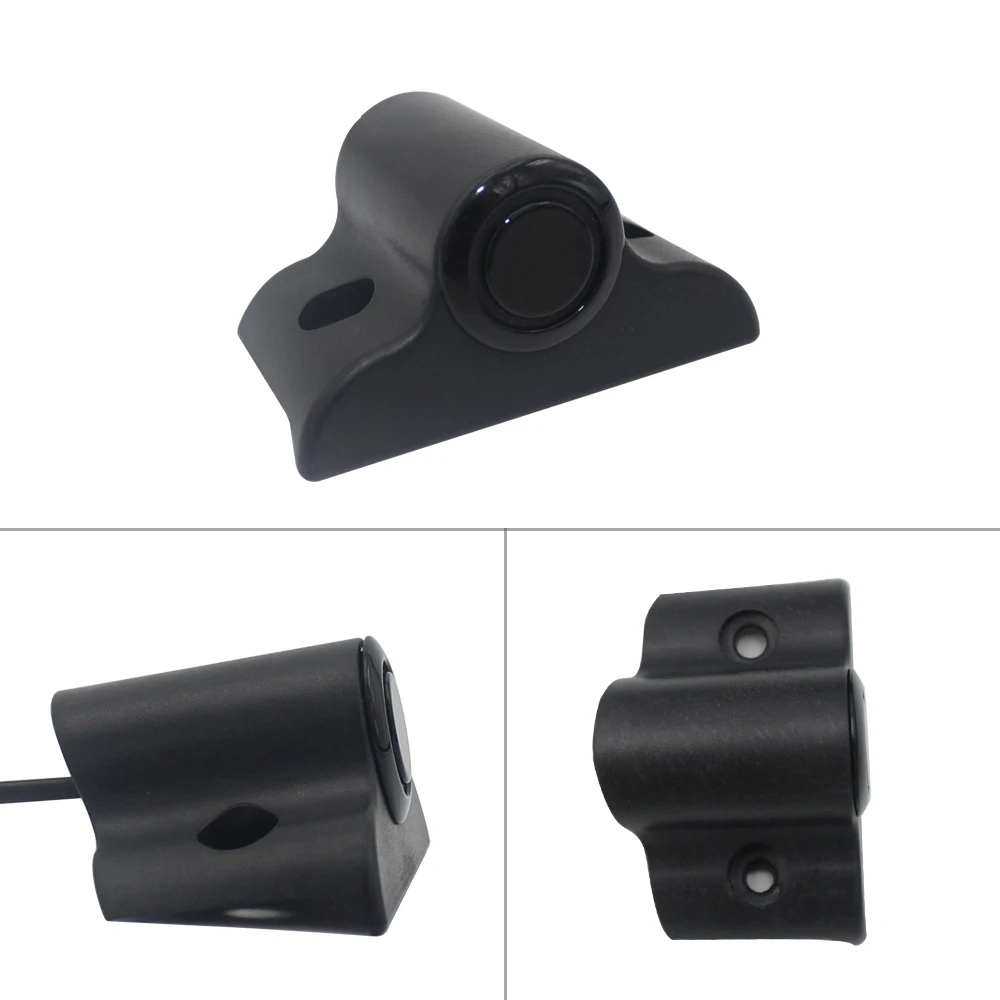

Control Box + Sensors:

1) Van 4 parking sesnro , applicable to all the large vehicles;
2) When vehicle starts to reverse, system start working;
3) Sensor detection range: 0 m ~ 3.0 m (Special require: 5.0meter optional)
4) Speech at distance range: 0.3 meters to 3.0 meters;
5) Connector to Monitor, Host, Probe cable length : 15m, 3m (Customized)
6) Cable connection installation, prevent radio interference;
7) Lightning protection anti-interference boxes;
8) Bracket screws or punch probe (waterproof for thread form 4 probe);
9) 4 pins screw on extension cable, 15 meters;(other length customized);
10) Power input:12-32 v DC; Stand by : less than 1W
11) Operating frequency: 40 KHZ.
12) Probe Beam Angle: single Angle 60-80 degrees, can choose double Angle Y = 60-80 degrees, X = 100-120 degrees.
13) Size: length x width x height = 153mm x 99mm x47mm.
14) Low temperature – 40 °C, high temperature of 80 °C;
