Считыватель кредитных карт Mini MSR с магнитной полосой версией

Описание и отзывы

Трекер стоимости

Характеристики

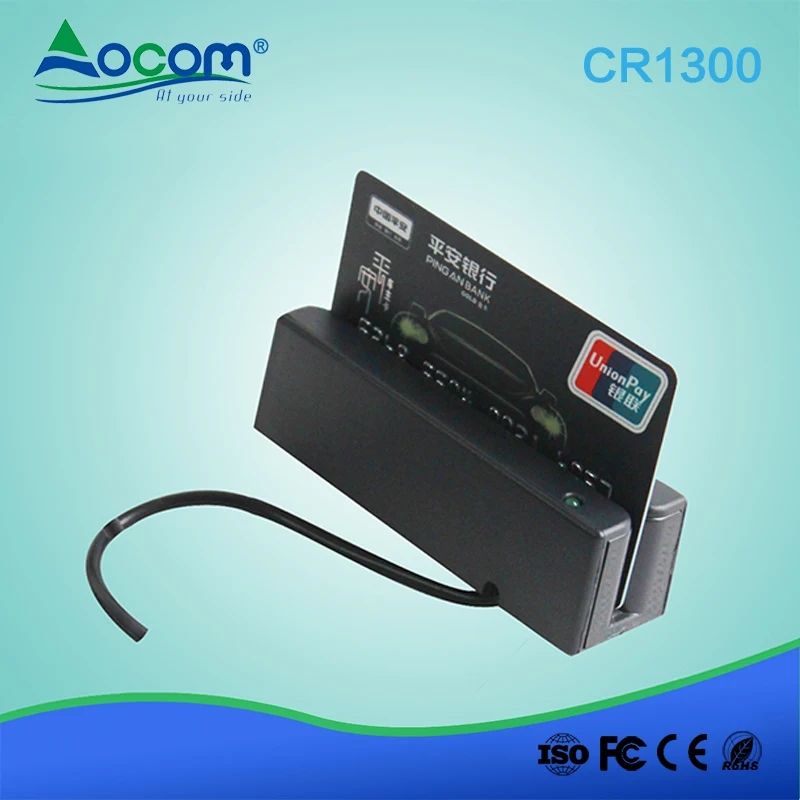

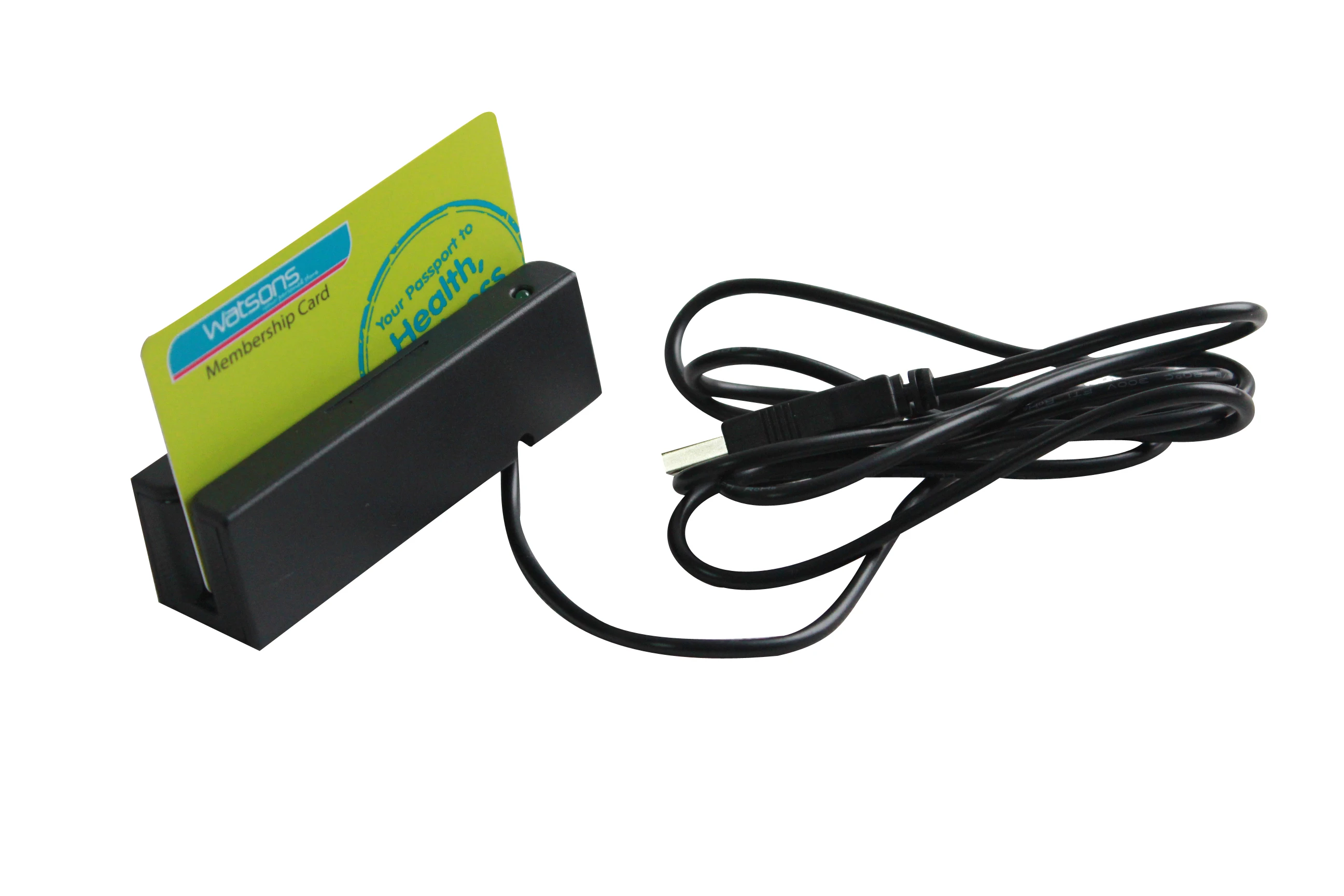

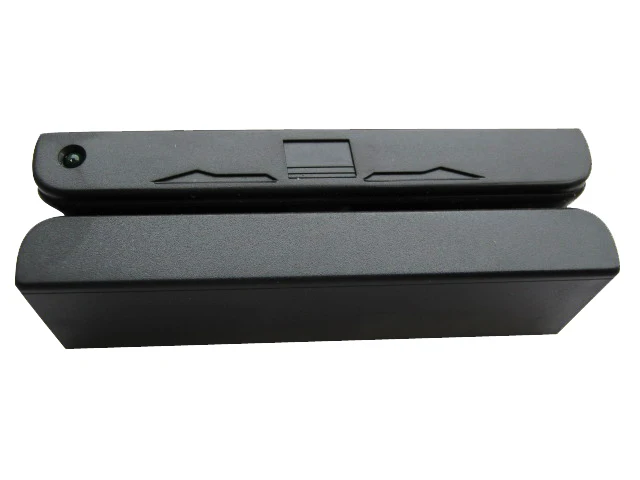

Mini Magnetic Stripe Card Reader

(Model No.: CR1300)



Features:

l Compatible with Android System.

l All 3 tracks can set to 75/210 BPI;

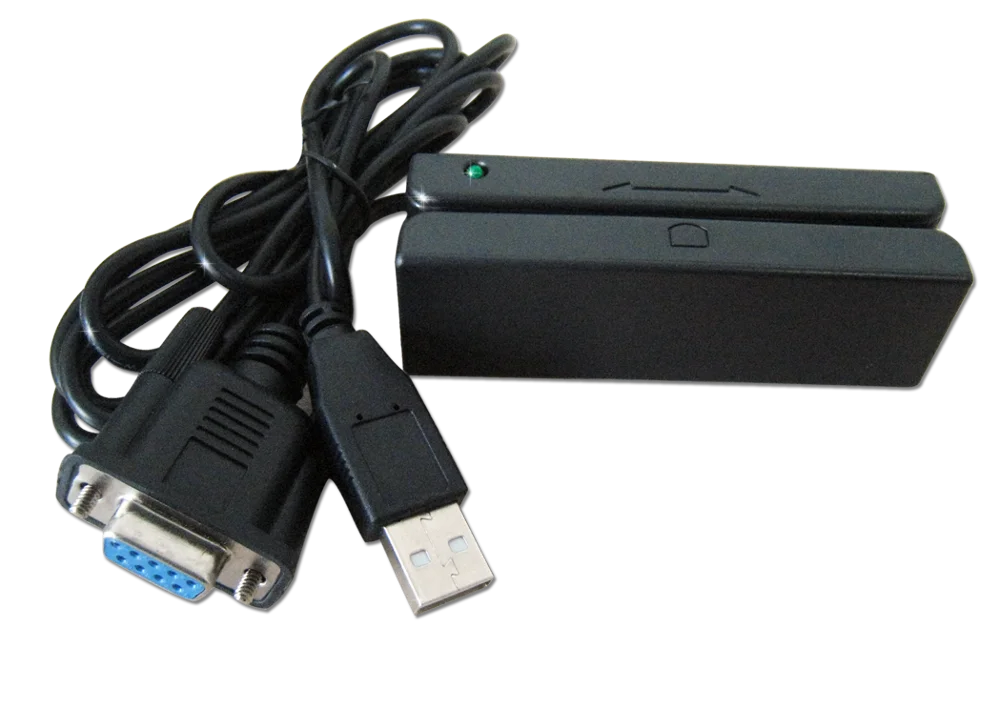

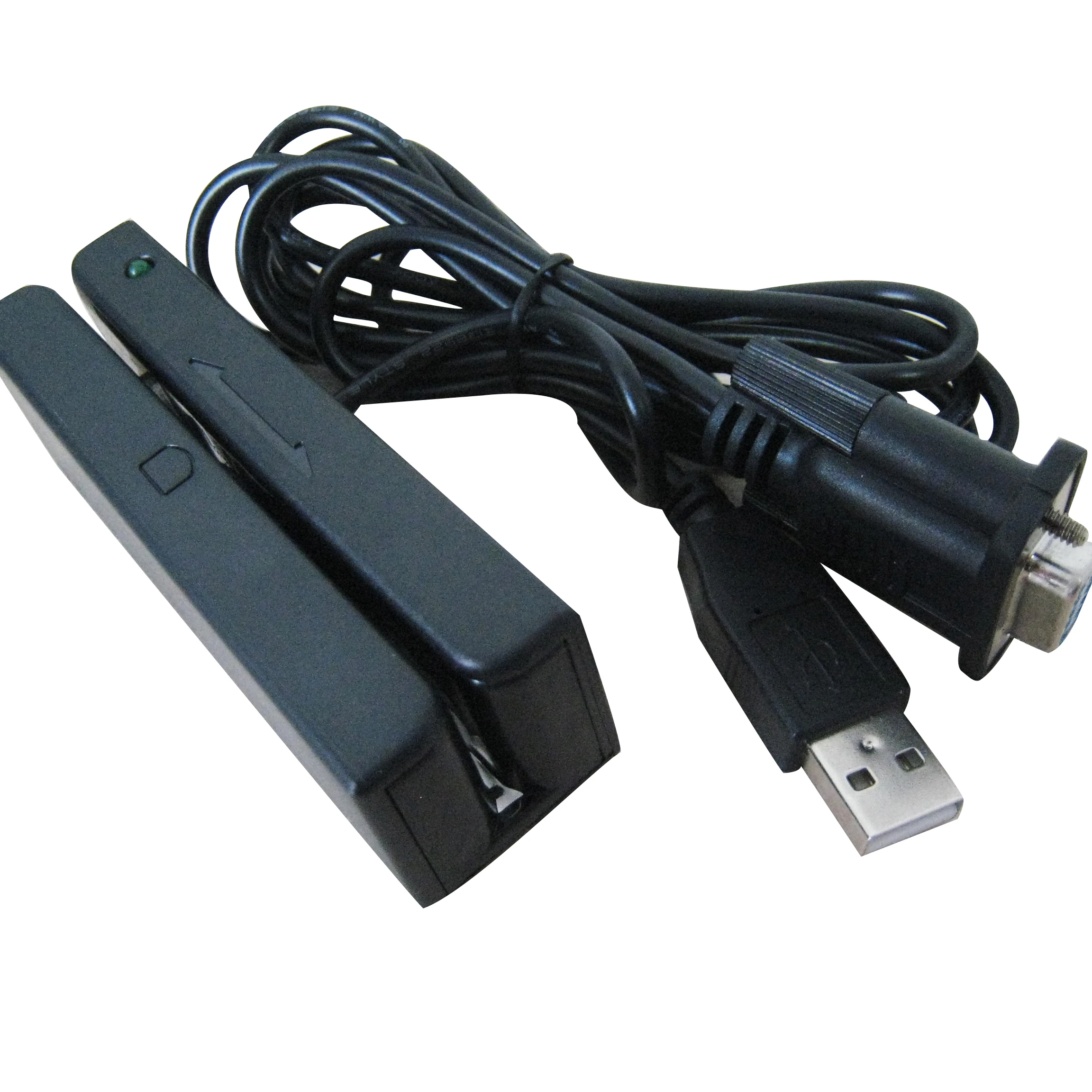

l USB or Serial interface.

l Long service life (500,000 card passes).

l Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards.





Specifications:

Dimension	90mm(L) x 26mm(W) x 28mm(H)
Weight	85g(approx.)
Power Supply	+5V DV ±5%
Power consumption	40mA (max.)
Operation Locus	Indoor use
Card Standard	ISO7811/7812
Track Position	ISO 1 (IATA)	ISO 2 (ABA)	ISO 3 (MINTS)
Recording Density	210 BPI	75 BPI	210 BPI
Recording Capacity	79 Characters (7bits)	40 Characters (5bits)	107 Characters (5bits)
Interface	USB / Serial
Card Thickness	Plastic 0.76 ± 0.08mm
Head Function	Read only 1.5mm
Operation Speed	10 ~ 150cm/sec
Life of Head	500,000 card passes (1 pass : one swipe)
Error Rate	Less than 0.5%  (JSE Test card)
Temperature	Storage : -30°C to +70°C Operating : -20°C to +70°C
Humidity	Storage : 0% to 95% RH Operating : 20% to 90% RH







FAQ

1. MOQ policy

No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.


2. Sample Availability & Policy

After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.


3. Warranty

OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.


4. Payment Terms

For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com.

5. Shipment

We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.




Why You Choose OCOM?

Leading One-Stop Supplier for POS and Auto-ID Related Products;
11 Years OEM/ODM Experience;
Qualified by Global Fortune 500 Companies;
Tier 1 customers including Unilever, O2, Star ...
2300+ Customers Cover 159 Countries;
Top 1 Level Trade Assurance upto 399,000.00usd 100% protect your money;
ISO9001, FCC, CE , Rohs, Soncap, POA, BIS Certificates ;
12+1 months warranty;
Shortlisted in "China Best Employer";
Belief: Integrity Based, Strive for Excellence, Win-win Cooperation.
