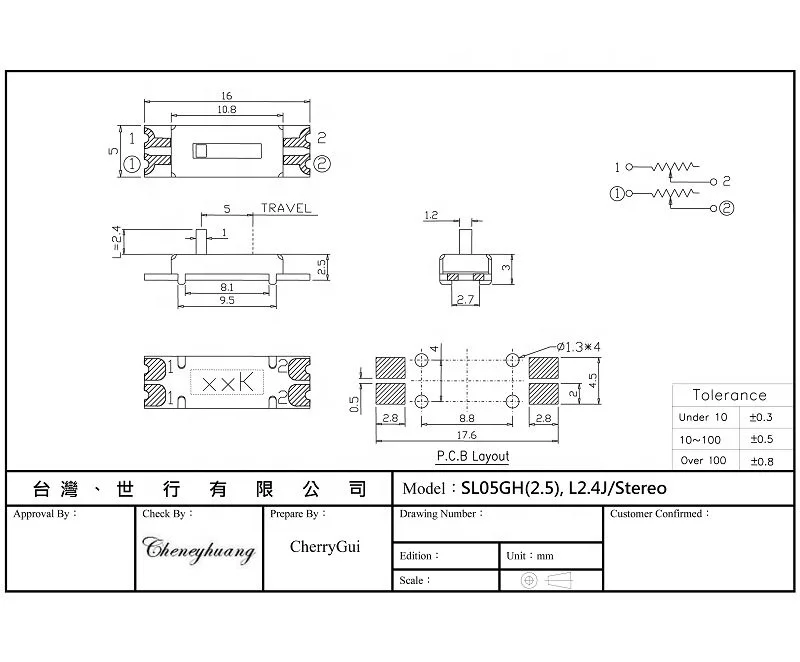

SL05GH (2 5) 5 мм путешествия стерео 4 Пина миниатюрный SMD ползунковый потенциометр паять Reflow pad-технология сертификат
- Категория: Potentiometers >>>
- Поставщик: WORLD,WALK,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.99 $* | 0.79 $* |
| Aug-16-2025 | 0.7 $* | 0.97 $* |
| Jul-16-2025 | 0.80 $* | 0.29 $* |
| Jun-16-2025 | 0.6 $* | 0.18 $* |
| May-16-2025 | 0.65 $* | 0.2 $* |
| Apr-16-2025 | 0.42 $* | 0.66 $* |
| Mar-16-2025 | 0.26 $* | 0.80 $* |
| Feb-16-2025 | 0.53 $* | 0.65 $* |
| Jan-16-2025 | 0.30 $* | 0.6 $* |
Характеристики

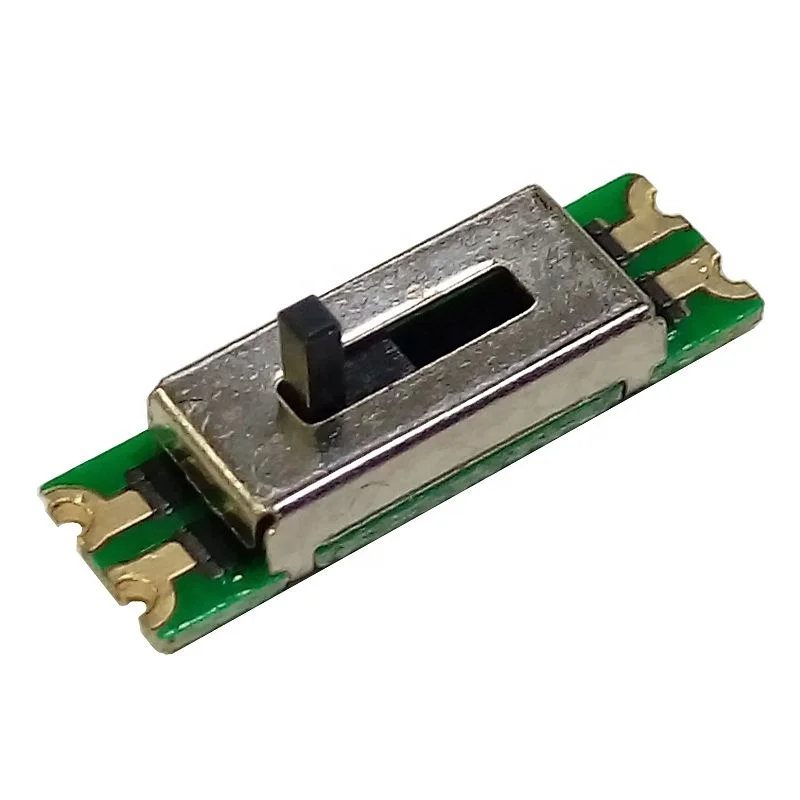

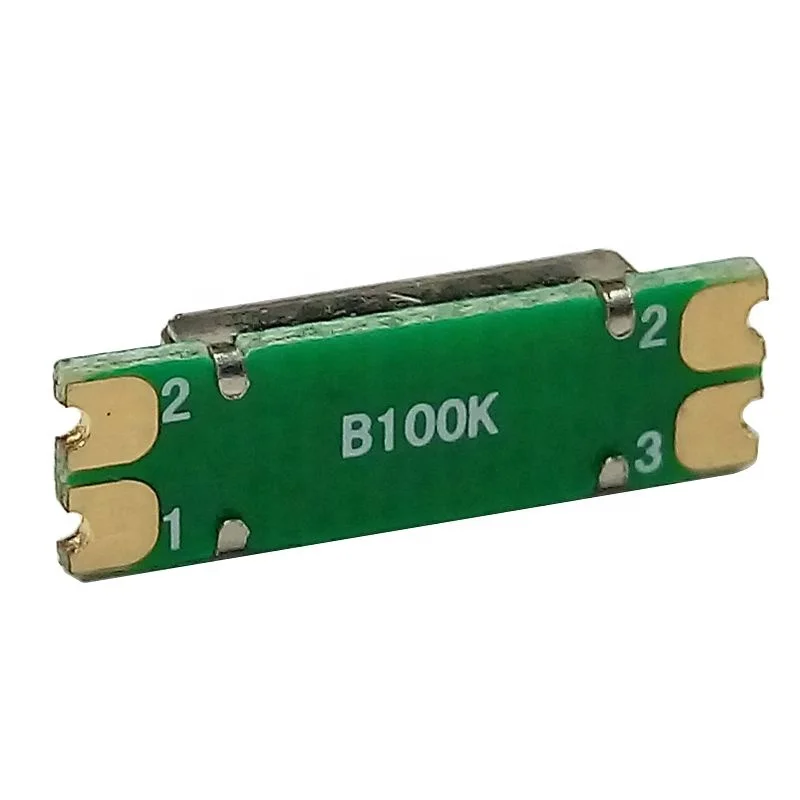

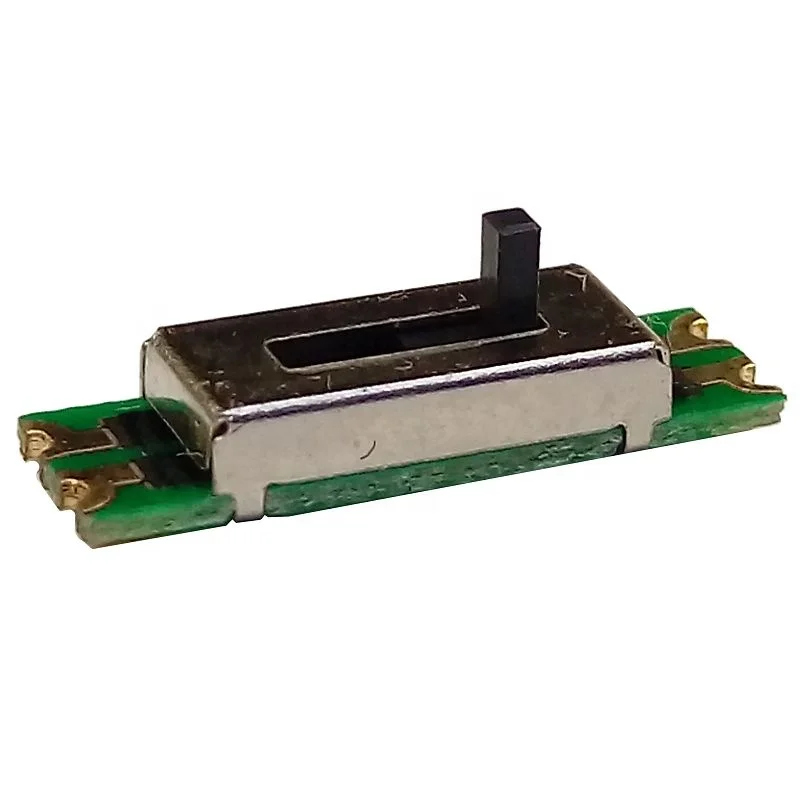

Slide Potentiometer
SL05G-A
Application
For volume control on headphones and earphones, portable medical equipment, car electronics, alarm system volume control, and any electronics that require a channel tracer controller.
Mechanical Data
| Sliding Travel | 5mm ± 0.1mm | ||||||
| Rotational Torque | 10~200 gf.cm | ||||||
| Rotational Stopper Strength | 3 kgf.cm Min | ||||||
| Push-pull Strength | 8 kg | ||||||
| Rotational Life | 10,000 Cycles Min. | ||||||
Electrical Data
| Total Resistance | 500~1MΩ | ||||||
| Total Resistance Tolerance | ±10%, ±20% | ||||||
| Residual Resistance | < 10Ω | ||||||
| Resistance Taper (JIS) | B (Linear) ; A (Log) ; C (An-ti Log) | ||||||
| Power Rating | Stereo 0.025W (B taper) | ||||||
| Max Operating Voltage | AC50V | ||||||
| Gang Error | -40~0dB ± 3dB | ||||||
| Slide Noise | Under 47mV | ||||||
| Insulation Resistance | 100MΩ Min. at DC250V | ||||||
| Breakdown Voltage | 1 Minute at AC250V | ||||||
Advantages
1. Tiny 5 mm SMD Slide Potentiometer;
2. Lightweight;
3. No wiring terminal;
4. Compatible with reflows soldering (Patent approved);
5. Reduce manufacturing costs and improving product quality;
6. The design would be customized depending on the customer's demands.
