MINI HDPE LDPE LLDPE Film BLowing Machine For Plastic Film

It is used for blowing the various plastic film of low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.

If you like 500mm 600mm 700mm, it could made as the pictures exactly.
And if you like more then 700mm type, you could choice our other types. Pls read our web or contact with us. Thanks!





Main speficiation

Siemens motor    Delta brand      Lift traction       Bimetallic  screw       HIgh quality die head

 Machine  Main parameters:



Model	RSJ-45-500	RSJ-50-700	RSJ-55-900	RSJ-60-1100	RSJ-65-1350
Max.Layflat Width(mm)	400	600	600	1000	1200
Film Thickness(mm)	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08
Max.Output(kg/h)	20	30	50	60	90
Raw Material	HDPE/LLDPE/LDPE/EVA
Screw Diameter(mm)	Φ45	Φ50	Φ55	Φ60	Φ65
Screw L/D Ratio L/d	28:1	28:1	28:1	28:1	28:1
Extruder Driving Power(kw)	5.5-7.5	7.5-11	15-18.5	18.5	22
Take-off Wond-up Speed	10-60m/min	10-60m/min	10-60m/min	10-80m/min	10-80m/min
Total Power(kw)	≈22	≈25	≈32	≈45	≈50
Overall Dimensions(L×W×H)M	2.6×1.5×4.5	3.2×1.7×4.5	4.2×1.9×5	4.8×2.1×6	5.8×2.4×6
Weight(T)	≈1.2	≈1.5	≈2	≈2.5	≈3.2

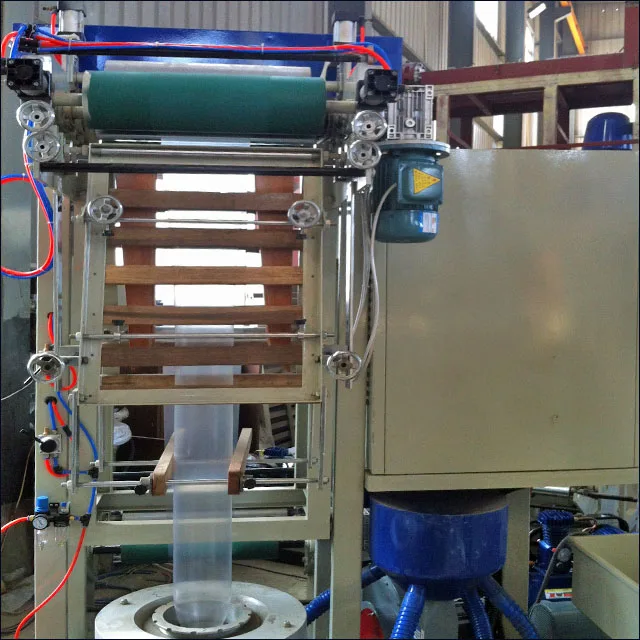

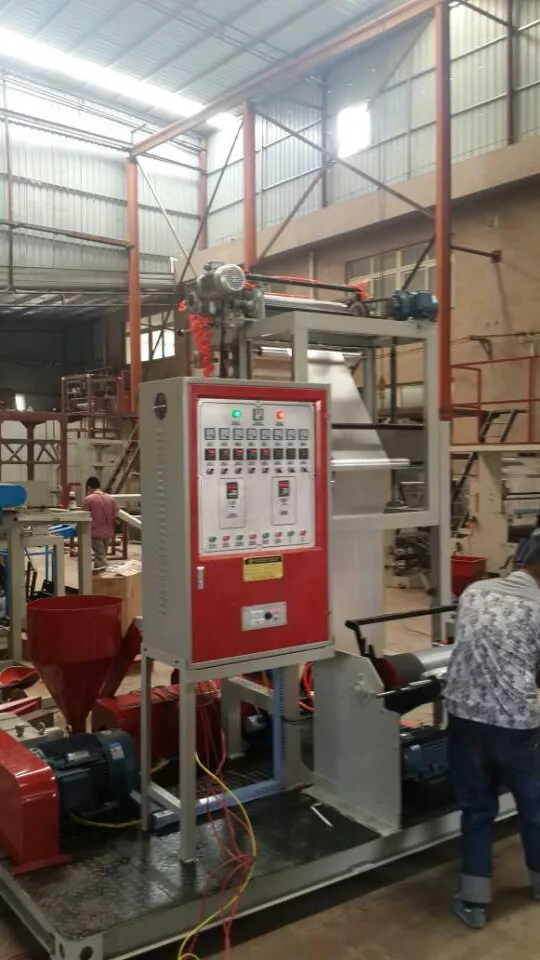

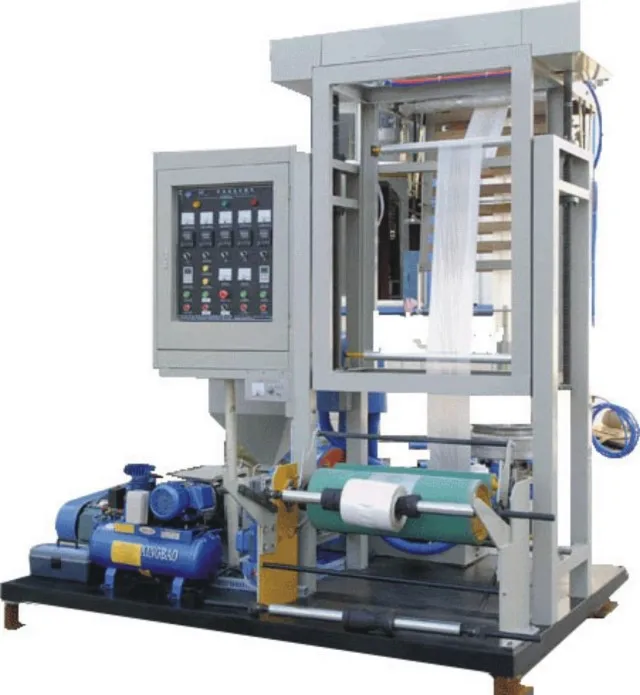

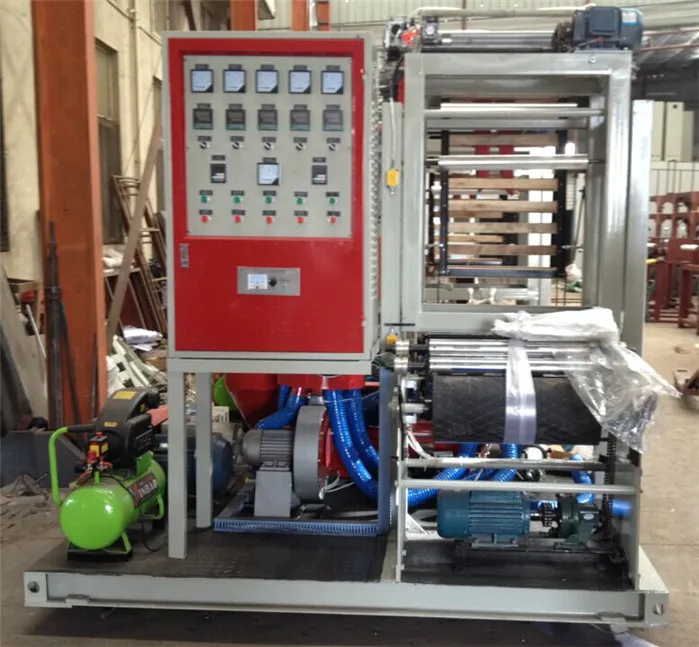

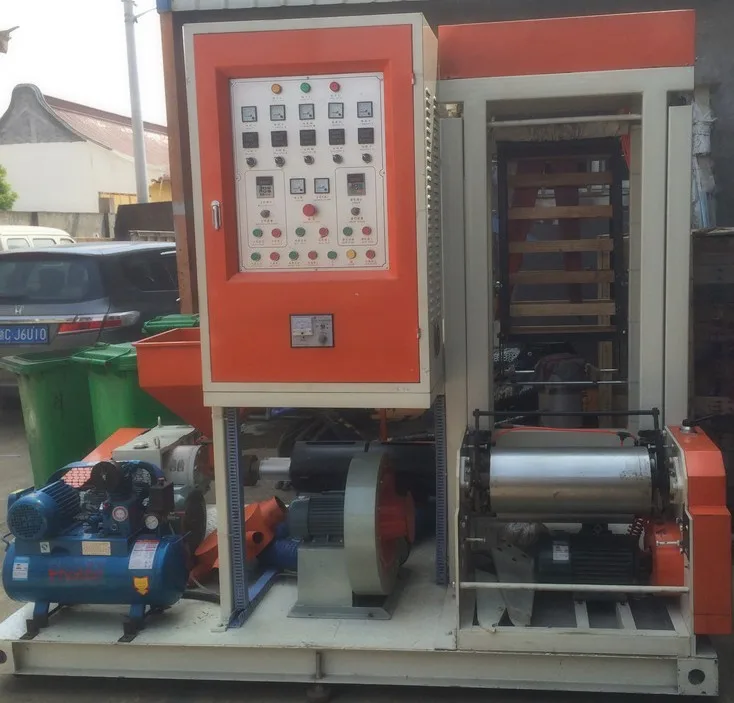

Machine Detail Pictures :









Product Samples

 Work Shops :

Packing

.WE WILL PAY ATTENTION TO EVERY PARTS PACKING WITH BUBBLE FILM AND STRETCH FILM OR WOODEN CASE IF POSSIABLE.  BESIDES, WE WILL LAOD MACHINES ONE BY ONE CAREFULLY. AND OUR DELIVERY TEAM IS PROFESSIONAL ON ALL THE MACHINE INSPECTION AND CERTIFICATES FOR YOUR CLEARANCE CUSTOM
