Характеристики

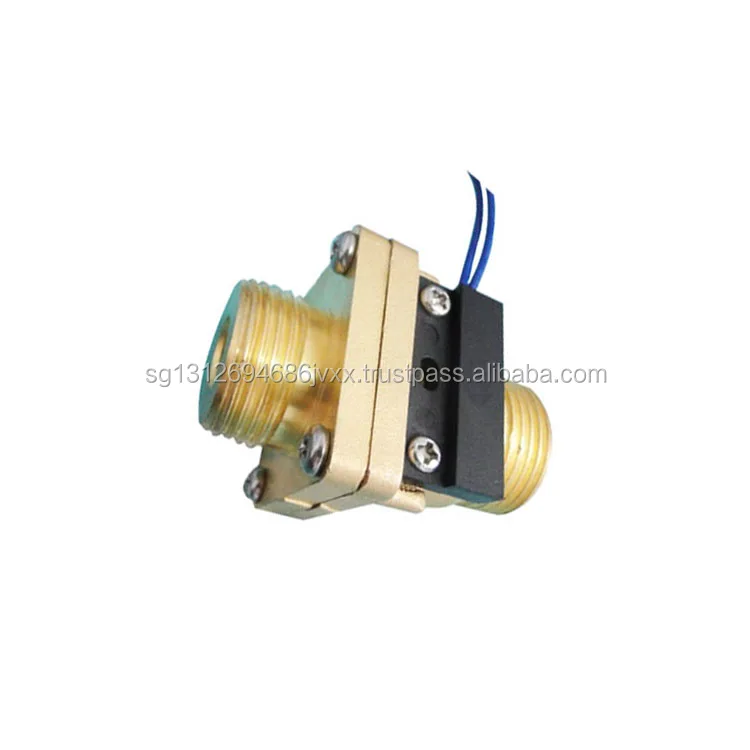

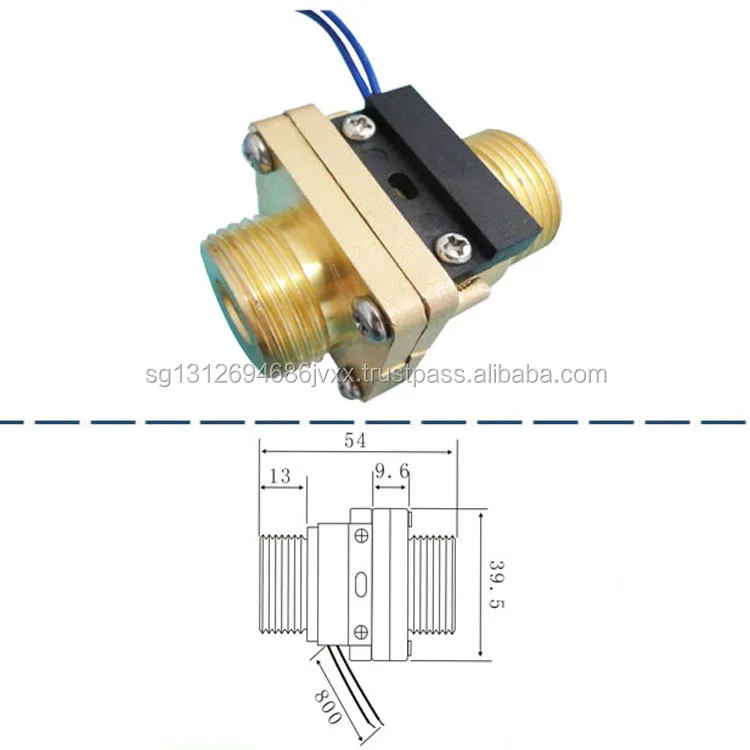

Brass Water Flow Switch /Water Sensor Magnetic High Quality Vertical Or Horizontal
header
Features:
1.Light weight.
2.Easy installation.
3.Long lifetime.
4.ROHS and CE approvals.
5.Mass production ,competitive price .
6.Tap water or oil applied ,without using filters .
7.No wearing and fatiguing parts applied ,feasuring stable performance and long
service time .
8.Full stainless steel structure ,various liquid corrosion resistance .
9.Switch contact start value for liquid flow :2;3.3;4;4.8;7.8;13;16
We also export variety of reed sensors such as Reed Switch.Flow Sensors.Liquid Level Sensor.Temperature Switch.Tilt Switch.Oil Sensor etc.
Specifications
Application | Petrochemical industry, water treatment for environmental protection(chiller,heat pump water heater),welding equipment,laser equipment and some other systems for monitor |
Origin | FAST SENSOR |
Installation | Horizontal or Vertical |
Product Material | SUS 304 |
Ring material | SUS 304 |
Electrical Data | 220VAC/70W/0.5A |
Max pressure | 2 MPa |
Max volum | 60L/min |
Max contact resistance | 150 mOhm |
Thread | 1SS 2SS |
Cable type | UL1332-AWG22 |
Cable length | 500mm |
Cable color | Red |
Temperature ℃ | -30~+100 |
Order Info. | For example, FAST-2S-1.0-1SS |
Lowest flow rate:1.0 L/Min Caliber size:1SS |
Interface spec and Switch contact start value
| Interface spec | Interface spec code | Minimum Switch contact start value (L/min) |
| ZG1/2' | 4SS | 2;3 |
| ZG3/4' | 6SS | 2;3 |
product detail
hot sale
company profile
product line
our payment
our certificates
