Электронный магнитный поток воды вертикальная установка для
- Категория: Переключатели потоков >>>
- Поставщик: KOLAS,ELECTRIC,PTE.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.66 $* | 5.67 $* |
| Aug-18-2025 | 5.63 $* | 5.26 $* |
| Jul-18-2025 | 4.74 $* | 4.4 $* |
| Jun-18-2025 | 5.64 $* | 5.13 $* |
| May-18-2025 | 4.3 $* | 4.89 $* |
| Apr-18-2025 | 5.26 $* | 5.20 $* |
| Mar-18-2025 | 5.5 $* | 5.97 $* |
| Feb-18-2025 | 4.26 $* | 4.46 $* |
| Jan-18-2025 | 4.28 $* | 4.86 $* |
Характеристики

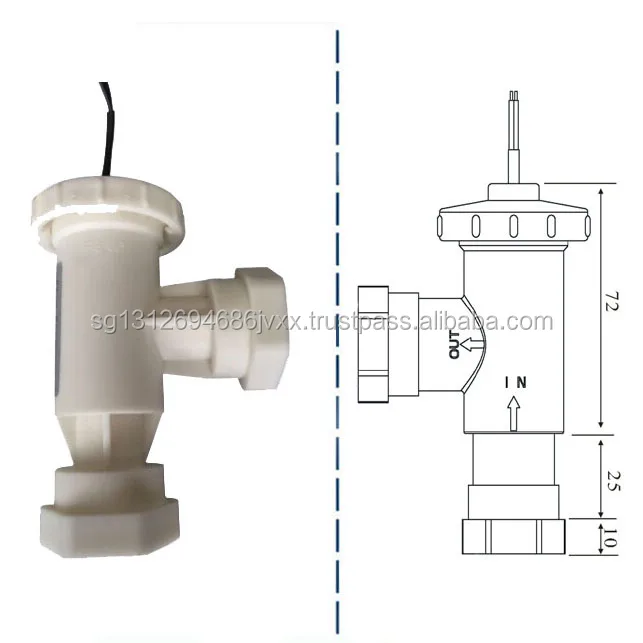

Electronic water magnetic flow switch vertical installation for swimming pool
header
Features:
1.Light weight.
2.Easy installation.
3.Long lifetime.
4.ROHS and CE approvals.
5.Mass production ,competitive price .
6.Tap water or oil applied ,without using filters .
7.No wearing and fatiguing parts applied ,feasuring stable performance and long
service time .
8.Full stainless steel structure ,various liquid corrosion resistance .
9.Switch contact start value for liquid flow :2;3.3;4;4.8;7.8;13;16
We also export variety of reed sensors such as Reed Switch.Flow Sensors.Liquid Level Sensor.Temperature Switch.Tilt Switch.Oil Sensor etc.
Specifications
| Contact Form | Form A |
| Switching Capacity - Max. | 70w |
| Switching Voltage - Max. | 200 / 250 (Vdc / Vac) |
| Switching Current - Max. | 0.5A |
| Contact Resistance - Min. | 200 mOhms |
| Wire Specification | UL1007 22# L: 500mm |
| Pressure Resistant | 1.0MPa |
Interface spec and Switch contact start value
| Interface spec | Interface spec code | Minimum Switch contact start value (L/min) |
| G3/4' | 6N | 2;3.3;4;4.8;7.8;13;16 |
| NPT3/4' | 6NN | 2;3.3;4;4.8;7.8;13;16 |
