Высококачественный пластиковый Датчик потока воды с
- Категория: Flow Switches >>>
- Поставщик: KOLAS,ELECTRIC,PTE.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.64 $* | 5.49 $* |
| Aug-18-2025 | 5.18 $* | 5.31 $* |
| Jul-18-2025 | 4.96 $* | 4.53 $* |
| Jun-18-2025 | 5.43 $* | 5.69 $* |
| May-18-2025 | 4.21 $* | 4.38 $* |
| Apr-18-2025 | 5.17 $* | 5.72 $* |
| Mar-18-2025 | 5.54 $* | 5.20 $* |
| Feb-18-2025 | 4.92 $* | 4.22 $* |
| Jan-18-2025 | 4.97 $* | 4.94 $* |
Характеристики

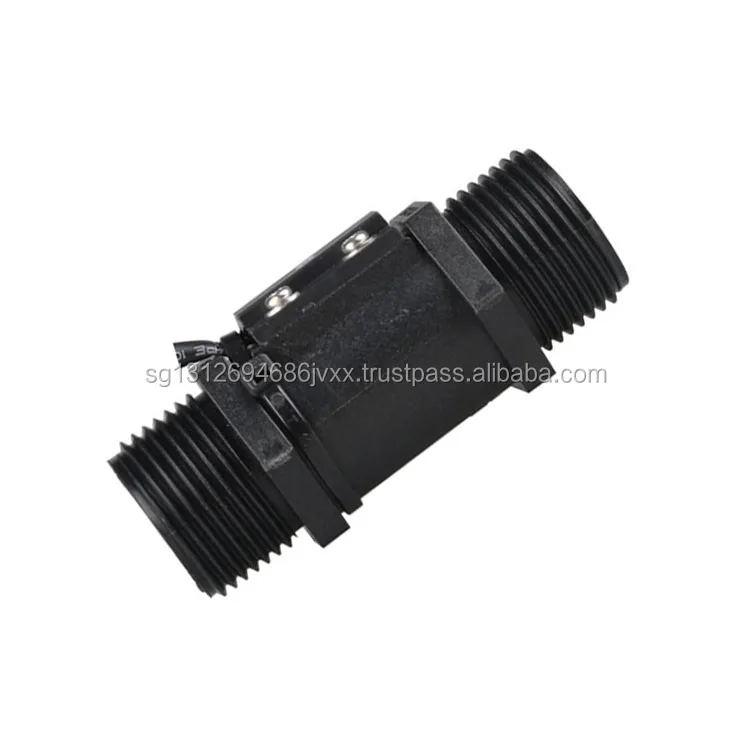

Great quality plastic system sensor water flow switch horizontal installation
header
Features:
1.Light weight.
2.Easy installation.
3.Long lifetime.
4.ROHS and CE approvals.
5.Mass production ,competitive price .
6.Tap water or oil applied ,without using filters .
7.No wearing and fatiguing parts applied ,feasuring stable performance and long
service time .
8.Full stainless steel structure ,various liquid corrosion resistance .
9.Switch contact start value for liquid flow : 6,10
We also export variety of reed sensors such as Reed Switch.Flow Sensors.Liquid Level Sensor.Temperature Switch.Tilt Switch.Oil Sensor etc.
Specifications
| Contact Form | Form A |
| Switching Capacity - Max. | 70w |
| Switching Voltage - Max. | 200 / 250 (Vdc / Vac) |
| Switching Current - Max. | 0.5A |
| Contact Resistance - Min. | 200 mOhms |
| Wire Specification | UL1007 22# L: 500mm |
| Pressure Resistant | 1.0MPa |

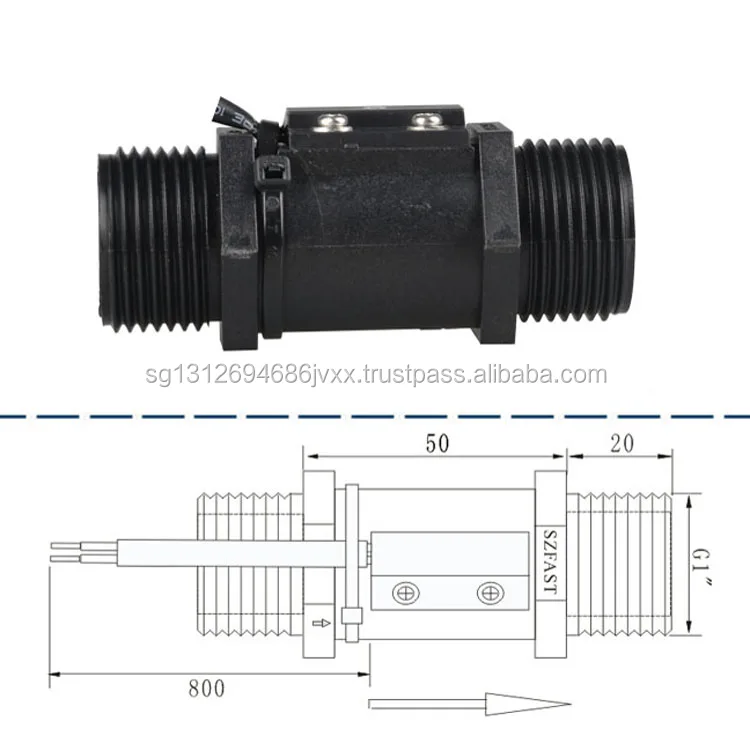

Interface spec and Switch contact start value
| Interface spec | Interface spec code | Minimum Switch contact start value (L/min) |
| G1' | 8N | 6,10 |
