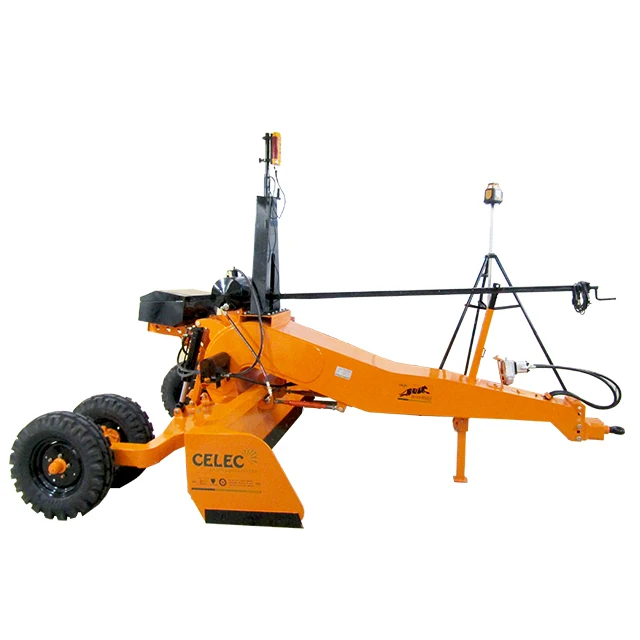

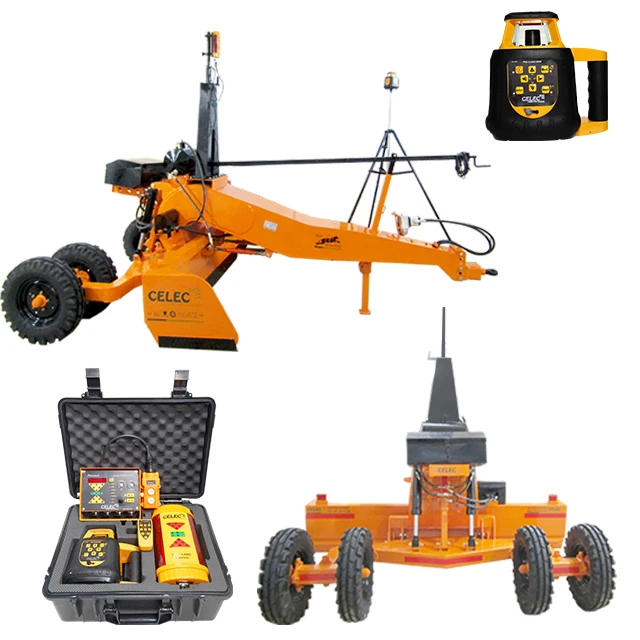

3 7 метров CELEC PRO-12000 лазерный уровень земли с устройством PTO Pump и дальностью действия лазерного передатчика 1500

Rotary Laser Transmitter

Name: Pro-Laser 5000
Brand:Celec
Specifications
Operating Range 1500 m (±750 meter)
Self – Leveling Accuracy ±1 mm @ 30 meter
Rotating Speeds 600 RPM
Laser Diode (type) 4.5 mW 635nm (Visible)
Manual Tilt Upto ± 7 degree
Dimensions (HWD) 200 x 150 x 175 mm
Weight 2.5 kg. (5.5 lbs)
Battery Type 12V External
Battery Life 72 Hours with Full Charge
Operating Temperature 0 to ± 50° C
Storage Temperature 0 to ± 70° C
Dust / Water Resistance IP65

Blade Control Panel

Name: PRO-touch
Brand: Celec
Specifications
Switch –Touch Sensor Switch Suitable for Dusty Condition
System Accuracy - ± 5 mm
Control - Programmable
Protection - All Output Channels with short circuit Protection
Timer - Running Timer, Last Time, Total Working Hours
Charge - For 12V Battery with Protection
Protection - IP65
Connectors -Silver Coated , Chrome Plated all weather bend proof
System Voltage - 12 VDC
Cable - 1.5mm RR Kabel / Finolex

Laser Receiver

Name: PRO-Land
Brand: Celec
Specifications
Voltage Range - 12 VDC ± 20%
Max Current Consumption - 200mA
System Accuracy - ± 6 mm
Dust / Water Resistant - IP65
Pulsed Display - 10 :Pulses per Second
Protection - Reverse Polarity
Communication - 1 Wire
Weight - 2 KG
