Автоматический непрерывный барабан типа 100 т/ч. Новая Мобильная Асфальтовая установка для продажи
- Категория: >>>
- Поставщик: S,P,ENTERPRISE
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 243950.7 $* | 256148.52 $* |
| Aug-20-2025 | 241900.67 $* | 253995.22 $* |
| Jul-20-2025 | 202950.20 $* | 213098.88 $* |
| Jun-20-2025 | 237800.61 $* | 249690.28 $* |
| May-20-2025 | 207050.18 $* | 217403.77 $* |
| Apr-20-2025 | 233700.33 $* | 245385.49 $* |
| Mar-20-2025 | 231650.36 $* | 243233.28 $* |
| Feb-20-2025 | 229600.79 $* | 241080.19 $* |
| Jan-20-2025 | 227550.73 $* | 238928.61 $* |
Характеристики
Product Description

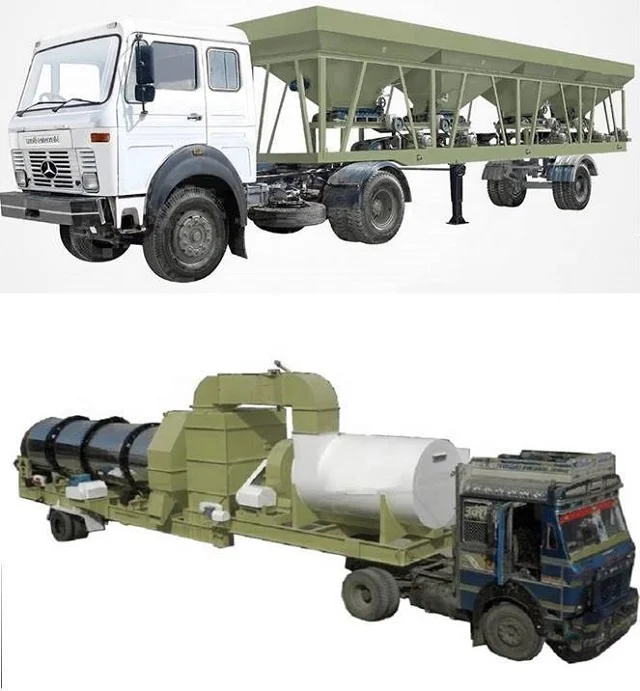

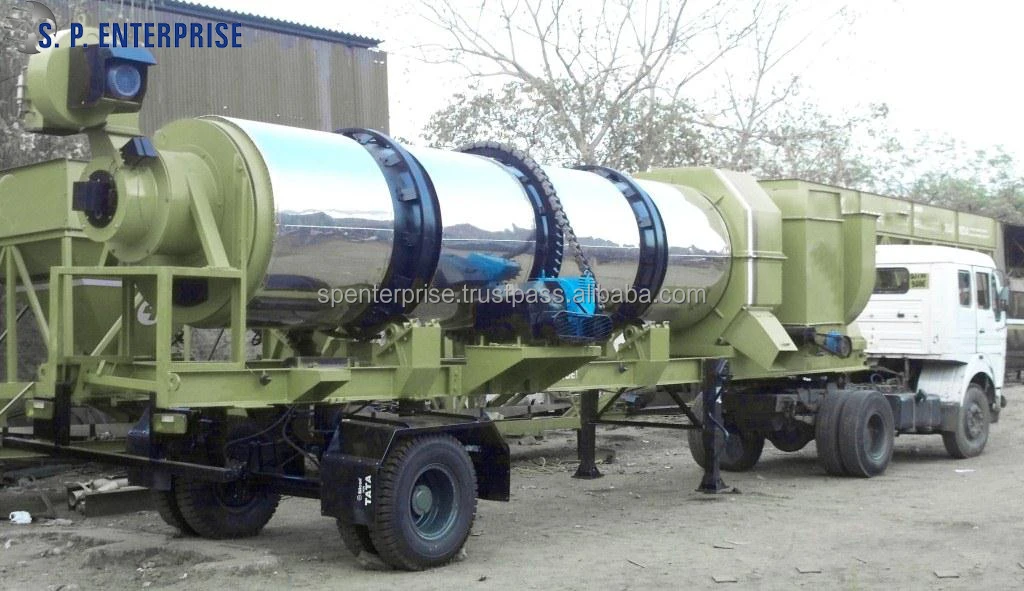

Continuous type Drum Mix Mobile Asphalt Plant- 100 t/hr.
Salient Features of Mobile Asphalt Plant:
* Available in Stationary & Mobile (Portable) versions.
* Manufactured as per the international market standard.
* Produces best quality hot mix asphalt material with low dust emission and at low fuel consumption.
* Fully automatic as per modern drum mix technology and operated by user friendly electronic control panel.
* Modular construction ensures ease of operation & maintenance.
* Manufactured as per the international market standard.
* Produces best quality hot mix asphalt material with low dust emission and at low fuel consumption.
* Fully automatic as per modern drum mix technology and operated by user friendly electronic control panel.
* Modular construction ensures ease of operation & maintenance.
Asphalt Plant basic components:

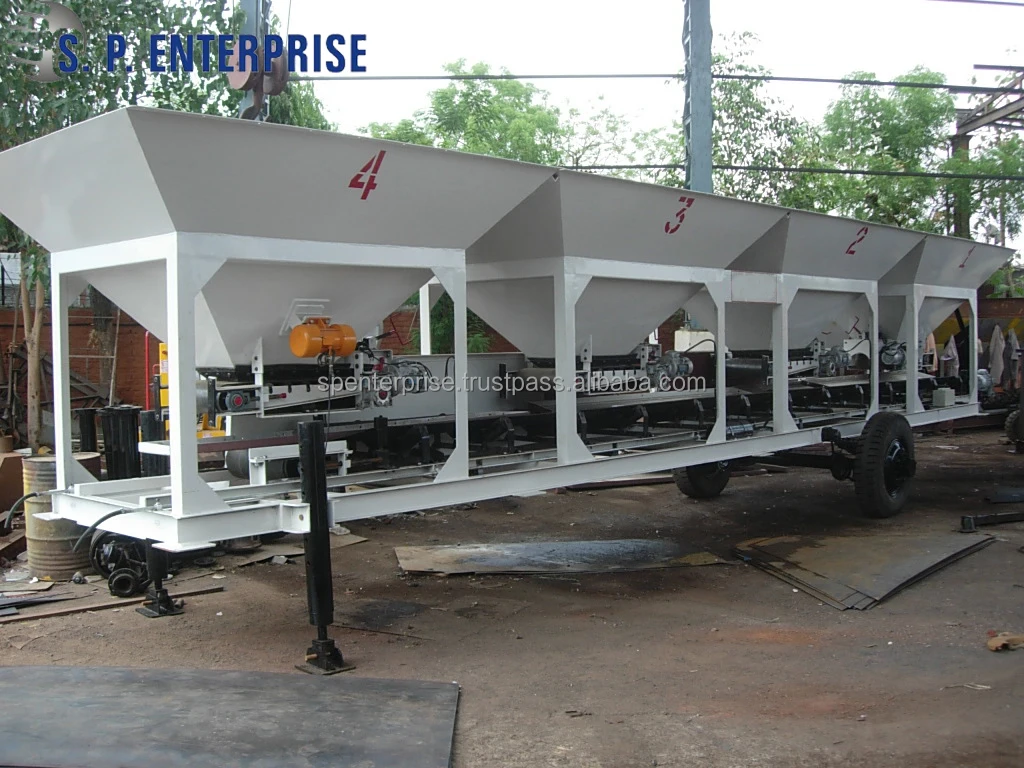

1. Cold Aggregate Feeder Bins
2. Single Deck Vibratory Screen
3. Slinger Conveyor
4. Drying cum Mixing Drum fitted with Automatic Burner & Multi cone Primary Dust Collector
5. Hot mix Load Out Conveyor with Gob Hopper & Power Pack
6. Asphalt Tank with Pumping Unit, Piping & Automatic Burner
7. Mineral Filler Unit
8. Wet filter type Secondary Dust Collector
9. Electronic Control Panel with printer

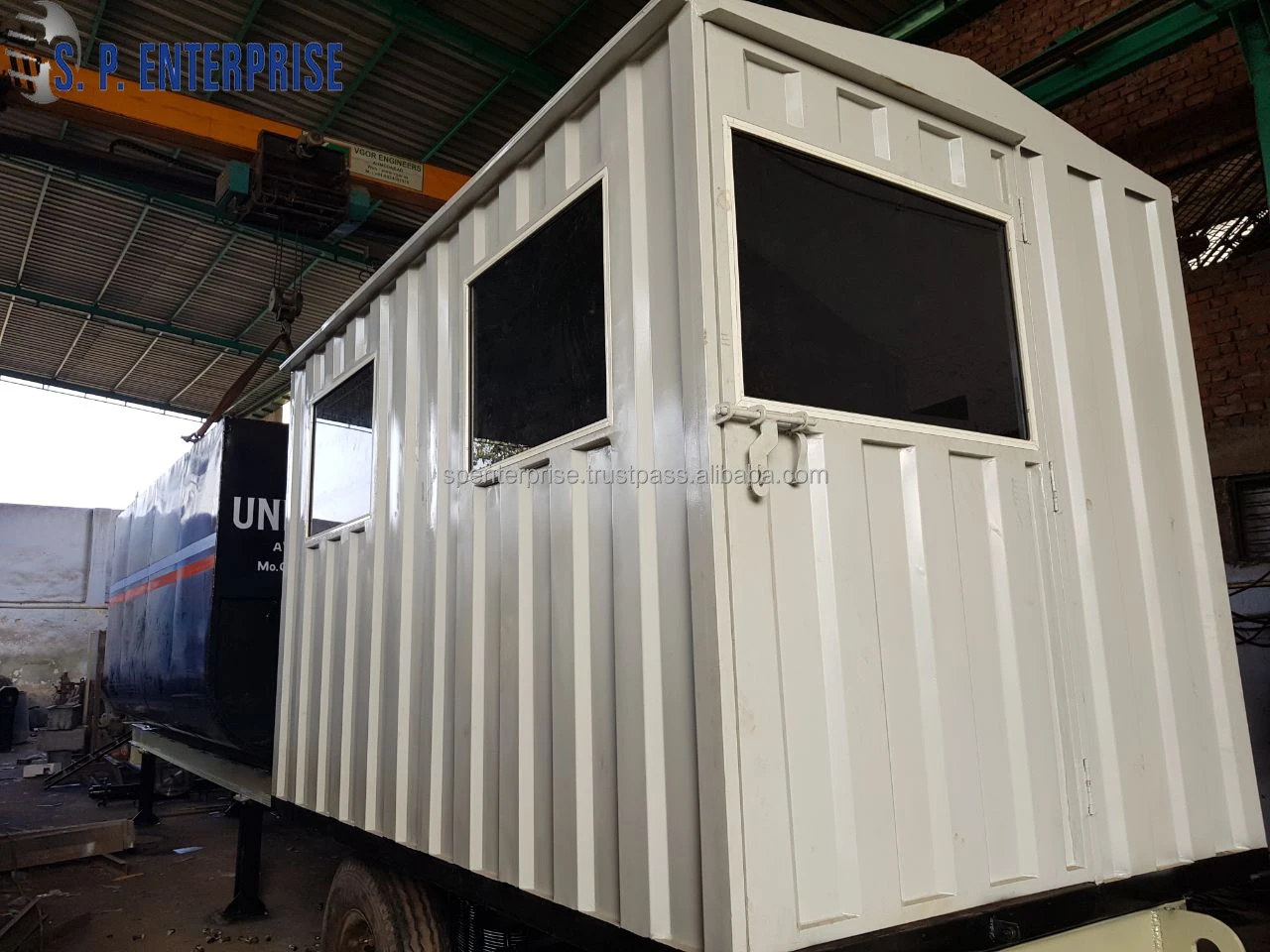

10. Control Cabin.
2. Single Deck Vibratory Screen
3. Slinger Conveyor
4. Drying cum Mixing Drum fitted with Automatic Burner & Multi cone Primary Dust Collector
5. Hot mix Load Out Conveyor with Gob Hopper & Power Pack

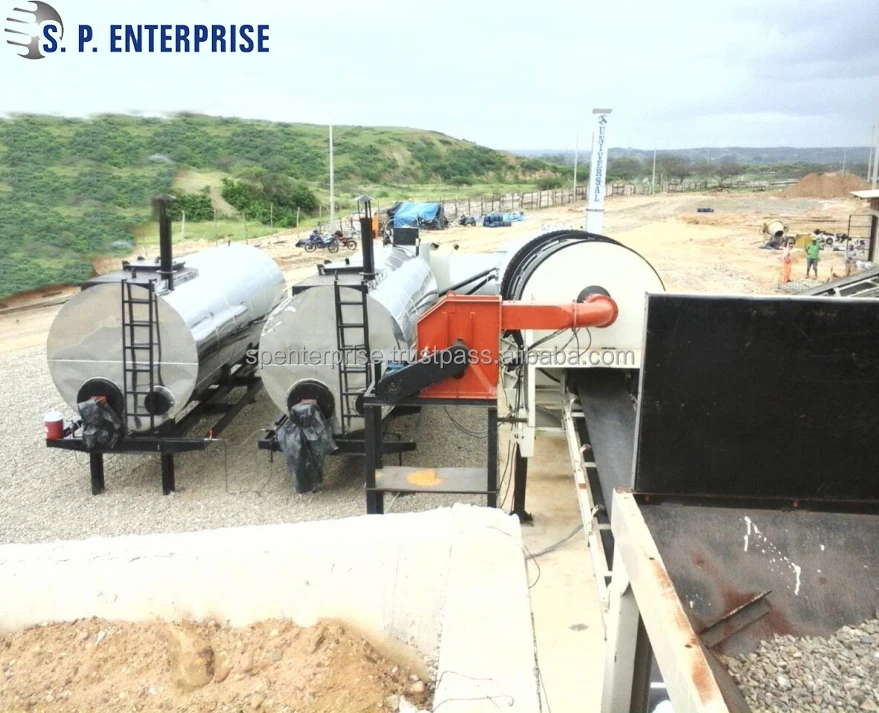

6. Asphalt Tank with Pumping Unit, Piping & Automatic Burner
7. Mineral Filler Unit
8. Wet filter type Secondary Dust Collector
9. Electronic Control Panel with printer
10. Control Cabin.
ASPHALT PLANT LAYOUT
Tech Specs
MODEL | MSDM-90 | |
Rated Output Capacity | 90 to 120 TPH | |
COLD AGGREGATE FEEDER BINS | ||
No. of Bins | 4 | |
Total Storage Capacity | 60 tons | |
Bin Auxiliary Conv. Belt Drive Motor | 3 HP A.C. – 4 nos. | |
Bin Auxiliary Conveyor Belt Size | 500 mm width x 3 ply | |
Bin Auxiliary Conveyor Gear Box | 20:1 – 4 Nos. | |
Gathering Conveyor Belt Size | 800 mm x 3 Ply | |
Gathering Conveyor Drive Motor | 7.5 HP | |
Gathering Conveyor Gear Box | 20 : 1 | |
Bin Vibrator Motor | 1.5 HP A.C. | |
SINGLE DECK VIBRATORY SCREEN | ||
Drive Motor | 3.0 HP | |
SLINGER (COLD) CONVEYOR | ||
Conveyor Drive Motor | 7.5 HP | |
Conveyor Gear Box | 5:1 | |
Conveyor Belt Size | 600 mm x 3 Ply | |

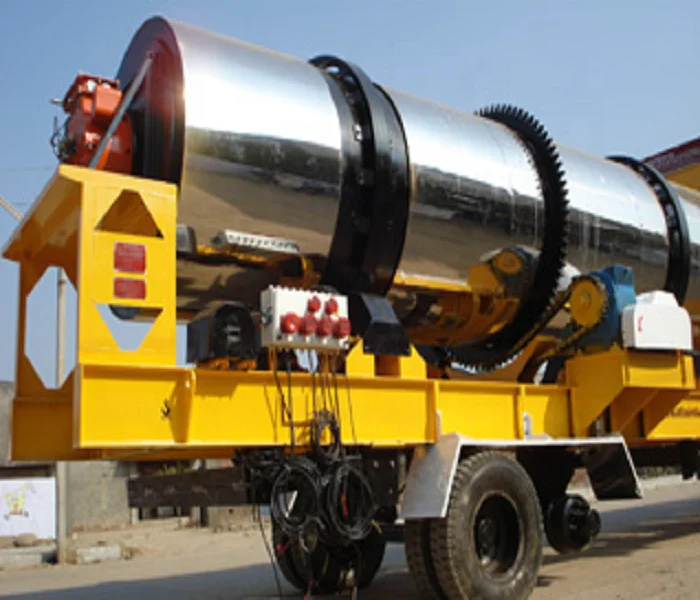

DRYING CUM MIXING (THERMODRUM) UNIT | ||
Thermodrum Diameter | 1800 mm | |
Thermodrum Length | 7200 mm | |
Thermodrum Drive Motor | 40.0 HP | |
Exhaust Drive Motor | 40.0 HP | |
Dust Collector Screw Motor | 2.0 HP | |
LOAD OUT CONVEYOR | ||
Conveyor Belt Size | HR 800 mm x 3 Ply | |
Conveyor Drive Motor | 7.5 HP | |
Conveyor Drive Gear Box | 13 : 1 | |
Gob Hopper Capacity | 1500 Kgs. | |
Hydraulic Power Pack Motor | 5.0 HP | |
BITUMEN TANK | ||
Tank Capacity | 20,000 Ltrs.– 2 Nos. | |
Bitumen Pump Drive Motor | 5.0 HP – 1 No. | |
MINERAL FILLER UNIT | ||
Drive Motor | 2.0 HP | |
Hopper Capacity | 2.0 Cum | |
Air Blower | 7.5 HP | |
FUEL STORAGE TANK | 4000 Liters | |
TOTAL CONNECTED HP | 175 HP | |
RECCOMMENDED D.G. SET | 200 KVA | |
OPEN LAND REQUIRED | 40 mtrs. x 40 mtrs. | |
POWER SUPPLY | 415 V / 380 V, 50 / 60 Hz, 3 Phase, A.C. | |
Note: Due to continuous development policy, specifications are subject to change. | ||
Packing & Delivery
Main components stuffed loosely in container.
Parts and Small assemblies packed appropriately in wooden, steel box or plastic bags.
All packed items marked and coded reflecting in packing list.
Parts and Small assemblies packed appropriately in wooden, steel box or plastic bags.
All packed items marked and coded reflecting in packing list.
Customer Photos
Company Profile
Manufacturer, Exporter & Supplier of Road Construction Equipments.
Company Name: S. P. Enterprise
Establishment: 1999
Certification: ISO 9001:2015
Product Segment: Road & Civil Construction Equipments
Product Range: Asphalt Mixing Plant, Asphalt Paver, Wet Mix Macadam Plant, Bitumen Sprayer, Road Broomer, Chip Spreader, Concrete Batching Plant & Other Construction Machinery.
Nature of Business: Manufacturer, Exporter, Supplier
Company Base: Ahmedabad, Gujarat (India)
Company Promoted by Professionals with Experience of above 20 years in the Industry.
Company Design and Develops Custom Built and Tailor Made Equipments as per Customer's specific requirement.
Equipments are manufactured using Quality Raw Material and Bought out Items procured from reputed suppliers.
Experienced and Dedicated team of professionals.
Equipments are manufactured to deliver Productivity, Return on Investment & Cost Effectiveness.
Our equipments are Durable, Economical, Operator Friendly, Efficient, Technologically Updated, Ease to Install and Maintain.
Ready availability of Spare Parts & prompt After Sales Service.
Company Name: S. P. Enterprise
Establishment: 1999
Certification: ISO 9001:2015
Product Segment: Road & Civil Construction Equipments
Product Range: Asphalt Mixing Plant, Asphalt Paver, Wet Mix Macadam Plant, Bitumen Sprayer, Road Broomer, Chip Spreader, Concrete Batching Plant & Other Construction Machinery.
Nature of Business: Manufacturer, Exporter, Supplier
Company Base: Ahmedabad, Gujarat (India)
Company Promoted by Professionals with Experience of above 20 years in the Industry.
Company Design and Develops Custom Built and Tailor Made Equipments as per Customer's specific requirement.
Equipments are manufactured using Quality Raw Material and Bought out Items procured from reputed suppliers.
Experienced and Dedicated team of professionals.
Equipments are manufactured to deliver Productivity, Return on Investment & Cost Effectiveness.
Our equipments are Durable, Economical, Operator Friendly, Efficient, Technologically Updated, Ease to Install and Maintain.
Ready availability of Spare Parts & prompt After Sales Service.
Product Range
Certifications
FAQ
FAQ
1. What is the acceptable payment terms?
A. Confirmed Letter of Credit or T/T
2. What is the deliver period?
A. Our standard delivery period is 30 days on ex-works basis.
3. What are the price basis?
A. Prices are on FOB Indian Seaport basis nearest to our company. We also quote for CIF and CFR basis.
2. What is the deliver period?
A. Our standard delivery period is 30 days on ex-works basis.
3. What are the price basis?
A. Prices are on FOB Indian Seaport basis nearest to our company. We also quote for CIF and CFR basis.
