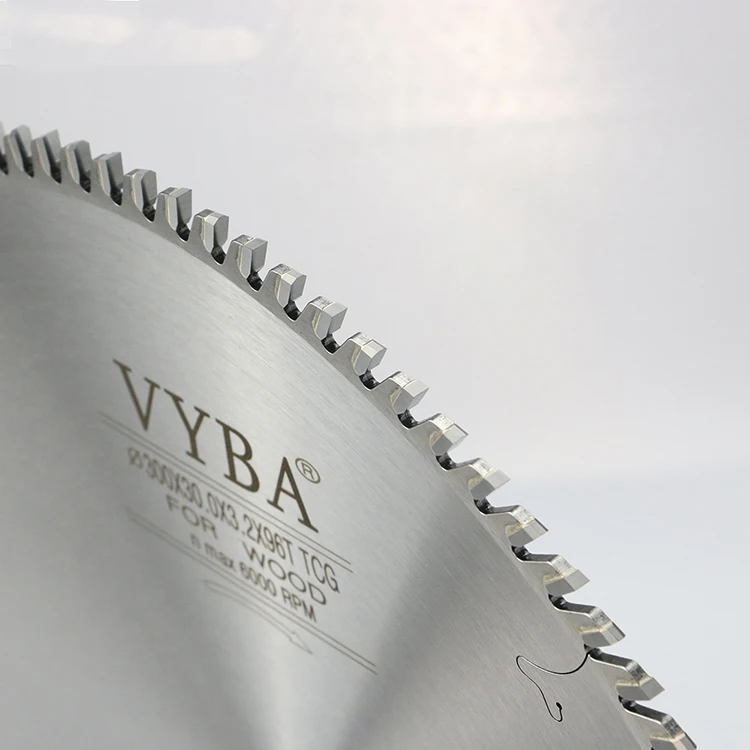

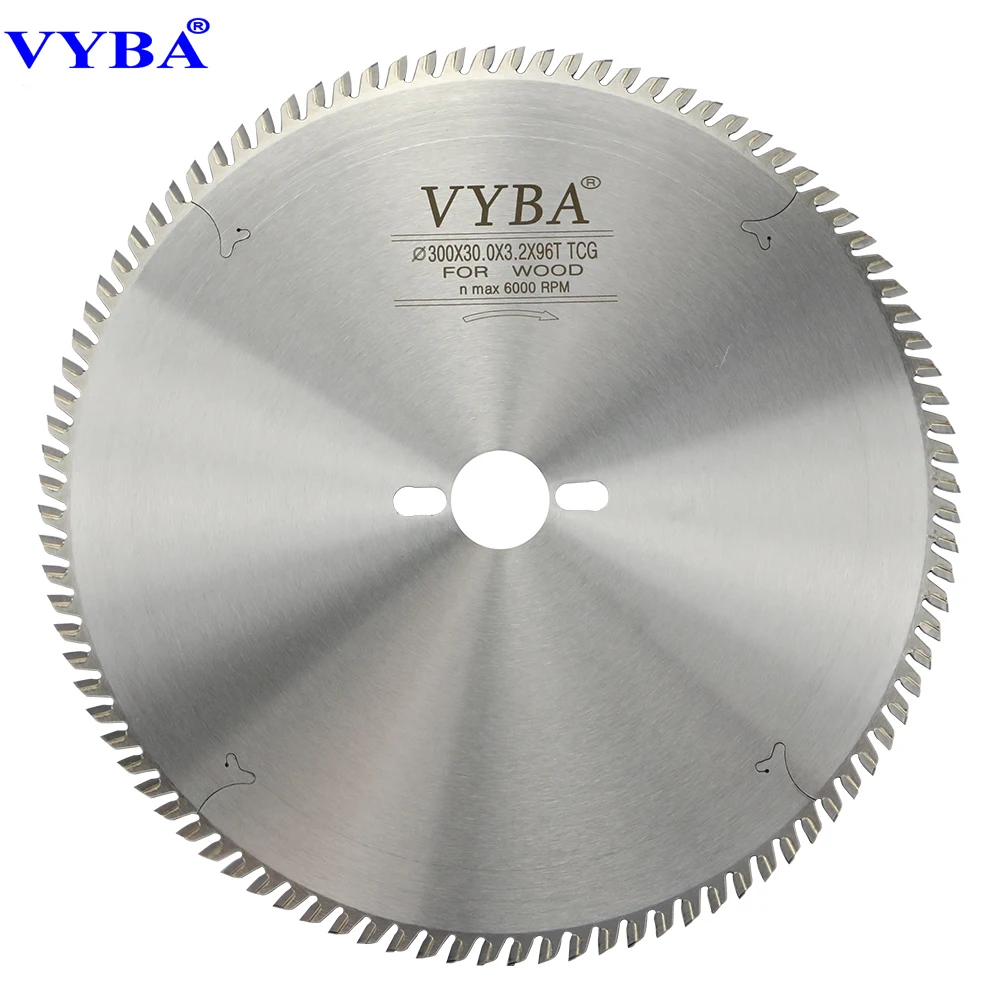

           Freud style 300mm 96T TCT wood cutting panel sizing saw blade



300mm 96T,75Cr1 steel plate with laser cut fish-hook,K01 carbide tip,industrial quality.

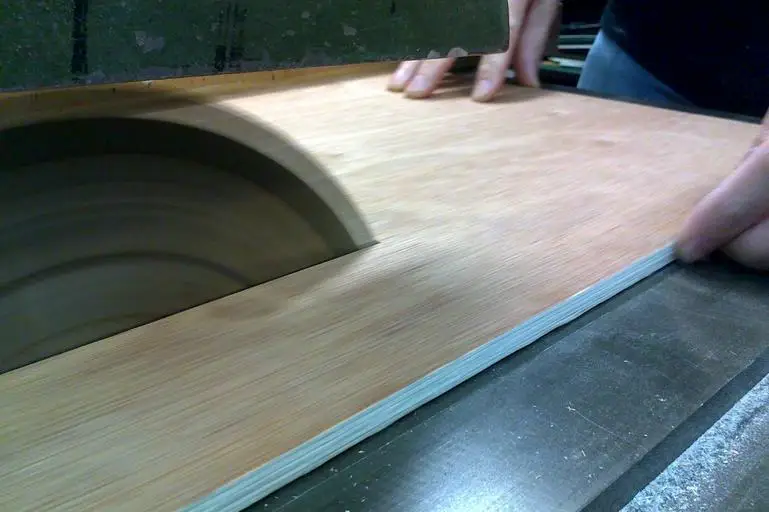

Used with scoring saw blade,for MDF panel sizing,in high efficiency,last long cutting life,no chipping.



Out diameter(ΦD)	Tooth width(B)mm	Tooth thickness(Φb)mm	Inner diameter(d)mm	Number of Teeth(Z)	Tooth type(C)	Positioning hole(NI)	Use(U)
300	4.4	3.0	30	48	Left/right flat type	2/10/6	Cut single/double-face veneered  board,                                                                                                                      MDF panels
300	4.4	3.0	60	60
350	4.4	3.0	75	54		4/15/105
350	4.4	3.0	80	72		4/9/93-100+2/9/110+2/14/110
350	4.4	3.0	60	84		2/14/100
400	4.4	3.0	75	60		4/15/105
400	4.4	3.0	75	72		4/15/105
450	4.4	3.0	75	60		4/15/105
450	4.4	3.0	80	75		2/9/130+4/19/120
500	4.4	3.2	75	60		4/15/105
500	4.8	3.5	80	72		4/9/100+2/9/110+2/14/110
