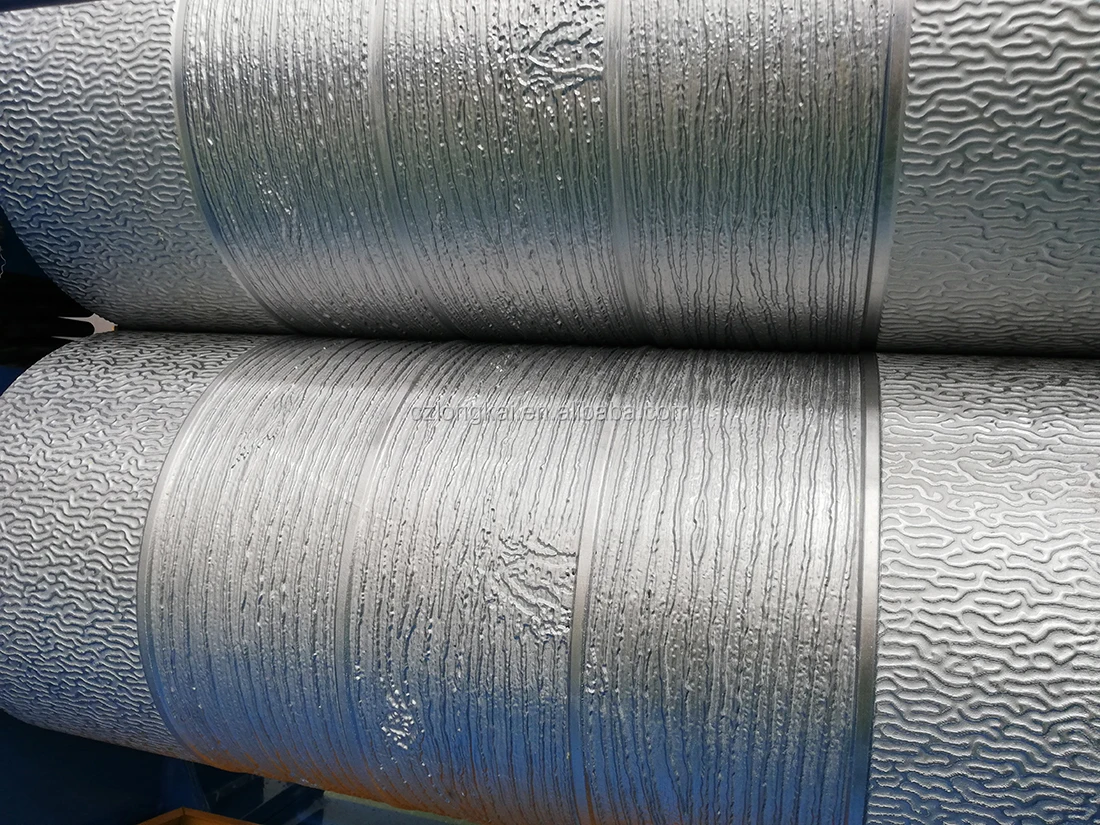

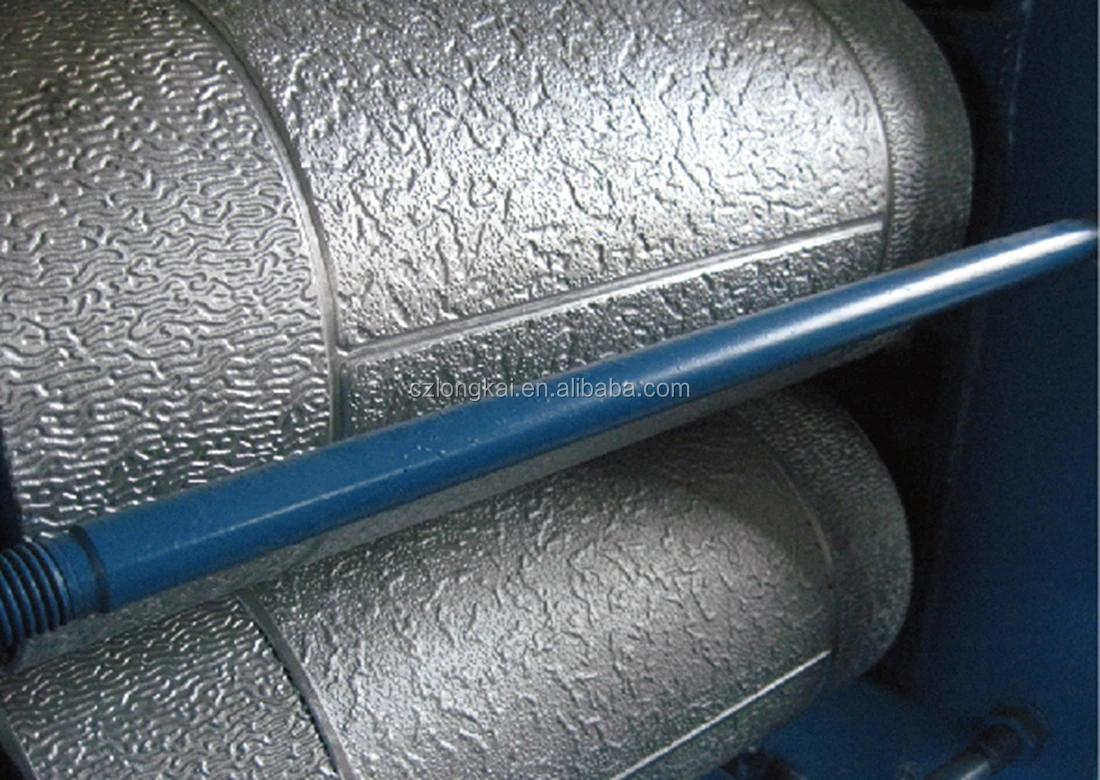

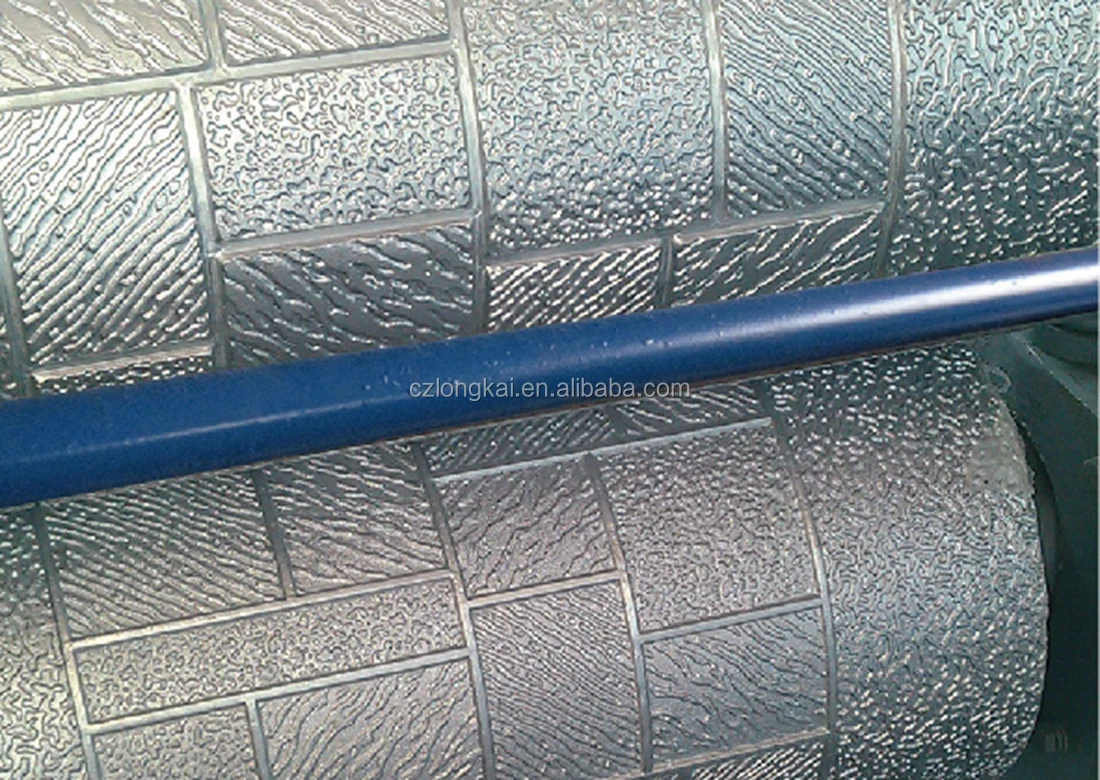

Aluminum Sheet Embossing Roller



Technical Variables about roller:

Diametor	Φ350~Φ450mm
Material	42CrMo,60CrMo,V9CrMo
Hardness	HRC55~62
Pattern	Rain drop ,can be customize
Use	Decorative
Width	600~1600mm

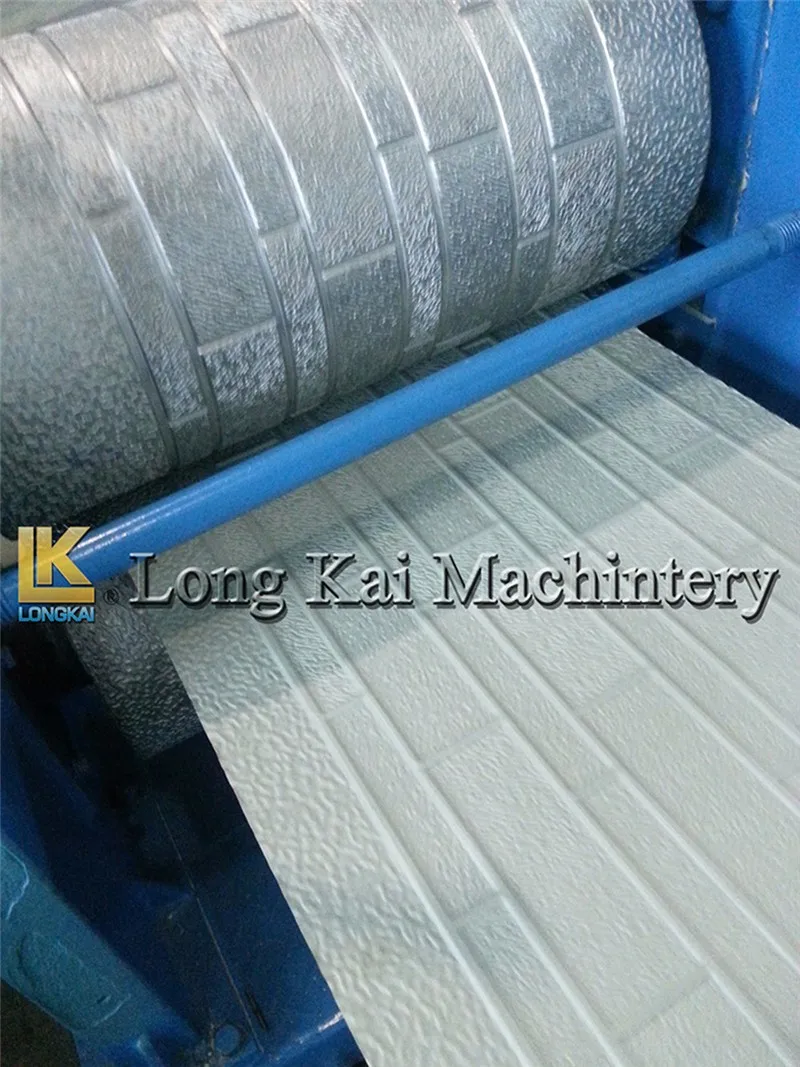

Embossed roller is suitable for pressing concave and convex patterns such as plastic sheet, film, aluminum foil, leather, hard board, wallpaper, floor tile, glass, paper, etc., to improve the aesthetic feeling of the product surface, strengthen anti-counterfeiting, protect trademark and so on.And according to customer requirements to develop different patterns of embossing roll.



manufacturing operation



1. The roller material is generally made of high-quality seamless steel pipe (special material can be customized according to the needs of users) through boring and grinding the inner hole, so that the tube wall thickness is uniform, and then through welding, stress removal, turning, grinding and finishing;

2. Corrected static and dynamic balance;Coaxiality of finished roller ≤0.02mm;

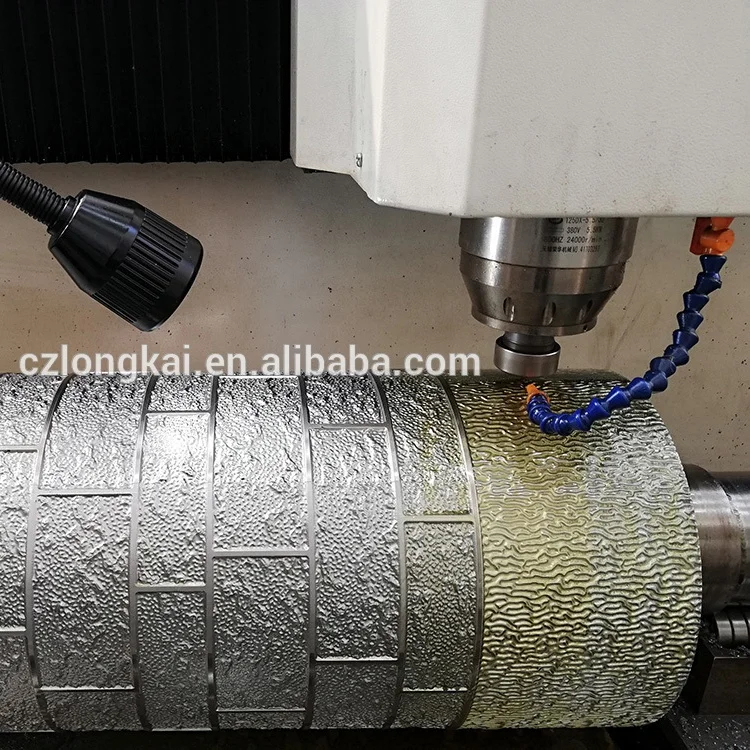

3. According to the patterns, different processing techniques are adopted to achieve the products with clear patterns and lines, exquisite patterns, rich layers and accurate sizes.

4, the final surface of hard chrome plating or other treatment, hardness up to HRC58-62.
