best price Plastic Single-wall Corrugated pipe production
- Категория: Pipe Making Machinery >>>
- Поставщик: Zhangjiagang,Kiwex,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 27370.11 $* | 28739.85 $* |
| Aug-16-2025 | 27140.90 $* | 28497.67 $* |
| Jul-16-2025 | 22770.33 $* | 23909.74 $* |
| Jun-16-2025 | 26680.71 $* | 28014.29 $* |
| May-16-2025 | 23230.14 $* | 24392.14 $* |
| Apr-16-2025 | 26220.81 $* | 27531.0 $* |
| Mar-16-2025 | 25990.89 $* | 27290.32 $* |
| Feb-16-2025 | 25760.79 $* | 27048.64 $* |
| Jan-16-2025 | 25530.62 $* | 26807.6 $* |
Характеристики

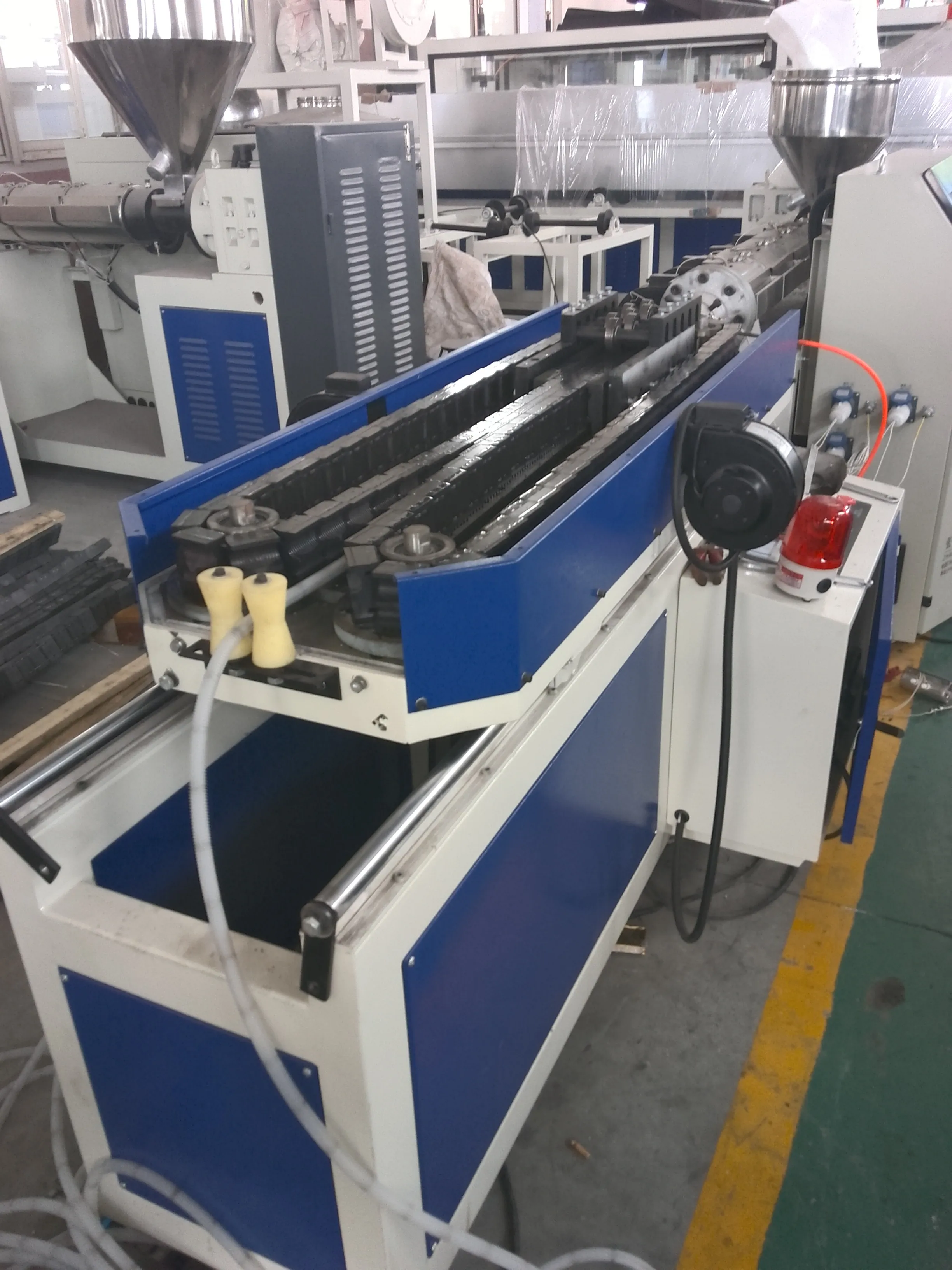

PVC Single wall Corrugated Pipe Machine
PVC Corrugated Pipe Production Line
Main equipmentExtruder, moulds(as per requests of users), vacuum forming machine, pipe racks
Auxiliary machines
such as mixer, pipe belling machine, screw feeder, hopper dryer, etc.
such as mixer, pipe belling machine, screw feeder, hopper dryer, etc.
Electric components
ABB, SIMENS, SCHNEIDER, OMRON, RKC, etc.
ABB, SIMENS, SCHNEIDER, OMRON, RKC, etc.
For all kinds of plastic pipes production, including HDPE, PP, PVC, PPR, etc. We are professional manufacturer of these production lines, with high quality, competitive price, active service and years of experience, our machines have received good reputation from our clients all over the world.
SJ 55/30 single screw extruder
1)Adopting high quality screws made of 38CrMoAlA, which is treated by percolating nitrogen.
2) The depth of screw percolating nitrogen is 0.5~0.6mm, hardness(HV) 800~900, surface roughness Ra≤0.8um.
3) For the main electric engine, power: 11kw, capacity 50-60kg/h
4) Cooling mode of rollers: by air. Adopting casting aluminum heating ring
2) The depth of screw percolating nitrogen is 0.5~0.6mm, hardness(HV) 800~900, surface roughness Ra≤0.8um.
3) For the main electric engine, power: 11kw, capacity 50-60kg/h
4) Cooling mode of rollers: by air. Adopting casting aluminum heating ring

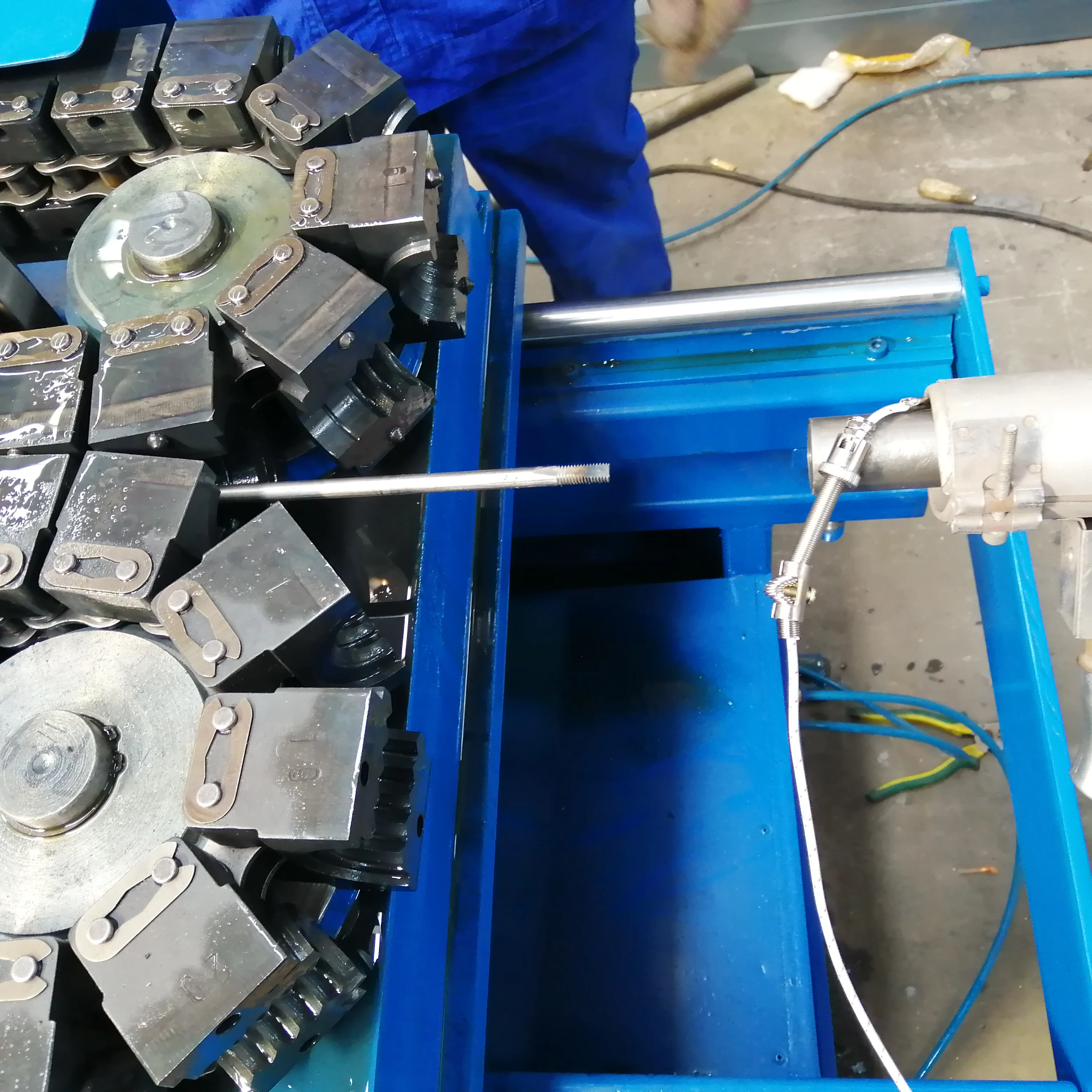

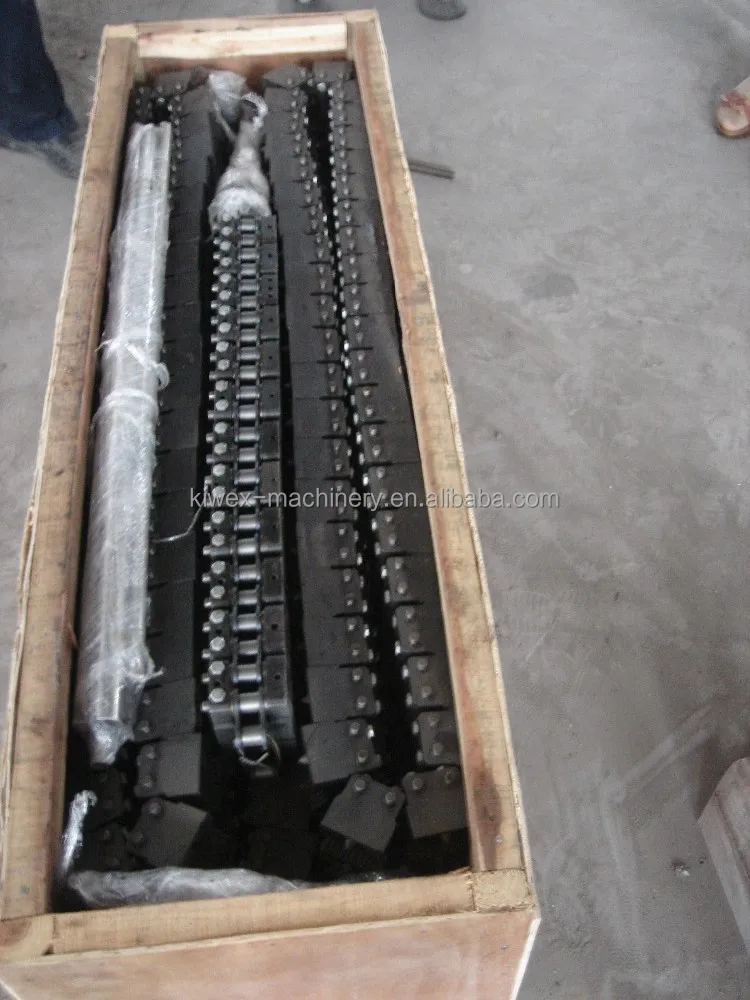

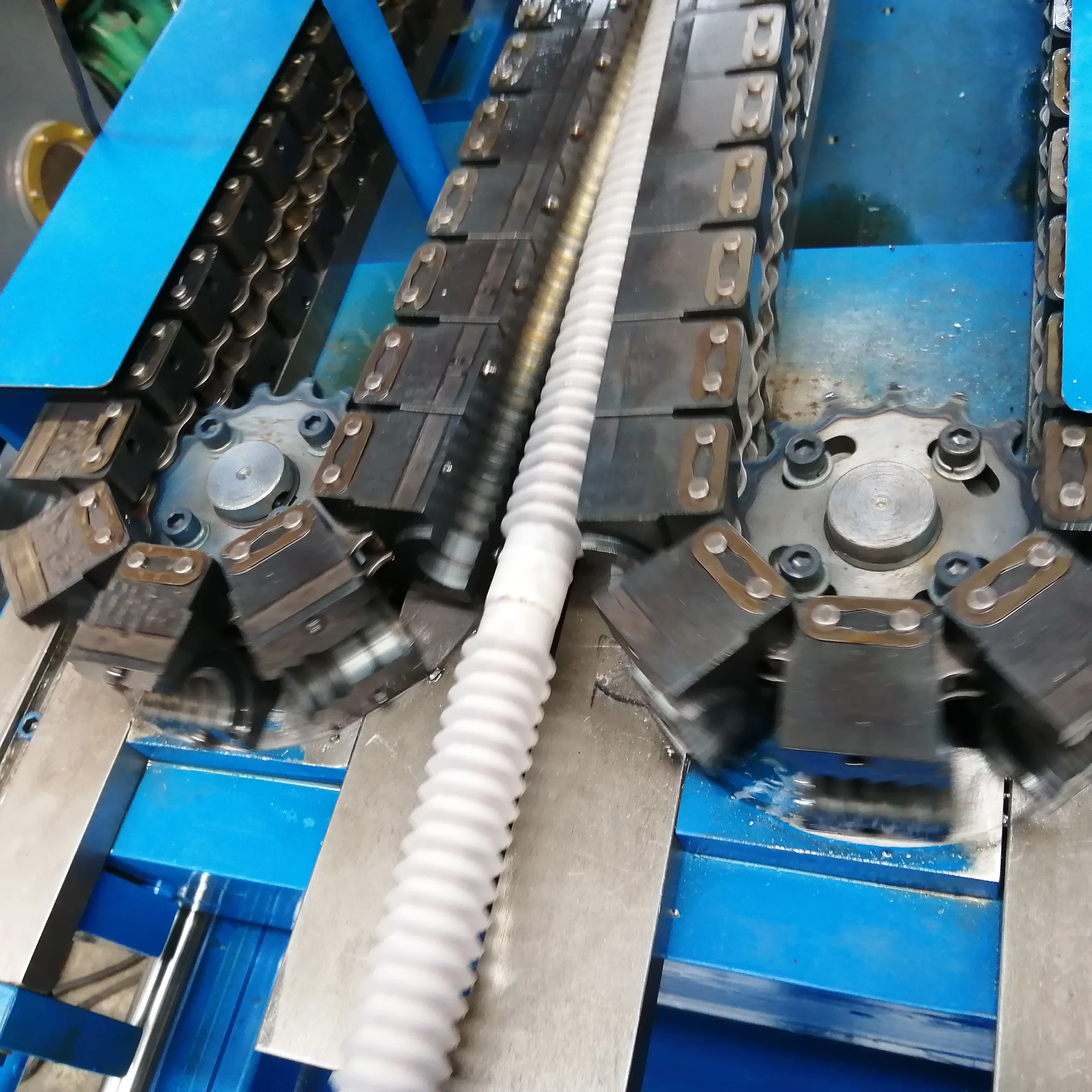

Corrugated machine & Mould
A set of machine tooling, materials used 40Cr
Forming a set of modules, materials used 40Cr, nitriding.
Variable-Frequency Motor : 3KW
Produce speed 5-10m/min
Forming a set of modules, materials used 40Cr, nitriding.
Variable-Frequency Motor : 3KW
Produce speed 5-10m/min

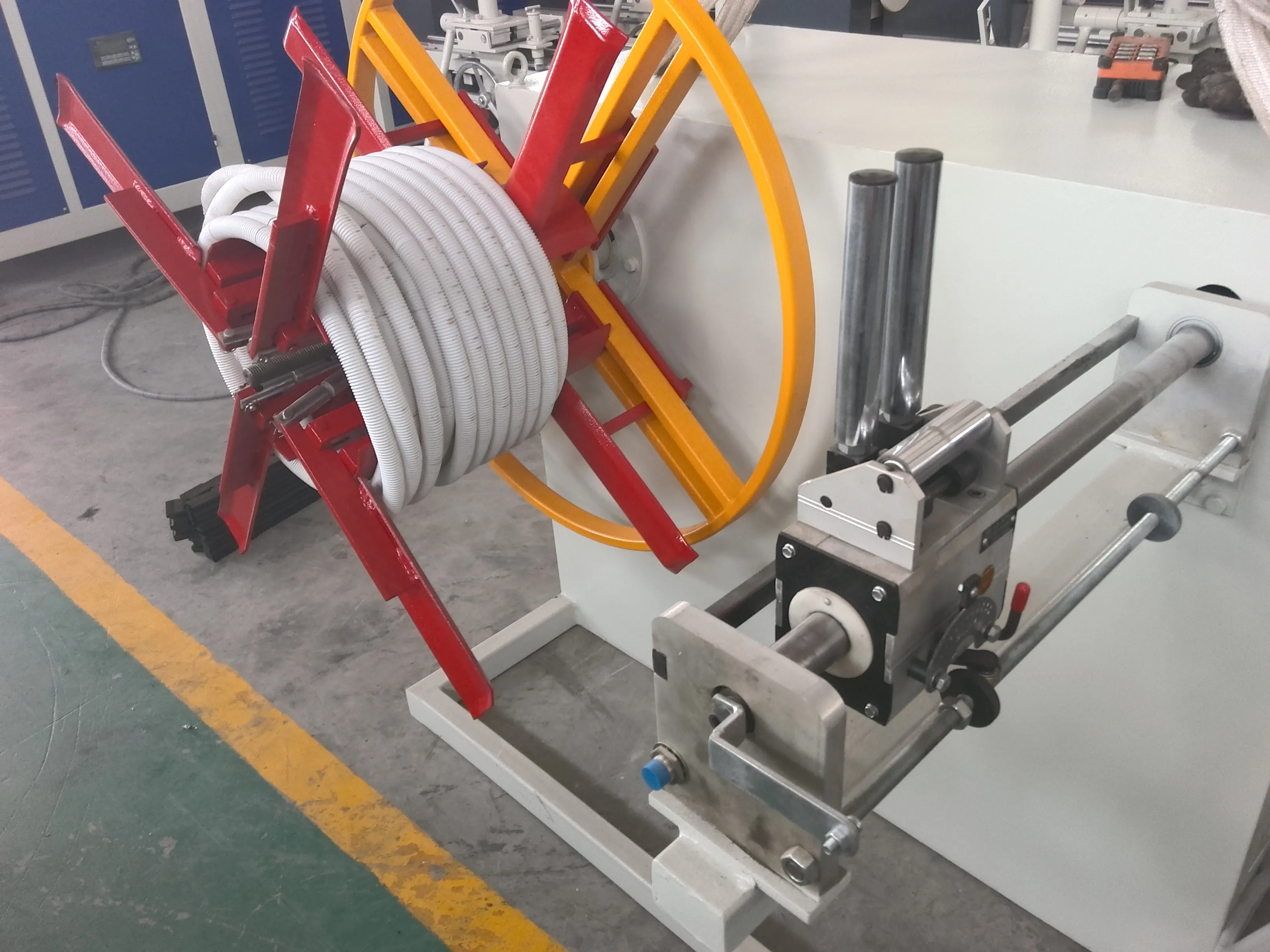

Single-station Winder Machine
Winding speed: 0-12m/min
Motor power: 10N.M
Winding range: 350mm-500mm
Automatic measuring device, measuring precision: <2%
Rolling automatically taken to regulate the winding speed, winding tension of the way: there are two alternate production volumes to ensure the continuity of land. Joint use of pneumatic way.
Motor power: 10N.M
Winding range: 350mm-500mm
Automatic measuring device, measuring precision: <2%
Rolling automatically taken to regulate the winding speed, winding tension of the way: there are two alternate production volumes to ensure the continuity of land. Joint use of pneumatic way.
Model | Diameter rang (mm) | Extruder | Max Output (kg/h) | Max speed(m/min) | Main Power(kw) |
KWX-16 | 5-16 | SJ45 | 50 | 25 | 22 |
KWX-50 | 16-50 | SJ65 | 100 | 25 | 37 |
