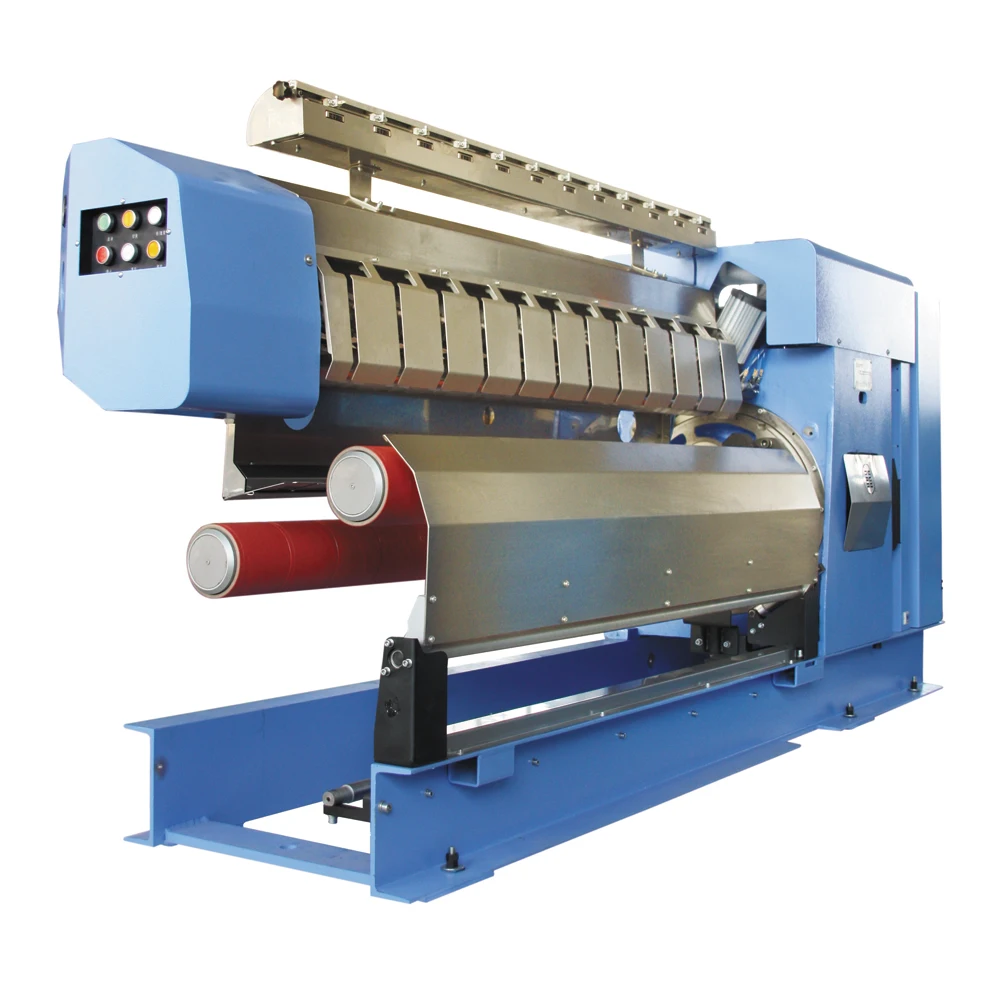

Высокоскоростная намотка для нити с картриджем

Описание и отзывы

Трекер стоимости

Характеристики



1.      It adopt computer intelligentized control, human-computer interface and easy to operate and manage.

2.      Exchange package and doffing are finished automatically, no waste.

3.      It adopt non-clearance reducer case to drive birotor guide, so that it effective improved quality of yarn    cake.

4.      Motor drive contact roller directly and adjust tow tension, more improve package quality.

5.      Contract to make various guide roller, it treats surface of roller according to user’s requirement for spraying

          and electroplating.

6.      We provide and repair various contact roller and guide plate. We provide and repair assembles various

         chucks.

7.      We supply various spare parts of winders not only home-made but also foreign.

Main specification

Item	ZW606A	ZW608	ZW612
Sort	POY or FDY
Winding speed (m/min)	6000	6000	5500
(Max.)dia. of package (mm)	φ420	φ420	φ420
L Bobbin-holder length (mm)	920	1200	1380
D Bobbin-holder diameter  (mm)	φ92	φ110	φ110
Quantity of package	6	8	12
Package volume (dm3)	15.6	16.8	10.6
Stroke length (mm)	120	120	84
Tube size(inner dia. X length) (mm)	φ94X153.3	φ110X150	φ110X115
Traverse mode	BIROTOR
Power (KW)	6	6	8
Dimensions (LXWXH) (mm)	2430X597X1143	2448X611X1200	2928X654X1200

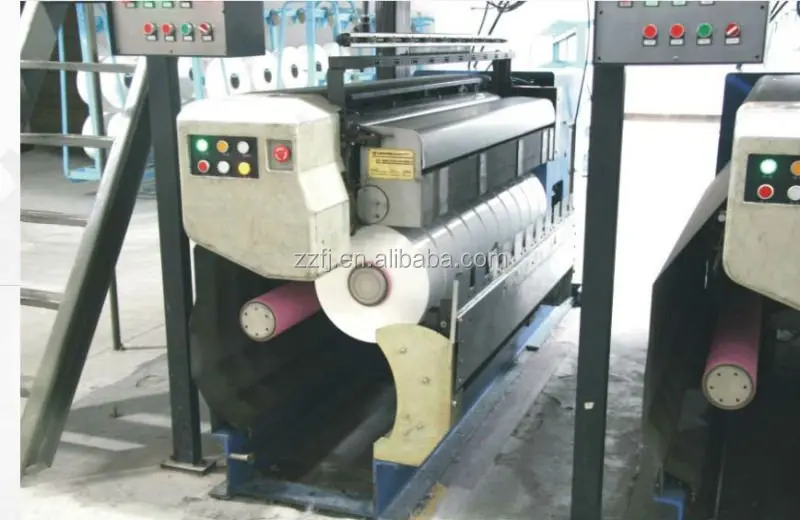

Filament spinning winder







Remote monitoring and diagnostic system
