Высоковольтные электронные компоненты KYN28A12(GZS1) для распределительного

Описание и отзывы

Трекер стоимости

Характеристики

Specification:

No.	Item	Code	Qty
1	bearing	8 × S.263.011	1

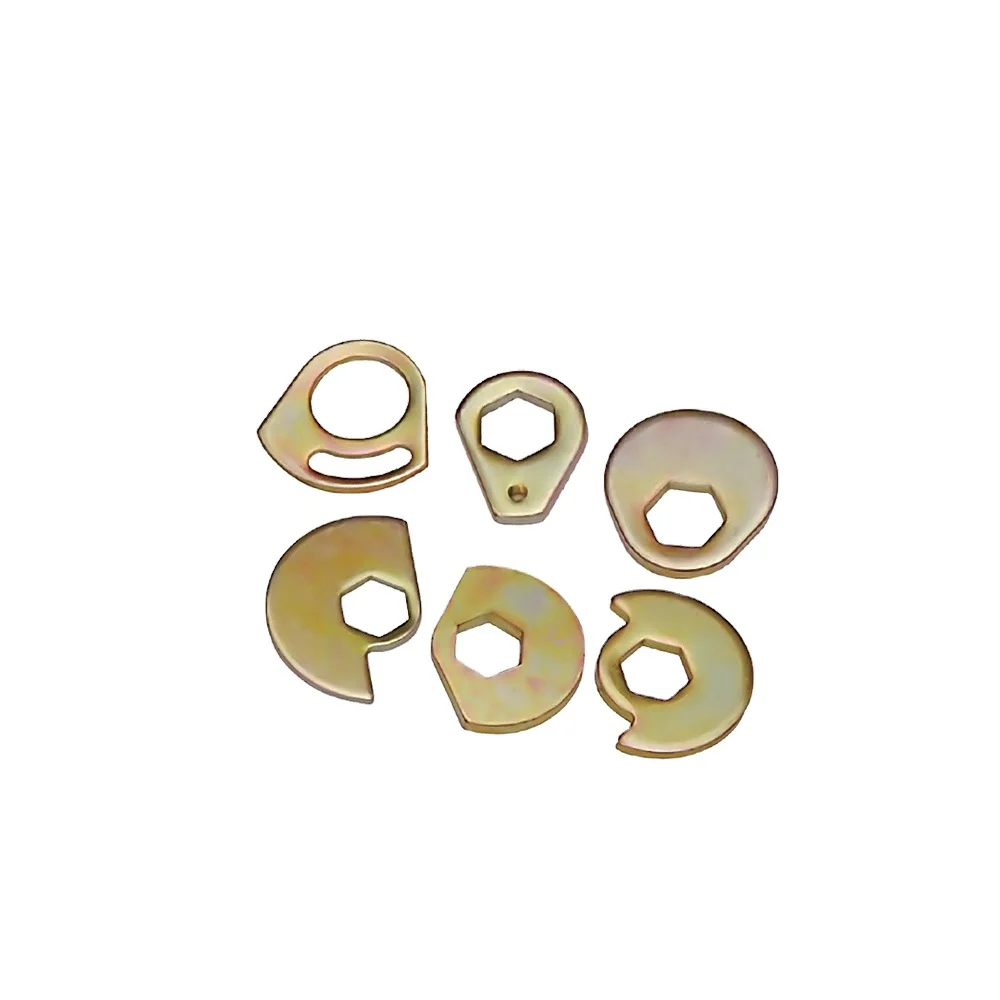

2	sector  board	8 × S.192.010	1
3	sector  board	8 × S.192.011	1
4	shaft sleeve	8 × S.210.014.1	2
5	sector  board	8 × S.151.041	1
6	shaft sleeve	8 × S.211.061	1
7	sector  board	8 × S.151.039	1
8	shaft sleeve	8 × S.211.062	1
9	bolt M5*12	GB70-85	1
10	sector  board	8 × S.151.042	1
11	sector  board	8 × S.151.043	1
12	operating arm	8 × S.200.010.1 (L=1430for1500mm)   8 × S.200.010.2(L=1590for1660mm)	1
13	cover	8 × S.017.011	1
14	bending plate	8 × S.161.058 8 × S.161.58.1(option)	1
15	pedestal	8 × S.043.022	1
16	bending plate	8 × S.161.059	1
17	slide block	8 × S.143.010	2
18	shaft sleeve	8 × S.211.058	1
19	spacing sleeve	8 × S.211.057	3
20	pedestal	8 × S.043.019	1
21	Connecting rod assembly	8 × S.233.030.1 8 × S.233.030.3	1
22	lock sleeve	8 × S.211.059	1
23	flashboard	8 × S.151.044	1
24	shaft sleeve	8 × S.211.060	2
25	scutcheon	8 × S.860.010	1



For disconnecting switch for indoor Connecting with bearing ,fanning strip, sleeve pipe, plate bend, support, slider, stop collar, rating plate



Drawing
