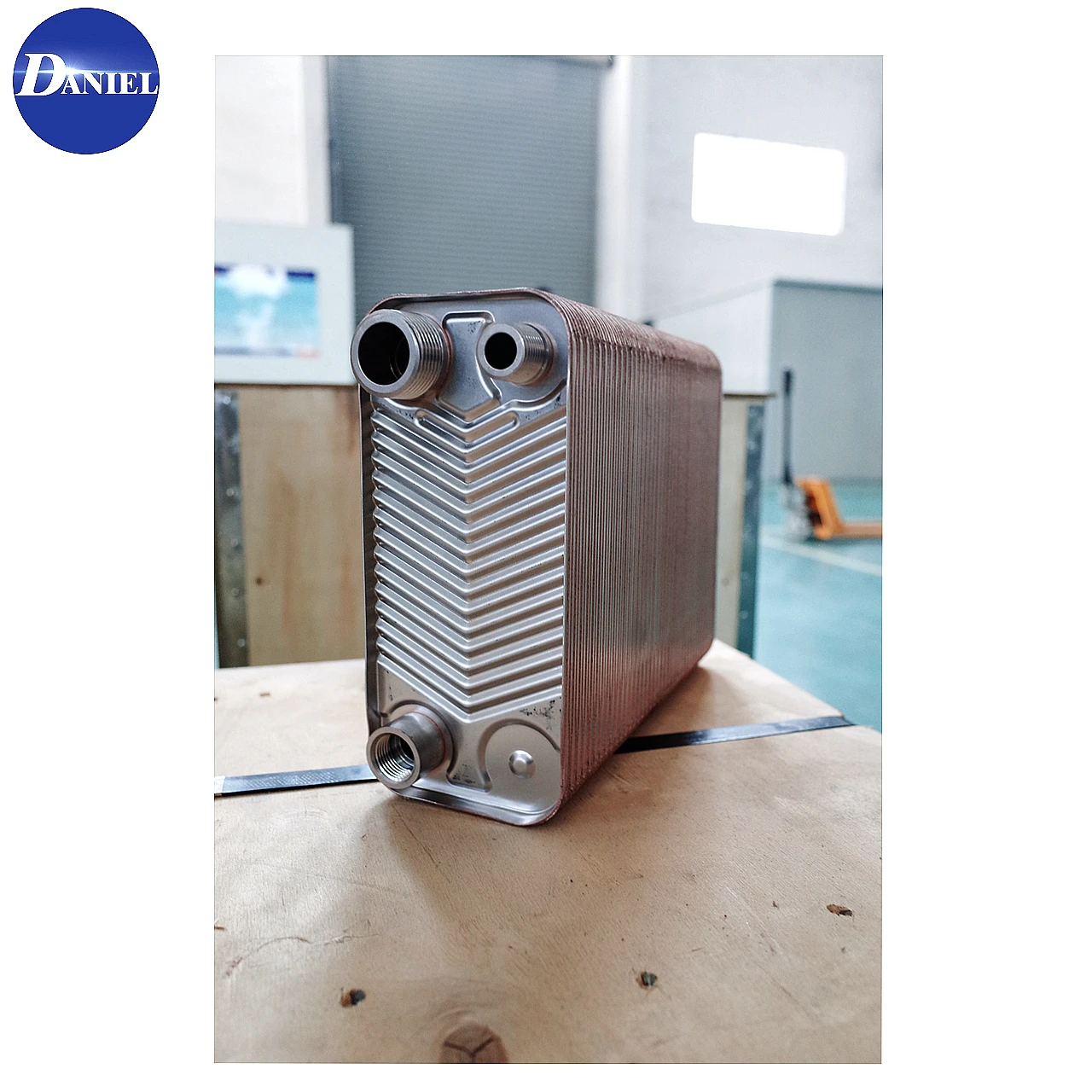

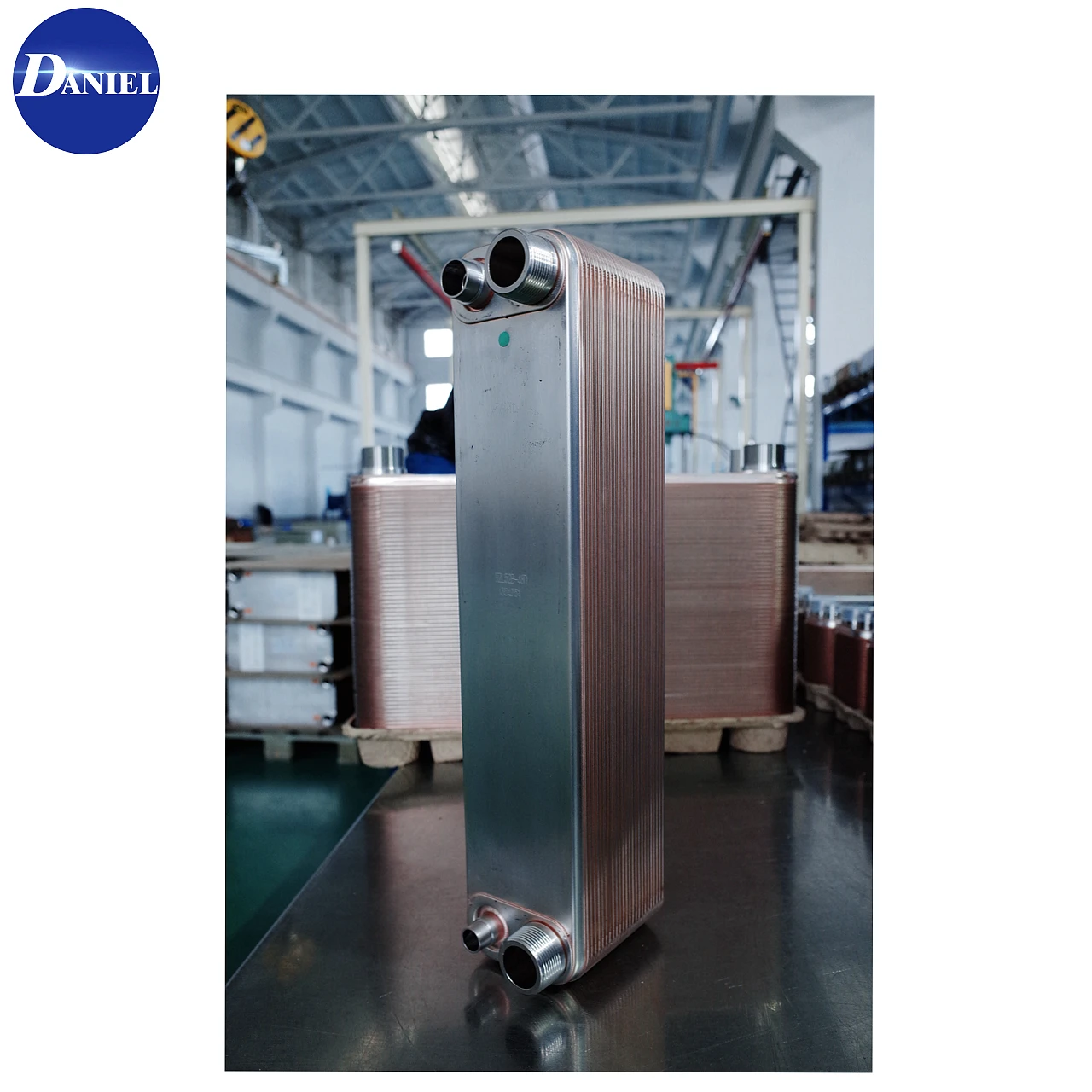

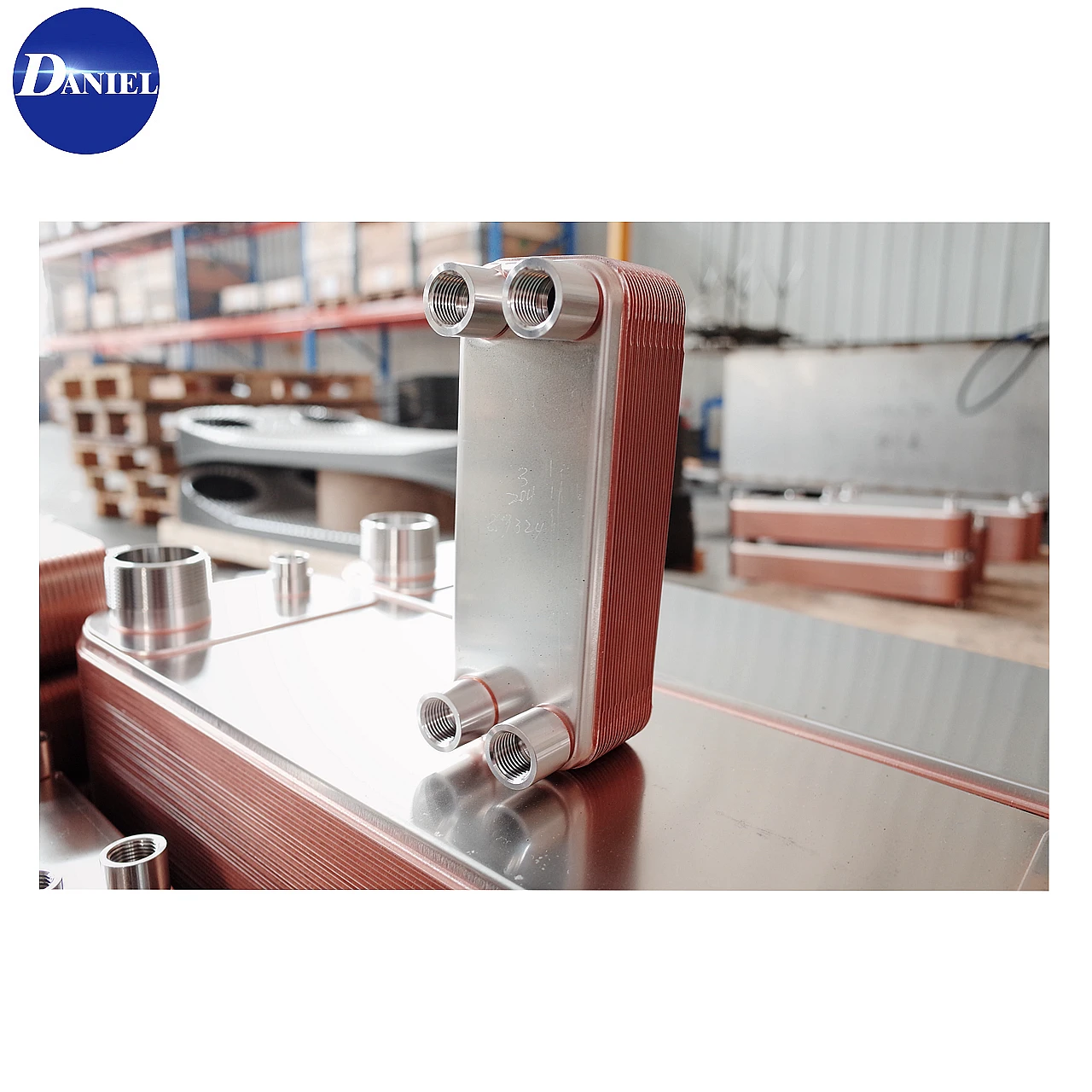

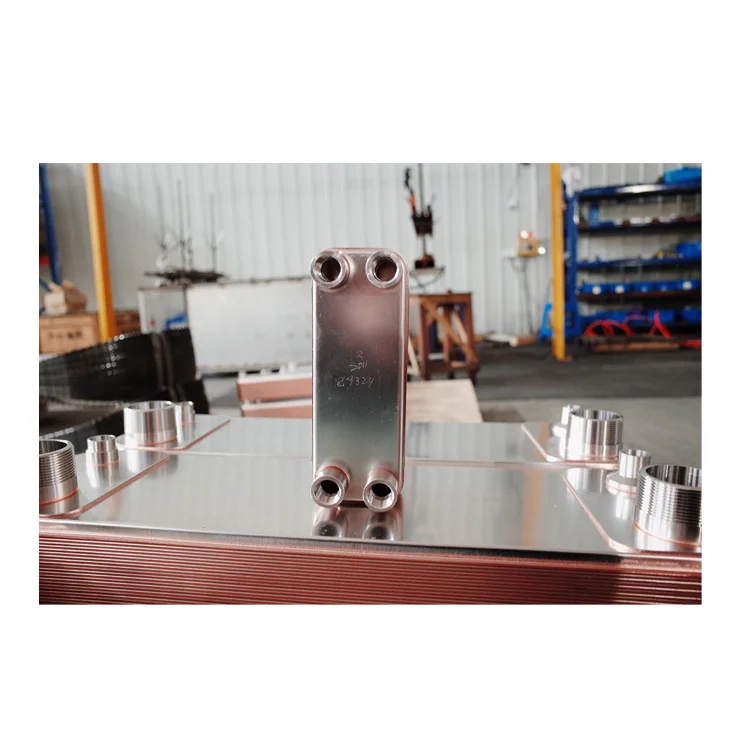

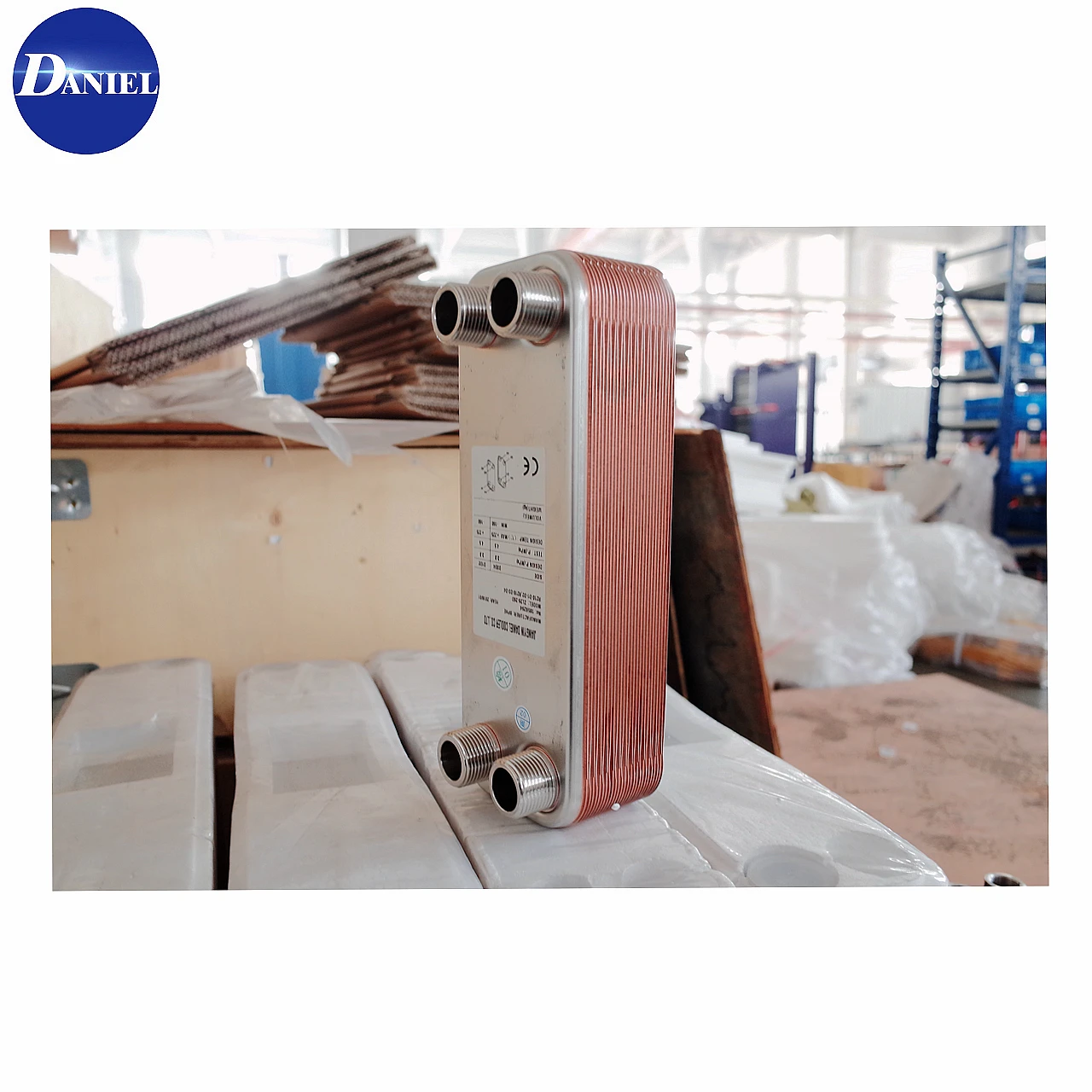

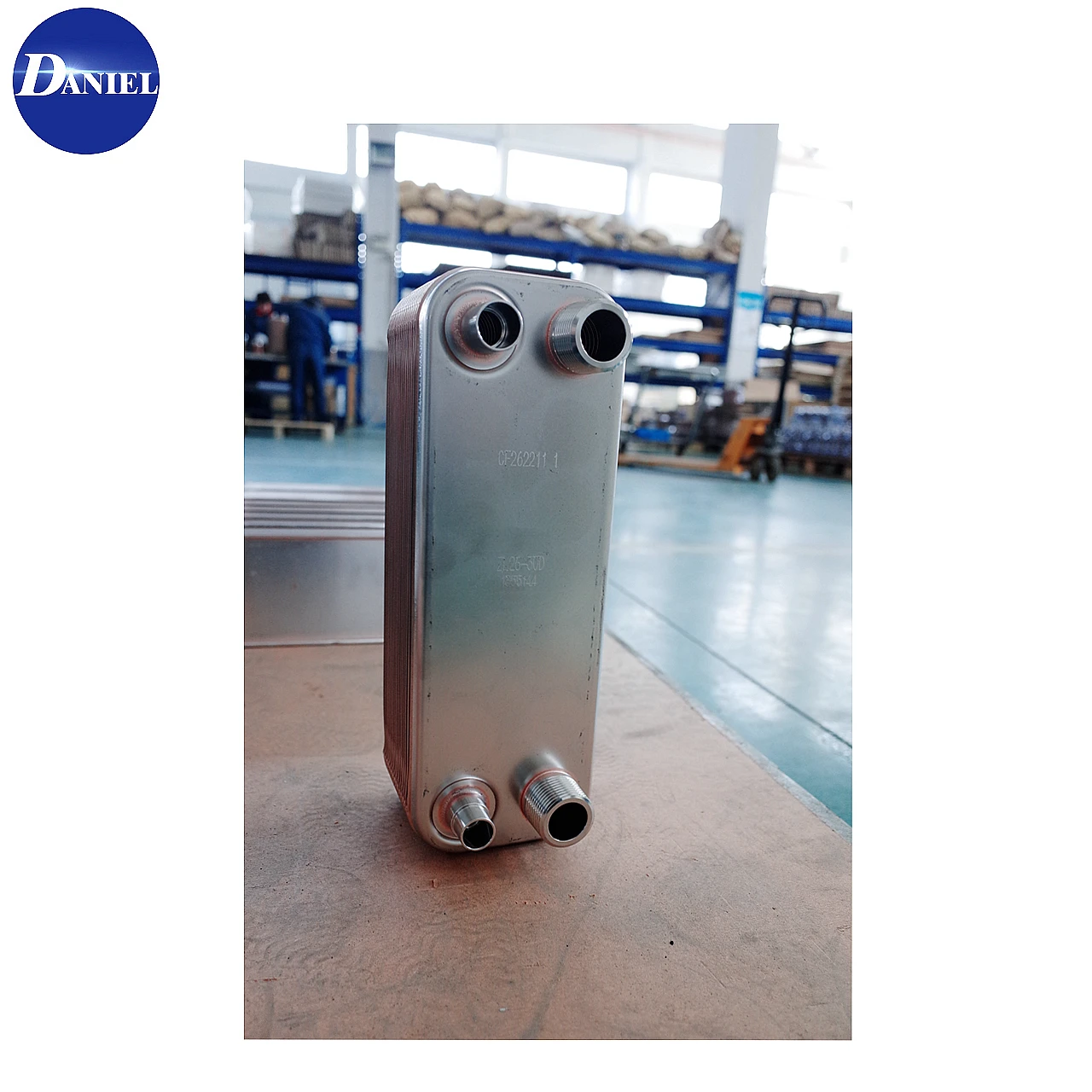

Паяный пластинчатый теплообменник для водяного

Категория: Теплообменник >>>
Поставщик: Jiangyin,Daniel,Cooler,Co.,Ltd.

Цена:4 000,00 $ - 6 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4760.68 $*	4998.91 $*
Aug-19-2025	4720.54 $*	4956.26 $*
Jul-19-2025	3960.15 $*	4158.50 $*
Jun-19-2025	4640.17 $*	4872.74 $*
May-19-2025	4040.68 $*	4242.2 $*
Apr-19-2025	4560.73 $*	4788.10 $*
Mar-19-2025	4520.73 $*	4746.4 $*
Feb-19-2025	4480.48 $*	4704.29 $*
Jan-19-2025	4440.48 $*	4662.41 $*

Характеристики

Product Description1

Packaging Details:	Plywood Box PHE stainless steel beer plate heat exchanger.
Delivery Detail:	Shipped in 7 days after payment

Model	BB30	BB60B/BB60H		BB60T	BB100L
Cross Reference	M3	M6, M6M		TS6M	TL10B
Height, H [mm]	480	920	940	704	1885
Width, W [mm]	180	320	330	400	480
Minstandardlength, L [mm]	400	500	500	530	850
Max standard length, L [mm]	650	1500	1500	1430	2350
Verticalportdisance, VC [mm]	357	640	640	380	1338
Horizontal portdistance, HC [mm]	60	140	140	203	225
Max temperature[℃]	180	180	180	180	160
Max pressure [barg]	16	10	16	16	10
Flange size Pipe	Pipe 1 1/4"	DN50/2"	DN50/2"	DN65/2"	DN100/4"
Max. Flow rate [kg/s]	4	16		20	50
Model	BB100B/BH100H		BB150B/BH150H		BB200H
Cross Reference	M10M, M10B		M15M, M15B		M20M,T20M,T20B
HeigHt. H [mm]	1084	1084	1885	1885	2150
Width, W [mm]	470	470	610	650	750
Min standard length,L [mm]	700	700	1150	1150	1250
Max standard length,L [mm]	2300	2300	2050	3250	3350
Venical portdistance,VC[mm]	719	719	1294	1294	1478
Horizontal port distance, HC [mm]	225	225	298	298	353
Max temparature [℃]	180	180	180	180	180
Max pressure [barg]	10	16	10	16	42659
Flange size	DN100/4"	DN100/4"	DN150/6"	DN150/6"	DN200/8"
Max. flow rate [kg/s]	50		80		225
Model	BB200T	BB250H	BB300H
Cross Reference	TS20M	MX25B	M30
HeigHt. H [mm]	1405	2595	2920
Width, W [mm]	740	920	1190
Min standard length,L [mm]	900	1550	1650
Max standard length,L [mm]	2700	3350	5200
Venical portdistance,VC[mm]	698	1939	1842
Horizontal port distance, HC [mm]	363	439	596
Max temparature	180	180	180
Max pressure [barg]	42659	42659	42659
Flange size	DN200/8"	DN200/DN250/8"/10"	DN300/DN350/12"/14"
Max. flow rate [kg/s]	190	250	250	497

Related Products2

rubber gasket match SONDEX gasket__.jpg

PHE PLATE,PHEGASKET,GASKETED PHE ,BRAZED PHE.

Certifications3

Company Information4

.jpg

Packaging& Shipping5

FAQ6

Q : 1. Can I have a sample order?

A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.

Q : 2. What is the lead time?

A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.

Q : 3. Can you accept mixed batch of different products?

A : Yes,we are support different product mix wholesale.

Q : 4. How do you ship the goods and how long does it take arrive?

A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.

Q : 5. Can you provide container packed in wooden cases if I order more products?

A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.

Q : 6. We want to visit your company?

A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
