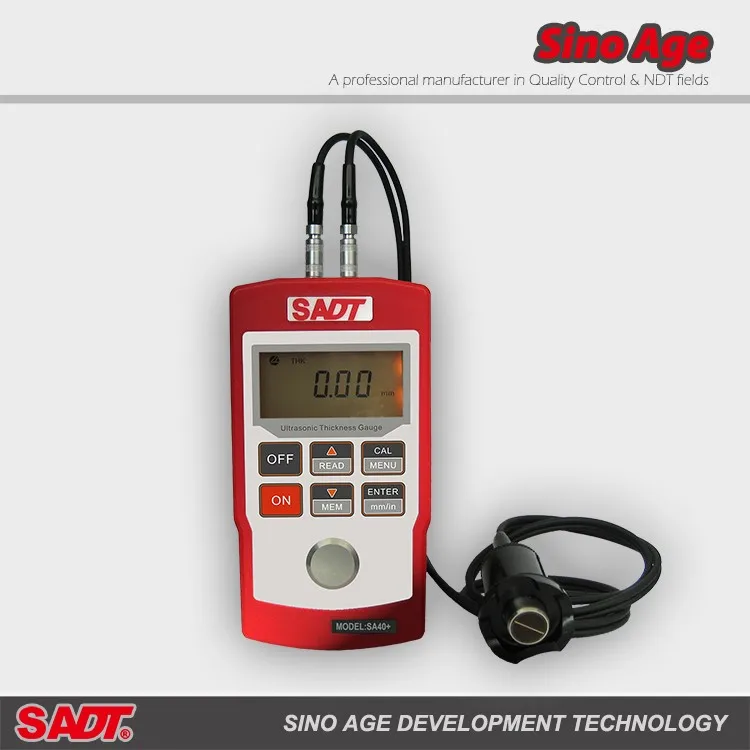

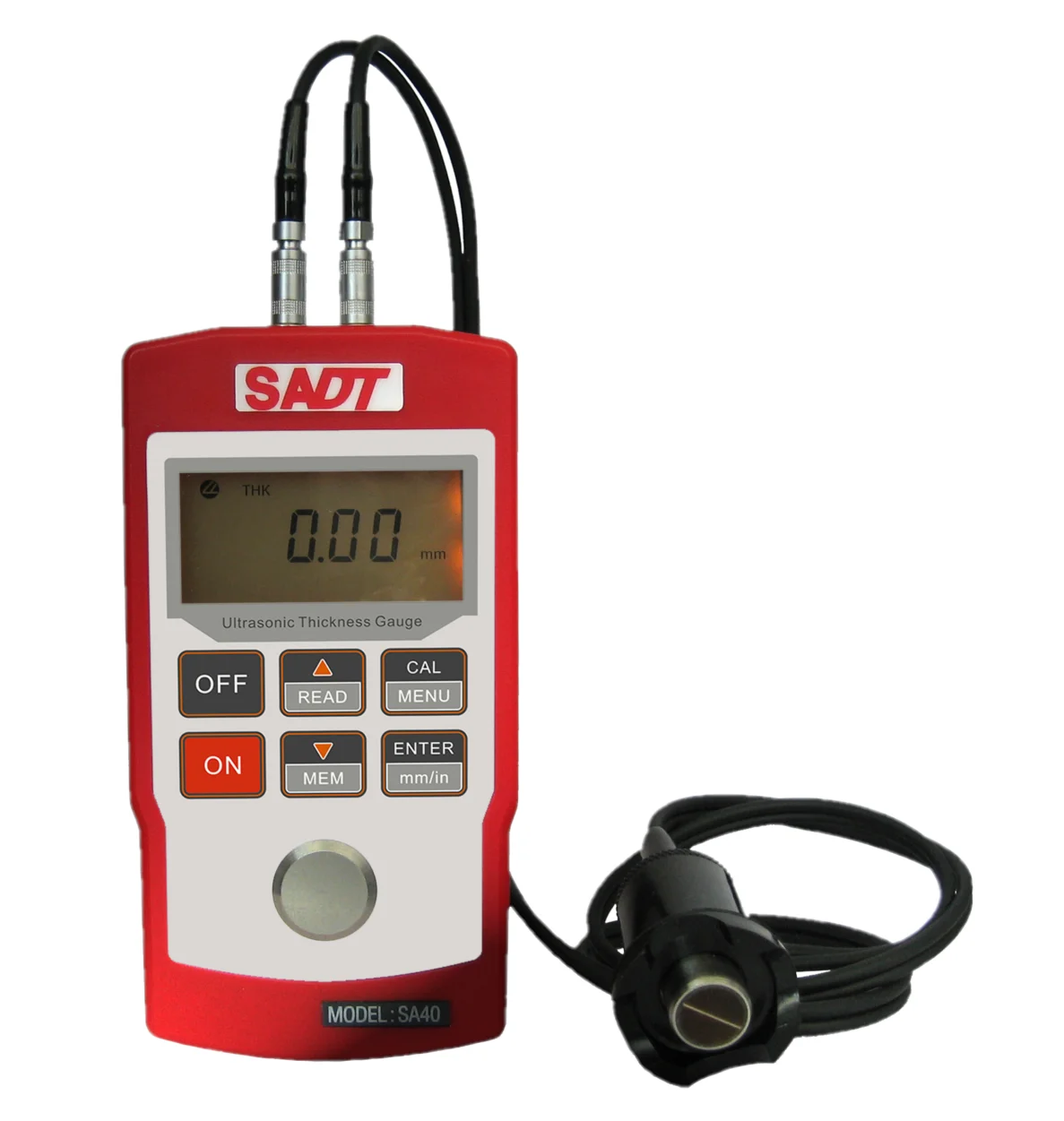

Portable digital ultrasonic thickness gauge SA40 with high accuracy



Introduction:



SA40 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.



 Specifications:



• Technique: pulse echo with dual probe

• Display: 4 digits LCD with backlight

• Measuring range: 0.7 to 300.0mm

• Resolution : 0.01mm 0.8-99.99mm, 0.1mm 100.0-3000mm

• Velocity range: 500-9999m/sec.

• Display circle: 1 sec.

• Coupling indication

• Memory: 400data can be stored and re-readable

• Units: mm or inch

• Low battery indicator on LCD

• Auto shut-off: after 5 min. of non-use

• Power: 2 ea. 1.5V AA alkaline cells

• Operating temperature: 0-40°C

• Operating humidity: 20-90%RH

• Size: 124x67x30mm

• Weight: 240g



Specificiations

Model	SA40
Display	4 Digits LCD
Backlight	Yes
Measuring Range	0.7~300.0mm In Steel With PT-5 Probe
Resolution	0.01mm at 0.70~99.99mm, 0.1mm at100.0~300.0mm
Accuracy	0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)Mm 100.0~300.0 ±(1%+0.1)Mm
Unit	Mm/Inch
Velocity	1000~9999m/S
Coupling Indicator	Yes
Calibration	Auto
Memory	400 Data
Low Battery Indicator	Yes
Working Environment	0~40oC, 20~90%RH
Power Off	Auto
Power Supply	AA Battery X 2
Dimension (Mm)	127x66x29
Net Weight (G)	240
Standard Probe	PT-5

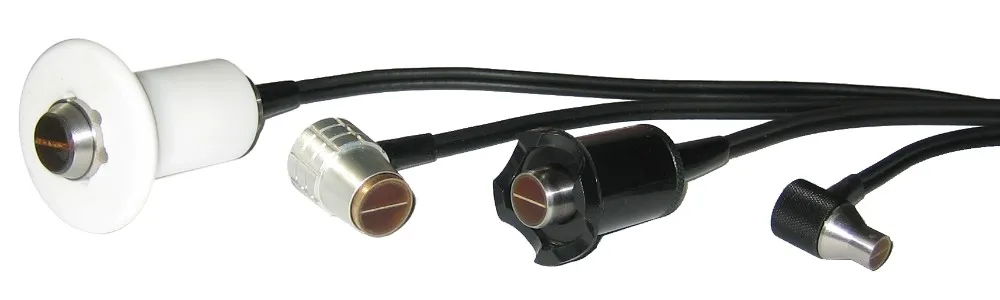

Optional Probes	XT-5 / GT-5 / CT2.5



Standard Package:



SA40+ / SA40 main unit 1

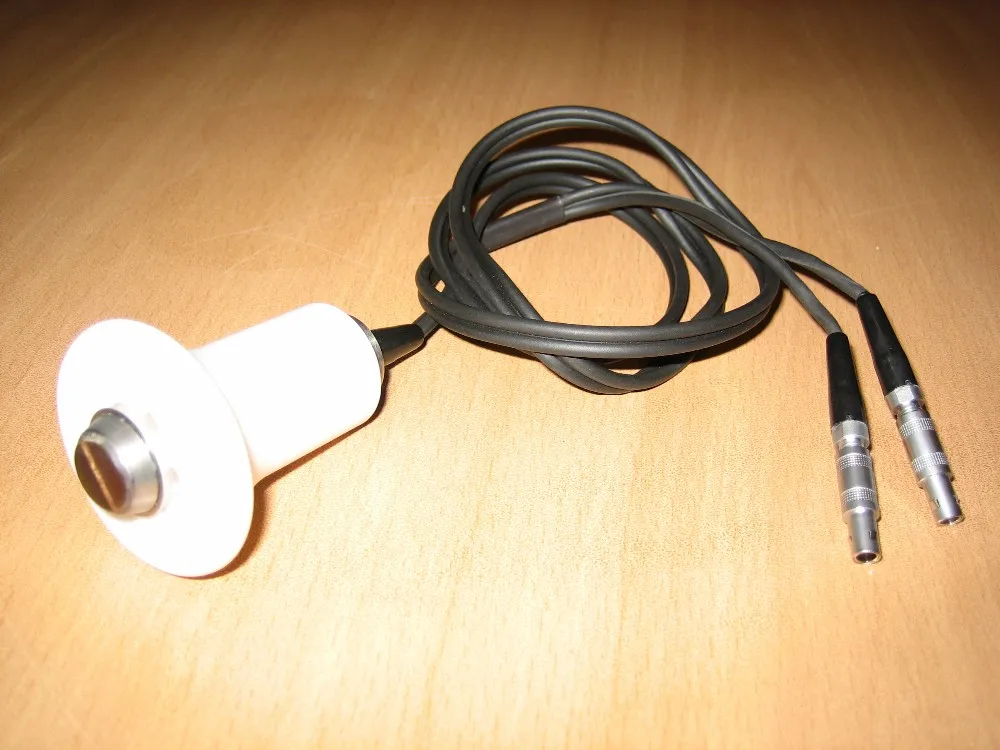

Standard 5MHz probe PT-5 with
probe holder 1
Built-in calibration block 1
Coupling paste for normal temperature
1
Test certificate 1
Operation manual 1
Carrying case 1
