Warner Telecom offer you
turn-key system of outdoor telecom projects :
Summary:

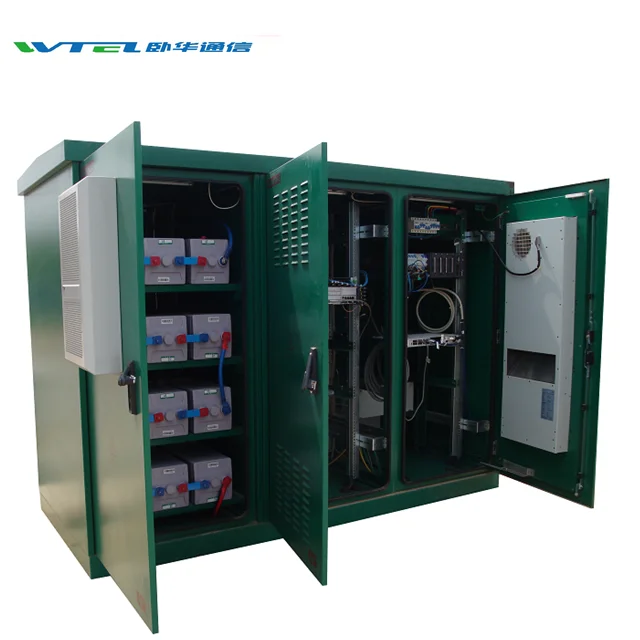

W-TEL-OTC series outdoor telecommunication cabinet is mainly used in the field of traffic, CATV, electric power etc.Can be used under different conditions: gale, rain, snow, hail, frost, smog and solar radiate etc.The main part of the cabinet is made of magnesium and aluminum alloy. It can be last for 30 years of normal use.
Specification:
Cabinet materials: high-quality aluminum alloy and zinc sheet Adapts to frame design of "Sandwich" panel
Temperature management, control system, power supply system, entrance guard, environment supervisory system and wiring unit module
Cabinet meets the requirements of IP65 level of protection
Double layer (with heat insulation layer inside)
Weather resistant & anti-graffiti painting.RAL7035 power coated EMC protection
Corrosion protection.
Vandal proof design with 3 pointing locking system.
Adopt special imported outdoor industrial air- Conditioner/heat-exchanger/TEC/Fan system for cooling control
The perfect earthing system to protect it from thunder.
The enshroud dustproof net is installed in the air circulation system to protect the entry of dust and insects.
Special A4 size material box and unique PC panel, easy maintenance and operating.
Operation of W-TEL outdoor telecom cabinet :
Temperature :-45°to +55°
Humidity : ≤90(30°)
Atmospheric pressure :70-106Pa
Protection : IP65

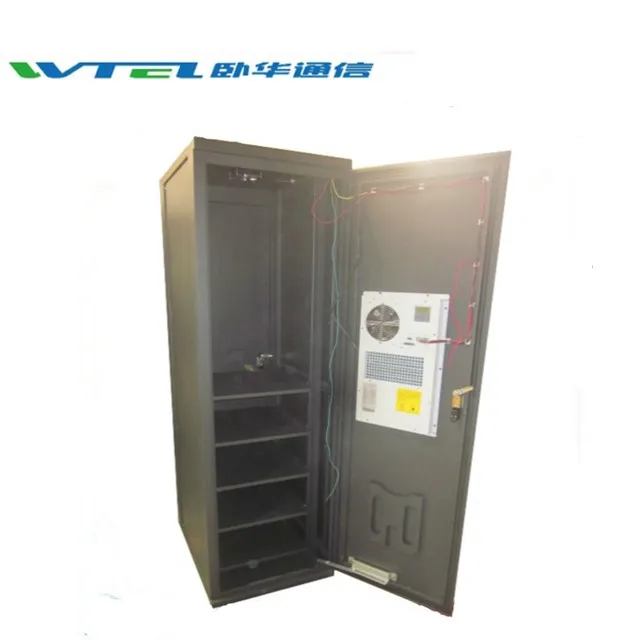

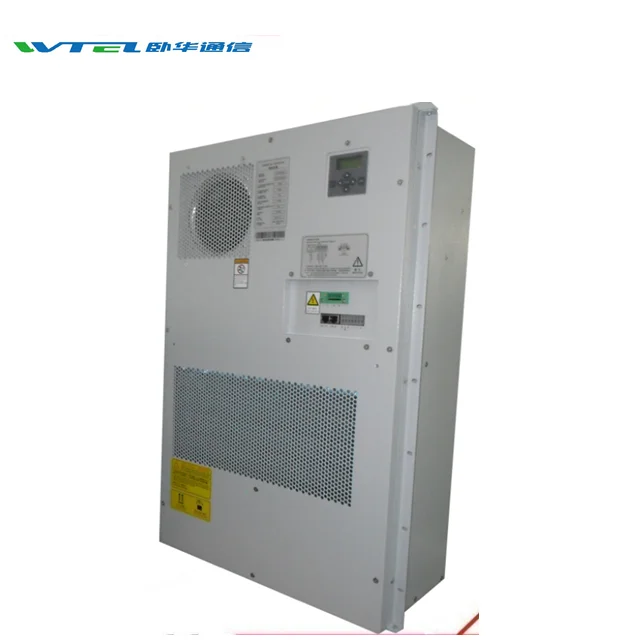

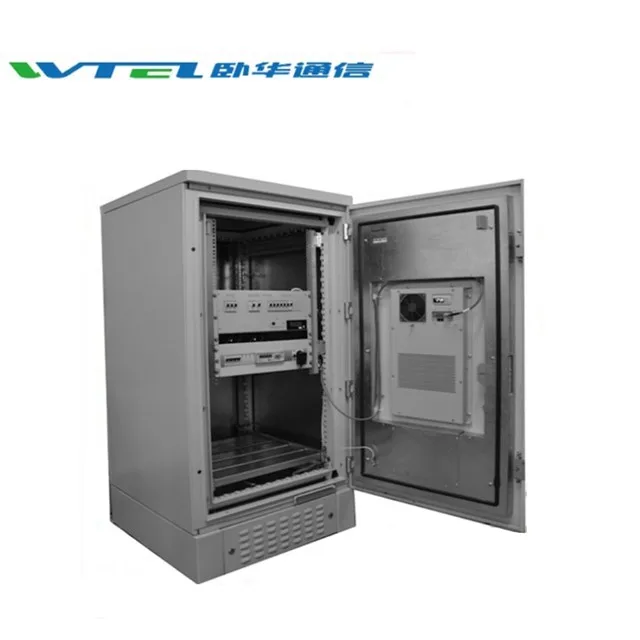

Type 1 < Air-con model >
Air-con cabinet adopts the frames design of "Sandwich", The inner and outer cabinet are all made of high quality aluminum alloy ,zinc sheet covered with aluminum and zinc sheet covered with magnesium with good capability of preservation , which use 3-4 point security locking system from anti-theft safely .The thermal insulation materials en-chased in the component can prevent conductive heat like outdoor ultraviolet radiation from infiltrating into the cabinet , select professional air -con with the modulation of constant temperature and humidity and setting of heating to ensure the cabinet provided with the best operating environment . The inside is composed of standard 19inch rack frame , temperature management and control system , power supply system , entrance guard , environment supervisory system and wiring unit module etc .The cabinet meets the requirement of IP65 level of protection .

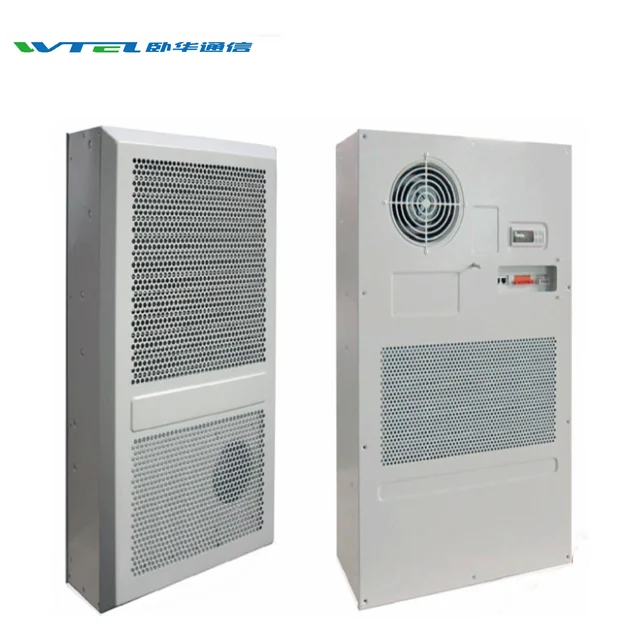

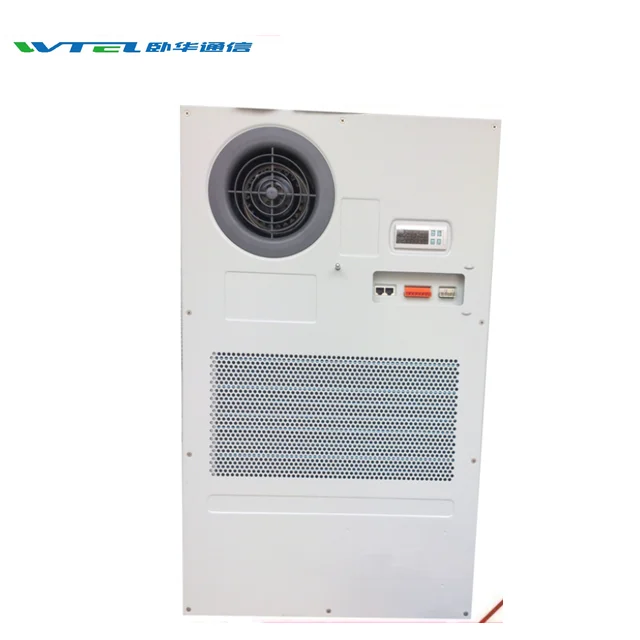

Type 2 < Heat-exchanger model >
Cabinet of heat-ex-changer model adopts the frame design of " Sandwich " panel . and the inner and outer cabinet are all made of high - quality alloy or stainless steel panel with good capacity of preservation . which introduce the 3 point latch-up structure to strengthen the safety of the cabinet . The thermal insulating insulating material en-chased in the component can prevent the conductive heat like outdoor ultraviolet radiation from infiltrating in the cabinet , select heat-ex-changer system with heater to ensure the environment inside of the cabinet meet the requirements of the normal movement of communications equipment , The inside is composed of standard 19-inch frame , temperature management and control system , power supply , door guard , environment monitoring system and wiring system etc . The cabinet meets IP 65 protection level .
Type 3 < Fan model >
Fan model cabinet adopts to sandwich panel and both of the inner and outer are made of high quality aluminum alloy and stainless steel sheet with good capacity of preservation , which introduce the security 3 point locking system for anti-theft . Special thermal material can prevent the outdoor ultraviolet radiation from infiltrating into the cabinet effectively . select the glands trip of special material to ensure the long-term sealing performance of the cabinet , the fan and air out take equipment on the top guarantee timely and high efficient heat emission . Cabinet meets IP65 level .
