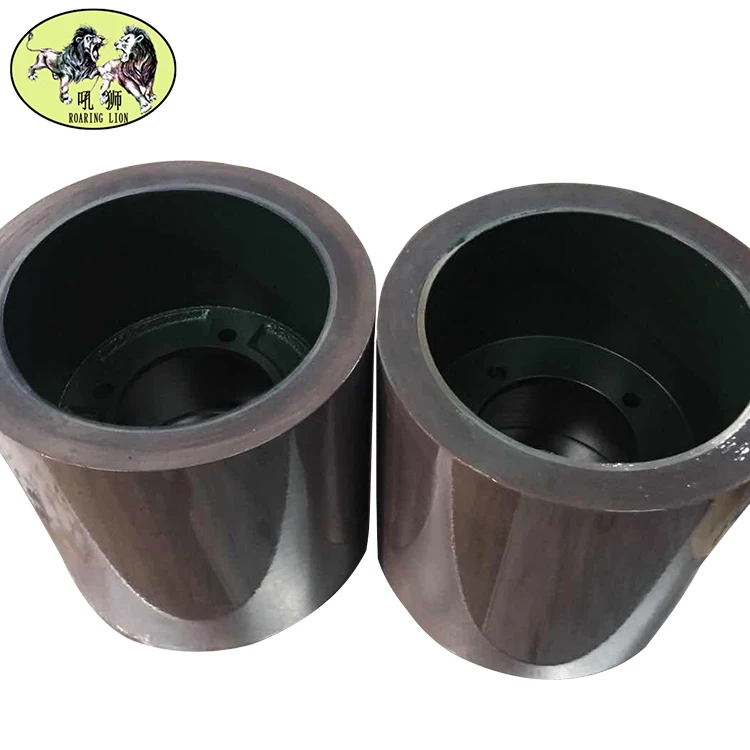

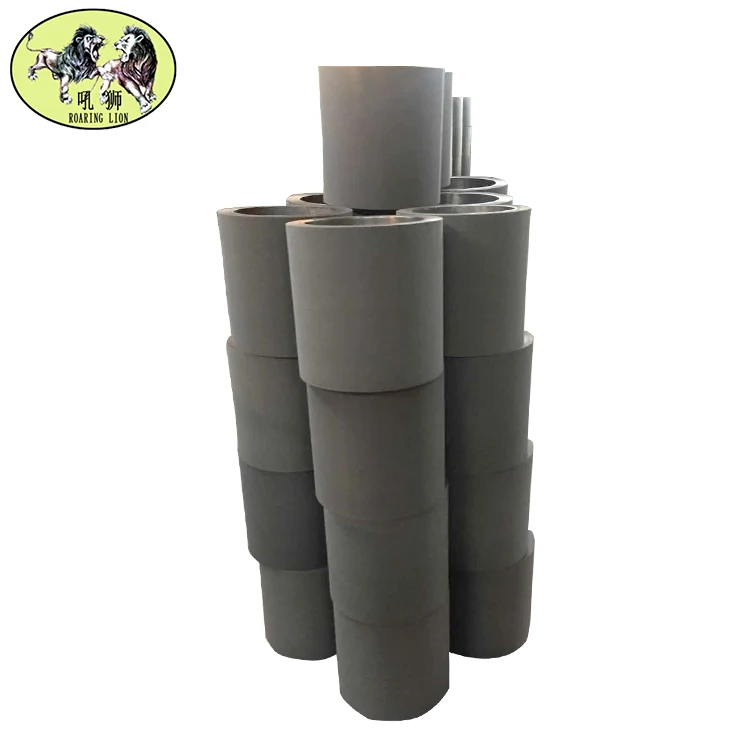

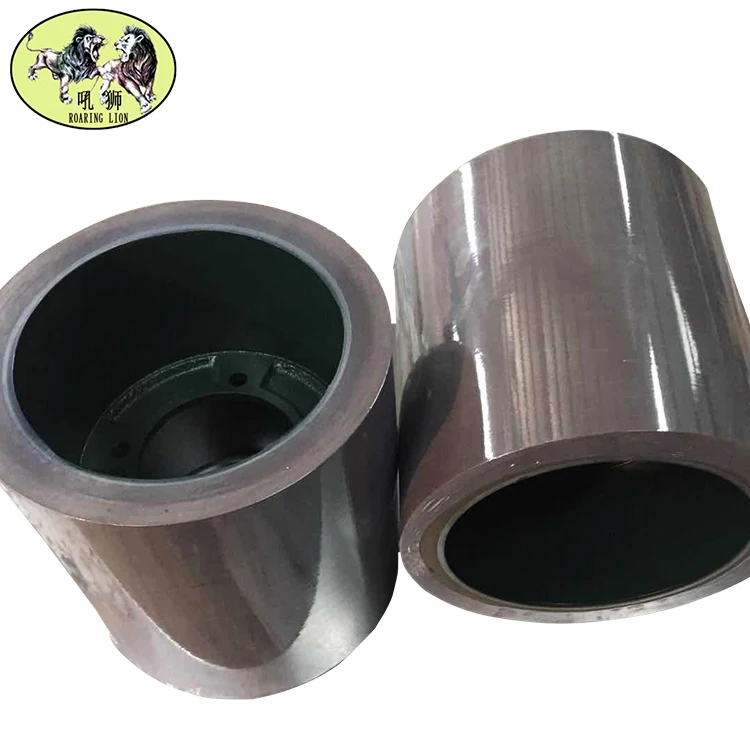

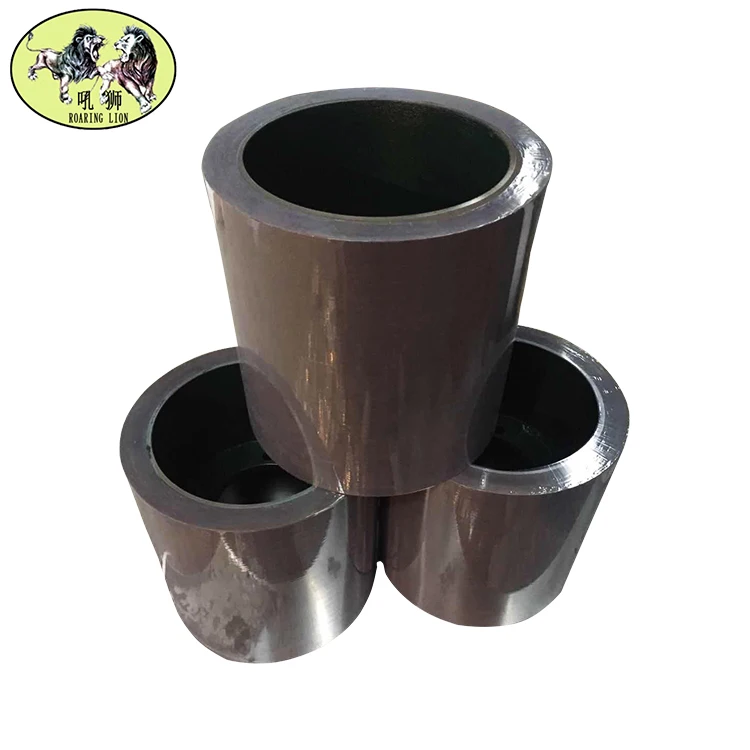

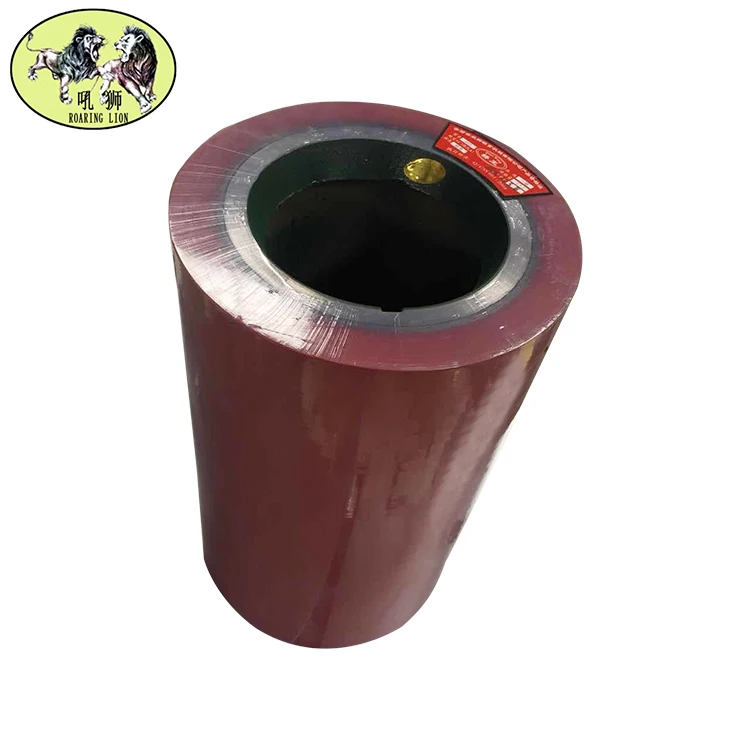

High Quality SBR/NBR/POLY Abrasion resistant rubber polyurethane roller

  Specification of Rubber rollers

Type	Wheel Type
Brand	Roaring lion
Type No	LGL-254
Specifications (inch)	10’
Outside diameter(mm)	255±1
Length (mm)	254±1
Carton size(mm)	520*260*260
G.W(KG)	25.5
Piece per carton (PCS)	2
Hardness(degree)	95±3°
Delivery Time	Three weeks



Brand Name: Roaring Lion, Qiaowang, OEM brand
Size: 4 inches,6 inches,7 inches, 8 inches,10 inches,14 inches,20 inches, 25 inches, 28 inches
Material: SBR, NBR, POLY
Color: Brown, White, Amber



Details:
Chibi Doulbe Lion’s rice rubber roller are made of strong and light iron drum or aluminum drum. The rice rubber roller works steadily with high efficiency, low rate of broken rice;



Rubber Roller Character:

1. Hardness is 90 ~95 degrees;
2. Excellent in heat and abrasion resistance;
3. Offering very strong bonding between rubber and drum;
4. High shelling efficiency up to 95%;
5. The SBR and NBR rice huller rubber roller can be options.
6. Elastic stiffness, Strong plasticity under the high hardness, moderate grain force, high roughness, low cardamine.
7. Good wear resistance, long using period. trong temperature, no climate impact, not deformation, soft, anti-tear at high-speed.
8. Health and non-toxic, no pollution to rice and bran, clean, bright white grain of rice, pure color quality.

Usage:

1. Rice hulling rubber is the main part of rice huller machine, because of speed difference of veer and reversion between two rubber rollers, paddy are torn up by two rubber rollers, in the end, rice grains come out.
2. NBR roller is the 2nd generation of rice huller rubber roller, is adopted 100% NBR rubber materials, the original color is Amber with innocuity, and its outputs will be two or three times more than SBR roller at least.
3. Aluminium drum rubber roller, with its light weight, high concentricity, the wear-resisting performance is good. It makes the machine to reduce the load vibration, and to increase the rubber roller's life.
4. We are pleasure to offer the main styles of hulling rubber rollers in our company. Our enterprise also can design special product according to your individual requirement.

Specification:

Type	Inch	External diameter	Length	Thickness of rubber
Wheel Type	4"	222 mm	100 mm	19.5 mm
	6"	222 mm	152 mm	19.5 mm
	8"	225 mm	200 mm	25 mm
	10"	255 mm	254 mm	24.5mm
Casing Type	14”	227 mm	355 mm	29.5 mm
	18”	232 mm	457 mm	30.5 mm
	20”	258 mm	508 mm	30.5 mm
	25”	255 mm	635mm	30.5mm
	28”	255mm	710mm	30.5mm
Color	White & Brown & ember
Hardness Shore A	95±3°
Tensile Strength	≥21.0(Mpa) [Superior to international advanced level]
Elongation Rate	≥250% [Superior to international advanced level]
Brand	Roaring lion,Qiao wang,Yashi
